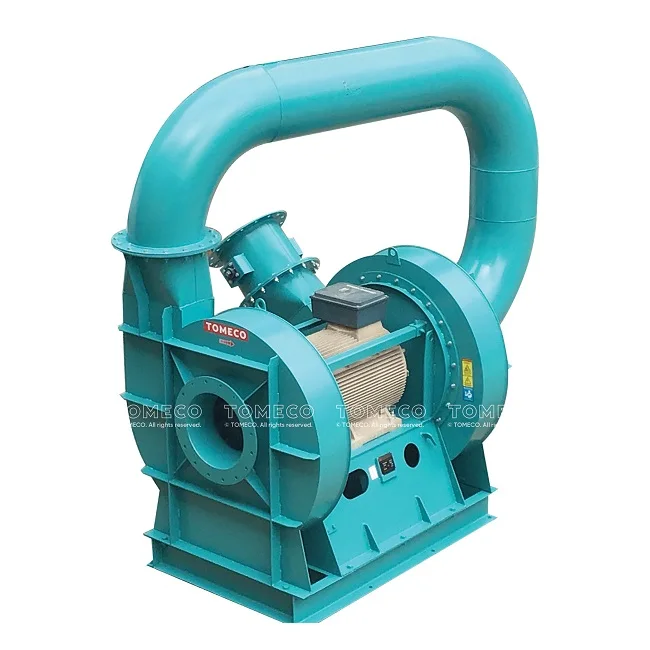

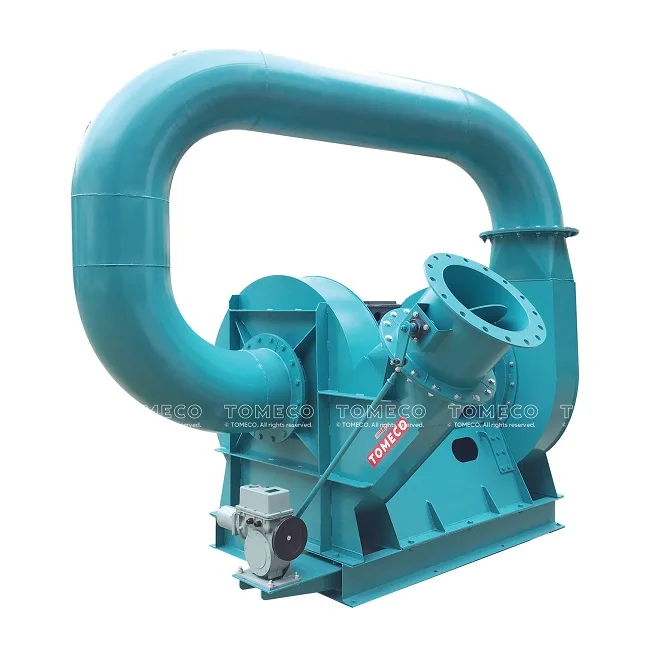

BEST SELLER SUPER HIGH PRESSURE TURBO CENTRIFUGAL FAN DOUBLE STAGES 2XLQ09 SERIES
- Category: >>>
- Supplier: TOMECO MECHANIC ELECTRICAL JOINT STOCK COMPANY
Share on (10000003949290):
Product Overview
Description
Product Photo
Application
SUPER HIGH PRESSURE TURBO CENTRIFUGAL FAN - DOUBLE STAGES 2XLQ09 SERIES designed and manufactured by TOMECO are widely used for:
Use for the suction of clean and dusty air. These types of fans with doubles stage, are characterized by a high out put which allows a certain saving of electric power; by using special types of fan wheels with inverted blades (negative).
They are used for giving oxygen to impure waters, for pneumatic convey, in cement factories, in the mills, in food
factories, in dye works (for the quick drying wool), in ceramic factories (for the pneumatic cleaning of the rooms), in chemical, iron and metallurgical industries where small and medium capacities with very high pressure are required.
The temperature of the fluid sucked in must not exceed 80°C.
Use for the suction of clean and dusty air. These types of fans with doubles stage, are characterized by a high out put which allows a certain saving of electric power; by using special types of fan wheels with inverted blades (negative).
They are used for giving oxygen to impure waters, for pneumatic convey, in cement factories, in the mills, in food
factories, in dye works (for the quick drying wool), in ceramic factories (for the pneumatic cleaning of the rooms), in chemical, iron and metallurgical industries where small and medium capacities with very high pressure are required.
The temperature of the fluid sucked in must not exceed 80°C.
Technical Specifications
Air volume | 600 - 30.000 | m3/h |
Pressure | 13.000 - 47.000 | Pa |
Motor power | 7,5 - 315 | kW |
Speed | 2.960 | RPM |
Impeller diameter | 600 - 1.600 | mm |
Voltage | 380/3/50 | V/Ph/Hz |
CONFIGURATION
Material | SS400/SUS201/SUS304/SUS316 |
Drive type | Direct |
Motor brand | ABB/SIEMENS/WEG/HEM(VIETNAM) |
Motor type | Foot mount - Two shaft end |
Impeller design | Radial high pressure |
Finish | Powder coated, Epoxy coated, hot dip galvanized |
ROTATION AND DISCHARGE POSITION
Accessories
Inlet & outlet flexible duct
Spring vibration isolator
Inlet & outlet silencer
Inlet & outlet damper
