Product Overview

Description


AIR WET POLISHER,SANDER FOR STONE (3600RPM, REAR EXHAUST, ON-OFF SWITCH)





 Model: GPW-220







Pneumatic Wet Stone Sander,Polisher (3600rpm, Rear Exhaust, ON-OFF Switch)

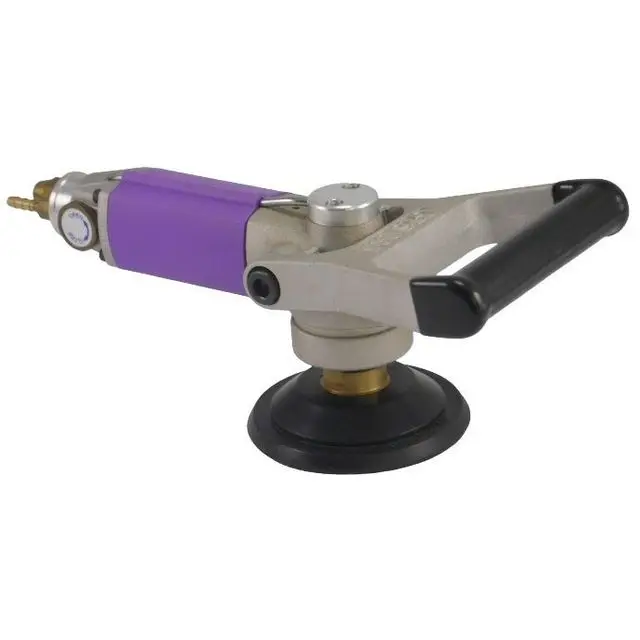

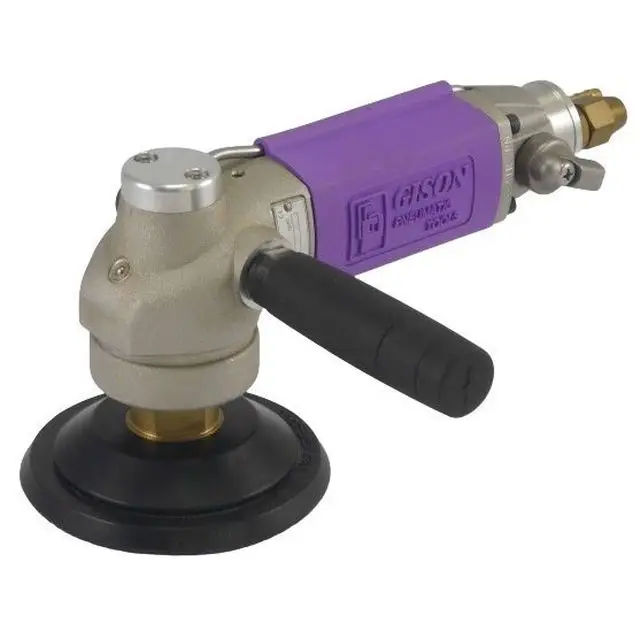

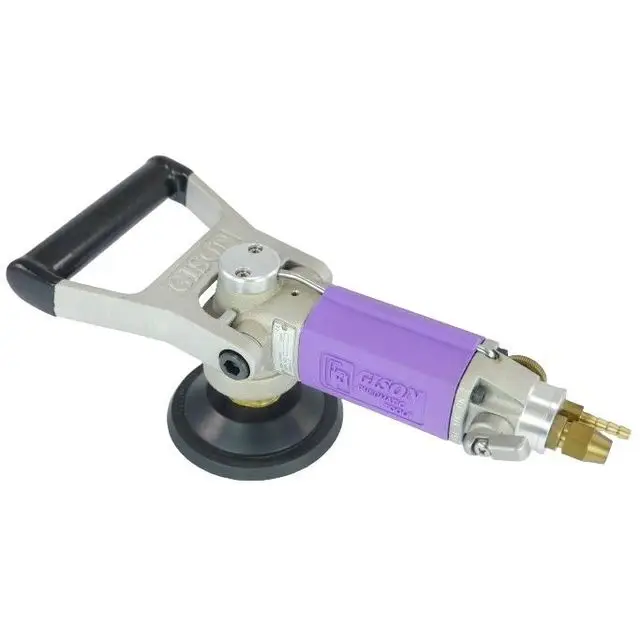

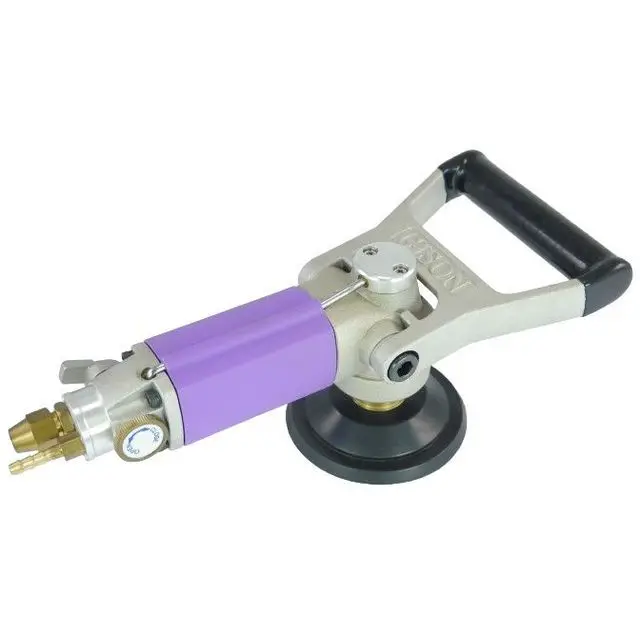

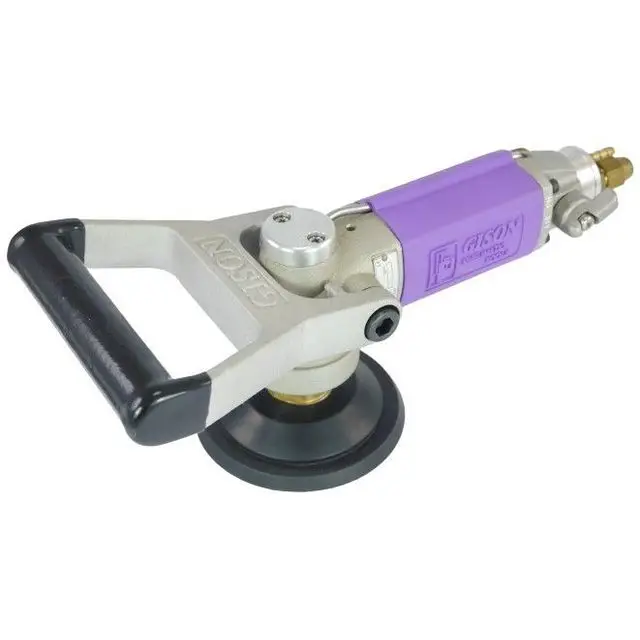

This center water feed GPW-220 3600rpm wet air polisher has a larger cylinder, stronger gear and relatively light wet polisher with ON/OFF switch and rear exhaust. Low vibration and noise with excellent performance.


Pneumatic Water Stone Sanders,Polishers, Air Wet Polisher
Wet Air Stone,Marble,Granite Processing Tools


Air Water Sander
Air Water Polisher
Pneumatic Wet/Waterfeed Stone Polisher

SPECIFICATION



  • Rear Exhaust, ON-OFF Switch

  • Spindle Size : 5/8-11, M14

  • Pad Size : 3" or 4"

  • Max. Free Speed : 3,600 rpm

  • Max. Horse Power : 0.43 HP (321W)

  • Weight : 1.27 kgs

  • Length : 234 mm

  • Air Cons : 0.43 m3/min (15.2 scfm)

  • Hose Size (I.D.) : 6.5 mm(I.D.)

  • Sound Pressure : 84 dBA

  • Vibration : < 2.5 m/sec2

  • Air Pressure : 90 psi (6.3 kg/cm2)

  • Packing (1 Carton) : 8 pcs/1.4 cu.ft/G:22 kgs

  • * with 150 cm Air Hose / Water Hose *


FEATURES



  • * With Larger Cylinder & Stronger Gear than GPW-218

  • Low vibrate and noise with excellent performance.

  • Gravity casting housing carries long duration of tool.

  • Centre water feed function reduces dust, and improves environment protection.

  • Water valve can be adjusted for variable water-flow.

  • Includes a reversible side handle, exhaust muffler, air hose adapter and water valve with hose adapter.

  • Both 3" and 4" pads are available.

  • Lightweight and compactable design are also suitable for single-hand operation.

  • Rubber sleeve keeps hands from getting cold.

  • Don't use polishing pads bigger than 100 mm (4"). The 125 mm (5") is easy to cause damage to the tool.


Auxiliary Base:
Beveling Auxiliary Base(15~45 degree) for Wet Air Polisher  90 degree Edge Polishing Auxiliary Base for Wet Air Polisher


APPLICATIONS



  • The GISON GPW-220 pneumatic wet polishing tool is designed for continuous production applications and improved safety. Cast from aircraft aluminum. The watertight sealed bearings provide long life and smooth rotational speeds. The water and air controls are simple to use and conveniently located. Rear air vent removes exhaust through a hose protector, away from operator's hands.

  • GPW-220 Wet Air Sander / Wet Air Polisher is suitable for sanding / polishing of granite, marble, porcelain and engineered stone, other types of stones and glass fiber (fiberglass). The tool is a poweful, reliable air tool ideally suited for continuous wet polishing in stone industry, and is safer when used wet ! Made in Taiwan.










*Company Information








   Prefessional Manufacturer of Air Tools , Pneumatic Tools.








Founded in 1945, GISON began manufacturing air tools (pneumatic tools) in 1973. GISON has achieved ISO-9001 certification since 1996 and CE declaration since 1995.





With more than 500 models, advanced technology and enthusiastic staff, GISON serve their customers all over the world, especially in Europe.





GISON proudly states that "Wherever industry goes there are GP tools". GISON's goal is to provide the best possible products, reasonable prices combined with impactable service. To this end we direct all our efforts.





GISON's product range comprises Air Impact Wrench and Air Ratchet WrenchAir GrinderAir SanderAir PolisherAir Wet Abrasive ToolAir Die GrinderAir Micro grinderAir ScrewdriverAir DrillAir Hydraulic RiveterAir HammerAir Needle ScalerAir Flux ChipperAir Cutting ToolAir Stapler,Air NailerAir Blow Gun and other accessories.















   Company History Of GISON Air Tools

GISON Machinery Co., Ltd. was established in 1973 and manufacturing gears for auto and pneumatic parts. In year 1977, as a result of the market demand of professional pneumatic tools in overseas, GISON began producing pneumatic tools and also it was the first companyAir Tools production in Taiwan.







   Market Development




For being the symbol of Quality Assurance, Gison registered GP brand in more than 20 countries.


Gison participates international Hardware Shows every year, and advertises regularly in professional hardware magazines and internet.





Gison keeps making great efforts and creates excellent reputation all over the world. The main market lies in Europe, America, Central & South America, Australia, Africa, Middle East and Asia.





We realize that Gison will be becoming one of the top brands in the near future and reach the goal "Wherever industry goes, there are GP pneumatic tools".





With over 30 years experience in export, GISON has gained respectable reputation and our customers look to us for GISON Air Tools for Stone Industry (Masonry) Catalog Cover





• On-time & prompt delivery.
• Accept orders of mixed models with small quantities.
• Extensive production range.
• Catch the customers' technical demand for the tools due to well professional knowledge.
• Sufficient consuming parts efficiently meet Customers' demand of repairing tools.
• Serving customer world wide, GP tools have been recognized by tremendous users.
• Take into serious consideration on each customer's complain and solve it responsibly.


















*Download Catalogues








   e-Catalogues Of GISON's Air Tools




GISON Machinery Co.,Ltd. specializes in Manufacture, Supply and Export Air Tool, Air Tools, Pneumatic Tool, Pneumatic Tools, with a factory in Taiwan for more than 40 years. It has always been our focus to manufacture the finest Air Tools / Pneumatic Tools and to deliver them on time with attentive after-sales service. Enquiries from Air Tools global wholesalers, distributors, buyers, agents and Air Tools OEM/ODM are welcome. If you are interested in our Air Tool, Air Tools, Pneumatic Tool, Pneumatic Tools, please contact us now.















Download e-Catalogues >>










*Awards/Certificates








   CE , SGS , SOE  ...




GISON specializes in designing and manufacturing air tools for over 40 years. Aim to produce high quality air tools / pneumatic tools and supply best products to customers, GISON installs new equipment and updates software for improving and developing products. Most importantly, GISON has achieved CE declaration and ISO-9001 certification since 1996.





GISON insists on continuous innovation, reasonable price, best products and excellent after-sale service, also keeps making all the efforts to reach the targets.















*Production / QC








   Company Procedure in Production Of GISON Air Tools




In order to provide superior quality products to customers, Gison only cooperates with parts suppliers who have professional expertise and advanced technology in the specific field which includes: precision casting, mechanized processing, heat treatment, precision grinding, surface treatment ... etc. All the teams aim to produce quality pneumatic tools, and create new professional skills in their fields.









For those important parts, Gison imports Alloy directly from foreign companies and machining parts utilizing Automatic Machines in the own factory. This accomplishes requirements of precise parts and ensures the quality of product. Every part or final product is carefully protected to avoid damage during transportation and storage.





Skillful & well-trained personnel are responsible for quality check on their own working objects, thus, our products is rather stable in both quality and production capacity.











   Company Quality Control Of GISON Air Tools




To strictly control the quality of parts in every processing stage, Gison and the parts suppliers accomplish the Quality Control according to the same inspection standard by using precision instruments. Every staff in Q&C department. is well trained and qualified.















GISON Product Testing Video >>




The instruments are analyzed and adjusted regularly by professional organization to ensure correct and efficient parts examination. To ensure the quality of parts, First inspection, Inspection on the spot and Inspection by sampling are required during parts production. Final product testing is the most important stage before offering perfect air tools to customers.











   Q.C / PRODUCTION





We get material of the most significant from Japan to ensure our quality stability and accuracy. 43 models of our product have obtained GS-TUV approval and CE is declared since 1996. Our quality system has been certified under ISO-9001 standards since 1996, and that allows us to maintain the quality of our products. SGS IS-9001 Logo CE Mark With extensive product knowledge, stable workforce along with reliable & dedicated performance, GISON seeks to provide the best possible & most reliable products to you directs all the efforts to reach our goal.





• Superior quality you can always trust
• Best price for best competitiveness
• Professional skill on which you can rely
• Pioneer products to keep ahead of others
• Quick service-after-sale to keep you always satisfied








*FAQ








   Factors Relate To Adequate Air Flow







































































1A hose of excessive length and / or insufficient diameter can restrict the air flow.
2If you are using an air tool on a hose over 25 ft (7.6 M). long,
it is advisable to increase the bore of the hose to the next larger size available, ie. 1/4” increase to 3/8”.
This will ensure adequate pressure and volume of air to power the machine.
3Usage of air inline filter / regulator
4Total number of air connections / fitting being used
5Prevent any blockage of air flow. Maintain adequate air flow.
6Remove or reduce condensation from the air supply.
7Regular check for leaks in all piping, joints, drains, relief valves, flexible hoses.
8Water in the compressor tank will cause serious corrosion to your air tools and should be drained daily to
avoid excessive water in your air supply. Dirty wet air will rapidly shorten the life of your air tools.
9Supply tool with 90 psi (6.2 bar) of clean, dry air. Higher pressure drastically reduces tool life.
10Do not install a quick coupler directly into the tool throttle handle.
11Prevent contaminates from entering the air motor.
12Every day before use, remove the tool from air line and pour 20 cc suitable motor lubricating oil into Air Inlet.
Run the tool for few seconds to allow air to circulate the oil and well lubricate the cylinder.
This will ensure top performance and maximum durability of tool.
13Lubrication : Use an air line lubricator with SAE#10 oil, adjusted to 2 ~ 3 drops per minute. If an air line lubricator can not be used,
add air motor oil to the inlet before and after use. Gears, bearing, sleeves, and sliders need to be lubricated as well.
14Dissemble and inspect air motor and governor assembly every 3 months if the tool is used every day.
Replace damaged or worn parts.
15Use original factory supplied tools, spare parts and accessories.
16Do not alter or modify the unit from the Original design or function.
