Wholesale 450/750 CU/PVC/PVC 4 cores round wires with 2 layers of voltage insulation (1.0mm)

Share on (10000003992792):


Price:

Quantity:


Product Overview

Description



Product Description


Product performance description
High quality standard 4mm2 solar cable electrical cable wire cable (H1Z2Z2-K-1,5 kVDC)
Solar Cable 43 COMPANY - BQP is specially designed to connect the current from the photovoltaic panels to each other and from the photovoltaic panels to the AC converter; suitable for indoor and outdoor use.




Product Name

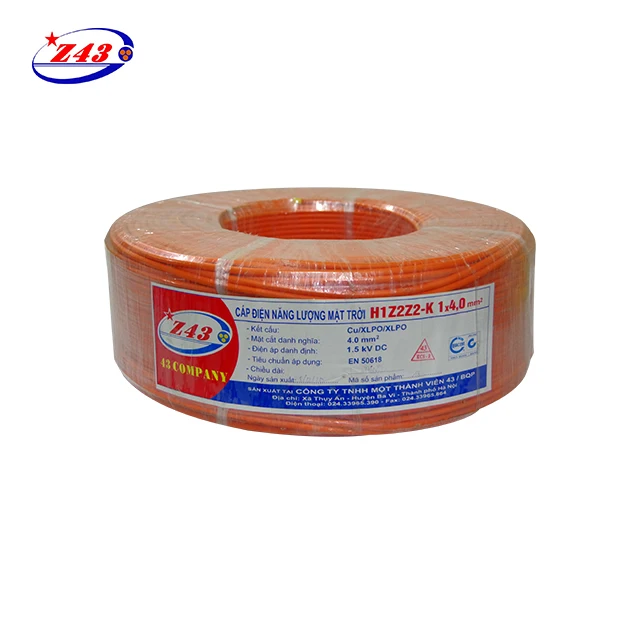

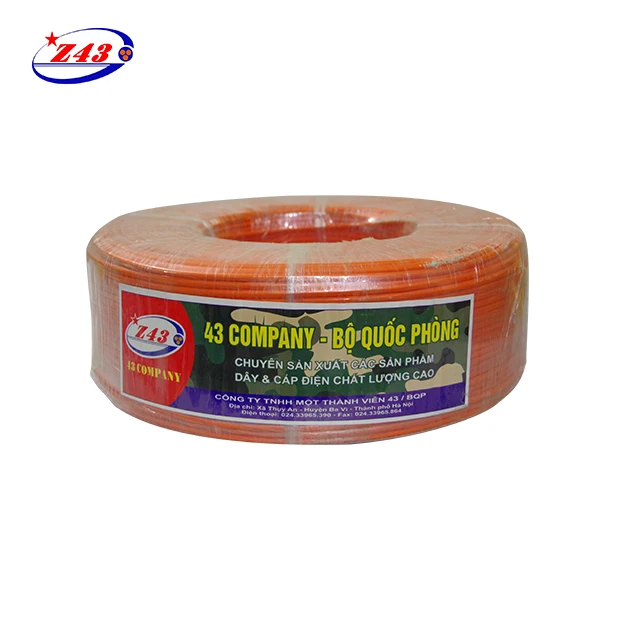

Solar cable (H1Z2Z2-K-1.5_kVDC) 1x4mm2 COMPANY-BQP
Origin
Vietnam
Brand
43 COMPANY - BQP
Payment method
L/C
Delivery time
Depends on volume
Product Decription
Solar cable (H1Z2Z2-K-1.5_kVDC) 1x4mm2 COMPANY-BQP - Solar Cable 43 COMPANY - BQP is specially designed to connect the current
from the photovoltaic panels to each other and from the photovoltaic panels to the AC converter; suitable for indoor and outdoor
use. - Technical standards for electrical conductivity and heat resistance... according to IEC 60754-1, 2; IEC 61034-2;
IEC60332-1-2; EN 50618; IEC FDIS 62930
- Wire characteristics (CU/XLPO/XLPO)

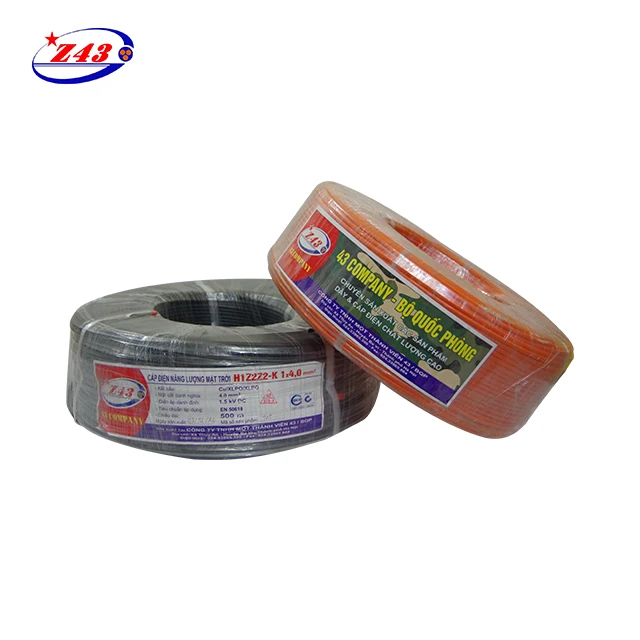

+ Color: Black, Orange

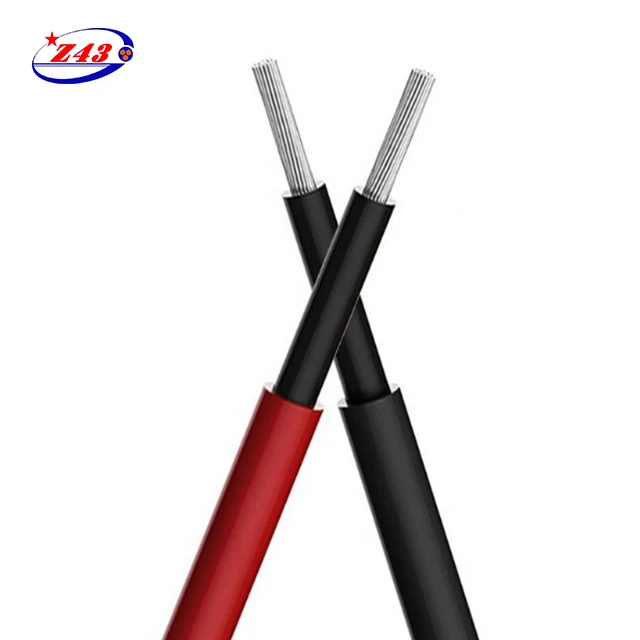

+ Conductor: made from tin-plated copper wires, according to IEC 60228 Class 5. The material is difficult to oxidize, well
resistant to the external environment.
+ Shell: XLPO coated from good, safe insulating material, Long-term working temperature of conductors: 90 0C, Maximum allowable
working temperature for 20 000 hours: 120 0C, capable of auto-off after when removing the fire source.

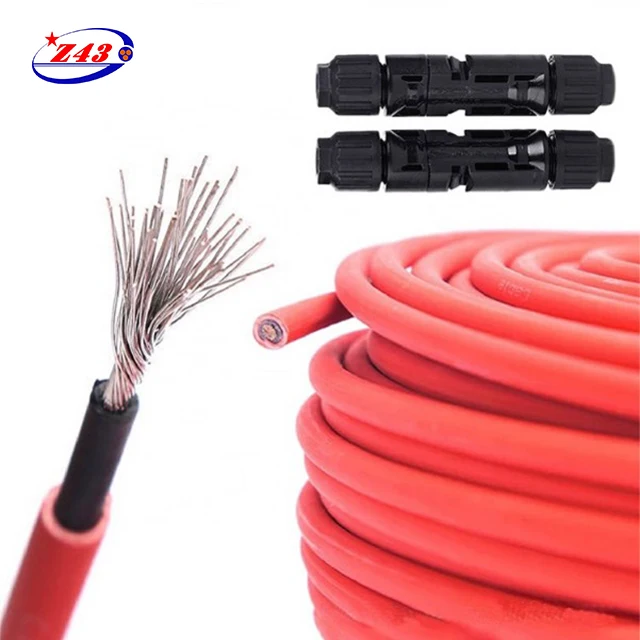

Texture: 56 round braided tin-plated copper threads.
+ Nominal voltage: 600/1000V
+ Model form: Round shape.
+ Packing: Depending on customer needs
Packing and Delivery
As Per International Standard










Recommend Products




Product Categories

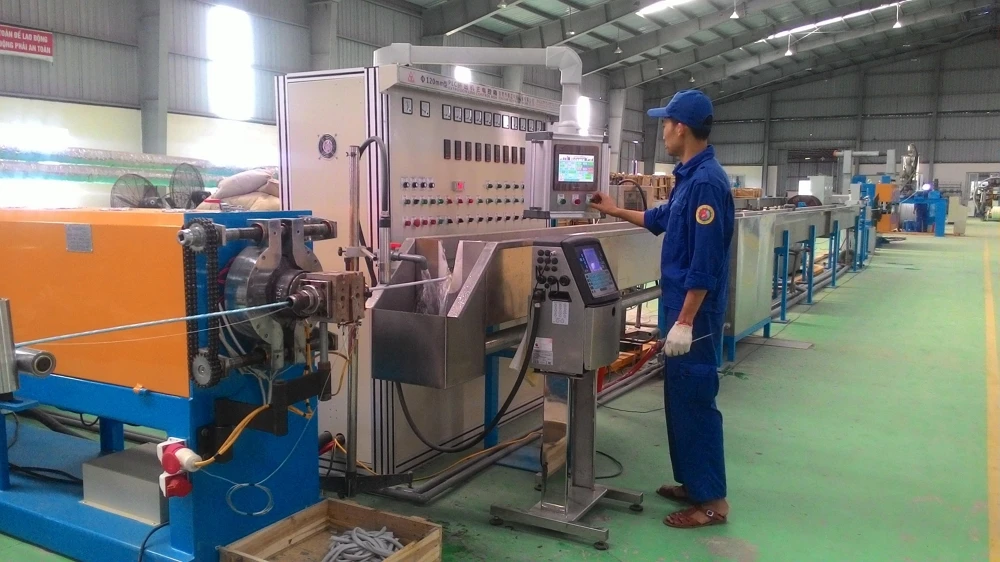

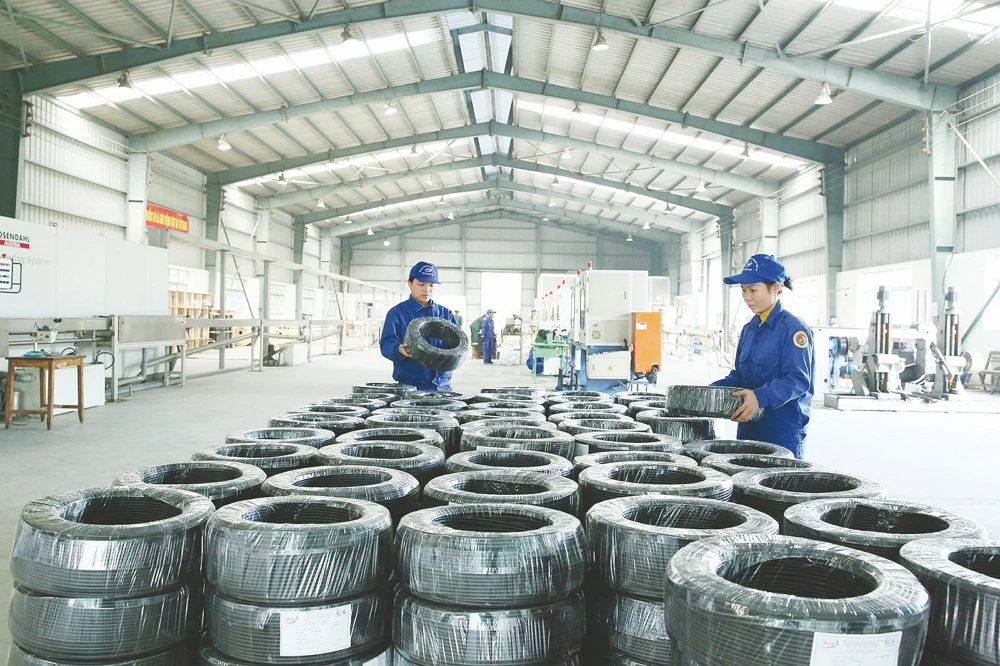

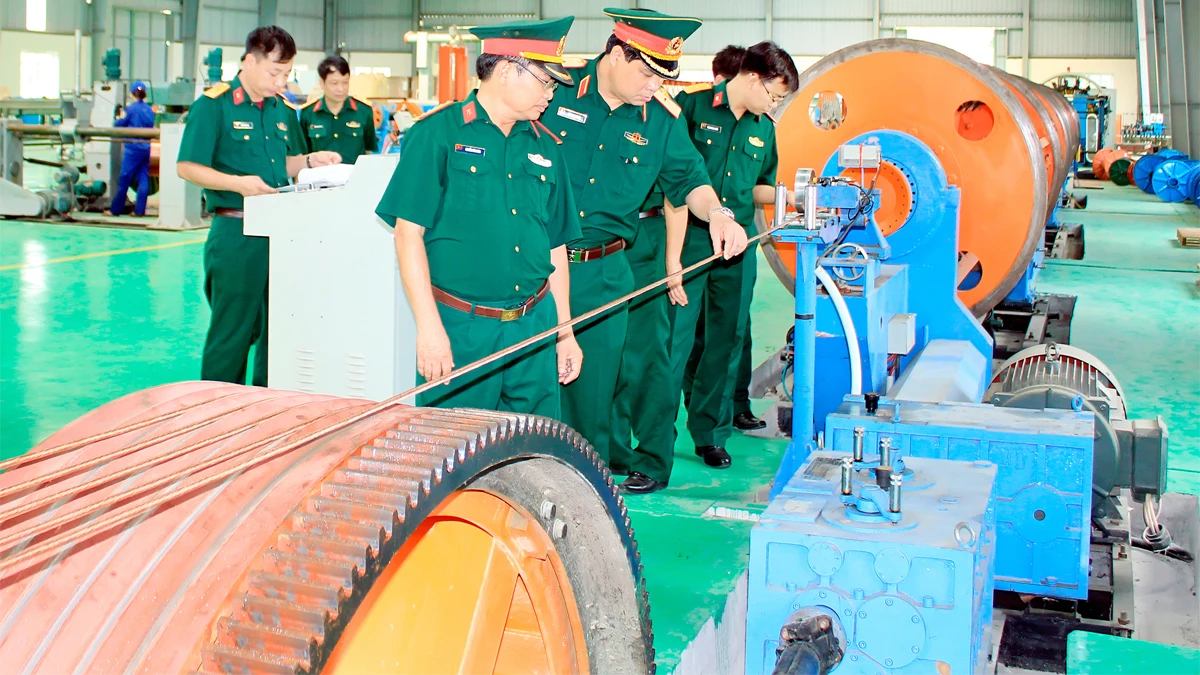

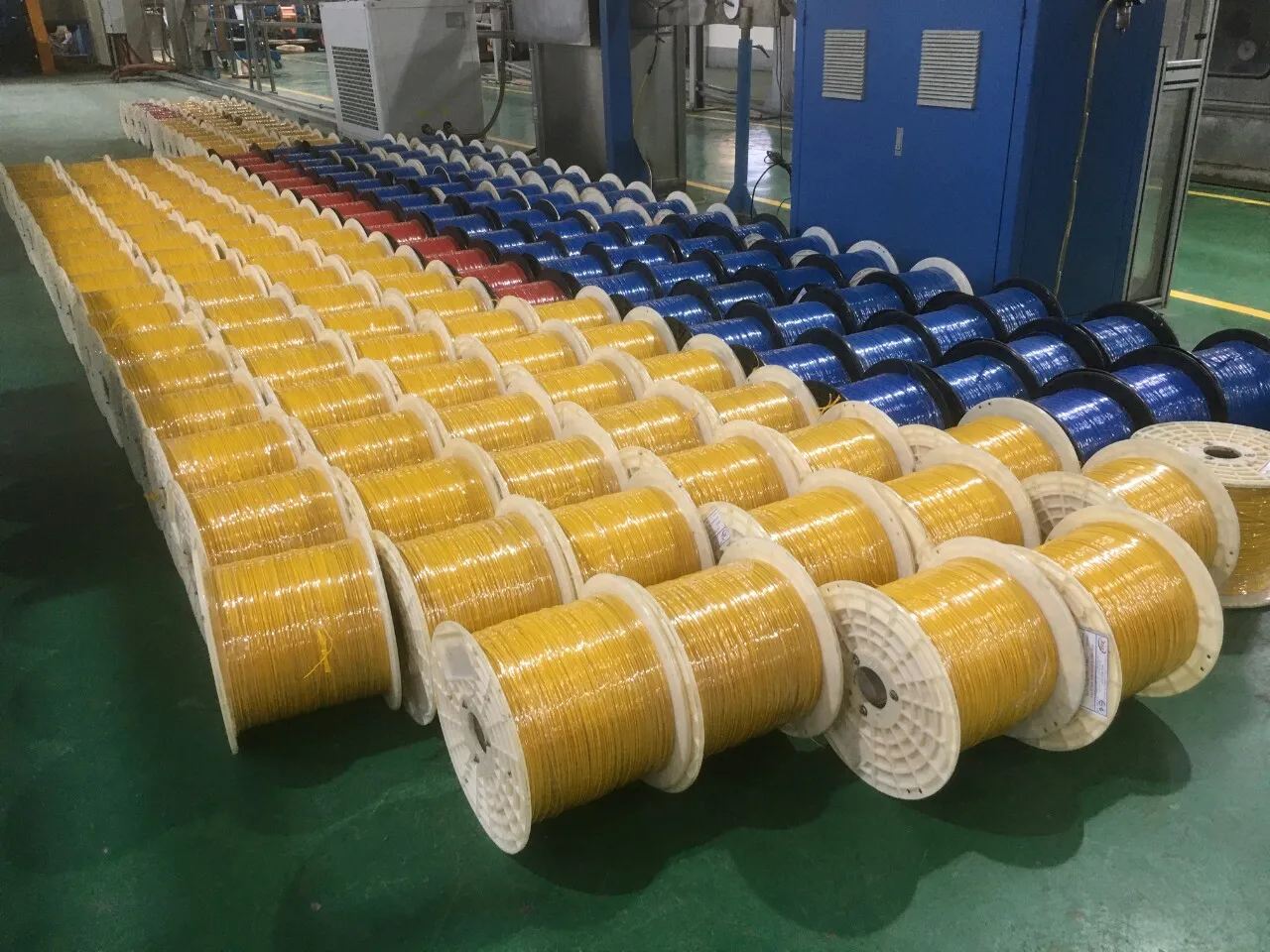

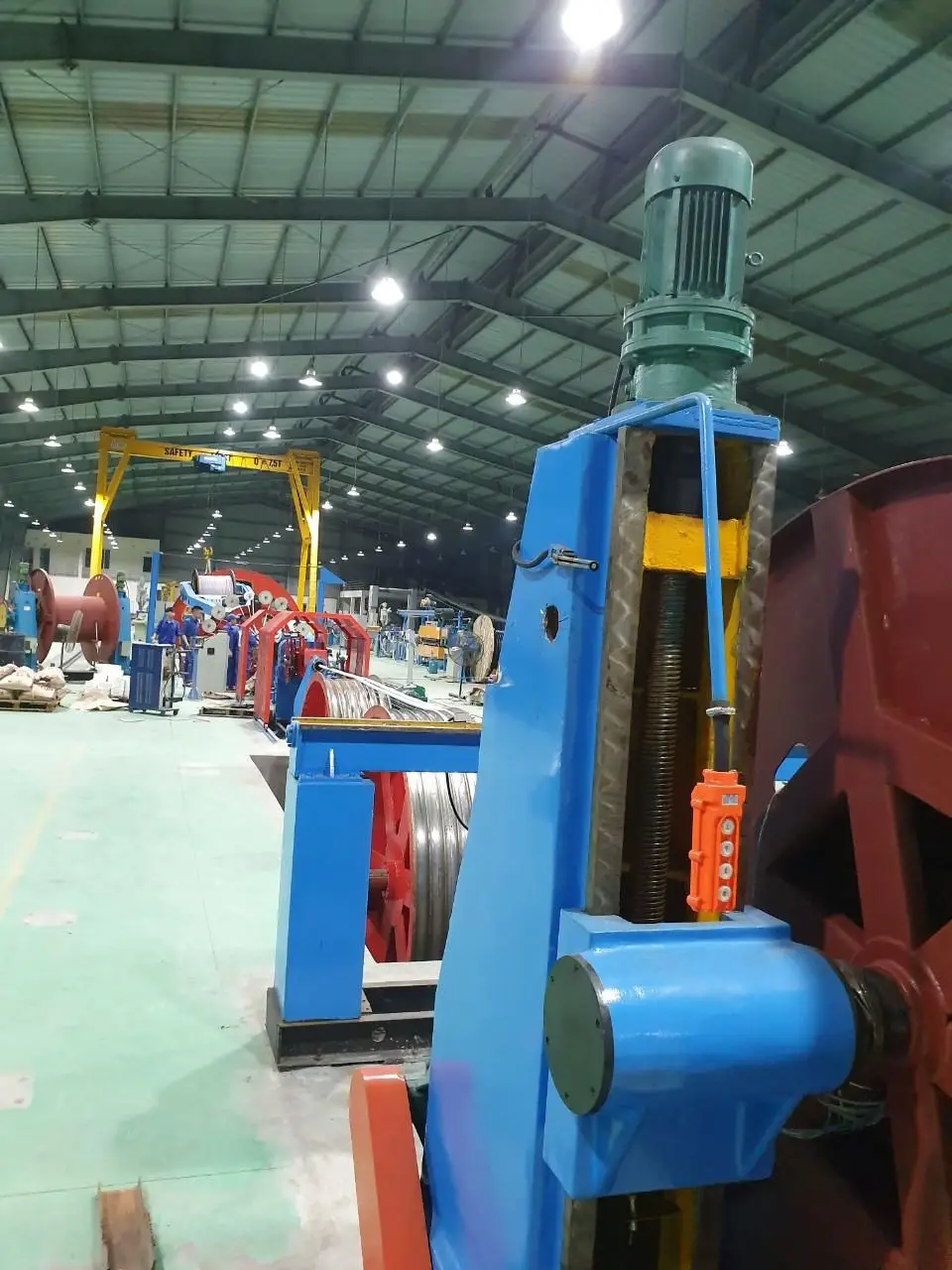

Our Factory






Company Profile




Factory Z143 - under the General Department of Military Industries and Manufacture/Ministry of Defense, with over 45 years of experience in the field of manufacturing low voltage wires and cables, metal wires and cables, high-frequency coaxial cables, local loop, electrical cabinets, electrical boxes, cable trays,... To conquer the market with the same quality as imported products, we actively focus on investing in the latest technologies and modern equipment and quality management system ISO 9001: 2015 with qualified materials imported from abroad with the content of copper reaching 99.99%, aluminum reaching 99.7% and PVC plastic, PE, LSZH, XLPE, XLPO,... are non-toxic, meeting EU safety standards. Our state-of-the-art equipment and capabilities also ensure that maximum product quality is maintained throughout the finishing process, from raw material inspection to finished product. Products of Z143 Factory have been present in most of the key works, projects of Vietnam Ministry of National Defense, and diplomatic partners of the Ministry of Defense. In addition, with the approval of the Ministry of National Defense, Z143 Factory has brought products to the domestic market, serving economic and social development... The product has created an outstanding reputation and is trusted by Vietnamese consumers, creating a solid position not only in the country but also reaching out to regional and international markets.
Supplier Index
Transactions

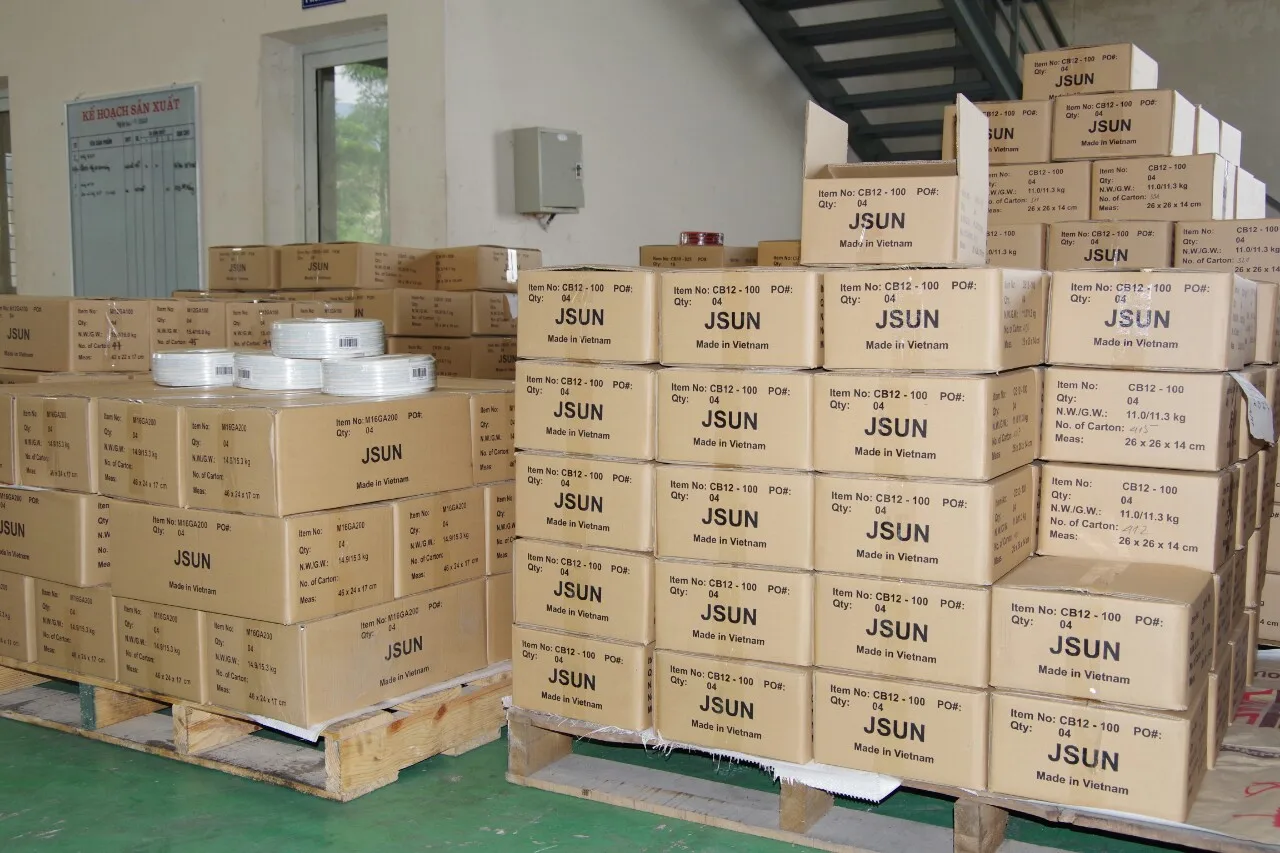

Packing & Delivery






To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


FAQ




1.Can you offer me a free sample?
Yes, after price confirmation, you can require for free samples but the freight should be paid.

2.How long to get the sample?
After you pay the freight and send us confirmed files, the samples will be ready for delivery in 3-7 days. Then they will be sent to you via express and arrive in 3~5 days.

3.How many years has 43 COMPANY been in production?
43 Limited Company (43 Company) is a unit under the General Department of Military Indus[1]tries and Manufacture - Ministry of Defense. We, 43 Limited Company, were established and operated on September 23, 1972, business code: 0500315181; We manufacture all kinds of wires and cables, high-frequency coaxial cables, electric wires, serving the Army and the people.

4.What kinds of products does Z43 manufacture?
FACTORY Z143 - under the General Department of Military Industries and Manufacture/Ministry of Defense, with over 45 years of experience in the field of manufacturing low voltage wires and cables, metal wires and cables, high-frequency coaxial cables, local loop, electrical cabinets, electrical boxes, cable trays,... Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable PVC Insulated (Flexible ) Wire, PVC Insulated and Sheathed (Armoured) Power Cable;
Mineral insulated cable, such as extra high refractory (fire-resistant 15000C) copper core flexible mineral insulated cable and so on; Control Cable;

5. What kind of certifications do you have?
ISO9001:2015, ISO14001:2015,

6. Which standards do you comply with when you produce the electrical wires and cables?
We are able to produce electrical wires and cables based on GB, JB, IEC,UL/CSA,BS,DIN,EN,ASTM,AS/NZS. Meanwhile, we can design and manufacture the cables according to the samples and technical specification you supply.

7. What is the min. Order quantity?
It depends on the type and size of electrical wires and cables. For some large electrical wires, 100 meters can be accepted. For the power cables with medium or high voltage, that should comply with the property of installed equipment. Anyhow, we will try our best to solve the problem and meet your requirements. Mostly we sell from stock for normal items, you can buy any quantity unless it is customized.

8.I didn't find the cable which I need in this page?
If you didn't find the cables you need, please contact us directly, we will reply you quickly. Also, you can visit our English website: https://z43-cable.vn/

9.What is the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.

Welcome your inquiry! Any question please feel free to contact me.
