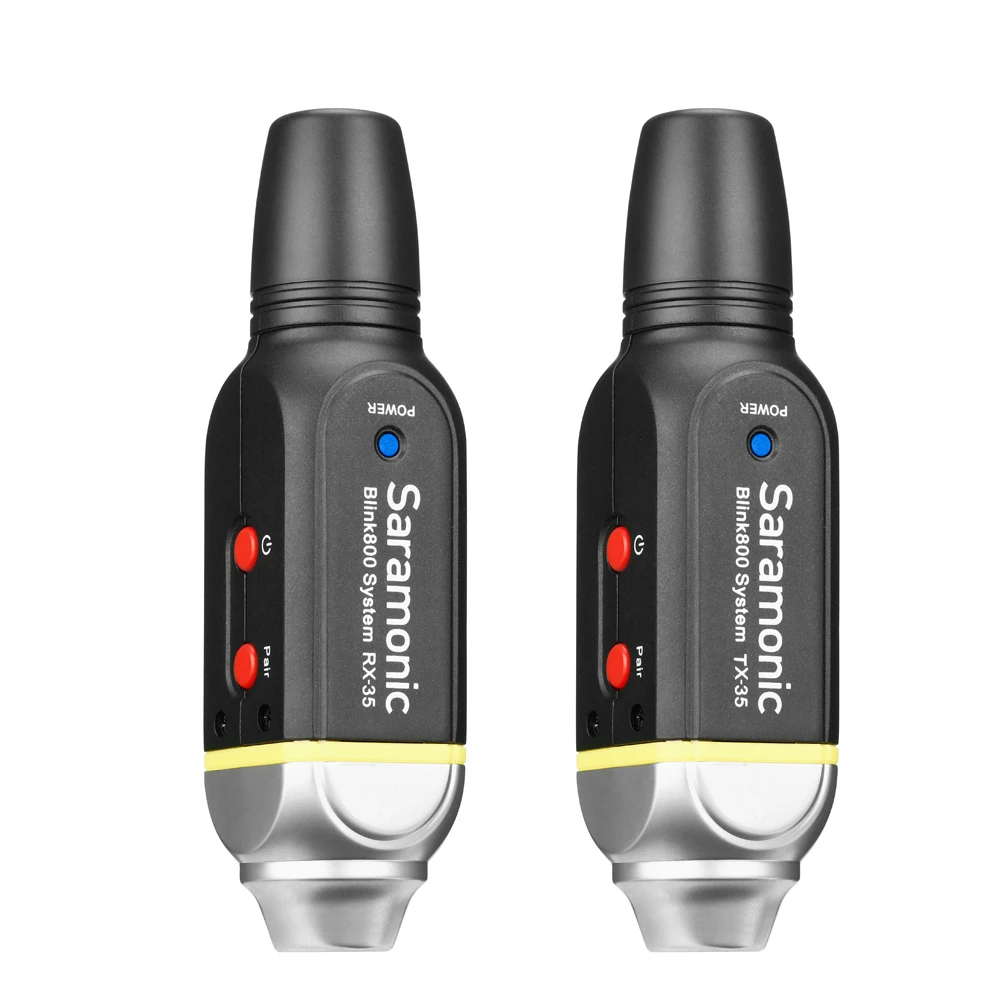

Saramonic Blink 800 B1 TX-35 & RX35 5.8GHz
Blink 800 B1 5.8GHz Wireless Lavalier Microphone System with Camera-Mountable Receiver and DK3A Premium Lavalier.

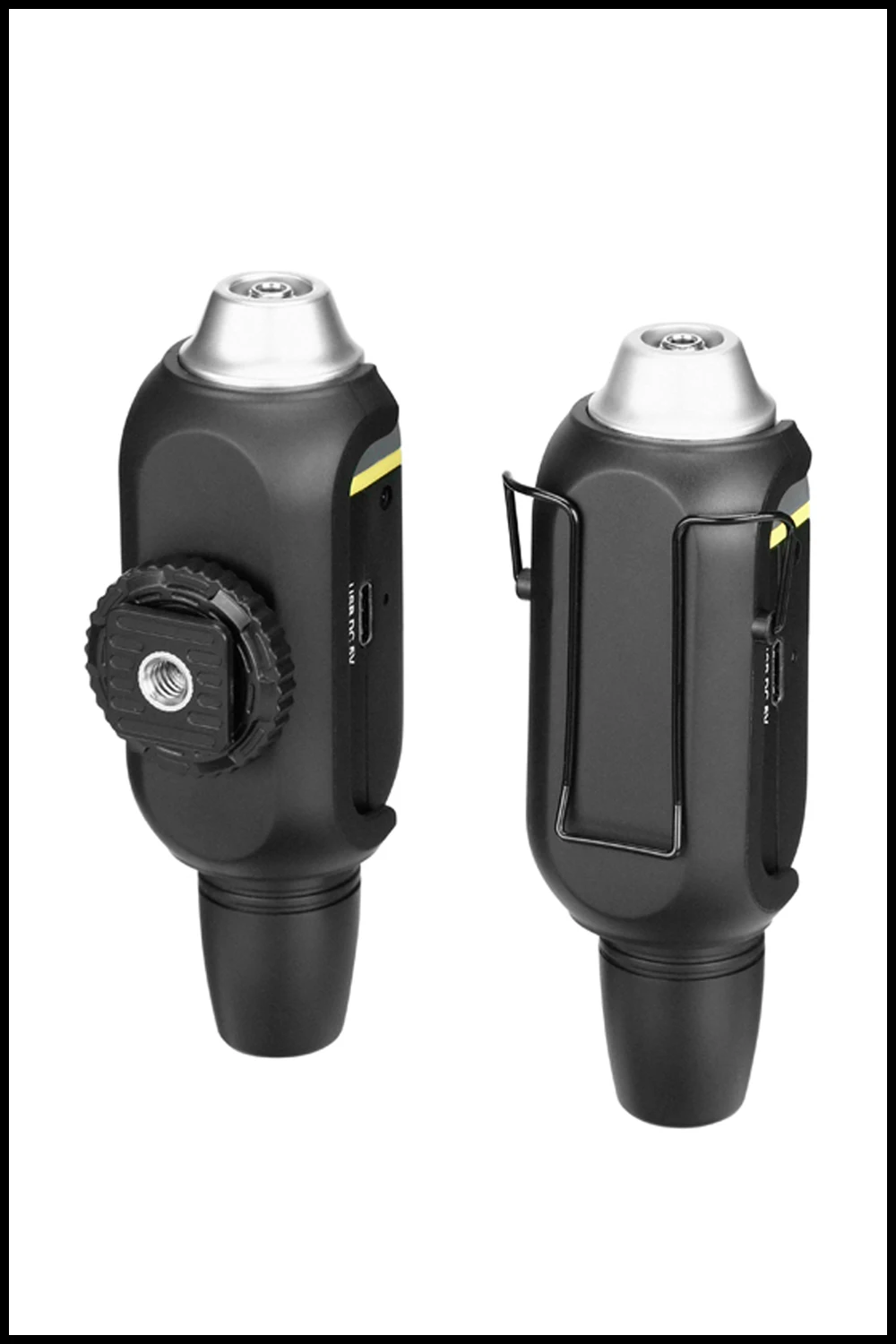

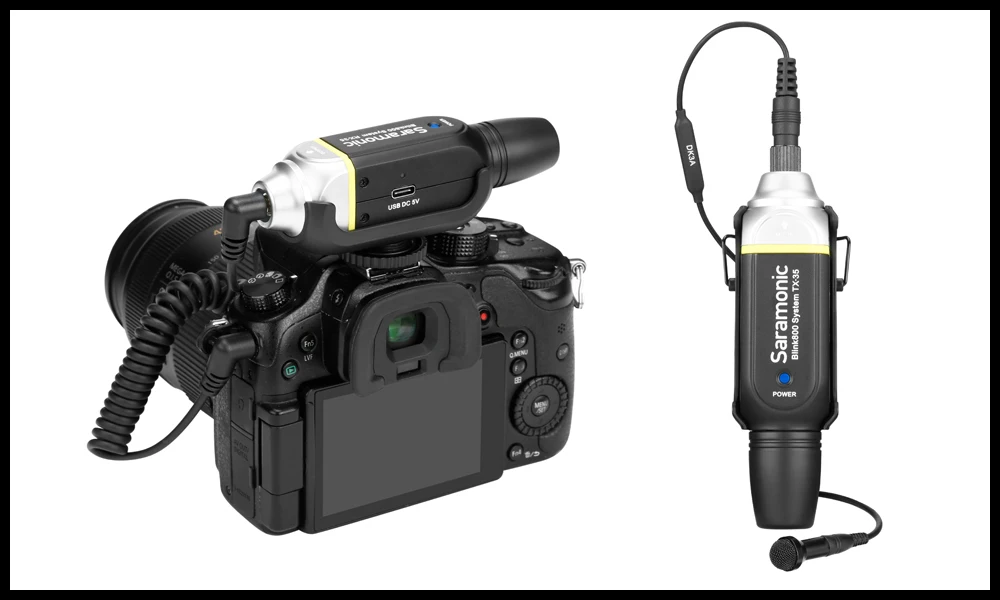

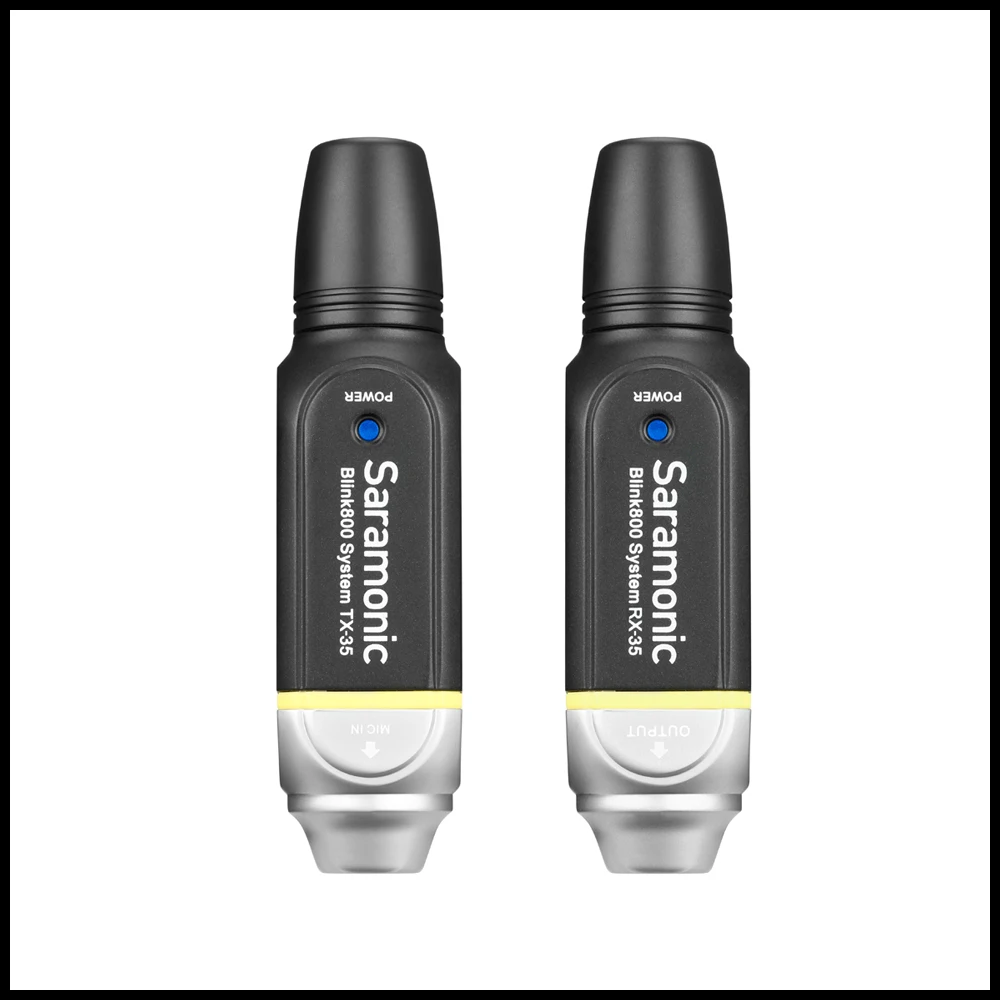

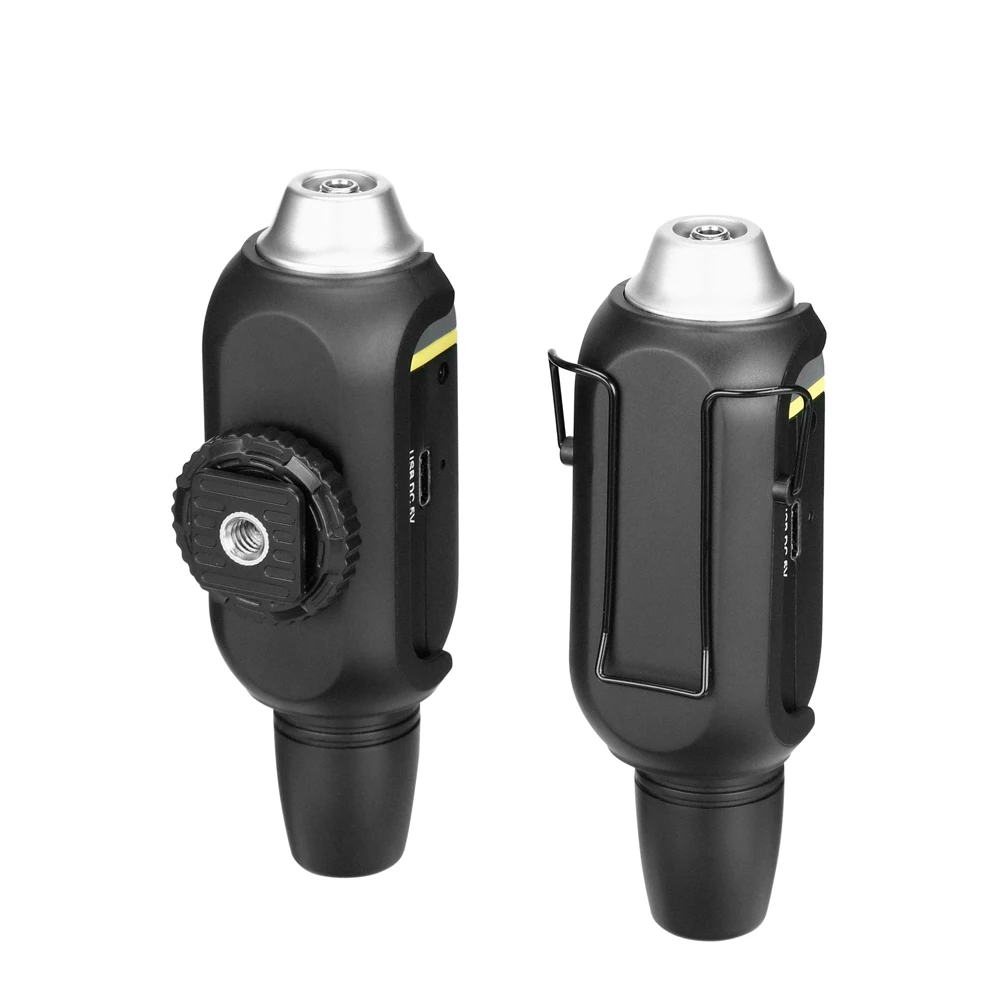

The Saramonic Blink 800 B1 is an incredibly compact and simple to use 5.8GHz Wireless Lavalier System that is designed for cameras, recorders and mixers. The system features the unique TX-35 belt pack transmitter and RX-35 camera-mountable receiver, together they provide an easy-to-use and reliable wireless system for any user that sounds great every time.

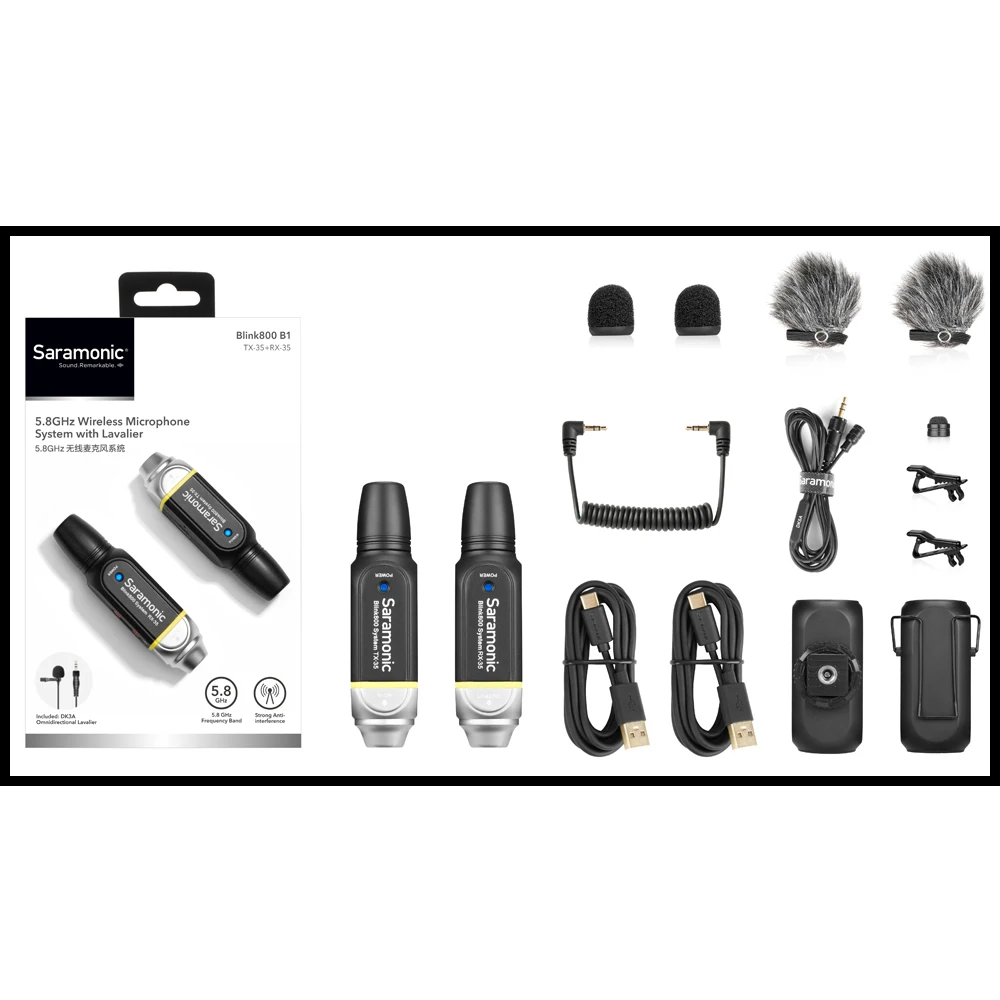

The system also includes the Saramonic DK3A 4mm premium lavalier microphone, which delivers detailed, high-quality professional sound. With no settings or controls to set, it allows you to just turn the system on, and start recording.
A Powerfully Advanced 5.8GHz System
The Blink 800 B1 operates in the 5.8GHz frequency range, which is much higher and much less congested than 2.4GHz, UHF, and VHF. It automatically and intelligently changes channels to avoid static noise and audio dropouts and features a strong 10mW of wireless output power, providing an impressive range of up-to 196.8-feet (60m) in open spaces. With up-to 6-hours of runtime from integrated lithium-ion batteries, so you won’t be wasting money on disposable batteries. The transmitter and receiver can be charged with included USB to USB-C cables and even can be powered while in use or recharged in the field with portable USB battery packs.
Versatile Connectivity and Expansion Options

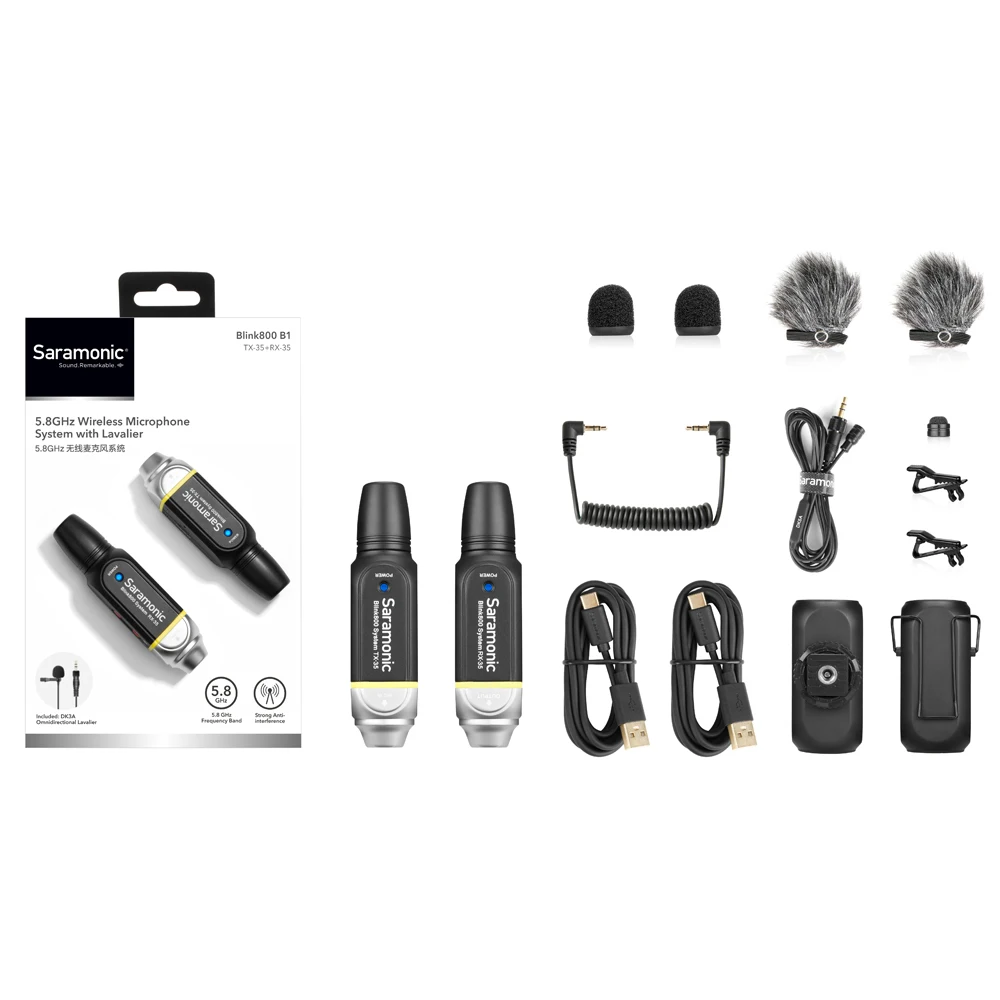

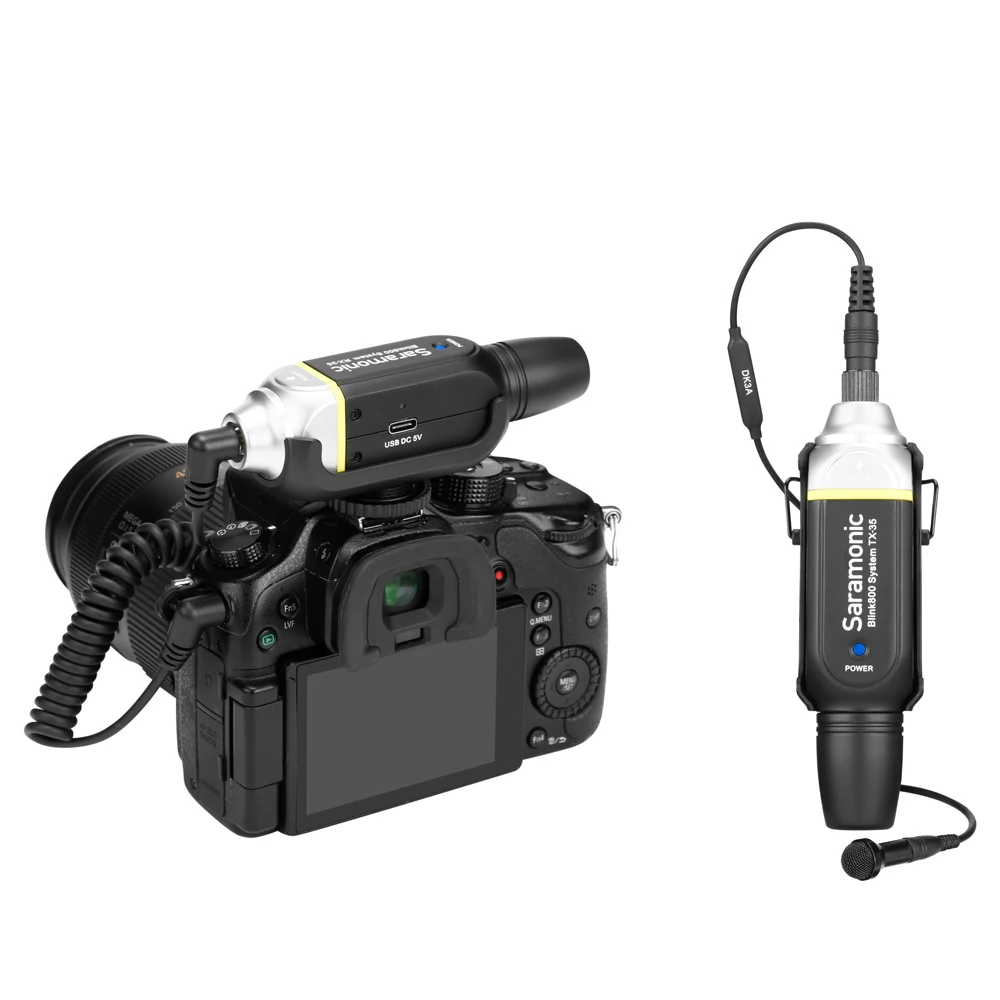

The Blink 800 B1 comes with a 3.5mm TRS output cable for cameras, recorders, mixers and more with 3.5mm mic input. You can also easily pair it with Saramonic’s numerous optional output cables, or adapters to use with pro cameras or mixers with XLR, smartphones, computers, tablets and much more as well (sold separately). Pair it with a SR-UM10-C35XLR or C-XLR for professional cameras, recorder or mixers with XLR. Add a SR-C2000 for Lightning devices, a SR-C2001 for USB-C devices, a SR-PMC2 for TRRS devices, or USB-CP30 for computers with USB. The flexibility and the options for the Blink 800 B1 don’t stop with just 3.5mm.
Features
• Extremely compact and lightweight professional 5.8GHz Wireless Lavalier System with camera-mountable receiver and 3.5mm output
• Includes DK3 premium lavalier that delivers superior sound quality with advanced sonic performance in a compact form factor with metal and foam windscreens for indoors and two furry windscreens for outdoors
• Incredibly easy-to-use with no settings or menus to have to worry about, just turn the system on, and start recording
• Automatically and intelligently changes channels to avoid static noise and audio dropouts with 10mW wireless output power
• 6-hours of runtime from integrated lithium-ion batteries and can be powered while in use or recharged in the field with portable USB battery packs.
• 6-hours of runtime from integrated lithium-ion batteries and can be powered while in use or recharged in the field with portable USB battery packs.
Specification
Wireless System | |
Wireless Transmission | Digital 5.8GHz |
Modulation | GFSK |
Antenna | PIFA Antenna |
Frequency Response | 20Hz to 20kHz |
Operating Range | Up-To 196.85’ (60m) Line-of-Sight |
RF Output Power | 10mW |
Audio Output Level | -60dBV |
Signal-to-Noise Ratio | ≥72dB |
Audio Latency | ≤4ms |
Connectors (TX-35 & RX-35) | Gold-Plated Locking 3.5mm Connectors |

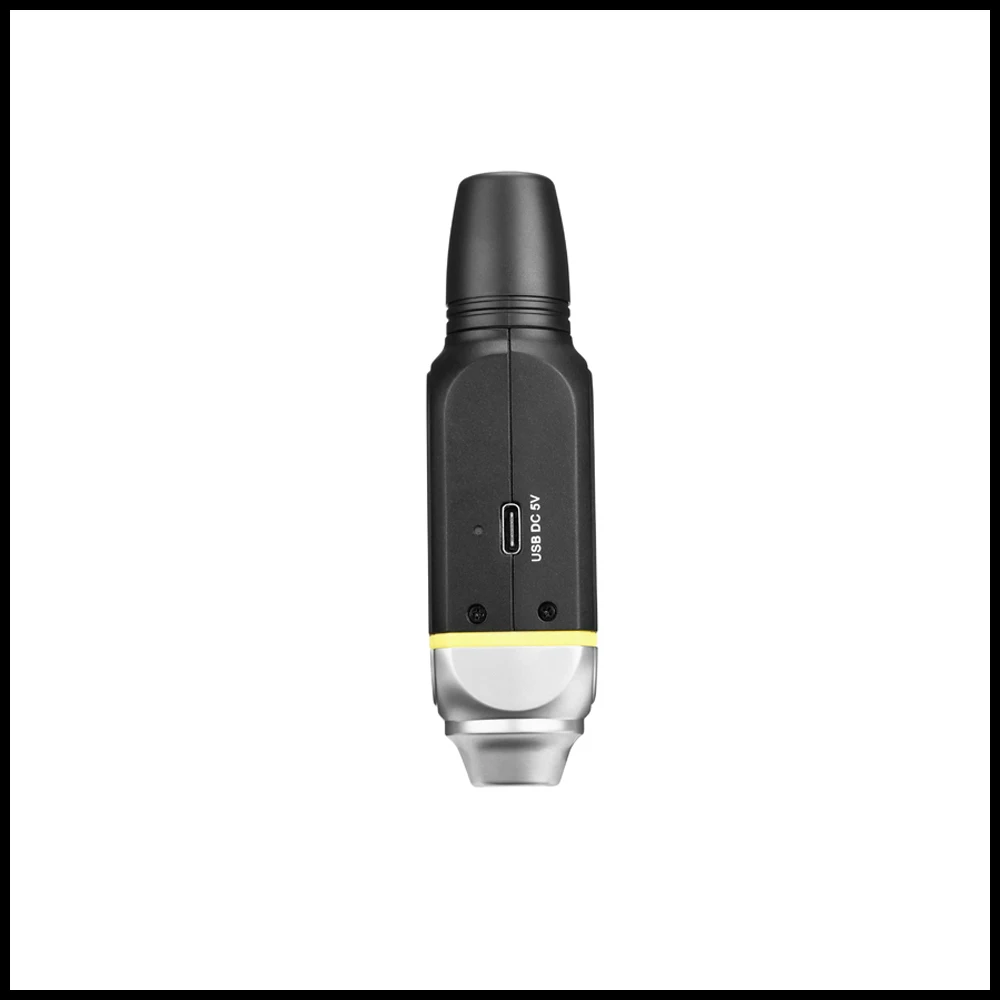

Power Requirements | Built-In Lithium Battery or USB-C DC 5V |
Built-In Lithium Battery Life | Approximately 6-Hours |
Dimensions (TX-35 & RX-35) | 4.49 x 1.1 x 1.16” (114.32 x 28 x 29.56mm) each |
Weight (TX-35 & RX-35) | 3.03oz (95g) each |
Operating Temperatures | 0° to 122°F (0°C to 50°C) |
Storage Temperatures | -4° to 131°F (–20°C to +55°C) |
DK3A Lavalier | |
Acoustic Principle | Electret Condenser |
Polar Pattern | Omnidirectional |
Sensitivity | -40±2dB (1kHz 0dB=1V/Pa) |
Maximum SPL | 110dB |
Frequency Range | 20Hz to 18kHz |
Signal-to-Noise Ratio | More than 58dB |
Operating Temperature | -20°C - 60°C |
Connector | Gold-Plated Locking 3.5mm |
Cable Length | 70.87” (180cm) |
Product Warranty
1 Year Warranty
Recommended Accessories
- SR-UM10-C35XLR Locking 3.5mm to XLR Male Output Cable
- SR-C2000 3.5mm TRS Male to Lighting Microphone Adapter Cable for iOS Apple Devices
- SR-C2001 3.5mm TRS Male to USB-C Microphone Adapter Cable for Smartphones, Tablets & Computers with USB-C
- SR-25C35 Short 3.5mm Female to 2.5mm Male Adapter Cable
- C-XLR Female 3.5mm to XLR Male Audio Adapter
- SR-PMC2 3.5mm TRS to 3.5mm TRRS Output Cable for Smartphones, Tablets and Computers
- USB-CP30 Output Cable: Locking 1/8” (3.5mm) to USB cable PC or Mac computers
- LM-WS Fur Windjammer for SR-M1 Lavalier 3-Pack
- WM4C-MC1 Replacement Mic Clip
- SR-U9-WS3 Replacement Foam Windscreens 3-Pack
Prop 65 Compliance
Prop 65 Compliant?
No
Prop 65 Chemical(s), if applicable
Cobalt lithium nickel oxide, and nickel
What Will Prop 65 Label Say?
"WARNING
CANCER AND REPRODUCTIVE HARM
WWW.P65WARNINGS.CA.GOV"
No
Prop 65 Chemical(s), if applicable
Cobalt lithium nickel oxide, and nickel
What Will Prop 65 Label Say?
"WARNING
CANCER AND REPRODUCTIVE HARM
WWW.P65WARNINGS.CA.GOV"
Packaging
Packaging Height (cm) | 9.5 |
Packaging Height (in) | 3.74 |
Packaging Length (cm) | 20 |
Packaging Length (in) | 7.87 |
Packaging Weight (kg) | 0.611 |
Packaging Weight (lb) | 1.35 |
Packaging Width (cm) | 12.9 |
Packaging Width (in) | 5.08 |
Product Weight (kg) | 0.095 |
Product Weight (lb) | 0.21 |
Product Width (cm) | 2.8 |
Product Width (in) | 1.1 |
Product Length (cm) | 11.43 |
Product Length (in) | 4.5 |
Product Height (cm) | 2.956 |
Product Height (in) | 1.16 |
Quantity of Boxes Per Carton | 20 |
