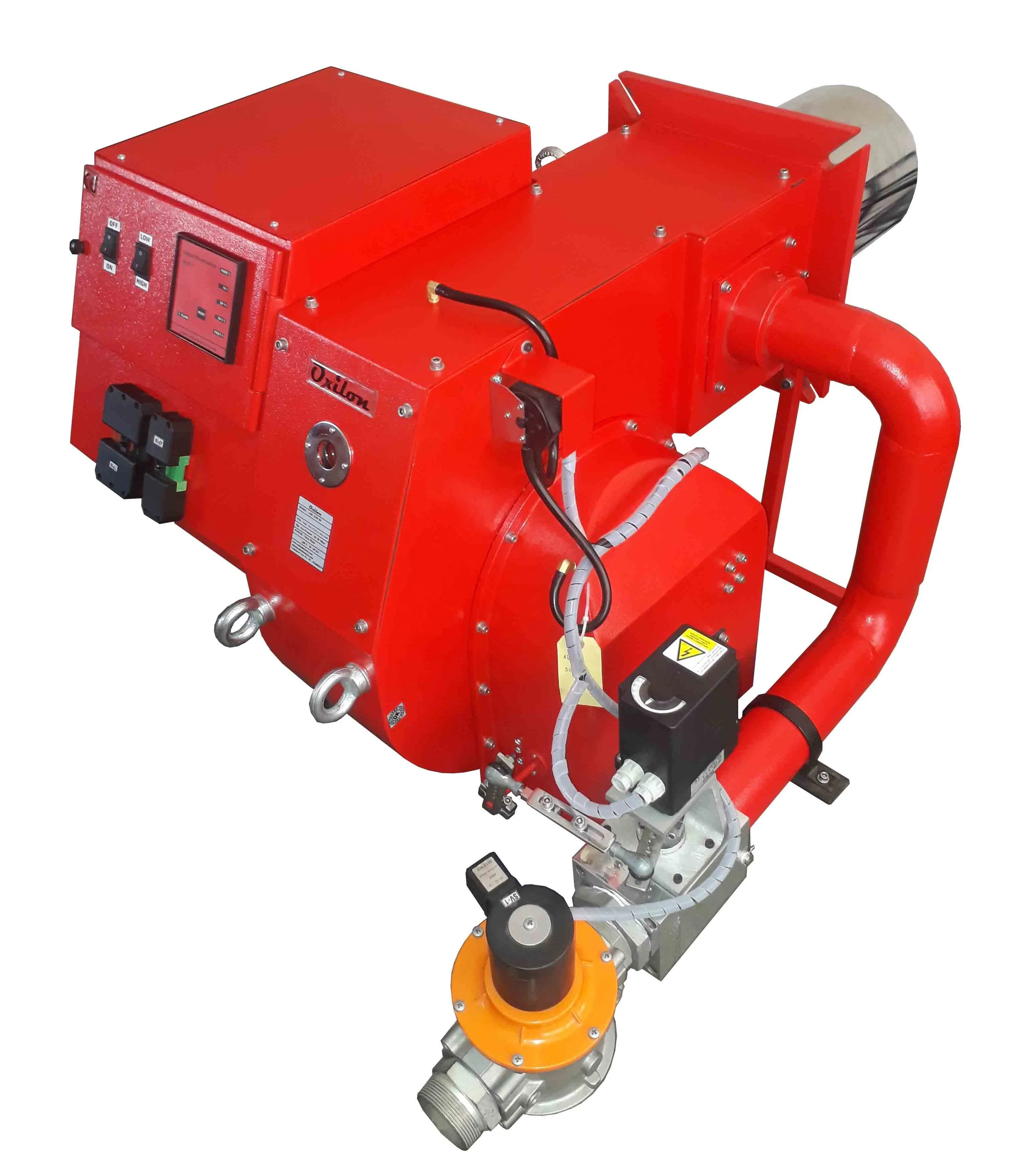

Automatic OXILON make burner fully automatic industrial boiler burner
- Category: >>>
- Supplier: OXILON PRIVATE LIMITED
Share on (10000004081428):
Product Overview
Description
Product Details
Model No. | Kw/Hr. (Min-Max.) | Kcal./Hr. (Min-Max.) | Gas Flow N.Gas Nm3/hr. | Gas Flow L.P.G. Kg/hr. | Power Supply |
ABG 27 SH/EH/CH | 20 - 70 | 17200 - 60200 | 2 - 7 | 1.2 - 5 | 230 V, 1 Ph |
ABG 212 SH/EH/CH | 25 -120 | 21500 - 103200 | 2.5 - 12 | 1.8 - 9 | 230 V, 1 Ph |
ABG 214 SH/EH/CH | 35 - 148 | 30100 - 127280 | 3.5 - 14.8 | 2.6 - 11 | 230 V, 1 Ph |
ABG 218 SH/EH/CH | 40 - 180 | 34400 - 154800 | 4 - 18 | 2.9 - 13.5 | 230 V, 1 Ph |
ABG 225 SH/EH/CH | 50 - 250 | 43000 - 215000 | 5 - 25 | 4 - 19 | 230 V, 1 Ph |
ABG 235 SH/EH/CH | 70 - 350 | 60200 - 301000 | 7 - 35 | 5.2 - 26.1 | 230 V, 1 Ph |
ABG 240 SH/EH/CH | 80 - 390 | 68800 - 335400 | 8 - 39 | 5.9 - 29.1 | 230 V, 1 Ph |
ABG 250 SH/EH/CH | 105 - 530 | 90300 - 455800 | 10.5 - 53 | 7.8 - 39 | 230 - 440 V, 3 Ph |
ABG 260 SH/EH/CH | 120 - 590 | 103200 - 507400 | 12 - 59 | 8.9 - 44 | 230 - 440 V, 3 Ph |
ABG 270 SH/EH/CH | 140 - 700 | 120400 - 602000 | 14 -70 | 10 - 52 | 230 - 440 V, 3 Ph |
ABG 280 SH/EH/CH | 170 - 840 | 146200 - 722400 | 17 - 84 | 12 - 62 | 230 - 440 V, 3 Ph |
ABG 2100 SH/EH/CH | 220 - 1110 | 189200 - 954600 | 22 - 111 | 16 - 83 | 230 - 440 V, 3 Ph |
ABG 2125 SH/EH/CH | 250 - 1250 | 215000 - 1075000 | 25 - 125 | 18 - 93 | 230 - 440 V, 3 Ph |
ABG 2150 SH/EH/CH | 310 - 1570 | 266600 - 1350200 | 31 - 157 | 23 - 117 | 230 - 440 V, 3 Ph |
ABG 2170 SH/EH/CH | 340 - 1700 | 292400 - 1462000 | 34 - 170 | 25 - 127 | 230 - 440 V, 3 Ph |
Technical and functional features :-
* Two stage operation (High/Low)
* Gas burners for Natural gas / L.P .G..
* Available for Bio-gas, Town gas & Producer gas.
* Independent gas flow adjustment for each valve.
* HI-Low version with electric servomotor and integrated systems for the regulation of air and gas.
* Compatible with any type of combustion chamber .
* Burners are extremely easy to fit even on small boilers, thanks to their compactness and exceptionally limited overall dimensions.
* Monoblok casing is manufactured from high tensile aluminium. The design offers easy access to every single component, an important factor when comes repairing, cleaning or servicing the burner .
Product Introduction
Fully Automatic Monobloc Oil Burner which is been widely use in Boiler, Industrial Ovens, Incinerators, Driers, Melting furnaces and many more. Oxilon is providing customization as per customer's requirement.
Why Choose Us
About us
1, Introduction of Oxilon Pvt. Ltd.
Benefits of OXILON
2. Benefits of OXILON against others
Reasons for Choosing OXILON
3. Why customer choosing OXILON
Product Packing
Good Packing Quality
Oxilon is a biggest name in burner manufacturers around the world. And we are promising to deliver the burner with good quality
packing in good quality wooden box. We are giving best packing for safety purpose and wrapping it in plastic.
We are doing fumigation of our wooden boxes in our factory itself. Also sticking the Proper name plate of customers with their
address.
We Assures our customer for NO DAMAGE Delivery.
packing in good quality wooden box. We are giving best packing for safety purpose and wrapping it in plastic.
We are doing fumigation of our wooden boxes in our factory itself. Also sticking the Proper name plate of customers with their
address.
We Assures our customer for NO DAMAGE Delivery.
