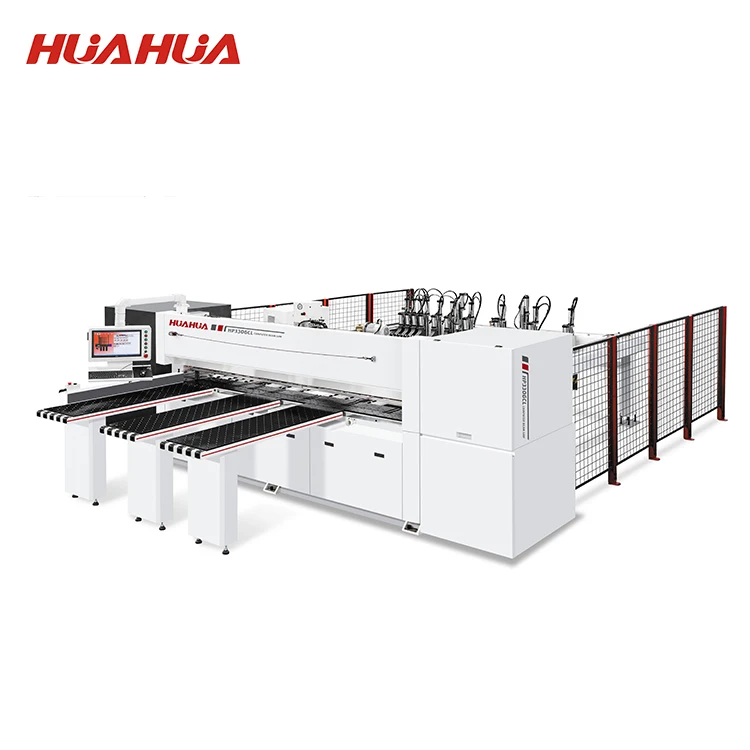

HUAHUA HP330GCL высокая скорость интеллигентая (ый) Задней Загрузкой компьютер Луч Пила
- Category: Wood Saw Machines >>>
- Supplier: Guangdong,Shunde,Changsheng,Machinery,Manufacturing,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
products details
Industrial PC control system
1. Easy operation, safety & reliable.
2. Which has complete operating hints and troubleshooting guide functions.
3. It’s cutting plan can edit manually; can simulate or execute cutting plans.
4.Can compatible with bar code manage software or factory automation software.
2. Which has complete operating hints and troubleshooting guide functions.
3. It’s cutting plan can edit manually; can simulate or execute cutting plans.
4.Can compatible with bar code manage software or factory automation software.
Cutting optimization software
Automatic calculate system,
Cutting plan layout system,
Remains management system;
Greatly enhance user productivity, reduce production costs, increase revenue, and improve the panels utilization rate.
Cutting plan layout system,
Remains management system;
Greatly enhance user productivity, reduce production costs, increase revenue, and improve the panels utilization rate.
PLC
Japan Mitsubishi PLC.
The third generation micro programmable controller,
Built-in high-capacity RAM memory up to 64K
Built in the industry's highest level
High-speed processing of 0.065μS/basic instructions
Built-in independent 3-axis 100kHz positioning function (Transistor output type)
The third generation micro programmable controller,
Built-in high-capacity RAM memory up to 64K
Built in the industry's highest level
High-speed processing of 0.065μS/basic instructions
Built-in independent 3-axis 100kHz positioning function (Transistor output type)
Side aligning device
Fix cutting panel width side, control panels not move or shake when sawing, ensure width sawing precision.
Pressure can be adjusted according to difference thickness, weight and material, ensure the precision of sawing dimension.
Pressure can be adjusted according to difference thickness, weight and material, ensure the precision of sawing dimension.
Main steel frame
1.After the welding of the frame is completed, it is placed for one month, and then heat treated,
2.Eliminate the residual stress generated during the machining process,Change the crystal structure inside the material,
3.Enhance the stability of the subject,
4.Afterwards, it will be treated for 6 months,
5.Then send to the machining center for precision machining.
machine structure
1.high-quality raw materials, using the leading CO² gas shielded welding process technology;
2.The table is made of 28mm integrated plate and fixed on the left and right frame beams.
3.Can guarantee excellent balance performance and straightness;
4.The movement of independent main saw and scoring saw can automatically adjust the cutting height according to the cutting thickness;
5.The supporting connecting rod adopts closed inner frame structure,Effectively guarantee the stability of the main body and the service life of the whole machine.
2.The table is made of 28mm integrated plate and fixed on the left and right frame beams.
3.Can guarantee excellent balance performance and straightness;
4.The movement of independent main saw and scoring saw can automatically adjust the cutting height according to the cutting thickness;
5.The supporting connecting rod adopts closed inner frame structure,Effectively guarantee the stability of the main body and the service life of the whole machine.
Saw blades
air lock type saw blade system, easy to replace saw blades;
Sawing motors
1. Two saw blades driving by two separately motors;
2. Saw carrier driving by servo motor;
3. Main saw motor 16KW, max cutting thickness: 120mm;
4. Scoring saw motor 2.2KW ;
5. Sawing motor: TAIWAN SANYE;
2. Saw carrier driving by servo motor;
3. Main saw motor 16KW, max cutting thickness: 120mm;
4. Scoring saw motor 2.2KW ;
5. Sawing motor: TAIWAN SANYE;
Loading system
3pcs Air floating loading table,
avoiding board scratching and assuring smoother board movement, suit for heavy and big type wood panel.
avoiding board scratching and assuring smoother board movement, suit for heavy and big type wood panel.
Feeding gripper
Equip 10 pcs pneumatic holding grippers, can gripe the panel steadily, highly reduce labor intensity, and greatly improve production efficiency, Min holding panel size 50mm.
10 pcs transfer bars.
10 pcs transfer bars.
Control system | 21" PC with cutting optimizer | ||
Max. cutting size | 3300mm | ||
Max. cutting thickness | 120mm | ||
Max. cutting speed | 120m/min | ||
Max size: Φ450* Φ75mm | |||
Speed: 4000rpm | |||
Size: Φ200* Φ50mm | |||
Speed: 5200rpm | |||
Saw carrier forward speed | 0-100m/min | ||
Saw carrier backward speed | 0-120m/min | ||
Main saw motor power | 18.5kw | ||
scoring saw motor power | 2.2kw | ||
Saw carrier driving motor power | 2kw ( Sevro motor) | ||
Auto feeding system | Pneumatic holding gripers | 10 pcs | |
Feeding speed | 85m/min | ||
Driving motor power | 2kw ( AC Sevro ) | ||
Loading system | Air folating table | 3pcs | |
Table height | 980mm | ||
Floating fan power | 3kw+2.2kw | ||
Working pressure | 5-7kg/cm2 | ||
Total power | 32.1kw | ||
Nei weight | 6500kg | ||
Overall size | 5740*7600*2066mm | ||
Packing＆Delivery
Company Profile
Guangdong Shunde Changsheng Machinery Manufacturing Co., Ltd. is founded in 2003, located in Lunjiao Shunde Foshan Guangdong,where is the biggest woodworking machine industry area in south of China. we have 400+ employees including 50+ research staffs, 45000 m2 workshop, can produce 500 sets machines per month.
Our brand name is HUAHUA, has been focusing on the innovation and research of the computer beam saw, cnc drilling machine, edge banding machine and cnc router machine as well as on the machines assembly and software integration, offering a solution to full range of CNC furniture equipment and automatic production line. With good innovation on technology, good management on the production and high quality in service, HUAHUA has been supplying its machines in more than 50 countries. In the future, HUAHUA will keep focusing on research, development, and manufacturing panel furniture machines, welcome more friends to know us and become partners to create a bright future with each other.
Our brand name is HUAHUA, has been focusing on the innovation and research of the computer beam saw, cnc drilling machine, edge banding machine and cnc router machine as well as on the machines assembly and software integration, offering a solution to full range of CNC furniture equipment and automatic production line. With good innovation on technology, good management on the production and high quality in service, HUAHUA has been supplying its machines in more than 50 countries. In the future, HUAHUA will keep focusing on research, development, and manufacturing panel furniture machines, welcome more friends to know us and become partners to create a bright future with each other.
CNC router machine workshop
Edge banding machine workshop
Computer beam saw machine workshop
CNC boring machine workshop
Exhibition
Our Customer
Customer Feedback
Certifications
FAQ
Q1. Are your trading company or factory?
A1. We are factory with more than 45000m2 workshop located in Longwei Road, Xichong Industrial Park, Lunjiao Town, Shunde Dist., Foshan, Guangdong, China.
Q2. What machine can you supply?
A2. Our main machines are computer beam saw, edge banding machine, cnc drilling machine, cnc router machine etc.widely used for panel furniture production.
Q3. What is the payment term?
Q3. T/T 30% in advance and balance before shipment, LC or by negotiation.
Q4. What is the delivery time?
A4. Normal 380V voltage is 15-30 days, other voltage is 30-45days.
Q5. What is the guarantee?
A5. 12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price.You will also get technical support and service all the lifetime.
Q6. Can you support the pre-sales service before confirm the order?
A6. Yes ,you will get experienced pre-sales engineer to support, not only including machine and auxiliary selection but also electrical ,air, machine layout in factory ,etc.
Q7. What is the after sales services?
A7. you will be able to get free training advice towards our machine in our factory.
You will also get free suggestion and consultation, technical support and service by online tools.
We can also send our engineer to your factory, but need you take charge of all travelling cost and labour cost
A1. We are factory with more than 45000m2 workshop located in Longwei Road, Xichong Industrial Park, Lunjiao Town, Shunde Dist., Foshan, Guangdong, China.
Q2. What machine can you supply?
A2. Our main machines are computer beam saw, edge banding machine, cnc drilling machine, cnc router machine etc.widely used for panel furniture production.
Q3. What is the payment term?
Q3. T/T 30% in advance and balance before shipment, LC or by negotiation.
Q4. What is the delivery time?
A4. Normal 380V voltage is 15-30 days, other voltage is 30-45days.
Q5. What is the guarantee?
A5. 12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price.You will also get technical support and service all the lifetime.
Q6. Can you support the pre-sales service before confirm the order?
A6. Yes ,you will get experienced pre-sales engineer to support, not only including machine and auxiliary selection but also electrical ,air, machine layout in factory ,etc.
Q7. What is the after sales services?
A7. you will be able to get free training advice towards our machine in our factory.
You will also get free suggestion and consultation, technical support and service by online tools.
We can also send our engineer to your factory, but need you take charge of all travelling cost and labour cost
