Gusset Bag Candy Packing Machine Sweet Packing Machine Candy Packaging Machine
- Category: >>>
- Supplier: Durzerd Packaging Machinery Co. Ltd.
Share on (10000004106320):
Product Overview
Description
Model | ZD-540 | ZD-730 | |||
Bag type | Pillow bag ,gusset bag, quad seal bag | ||||
Operation Mode | Intermittent | ||||
Speed | 18 to 40 bags/min | ||||
Quad Seal Bag | Length | Up to 340mm (13.4’’) | Up to 460mm (18’’ ) | ||
Width | 80 to 200mm (3.1’’ to 7.9’’) | 100 to 240 mm (4’’ to 9.4’’) | |||
Depth | 50 to 100mm (2’’ to 3.9’’) | 50 to 120 mm (2’’ to 4.7’’) | |||
Corner | 5-10mm (0.2’’ to 0.4’’) | ||||

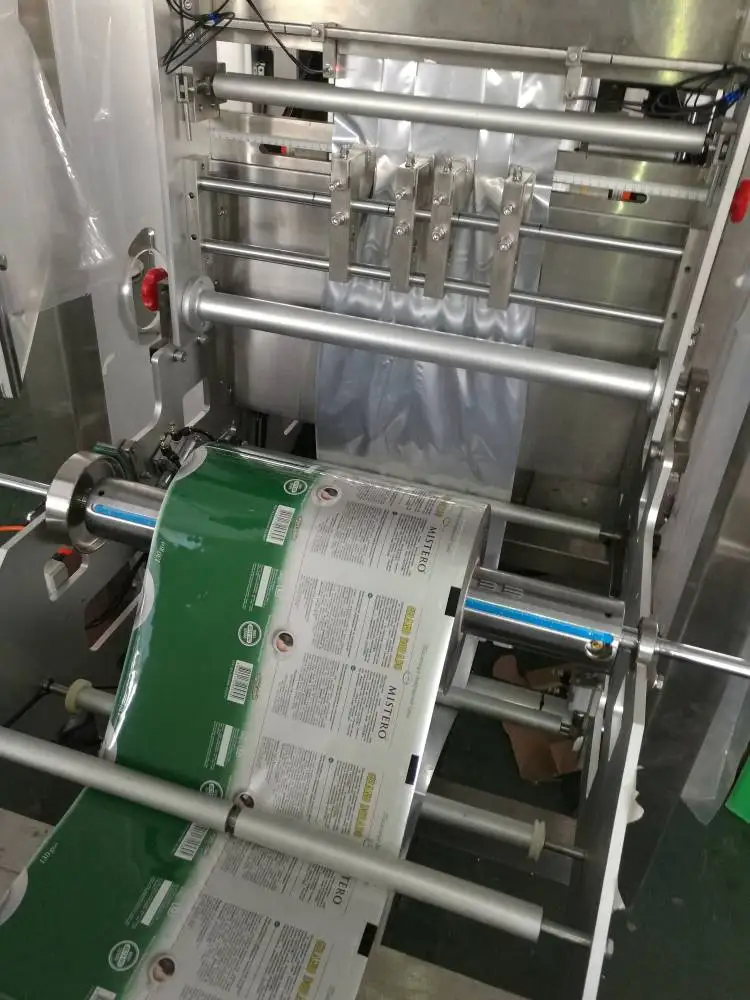

Reel Film Width | 540mm (21.3in) | (28.7in) | |||
Reel Outer Dia. | 400mm (15.8in) | 500mm (19.7in) | |||
Reel Inner Dia. | 75mm (2.9in) | ||||
Electrical | 220V/50Hz, 1phase or per customer specification | ||||
Power | 3KW | 4KW | |||
Air Pressure & Consumption | 0.6 MPa 0.6 M3/min ( 87 Psi, 12.7cfm) | ||||
Footprint (W x D x H) | 1300 x 1650 X 1650 mm; (4'4'' x 5'55'' x 5'5'') | 1450 x 2600 x 1950 mm; (4'9'' x 8'6'' x 6'4'') | |||
Machine Weight | 1000kgs | 1200kgs | |||
Brief Introduction:
This coffee powder packing machine designed to produce four corner edge seal stand-up bags with one-way degassing valve for coffee products. It could spread the coffee nature odor attracting people to enjoy your products.
This coffee powder packing machine designed to produce four corner edge seal stand-up bags with one-way degassing valve for coffee products. It could spread the coffee nature odor attracting people to enjoy your products.

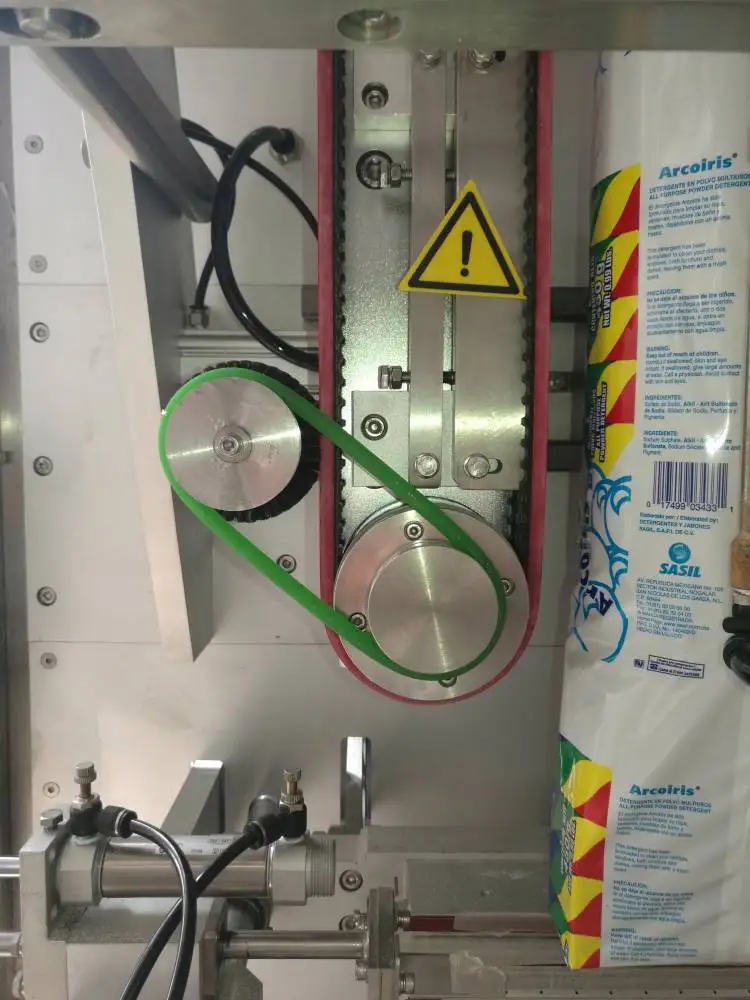

The whole packaging line is consist of vertical filling packaging machine, auger filler or linear scale dosing system, screw elevator, take-off conveyor. It integrates the functions of feeding, metering, bag making, packaging, sealing, printing, punching and countering, has automatic film position control function,both the horizontal sealing and film pull mechanisms adopt servo motor for transmission so as to guarantee high efficiency of the machine.It could be ideally combined with the other machines.

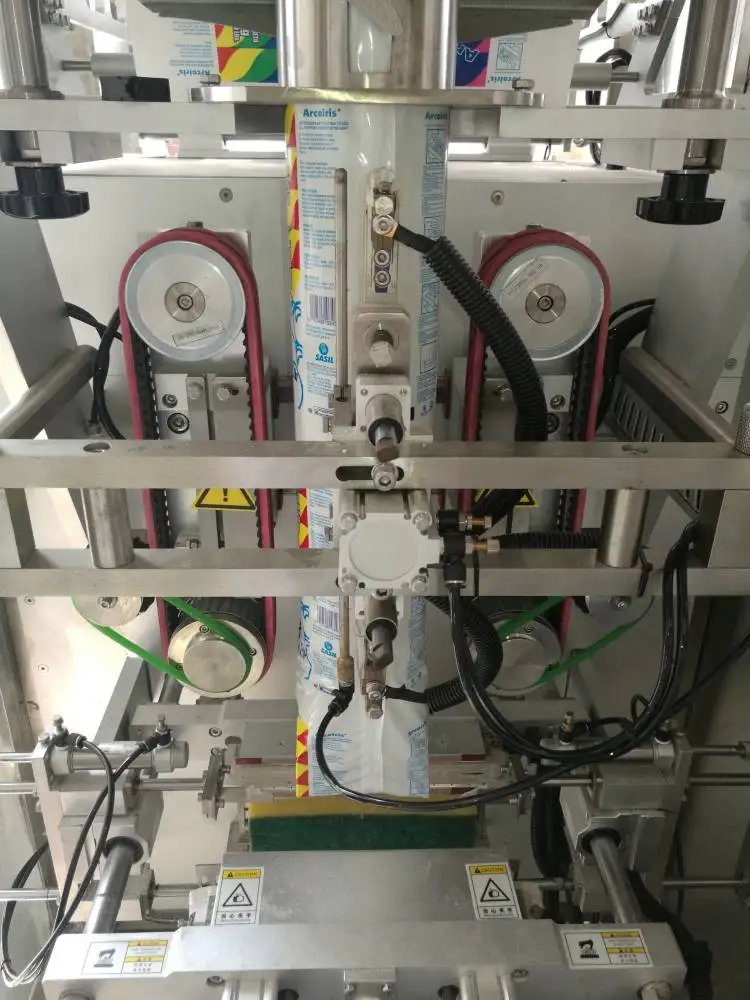

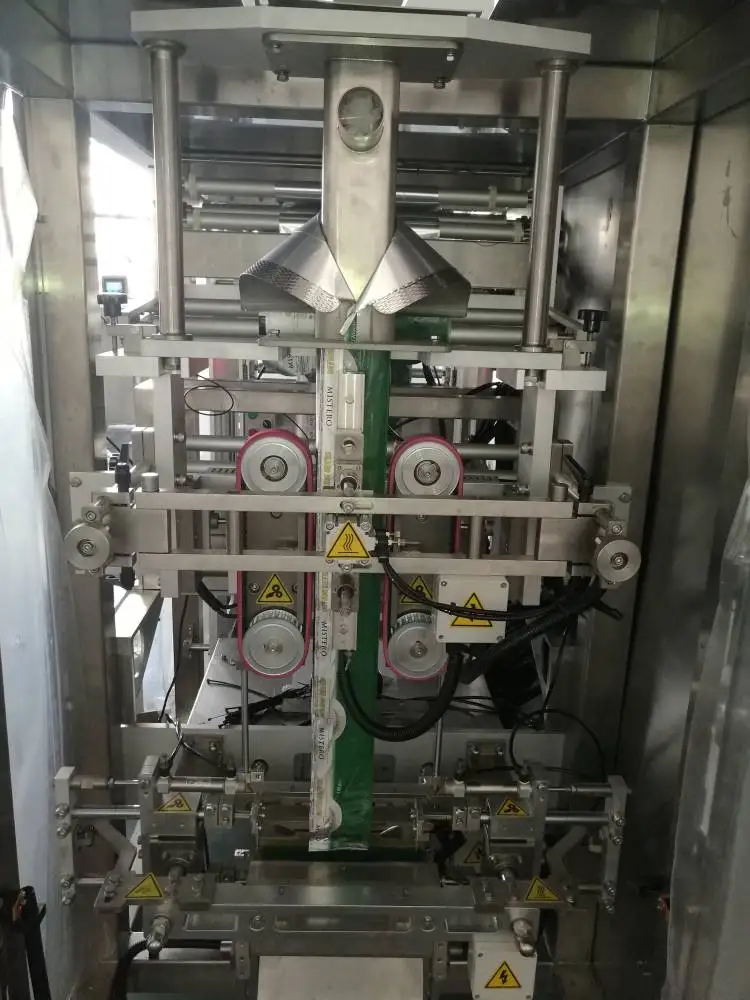

ZD-730 Packing machine
Auger Filler
Screw elevator
Safety and Hygiene:
No film, machine will alarm.
Machine alarm and stop when the inadequate air pressure.
Safety guards with safety-switches, machine alarm and stop when the safety guards are opened.
Hygienic construction, the product contact parts Safety and Hygiene:
No film, machine will alarm.
Machine alarm and stop when the inadequate air pressure.
Safety guards with safety-switches, machine alarm and stop when the safety guards are opened.
Hygienic construction, the product contact parts are adopted sus304 stainless steel.
No film, machine will alarm.
Machine alarm and stop when the inadequate air pressure.
Safety guards with safety-switches, machine alarm and stop when the safety guards are opened.
Hygienic construction, the product contact parts Safety and Hygiene:
No film, machine will alarm.
Machine alarm and stop when the inadequate air pressure.
Safety guards with safety-switches, machine alarm and stop when the safety guards are opened.
Hygienic construction, the product contact parts are adopted sus304 stainless steel.
1.A wide range of pouches: Pillow bag ,gusset bag, quad seal bag
2.High speed: 18~40 bags/min
3.Easy to operate: PLC controller and color touch-screen, fault indication on the touch screen.
4.Easy to adjust: only about 10 minutes to change different pouches.
5.Frequency control: speed can be adjusted by frequency conversion within the range.
6.High Automation: unmanned in weighing and packing process, machine alarm automatically when failure..
2.High speed: 18~40 bags/min
3.Easy to operate: PLC controller and color touch-screen, fault indication on the touch screen.
4.Easy to adjust: only about 10 minutes to change different pouches.
5.Frequency control: speed can be adjusted by frequency conversion within the range.
6.High Automation: unmanned in weighing and packing process, machine alarm automatically when failure..
It is suitable for the packaging of non-flowing powder materials,
such as: milk powder, soy milk powder, starch, veterinary
medicine, pesticide powder, facial mask powder, enzyme preparation, glucose, seasoning, spicy powder, flavor and fragrance, coffee powder, flour powder, etc.
medicine, pesticide powder, facial mask powder, enzyme preparation, glucose, seasoning, spicy powder, flavor and fragrance, coffee powder, flour powder, etc.
Q1: Are you a factory or a trading company?
A1:We are the factory with manufacturing and self-supporting import and export rights for more than 25 years.
Q2: How to choose suitable packaging machine?
A2:Need to provide your material pictures and requirements, such as packaging speed, packaging weight, bag type and bag size.
Q3: How about the payment way?
A3:Payment can be T/T, L/C etc. we can provide FOB, CNF, CIF term by sea.
Q4: How to ensure the quality of the machine?
A4:We usually delivery the machine after successful inspection in our factory. We have our own quality control department,before the delivery we have to running the machine for three days without problem. You can send us your materials and we will make video as long as you want. Or you can arrange a third-party inspection agency.
Q5: How to install the equipment?
A5:We will provide manuals and detailed videos to help customer install machine. If necessary, we will send technicians to the customer's factory to assist, and the customer only needs to pay for round-trip air tickets, meals, room expenses and a daily subsidy of 150 US dollars.
A1:We are the factory with manufacturing and self-supporting import and export rights for more than 25 years.
Q2: How to choose suitable packaging machine?
A2:Need to provide your material pictures and requirements, such as packaging speed, packaging weight, bag type and bag size.
Q3: How about the payment way?
A3:Payment can be T/T, L/C etc. we can provide FOB, CNF, CIF term by sea.
Q4: How to ensure the quality of the machine?
A4:We usually delivery the machine after successful inspection in our factory. We have our own quality control department,before the delivery we have to running the machine for three days without problem. You can send us your materials and we will make video as long as you want. Or you can arrange a third-party inspection agency.
Q5: How to install the equipment?
A5:We will provide manuals and detailed videos to help customer install machine. If necessary, we will send technicians to the customer's factory to assist, and the customer only needs to pay for round-trip air tickets, meals, room expenses and a daily subsidy of 150 US dollars.
