Heat shrink tube dielectric TOMBO NO.9051 PTFE Shrinkable tubing
- Category: >>>
- Supplier: NICHIAS Corporation
Share on (10000004125797):
Product Overview
Description
Products Description

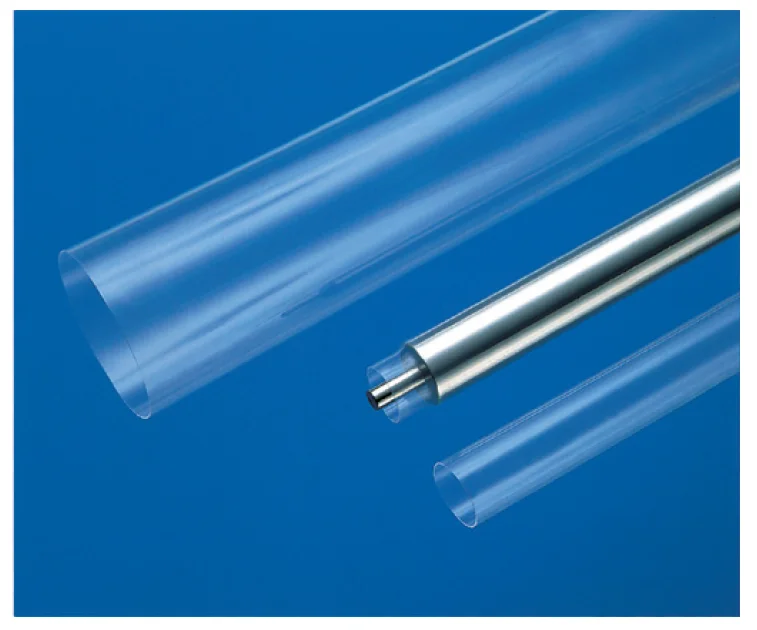

Product name | TOMBO No.9051 NAFLON™ FEP Shrinkable Tubing |
Brand name | TOMBO |
Place of Origin | Japan |
The NAFLON FEP shrinkable Tubing decrease in diameter when heated to temperatures between 100℃ and 200℃. When rolls are covered with these tubing, chemical resistance, anti-adhesiveness, and electrical insulating properties can be added to the rolls using the heat-shrinkage process.
These tubing can coat even a relatively small diameter material with sufficient clearance.
■Features
Theses tubing can be easily processed in the field using a hot air gun.
■Specifications
The shrinkage percentage in the radial directions is approximately 24%, and the extension percentage in the long direction is approximately 7% (at a temperature of 150℃).

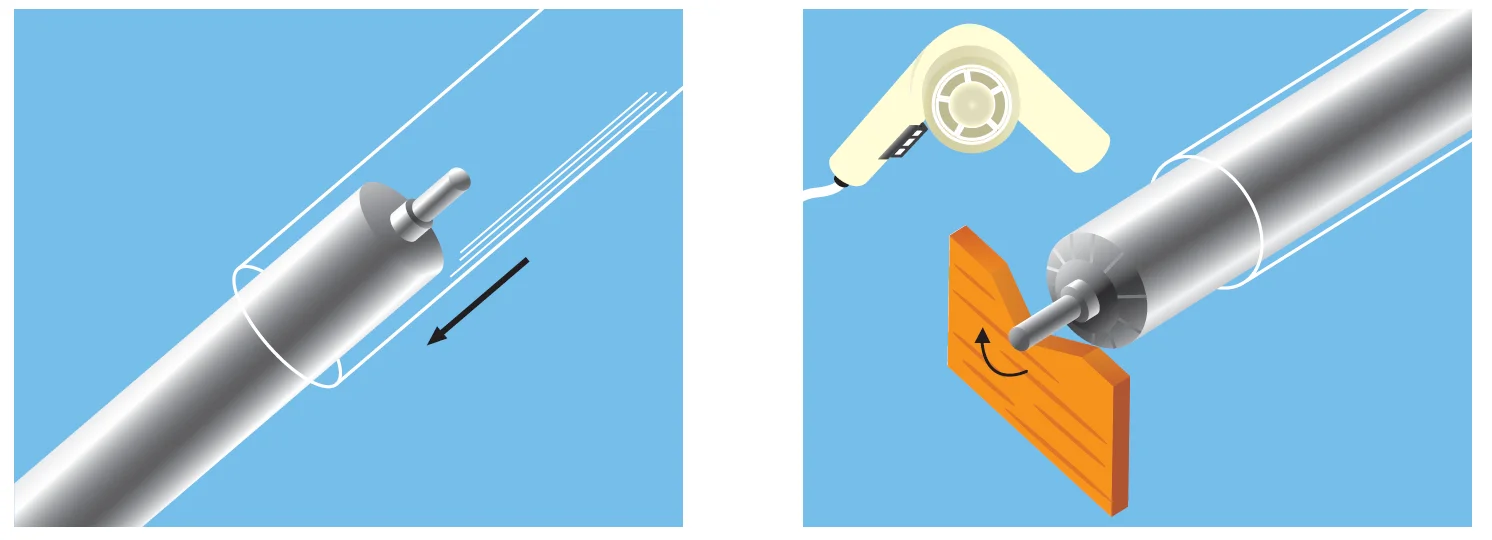

■Shrinking method
Cover the object with a tube and heat evenly with hot air. Shrinkable with hot air at 100℃～200℃.

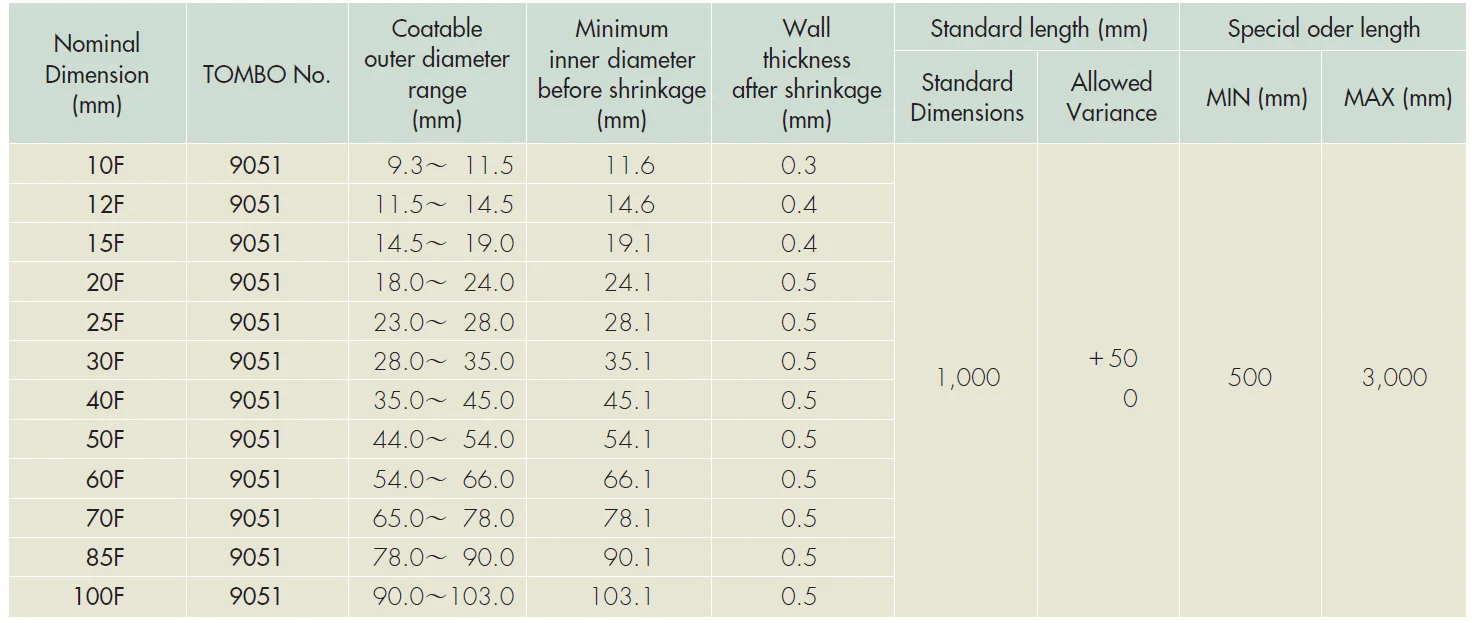

■Standard Dimensions
■Caution
・Since there is a possibility of natural shrinkage, please keep these tubing in a cool place (30℃ or lower).
・Please note that these tubing may melt with overheating at high temperature.
・Since there is a possibility of natural shrinkage, please keep these tubing in a cool place (30℃ or lower).
・Please note that these tubing may melt with overheating at high temperature.
Product Category
Company Profile
NICHIAS Corporation was founded in 1896 as a pioneer in thermal insulation materials. For more than a century, NICHIAS has achieved growth by Insulation and Protection technologies which consist of six core elemental technologies that include sealing, thermal insulation, soundproofing, fire-resistant, anti-corrosion as well as clean. These six technologies help protect our natural environment. For example, insulation technologies help reduce CO2 emissions and are energy efficient, while sealing technologies prevent environmental pollution.
”TOMBO"(dragonfly) is a registered trademark or trademark of NICHIAS Corporation.
