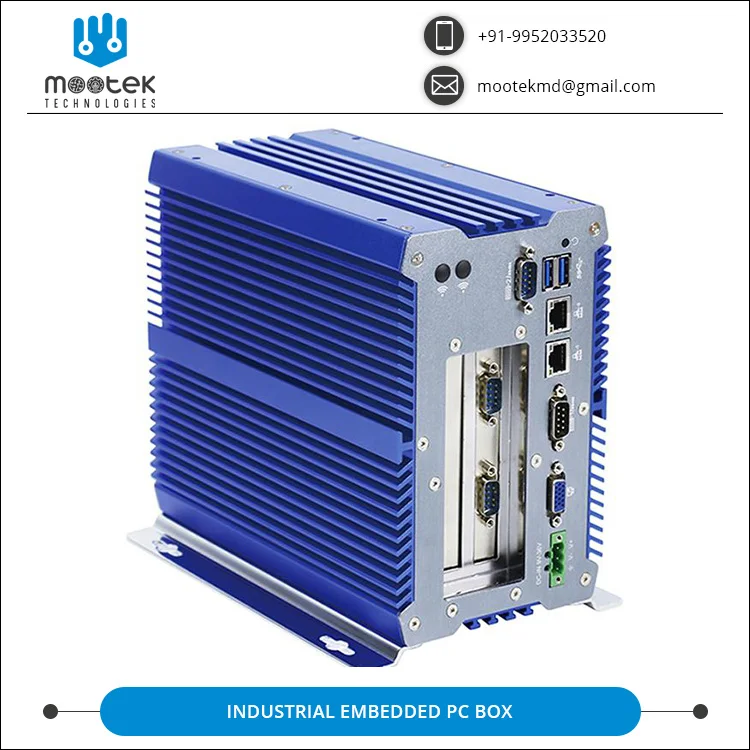

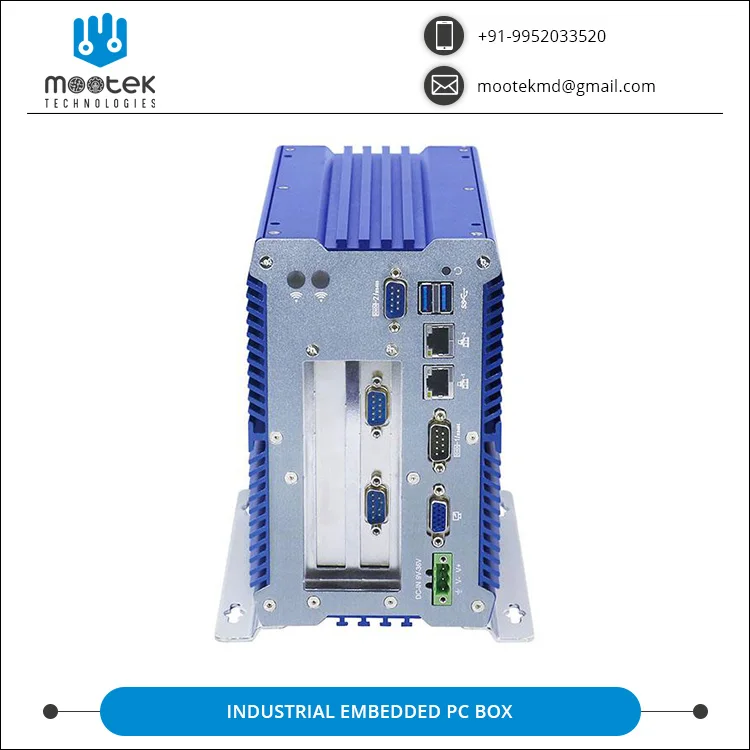

Manufacturer & Exporter of Standard Grade MBOX-520-I5-2PCI Fanless Industrial Embedded Box PC at Low Price
- Full Aluminum alloy enclosure, fanless design.
- High performance motherboard, 7x24 continuous operation.
- Support processor Intel Celeron 3865U, Intel Core i5 7200U, Intel Core i7 7500U
- Support MAX DDR4 1866/2133 16GB
- Support 1*M.2, 1*2.5 inches SATA
- Support WIFI/3G/4G
- Support 4*USB 3.0, 4*COM(Support 6*COM optional)(COM1, COM2 Support RS232/442/485 optional), 2*PCI 32bit or 1*PCI 32bit + 1*PCI-E 4X.
- Compatible Windows 7/8/10, Linux.
Specifications
| PC | CPU | Intel Celeron 3865U,(Dual-core dual-thread, 2MB three-level cache, 1.8 GHz)Intel® Core i5-7200U, dual core, 2.5GHz. Intel® Core i7-7500U, dual core, 2.7GHz. |
| Memory | Support 1*DDR4 1866/2133MHz,max 16GB | |
| Storage | Support 1*MSATA, 1*2.5'' SSD/HDD | |
| Expansion | 1*Mini-PCIE (support Wifi/3G/4G optional), embedded SIM slot, 1*Mini-PCIE(Support MSATA) | |
| Display | 1x VGA | |
| Display Chip | Integrated Intel HD Graphics 610/620 core graphics | |
| Audio | Integrated Realtek ALC662 6 sound channel | |
| Network | 2*Intel i211-AT 10/100M/1000M Lan | |
| Rear I/O | 1*VGA/RST Button/3Pin Phoenix Terminal, 2*Intel Lan, 2*usb2.0, 4*usb3.0, 4*COM(Support 6*COM optional)(COM1, COM2 Support RS232/442/485 optional), 2*PCI 32bit or 1*PCI 32bit + 1*PCI-E 4X | |
| Front I/O | 2*USB3.0/USB2.0/LED Light, 1*Power Switch | |
| BIOS | 64Mb SPI FLASH | |
| WDT | Support hardware reset (256 level, 0-255 sec) | |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. | |
| Power Supply | External Power Supply | AC 100 - 240V |
| Working voltage | DC 9-36V | |
| Power consumption | ≤40W | |
| Enclosure | Material | Aluminum Alloy |
| Color | Blue, color can be customized for bulk orders. | |
| Operating Environment | Temperature Range | operating: -10 to 50°C, storage: -10 to 60°C |
| Relative humidity | 0%~95% , non-condensing | |
| Packing Details | Net weight | 2.4kg |
| Gross weight | 3.5kg | |
| Product Dimension | 21.5*18.5*11.5cm | |
| Packing size | 28*25*15cm | |
| Accessories | Power adapter, open frame kits, | |
| Others | Mounting (options) | open frame |
| wall mounting brackets (optional) | ||
| Warranty | 1 year warranty |
