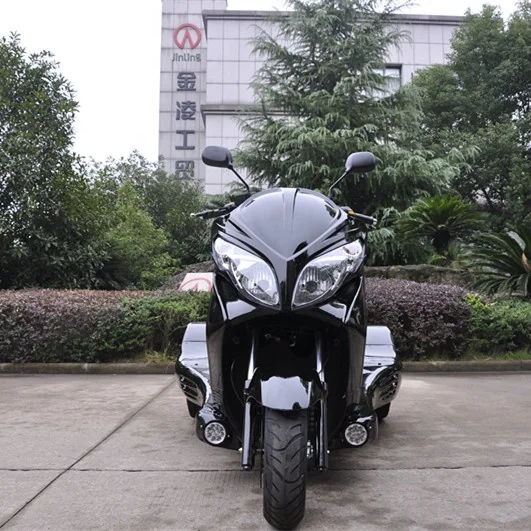

Ready To Ship Jinling 300cc good quality cheap price made in china trike

Product Overview

Description

ENGINE
2.Cylinder	Single	Single	Single
3.Cooled System	Air	Air	Air
4.Engine Stroke	4 Stroke	4 Stroke	4 Stroke
5.Bore*Stroke(mm)	47*49.5	52.4*49.5	55.5*49.5mm
6.Displacement(ml)	90	110	125
7.Max.power(kw/rpm)	3.3kw/7500rpm	3.6kw/7500rpm	6.8kw/7500rpm
8.Max.torque(n.m/rpm)	4.3N.m/5000rpm	5.2N.m/5000rpm	8.6N.m/5000rpm
TRANSMISSION
9.Transmission Type	Automatic chain	Automatic chain	Automatic chain
10.Primary Drive(Rear Wheel)	Chain    4x2	Chain    4x2	Chain    4x2
11.Reverse	no	no	no
12.Max Speed(km/h)	>50	>50	>50
WHEEL
13.Front  wheel	16x8-7	16x8-7	145x70-6
14.Rear  wheel	16x8-7	16x8-7	145x70-6
BRAKE SYSTEM
15.Front brake	Drum	Drum	Drum
16.Rear brake	Disc	Disc	Disc
TECHINCAL SPECIFICATIONS
17.Product Dimensions(mm)	1520x860x910	1520x860x910	1520x860x910
18Ground Clearance(mm)	100	100	100
19.Wheelbase(mm)	880	880	880
20..gross weight(kg)	90.5	90.5	90.5
21. net weight(kgs)	83	83	83
22.Fuel Capacity(L)	3.2	3.2	3.2
SEAT
23.Seat Height(mm)	590	590	590
COLOR
24.Standard Color	Red/Yellow/Blue/Green/Black/White	Red/Yellow/Blue/Green/Black/White	Red/Yellow/Blue/Green/Black/White
25.Optional Color	Green camo,Yellow camo,Snow Camo,Metallic,Carbon	Green camo,Yellow camo,Snow Camo,Metallic,Carbon	Green camo,Yellow camo,Snow Camo,Metallic,Carbon
LOADING
26.Packing Size(mm)	1250*760*660	1250*760*660	1250*760*660
27.Quantity	20FT:36PCS,   40HQ:108PC	20FT:36PCS,   40HQ:108PC	20FT:36PCS,   40HQ:108PC











1. All of the ATV Frame is use the 2.5mm seamless steel pipe ligt arc welding,production by our factory workeshop.reliable and stability.

2. All of the ATV engine is come from original engine factory. have not the renovation engine.

3.Each one ATV come out from factory,  All must go through rigorous drive testing.To ensure the quality of each ATV.

4.We have one Professional team to do the after-sales service, Provide the solution to solve your worries on the ATV problems.
