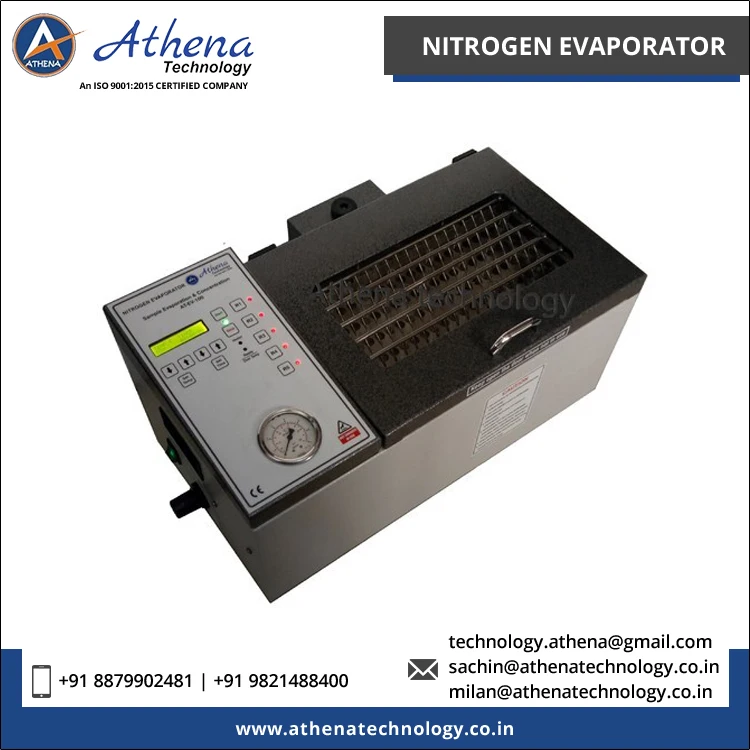

Nitrogen Concentrator Model: AT-EV-50 is a Precision Sample Concentrator by Nitrogen Purging. It is a newly designed Sample Concentrator for multiple sample pre-concentration of in organic media. A Table Top Model. The unit can be set to a constant Flow and constant Temperature to ensure good evaporation. Also, the Nozzle height can be electrically set to the required level. It is fully microprocessor controlled and water bath, Temperature, gas station, more advantage LCD display, over Temp. Heater ON/OFF LED, door open display, high temperature Thermal Coutour for safety for best quality and best performs.

Product Specifications:

• Vortex Shearing Concentration



• ASE (Dionex) Compatible upgrade Kit (For I-Chem vial 40mL, 60mL)



• Time Range: 15 sec to 10 hours



• Time Set-up / down arrow keys (15 sec increments)



• Temperature range: Ambient to 99 oC (thermal cutout for safety)



• Temperature set-up / down arrow keys (1 °C increment)



• Start/stop: Green LED indication when process is On



• Display: LCD (Digital)



• Gas stations: 5 Nos. with LED indication



• Gas regulator range: 0 to 100 PSI (approximate)



• Pressure gauge range: 0 to 100 PSI



• Controlled: Fully Microprocessor based



• Sample capacity: 50 Nos.



• Gas Line: 5 Nos.



• Dimensions: 30cm(H) x 40cm(W) x 55cm(L)



• Weight:20 Kgs (empty tank)



• Colour: Grey



• Power supply: 230 V AC / 3Amp



• Error indication: LED indication with Buzzer

Technical Specifications:

• Space requirements: Table top or fume hood with minimum dimension L, W & H (cms) 70 x 50 x 65


• Table weight capacity 35 kg minimum requirement



• Work area: Flat, level, stable, surface



• Gas supply: Laboratory grade nitrogen



• Inlet pressure: 60 PSI minimum, 100 PSI maximum (And ON/OFF control valve)



• Exhaust: Exhaust duct outlet or fume hood - the exhaust duct must go to outside the lab.



• Water bath capacity: 6.5 Ltr. distilled water (6.5 Ltr. do not over flow)

Instruments for Research Labs, Colleges, Schools and various industries like:

Athena Technology was established in the year 2010 and since then we are successfully exceeding the expectations of clients through the consistent manufacturing, exporting and trading of quality scientific instruments and laboratory equipment. The huge variety of ISO 9001: 2008 products offered by us includes Nitrogen Evaporator, Nitrogen Gas Generator and Hydrogen Gas Generator.

Our instruments are well appreciated by clients for their user-friendliness, accurate results, longer life, compact designs and excellent performance. With an aim to meet the overwhelming demand of the scientific community, we provide an entire range of instruments right from basic lab equipment to the most sophisticated instruments for research labs. Under the brand name Athena, offer excellent Quality at Low Prices, with a Huge Selection and Personalized Installation Service. We also export our products to European Countries, Middle East, South East Asia, Africa and USA.

Our belief is 'To be credible in the market, we must be truthful' so we work with utmost sincerity and truthfulness. Our goal is to satisfy our client base with our products.
