Date Zipper Pouch Sealing Machine Zipper Pouch Packing Machine Date Packing Machine
- Category: >>>
- Supplier: Durzerd Packaging Machinery Co. Ltd.
Share on (10000004272609):
Product Overview
Description
Model | ZD6-200 | ZD6-250 | ZD8-200 | ZD8-320 | ZD10-200 |
Working position | six-working position | six-working position | eight-working position | eight-working position | ten-working position |
Pouch material | Laminated film | Laminated film | Laminated film | Laminated film | Laminated film |
Pouch pattern | stand-up&zipper | stand-up&zipper | stand-up&zipper &3side sealing&4side sealing | stand-up&zipper& 3side sealing&4side sealing | stand-up&zipper |
Pouch size | W:150-260mm L:150-350mm | W:200-330mm L:150-450mm | W:60-200mm L:150-380mm | W:200-320mm L:100-400mm | W:130-250mm L:120-360mm |
Speed | 10-50pouches/min | 10-50pouches/min | 40-60pouches/min | 10-30pouches/min | 6-55pouches/min |
Weight | 1350KGS | 1500KGS | 1200KGS | 1400KGS | 1000KGS |
Voltage | AC38V±10%，3Phase50HZ | AC38V±10%，3Phase50HZ | AC38V±10%，3Phase50HZ | AC38V±10%，3Phase50HZ | AC38V±10%，3Phase50HZ |
Total power | 3.0KW | 3.0KW | 2.5KW | 2.5KW | 3.5KW |
Compress air | air consumption 0.6m³/min | air consumption 0.6m³/min | 5-8kg f/cm²，air consumption 0.4m³/min | 5-8kg f/cm²，air consumption 0.4m³/min | 5-7kg f/cm²，air consumption 0.5m³/min |
Bag open | Vacuum open | Vacuum open | Vacuum open | Vacuum open | Vacuum open |
Alarm situation | \u0081no bag no material, no sealing ‚overload alarm ƒLow pressure alarm | \u0081no bag no material, no sealing ‚overload alarm ƒLow pressure alarm | \u0081no bag no material, no sealing ‚overload alarm ƒLow pressure alarm | \u0081no bag no material, no sealing ‚overload alarm ƒLow pressure alarm | \u0081no bag no material, no sealing ‚overload alarm ƒLow pressure alarm |
Brief Introduction:

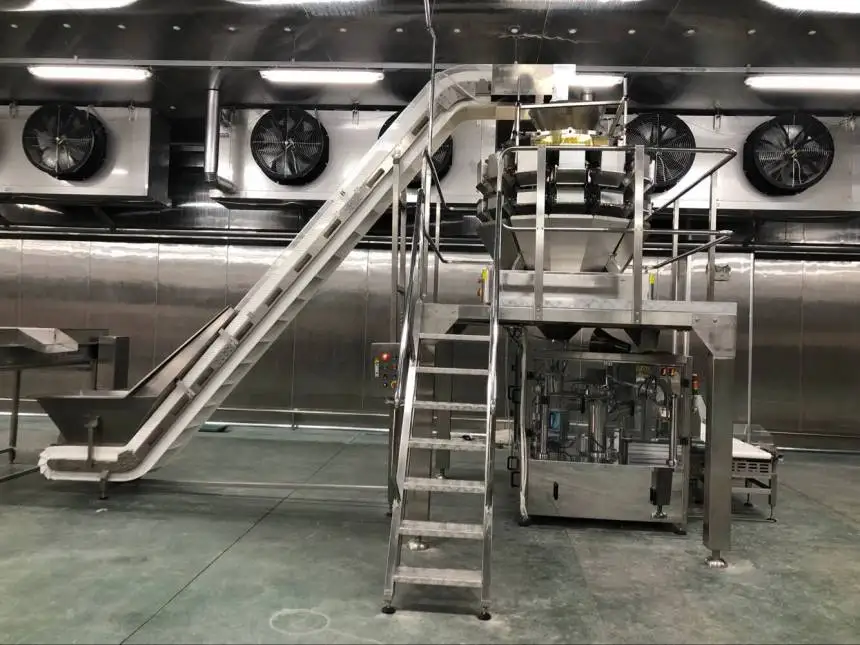

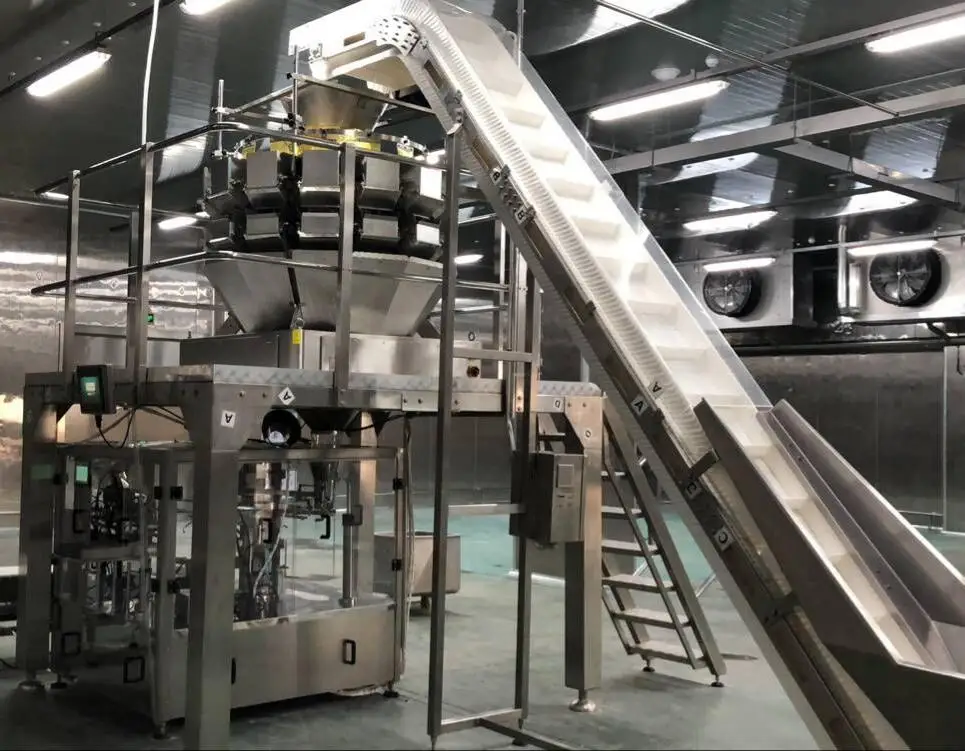

Premade stand up bag doypack granule machine can be equipped with multihead weigher mechanism. This equipment is specialized in Granule ,such as coffee bean ,grain, chips, cookies, puffed food, peanut, chile, dry fruits, frozen fruits, pasta, beans, chia seeds, gum, refined gourmet powder, granular drug, capsule, seed, chemistry condiment, granulated sugar,candy, chicken essence, melon seeds, nuts, pesticide, fertilizer, etc.
Premade stand up bag doypack granule machine can be equipped with multihead weigher mechanism. This equipment is specialized in Granule ,such as coffee bean ,grain, chips, cookies, puffed food, peanut, chile, dry fruits, frozen fruits, pasta, beans, chia seeds, gum, refined gourmet powder, granular drug, capsule, seed, chemistry condiment, granulated sugar,candy, chicken essence, melon seeds, nuts, pesticide, fertilizer, etc.
Applications
This product can be used to different area with optional auxiliary devices .
1. Solid Species: candy, peanut, green bean, pistachio, crystal candy, brown sugar, cookie, cake, daily commodities, cooked food, pickles, puffed food, etc.
2. Granule Species: grain, refined gourmet powder, granular drug, capsule, seed, chemistry condiment, granulated sugar, chicken essence, melon seeds, nuts, pesticide, fertilizer, etc.
1. Solid Species: candy, peanut, green bean, pistachio, crystal candy, brown sugar, cookie, cake, daily commodities, cooked food, pickles, puffed food, etc.
2. Granule Species: grain, refined gourmet powder, granular drug, capsule, seed, chemistry condiment, granulated sugar, chicken essence, melon seeds, nuts, pesticide, fertilizer, etc.
1) Automatic rotary packing machine adopt precision indexing device and PLC to control each action and working station to make sure the machine operates easily and does accurately.
2) The speed of this machine is adjusted by frequency conversion with the range, and the actual speed depends on type of products and pouch..
3) Automatic checking system can check bag situation, filling and sealing situation.
The system shows 1.no bag feeding, no filling and no sealing. 2.no bag opening/opening error, no filling and no sealing 3.no filling, no sealing..
4)The product and pouch contact parts are adopted stainless steel and other advanced material to guarantee the hygiene of products.
2) The speed of this machine is adjusted by frequency conversion with the range, and the actual speed depends on type of products and pouch..
3) Automatic checking system can check bag situation, filling and sealing situation.
The system shows 1.no bag feeding, no filling and no sealing. 2.no bag opening/opening error, no filling and no sealing 3.no filling, no sealing..
4)The product and pouch contact parts are adopted stainless steel and other advanced material to guarantee the hygiene of products.
According to the bag specifications and form, combined with the production material, corresponding to choose the following additional features used in the machine:
1. 5 stations tong material (cylinder tong material, suitable for use of liquidity is not high and twice raw material adding)
2. 6 stations tong (cantilever barrels of material)
3. The exhaust (applicable to eliminate gas needed materials)
4. Under vibration (also called bag vibrate, applicable to material block or large material)
5. Level bags (applicable to zipper bags and soft bag)
6. Open the zipper bag (applicable to zipper bag)
7. Close zipper (applicable to zipper bag)
8. The open bag (applicable to zipper bag and not easy to open the bag)
9. Hopper vibration (applicable to low liquidity material)
10. Sweep dust and dust (applicable to powder)
1. 5 stations tong material (cylinder tong material, suitable for use of liquidity is not high and twice raw material adding)
2. 6 stations tong (cantilever barrels of material)
3. The exhaust (applicable to eliminate gas needed materials)
4. Under vibration (also called bag vibrate, applicable to material block or large material)
5. Level bags (applicable to zipper bags and soft bag)
6. Open the zipper bag (applicable to zipper bag)
7. Close zipper (applicable to zipper bag)
8. The open bag (applicable to zipper bag and not easy to open the bag)
9. Hopper vibration (applicable to low liquidity material)
10. Sweep dust and dust (applicable to powder)
Q1: Are you a factory or a trading company?
A1:We are the factory with manufacturing and self-supporting import and export rights for more than 25 years.
Q2: How to choose suitable packaging machine?
A2:Need to provide your material pictures and requirements, such as packaging speed, packaging weight, bag type and bag size.
Q3: How about the payment way?
A3:Payment can be T/T, L/C etc. we can provide FOB, CNF, CIF term by sea.
Q4: How to ensure the quality of the machine?
A4:We usually delivery the machine after successful inspection in our factory. We have our own quality control department,before the delivery we have to running the machine for three days without problem. You can send us your materials and we will make video as long as you want. Or you can arrange a third-party inspection agency.
Q5: How to install the equipment?
A5:We will provide manuals and detailed videos to help customer install machine. If necessary, we will send technicians to the customer's factory to assist, and the customer only needs to pay for round-trip air tickets, meals, room expenses and a daily subsidy of 150 US dollars.
A1:We are the factory with manufacturing and self-supporting import and export rights for more than 25 years.
Q2: How to choose suitable packaging machine?
A2:Need to provide your material pictures and requirements, such as packaging speed, packaging weight, bag type and bag size.
Q3: How about the payment way?
A3:Payment can be T/T, L/C etc. we can provide FOB, CNF, CIF term by sea.
Q4: How to ensure the quality of the machine?
A4:We usually delivery the machine after successful inspection in our factory. We have our own quality control department,before the delivery we have to running the machine for three days without problem. You can send us your materials and we will make video as long as you want. Or you can arrange a third-party inspection agency.
Q5: How to install the equipment?
A5:We will provide manuals and detailed videos to help customer install machine. If necessary, we will send technicians to the customer's factory to assist, and the customer only needs to pay for round-trip air tickets, meals, room expenses and a daily subsidy of 150 US dollars.
