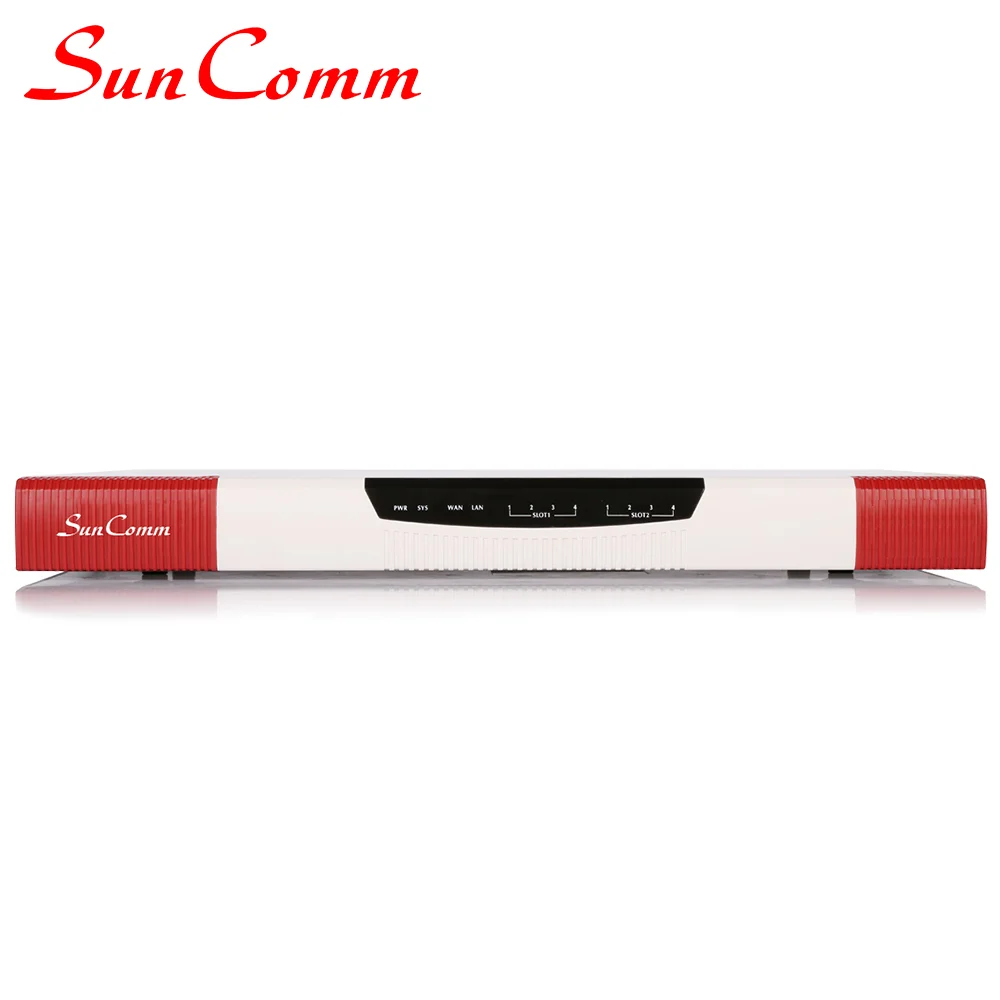

3G GSM module Voip IP PBX server

SC-2060 slot

SC-2060

Module

Slot 1

Slot 2

4FXS

V

V

4FXO

V

V

2FXO+2FXS

V

V

2GSM (SC-2060-GSM2)

V

V

4GSM (SC-2060-GSM4)

V

V

4BRI

×

V

1PRI (E1/T1)

V

V

2 3G WCDMA (SC-2060-3G2)

V

V

4 3G WCDMA (SC-2060-3G4)

V

V

PBX Features

4Up to 200 Extensions

4Up to 60 Simultaneous Calls

4Up to 40 Simultaneous Conference Attendees Up to 36 Call Queues

4Up to 36 Conference Rooms Recording up to 150 hrs (WAV) Recording up to 1500 hrs (GSM)

4Automatic Recording/One Touch Recording CDR (Call Detailed Recording)

4Multi-layer IVR (Interactive Voice Response) TDM/SIP/IAX Extensions/trunks

4Flexible Inbound/Outbound Routing Time-based Routing

4Remote Extensions & Remote Offices Paging & Intercom

4Video Call

4Call Forward/Transfer Web Extension (WebRTC) Follow Me

4DND (Do Not Disturb) Ring Groups

4Pick-up Groups

4DISA (Direct Inward System Access) Virtual Fax

4Voicemail to Email/Fax to Email One Number Stations

4Smart DID

Hardware

4Intel Dual-core 2.41GHz CPU 2GB DDR3L RAM

416GB Onboard EMMC

4HDMI (High-Definition Multimedia Interface) Audio In/Out (Paging)

42x1000Mbps Ethernet Ports

4USB 3.0 + USB 2.0 (Extended Storage) 2xModule Slots

Telephony Signaling & Control

4SIP (RFC3261)

4SIP over UDP/TCP/TLS IAX2

4DTMF: RFC2833, SIP Info, In-band SRTP

4PRI, SS7, MFC/R2

Network & Protocols

4IPv4, IPv6, VLAN, DHCP, PPPoE, DDNS, SNMPv2, NTP, SNTP, TFTP, SSH, HTTPS, SRTP, TLS, LDAP, TR069

Media

4Audio Codecs: G.722/G.711-Ulaw/G.711-Alaw/ G.726/G.729/GSM/SPEEX

4Video Codecs: H.261/H.263/H.263+/H.264 Fax: T.38 (passthrough)

Security

4HTTPS, Fail2Ban, Permit IP, Whitelist, Blacklist VPN Server (PPTP, L2TP, OpenVPN, IPSec)  VPN Client (N2N, PPTP, L2TP, OpenVPN, IPSec)

Power

4AC 100~240V, 50/60Hz, 1.5A max

Environment

4Working Temperature: 0 ~ 40°C

4Storage Temperature: -20 ~ 55°C

4Humidity: 5 ~ 95% Non-condensing

Size

4Unit Dimension: 440x222x44mm

4Package Dimension: 500 × 310 × 90mm

4Unit Weight: 2.46kg

4Package Weight: 4.3kg
