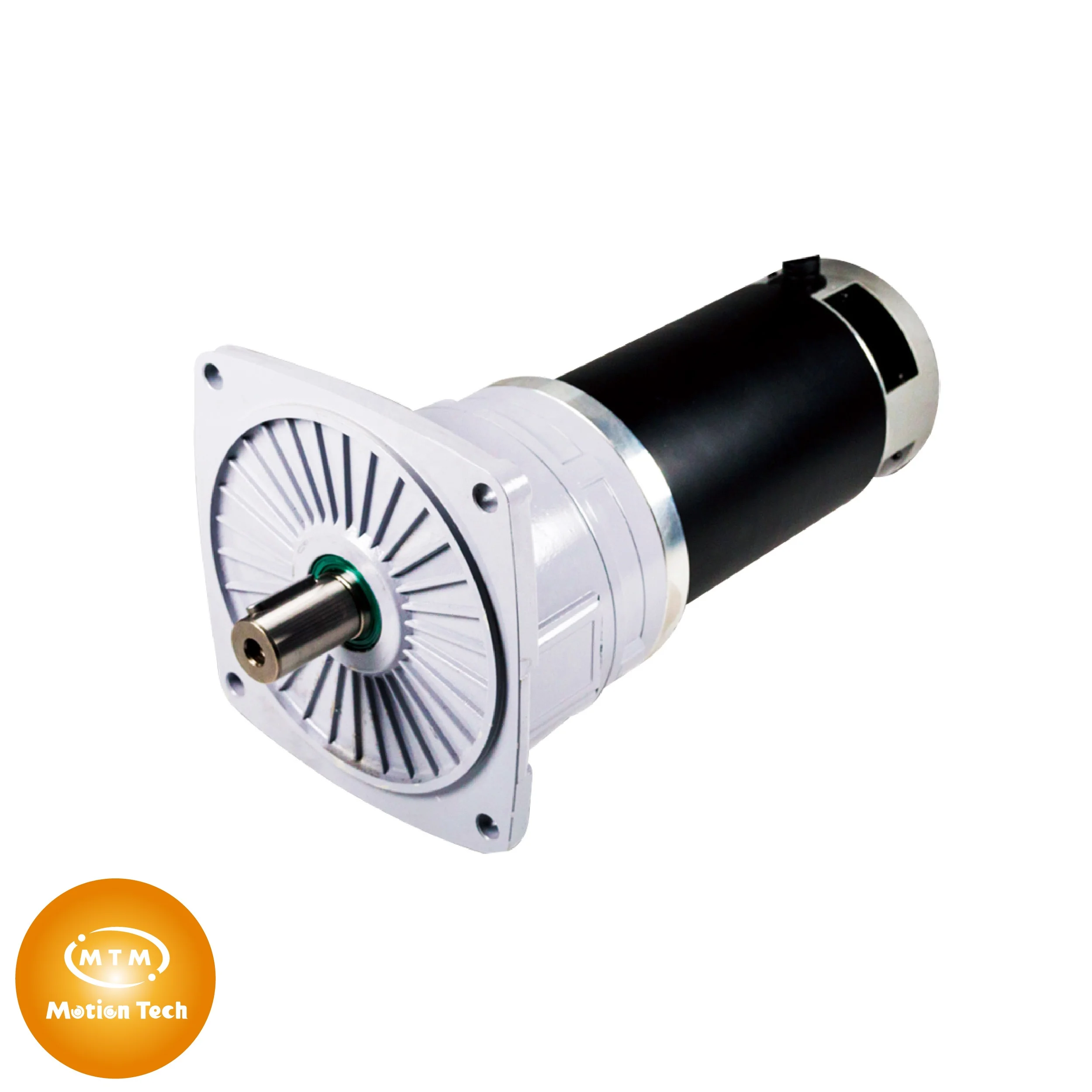

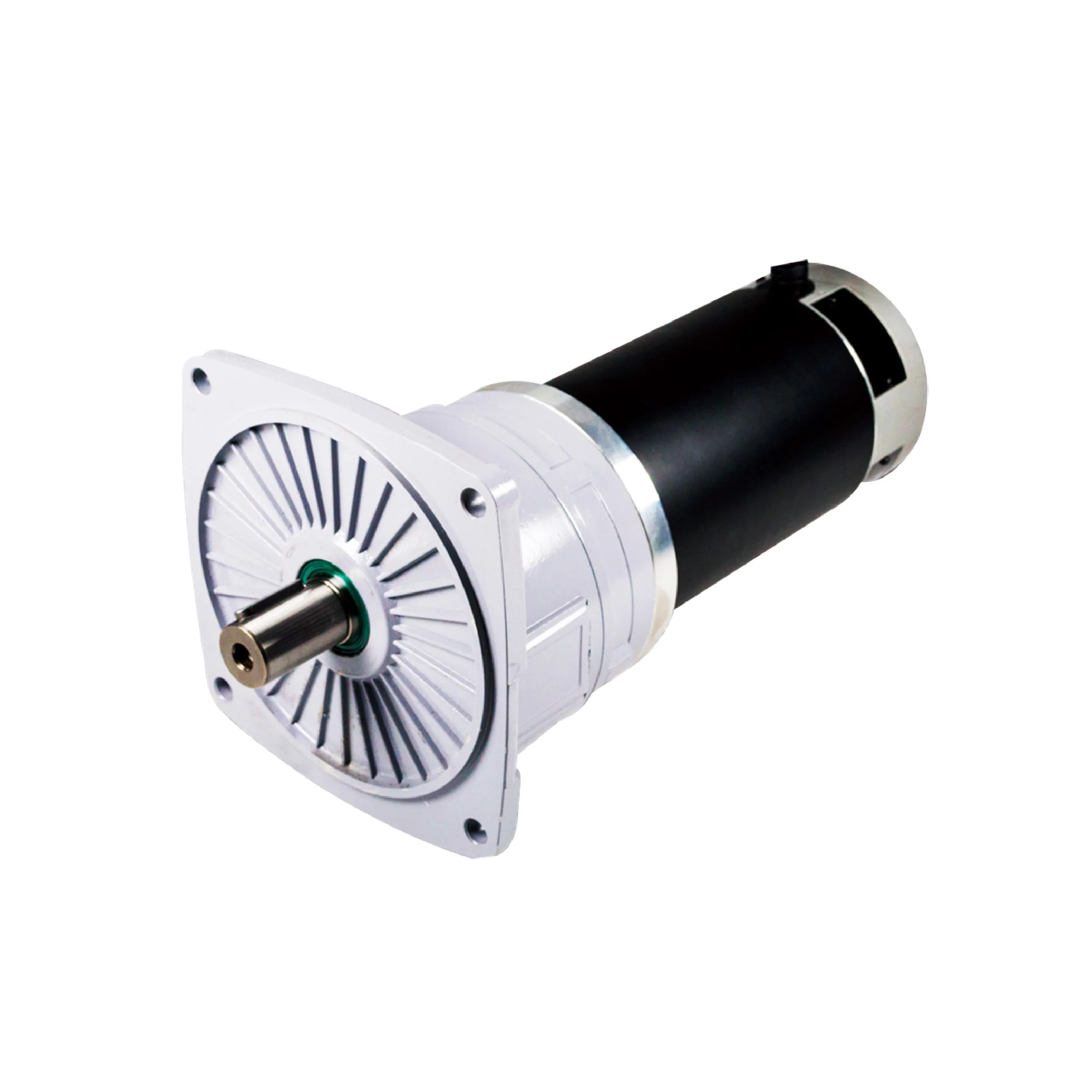

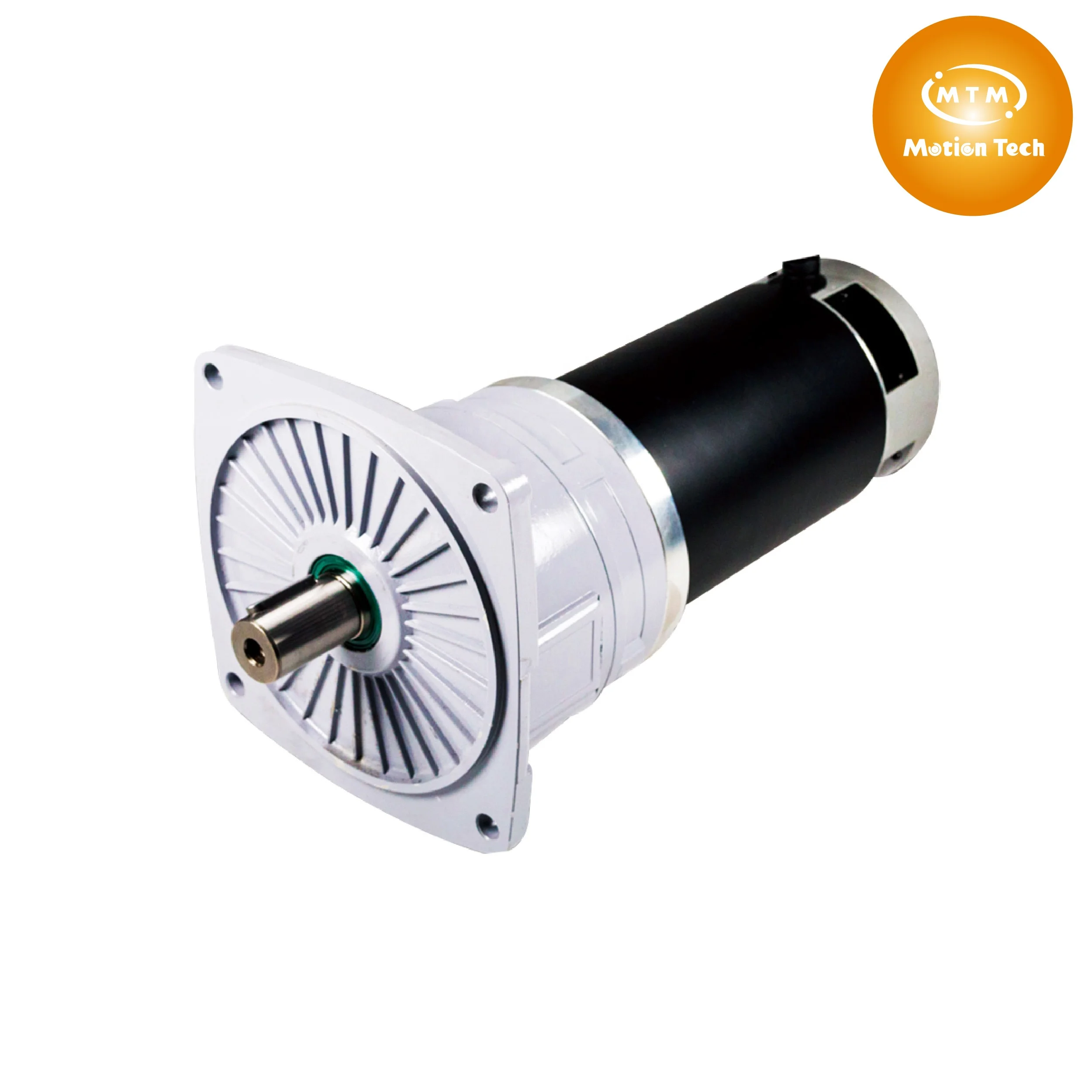

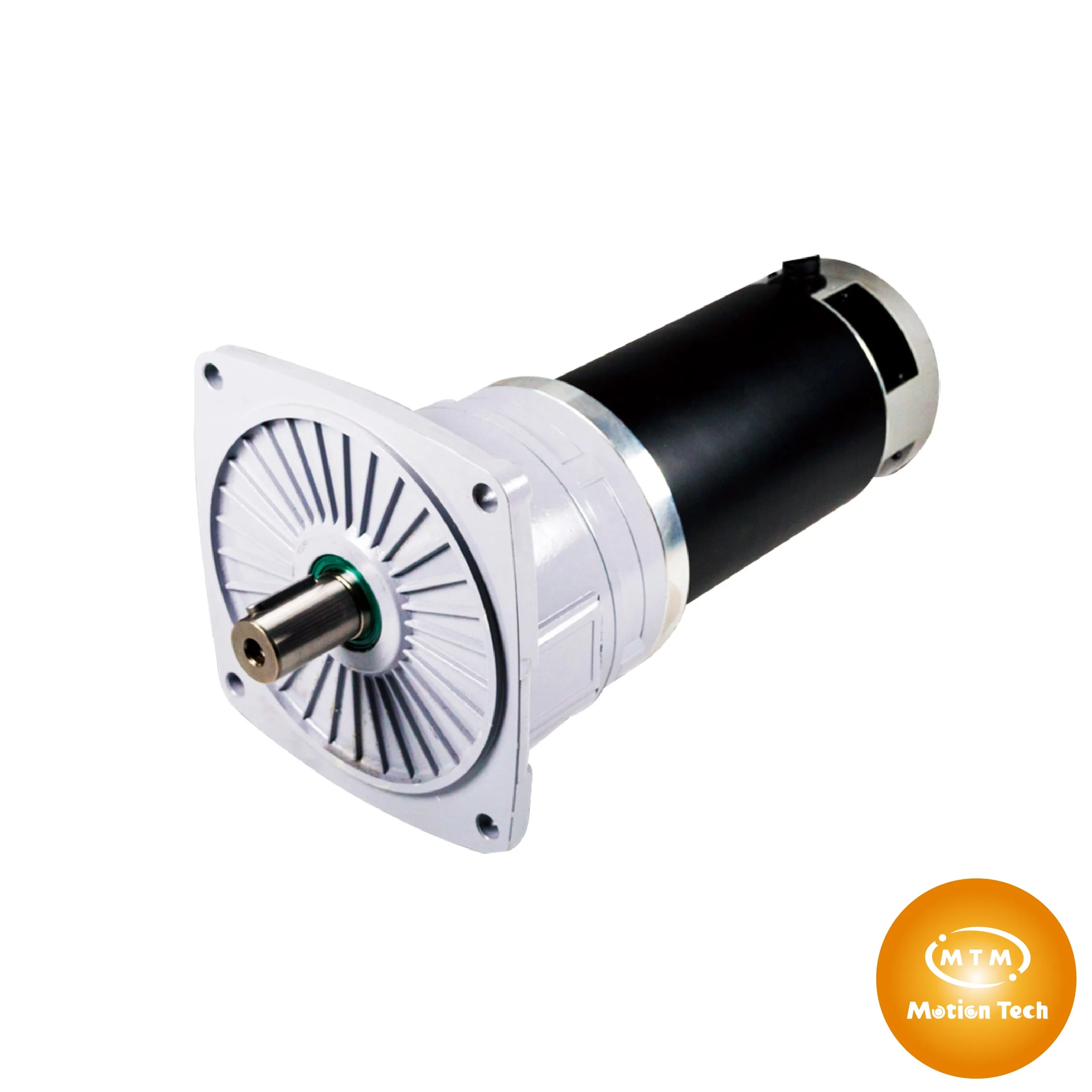

[MTM] Brush DC gear motor with power off brake 48v 1.3kW 4800 RPM [CE EN60601 1] industrial motor
[MTM] Brush DC gear motor with power off brake 48v 1.3kW 4800 RPM [CE EN60601-1] industrial motor
[MTM] Brush DC gear motor with power off brake 48v 1.3kW 4800 RPM [CE EN60601-1] industrial motor
[MTM] Brush DC gear motor with power off brake 48v 1.3kW 4800 RPM [CE EN60601-1] industrial motor
[MTM] Brush DC gear motor with power off brake 48v 1.3kW 4800 RPM [CE EN60601-1] industrial motor

[MTM] Brush DC gear motor with power off brake 48v 1.3kW 4800 RPM [CE EN60601 1] industrial motor

Share on (10000004376088):


Price:$140.00 - $150.00

Quantity:


Product Overview

Description



Product Overview


MTM brush DC motor includes Industrial ,gearbox and transaxle motor series .
The diameter of motors has 63,71,82,90,105 and 124. Gearbox ,transaxle and electromagnetic are optional .
Besides application for power wheelchair and scooter , application can be medical bed, medical car ,lifting solution , agriculture machine even aerial working vehicle ..etc. We suggest a suitable motor according to customers' demands of application and provide appropriate suggestion for customers.


Product Configuration




Product Paramenters




Official Website: https://www.motiontech.com.tw/en/home_en/


Series Product SPEC


Diameter
124mm
IP Degree
IP44
Motor Output
20~1200W
150W
200W
350W
Gearbox Ratio
1:10/1:20/1:30/1:40/1:50/1:60
RPM
1500~5000RPM
Rated Voltage
12~110V

Rated Torque
300~1800 kgf-cm


About Brush Series




Standard DC63 products:20~100W Standard DC71 products:30~300W Standard DC82 products:80~450W Standard DC90 products:80~500W
Standard DCA5 products:200~900W Standard DCC4 products:200~1200W
Standard EC63 products:80~270W Standard EC71 products:80~300W Standard EC82 products:150~500W
Standard EC90 products:120~600W
Standard EC92 products:250~600W
Standard EC94 products:250~500W Standard ECA0 products:500~900W Standard ECA5 products:500~950W Standard ECC4 products:350~1300W
Standard SC63 products:80~270W
Standard SC71 products:100~300W
Standard SC82 products:150~450W
Standard SC90 products:250~500W
Standard SC92 products:300~500W
Standard SC94 products:250~500W
Standard SCA5 products:500~950W
Standard SCC4 products:600~1300W


Applications


Brush motor is our root, Servo motor and brushless motor is our future.
The main product of MTM is for vehicles with low voltage DC power. If you are looking for a DC power servo motor, BLDC, brush motor or gearbox, MTM is your best choice.


Company Profile


About MTM
Motion Tech is the leading role in motor industry in Taiwan and leading brand of medical electric wheelchair, E-scooter all over the world.. We devote to manufacture PMDC motors and BLDC motors since 2002.
The main products of MTM is power module which included motor, gearbox and motor controller. MTM provide customization service which included design, test and manufacture to create a product with quality, efficiency and reliability.


Official Website: https://www.motiontech.com.tw/en/home_en/
