DF30098A 12 В 24 В постоянного тока маленький Тангенциальный поперечный вентилятор

Product Overview

Description

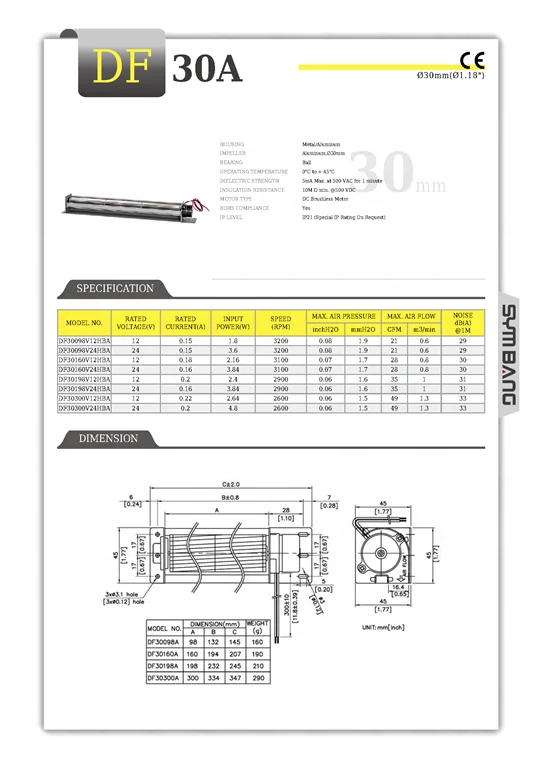

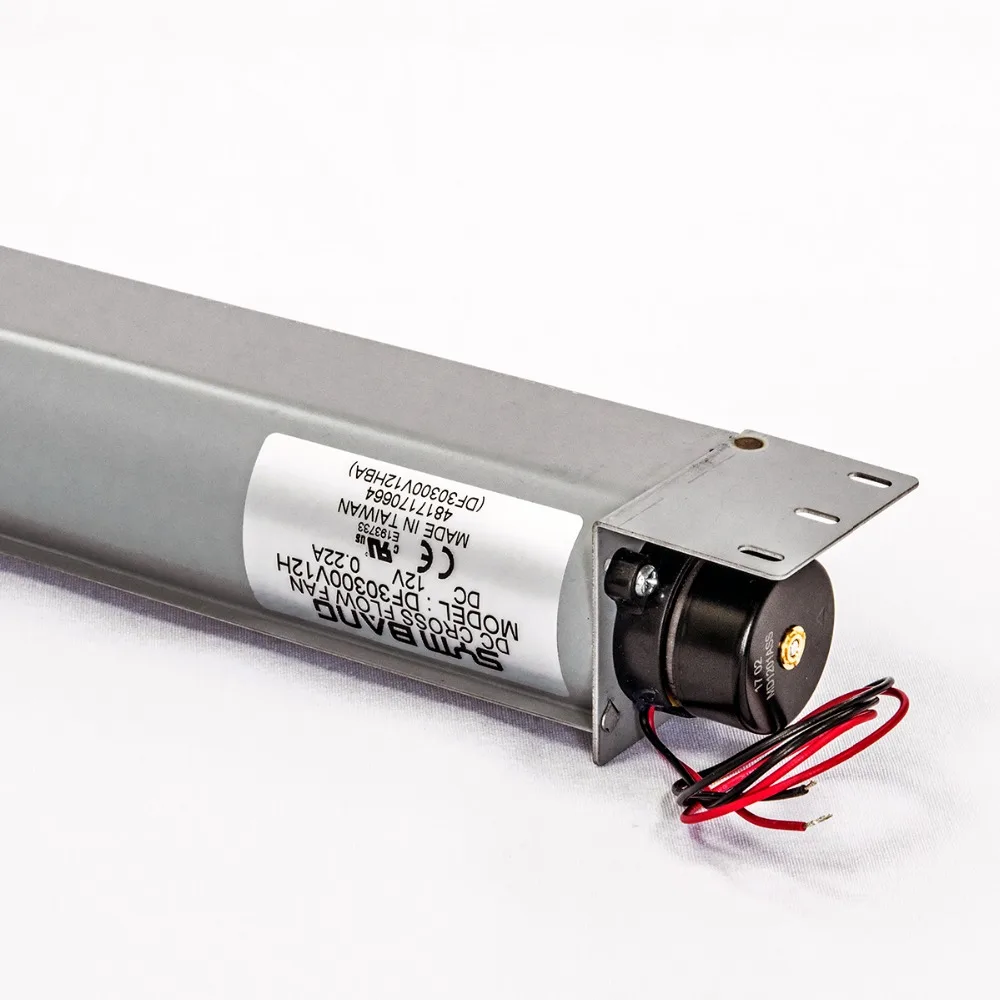

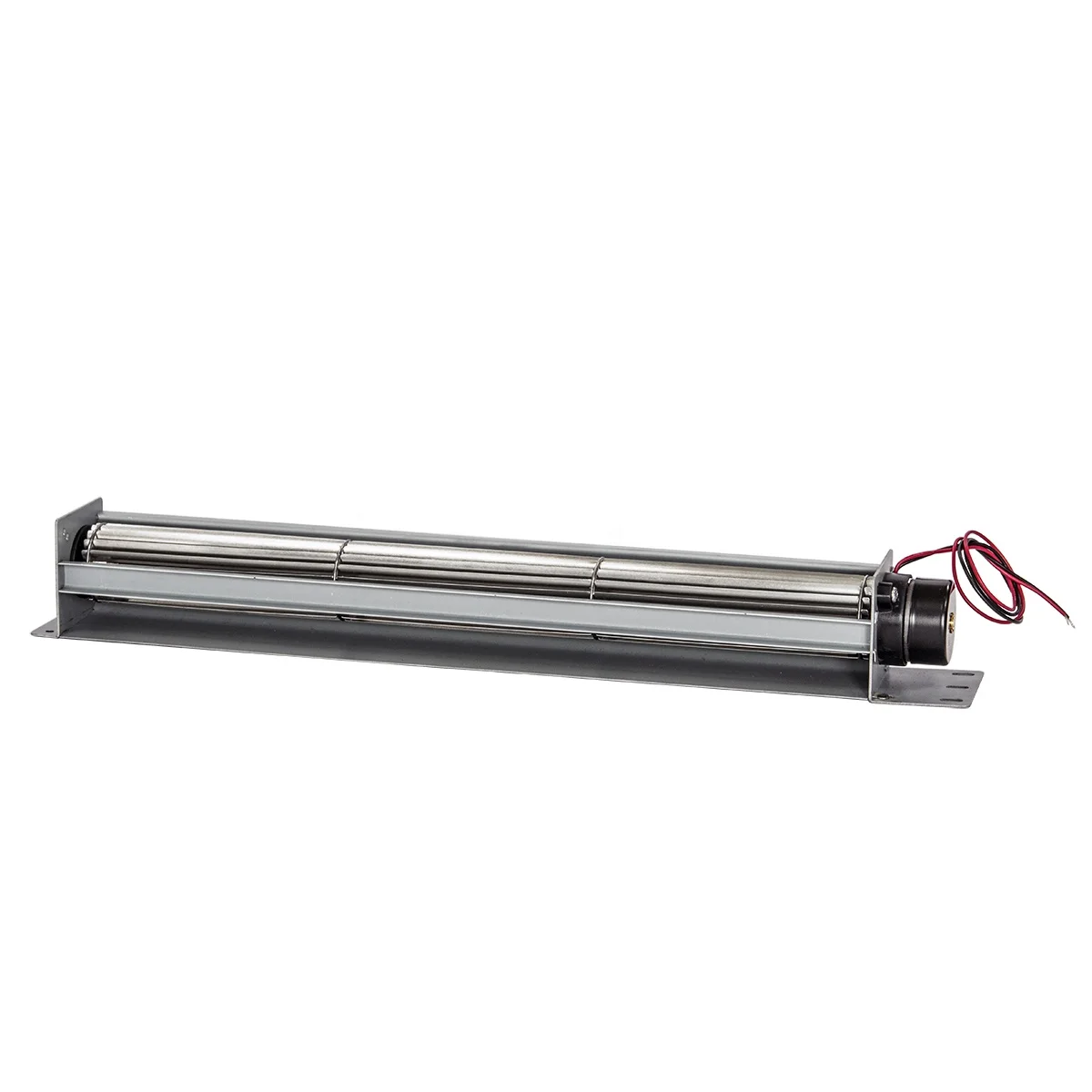

DF30098A 12v 24v DC small tangential cross flow fan blower



HOUSING	Metal/Aluminum
IMPELLER	Aluminum, Ø30
BEARING	Ball
OPERATING TEMPERATURE	0°C to + 45°C
INSULATION RESISTANCE	10M Ohms Min. @500 VDC
INSULATION STRENGTH	5mA Max.at 500vac for 1 minute
ROHS COMPLIANCE	Yes
MOTOR TYPE	DC Brushless Motor













Company  profile :





Activa Inc. is committed to the research & development of cooling fans & motors. Based on more than 20 years of experience in mold and component plastic injection manufacturing, SYM BANG has become a specialist manufacturer of exhaust fan through its advanced technology and full line of ventilation system.



We provide following products:



AC Axial Fans & Blower	DC Axial Fans & Blowers	AC Cross Flow Fans
DC Cross Flow Fans	AC Sirocco Blowers	AC Centrifugal Fans & Blowers
DC Centrifugal Fans & Blowers	EC Centrifugal Fans & Blowers	Air Curtain
EC Axial Fans	Fan Accessories	EC Stand Fan
Blade
