Heavy Type Lockable Ball Valve SS Valve Manual Valve General Base Stainless Steel China Manufacturer 1000WOG Wholesale Price 1PC
- Category: >>>
- Supplier: Zhejiang Leadtek Fluid Technology Co. Ltd.
Share on (10000004557368):
Product Overview
Description
Product Description
Description: | 1PC Threaded Ball Valve Heavy Type Lockable Handle |
Size: | 1/4'' ～ 4'' |
Material: | 304 304L 316 316L CF8 CF8M CF3 CF3M |
Thread: | BS21 (BSPT&BSPP), ANSI/ASME B1.20.1 (NPT), DIN2999(R/RP), JIS B 0203/2(PT), KS B0221/2(PT), ISO228-1, ISO7-1,etc.. |
Connection: | Female Thread |
Rating: | 1000PSI |

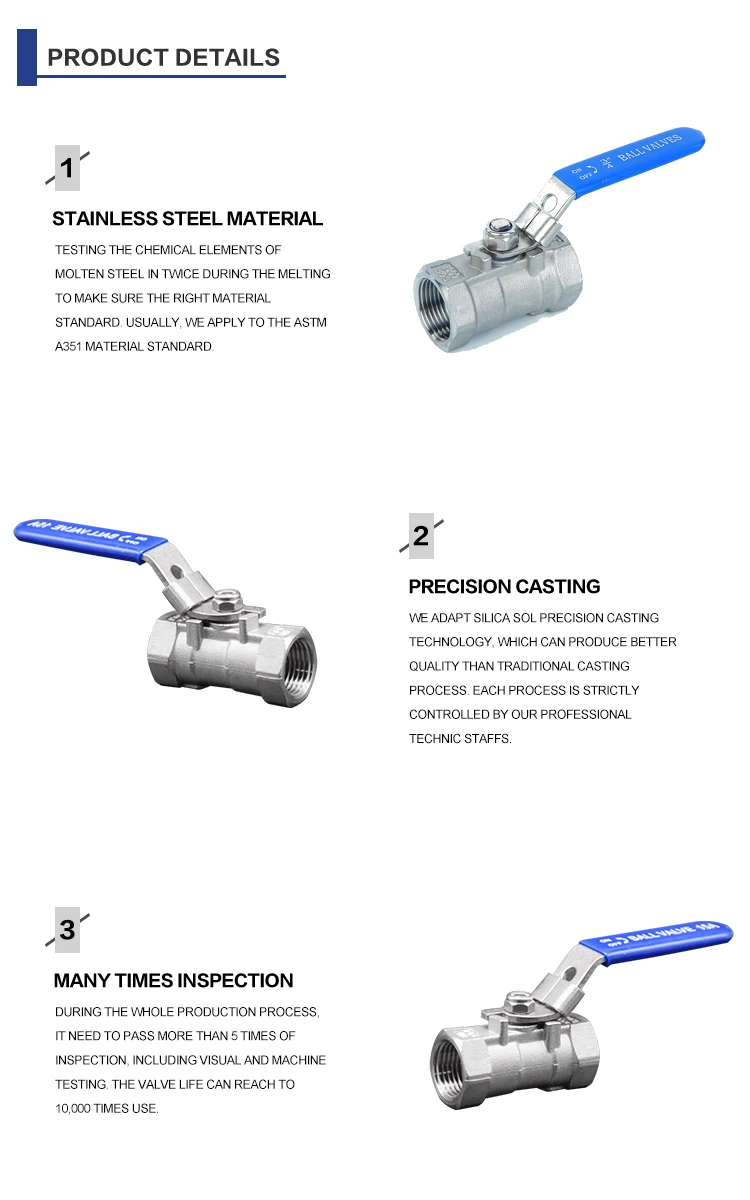

Fabrication: | Silica Sol Precision Casting Technology |

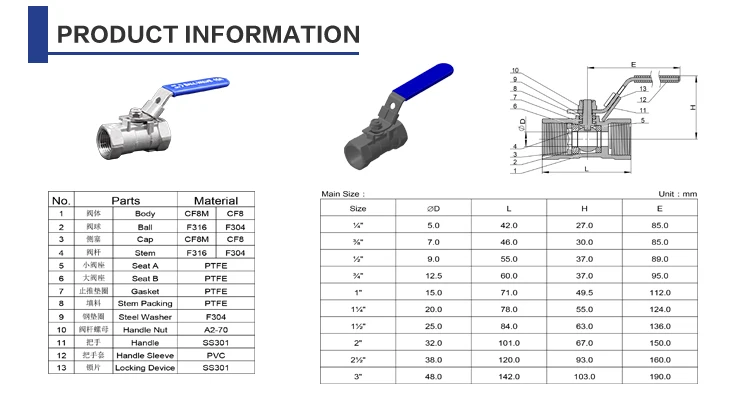

Size Information
Product Parameter
Threaded Heavy Type Lockable Stainless Steel 304 with Blue Vinyl Handle- Full Port Ball Valve | ||
Item no. | LT - 51D | |
Size | 1/4'' ～ 4'' | |
Material we can do | 304 304L 316 316L CF8 CF8M CF3 CF3M | |
Material in stock | ASTM A351 CF8(304), ASTM A351M CF8M(316) | |
Thread | BS21 (BSPT&BSPP), ANSI/ASME B1.20.1 (NPT), DIN2999(R/RP), JIS B 0203/2(PT), KS B0221/2(PT), ISO228-1, ISO7-1,etc.. | |
Design standard | API 608 | |
Inspection standard | API 598, En12266 | |
Testing | 100% Leakage Testing | |
Rating | 1000PSI | |
Temperature | -20°C to +150°C | |
Power | Manual Operated, Locking Handle Acceptable. | |
Handle Sleeve color | Blue, Yellow, Red for selection | |
Surface | Pickling and Peeling | |
Model | Ball Valve | |
Connection | Female Thread | |
Shape | Equal | |
Certificate | ISO 9001:2015, ISO14001:2015, CE, ROHS, KC, etc.. | |
Application | Suitable for Air, Natural Gas, Oil, Steam, Water and so on. | |
Package | Cap to protect each thread end | |
PVC bag for each valve and then put into small box | ||
Cartons without pallet | ||
Cartons with pallet | ||
Cartons with wooden boxes | ||
Or as buyer's requirements | ||
Port | Ningbo/Shanghai, China | |
Delivery Details | According to the quantities and specifications of each order | |
A complete stock to provide fast deliveries for small orders. | ||
Normal delivery times is from 30 to 50 days after receiving the deposit | ||
Sample | Offer free samples and freight collected. | |
OEM and ODM | Accepted and professional. Buyer's drawing or designs are available | |
Material test report | is available upon request when placing order. | |
Ball Valve In The Different Shape
Connection: Male Thread, Female Thread
Shape: Equal, Reducing
