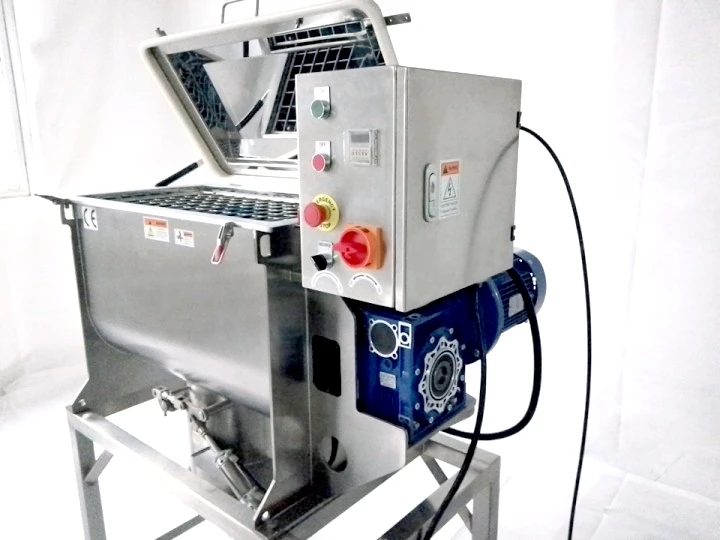

TDPM 300 Stainless Steel 304 Dry Protein Flour Coffee Powder Ribbon Blender Mixer

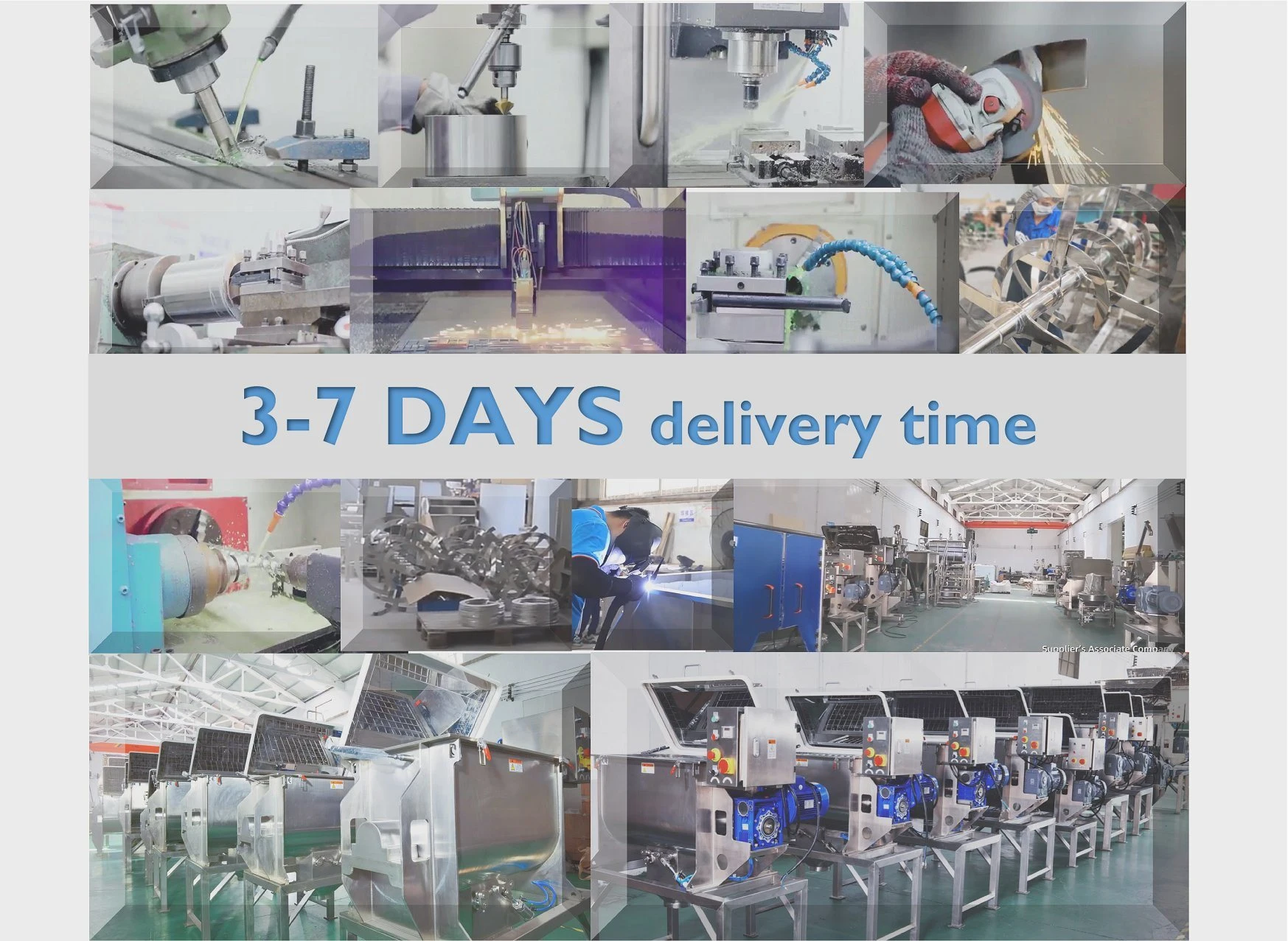

3-7 DAYS DELIVERY TIME
Production Description
TDPM Series Double Ribbon Blender
Horizontal double ribbon blender is used to mix different powder, powder with liquid spray, powder with granule etc. Under the special design, the double ribbon agitator makes the material to get a high effective convective mixing in ONLY 1-10 mins.

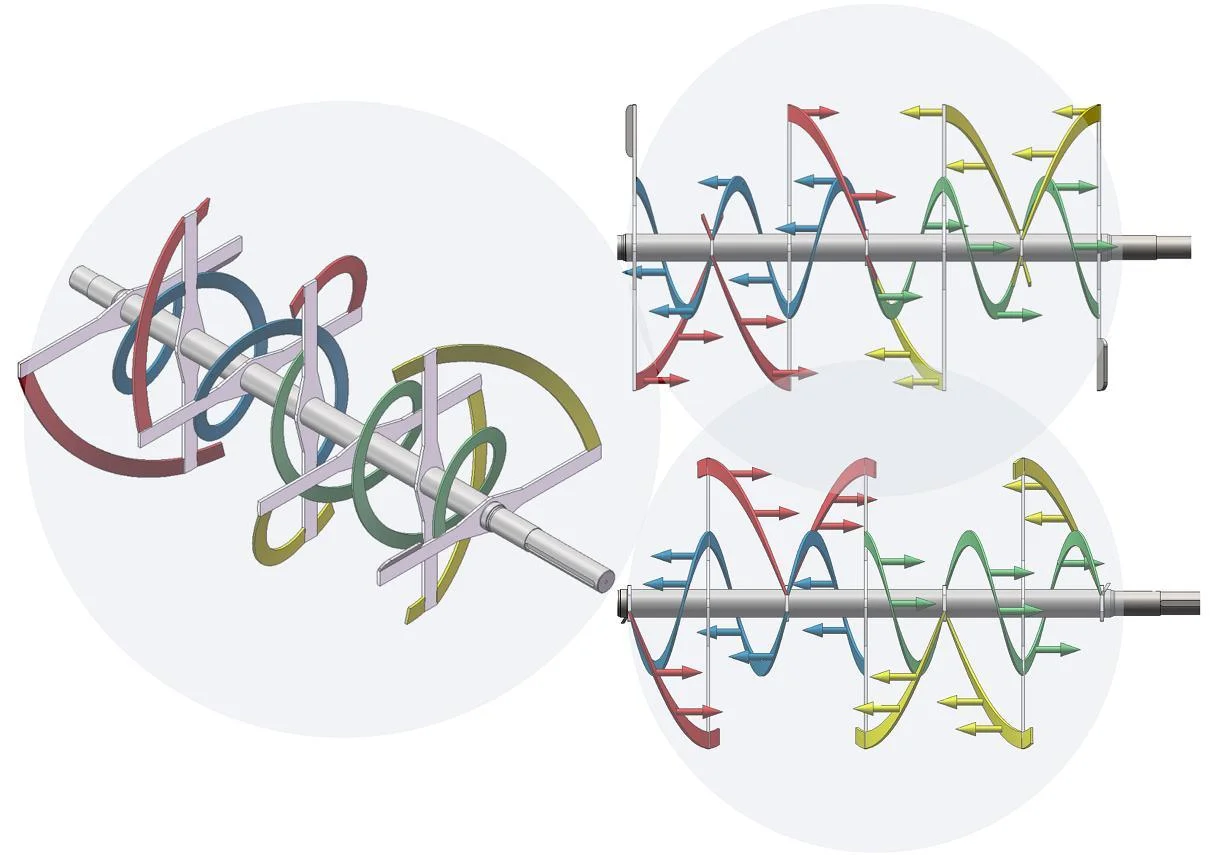

The outer ribbon pushes the material from the two sides to the center.
The inner ribbon pushes the material from the center to both sides.
Product Paramenters

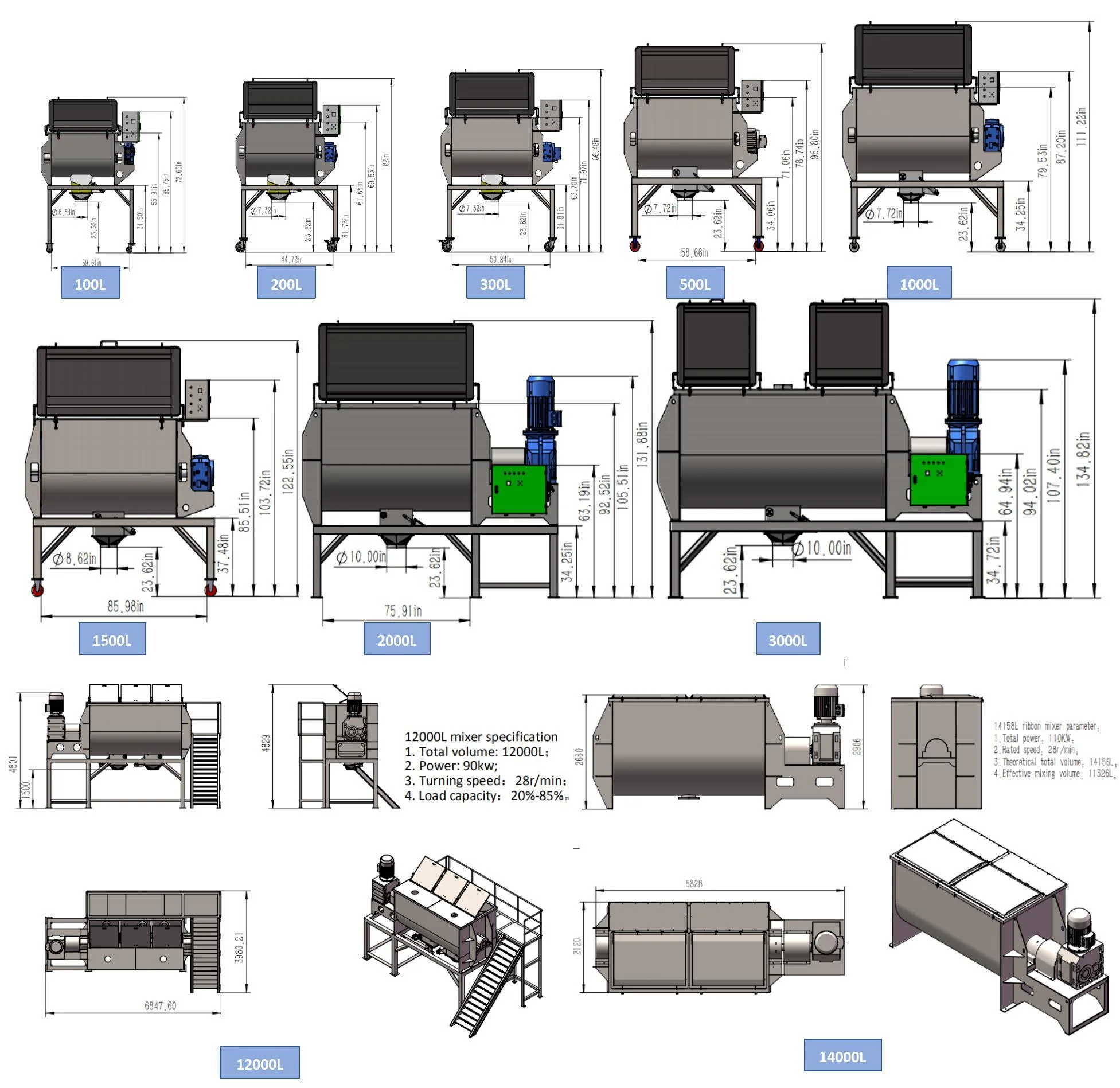

Capacity(L) | 100 | 200 | 300 | 500 | 1000 | 1500 | 2000 | 3000 | 5000 | |||||||||
Volume(L) | 140 | 280 | 420 | 710 | 1420 | 1800 | 2600 | 3800 | 7100 | |||||||||
Loading rate | 40%-70% | |||||||||||||||||
Length(mm) | 1050 | 1370 | 1550 | 1773 | 2394 | 2715 | 3080 | 3744 | 4000 | |||||||||
Width(mm) | 700 | 834 | 970 | 1100 | 1320 | 1397 | 1625 | 1330 | 1500 | |||||||||
Height(mm) | 1440 | 1647 | 1655 | 1855 | 2187 | 2313 | 2453 | 2718 | 1750 | |||||||||
Weight(kg) | 180 | 250 | 350 | 500 | 700 | 1000 | 1300 | 1600 | 2100 | |||||||||
Total Power (KW) | 3 | 4 | 5.5 | 7.5 | 11 | 18.5 | 22 | 30 | 45 | |||||||||
Details Images

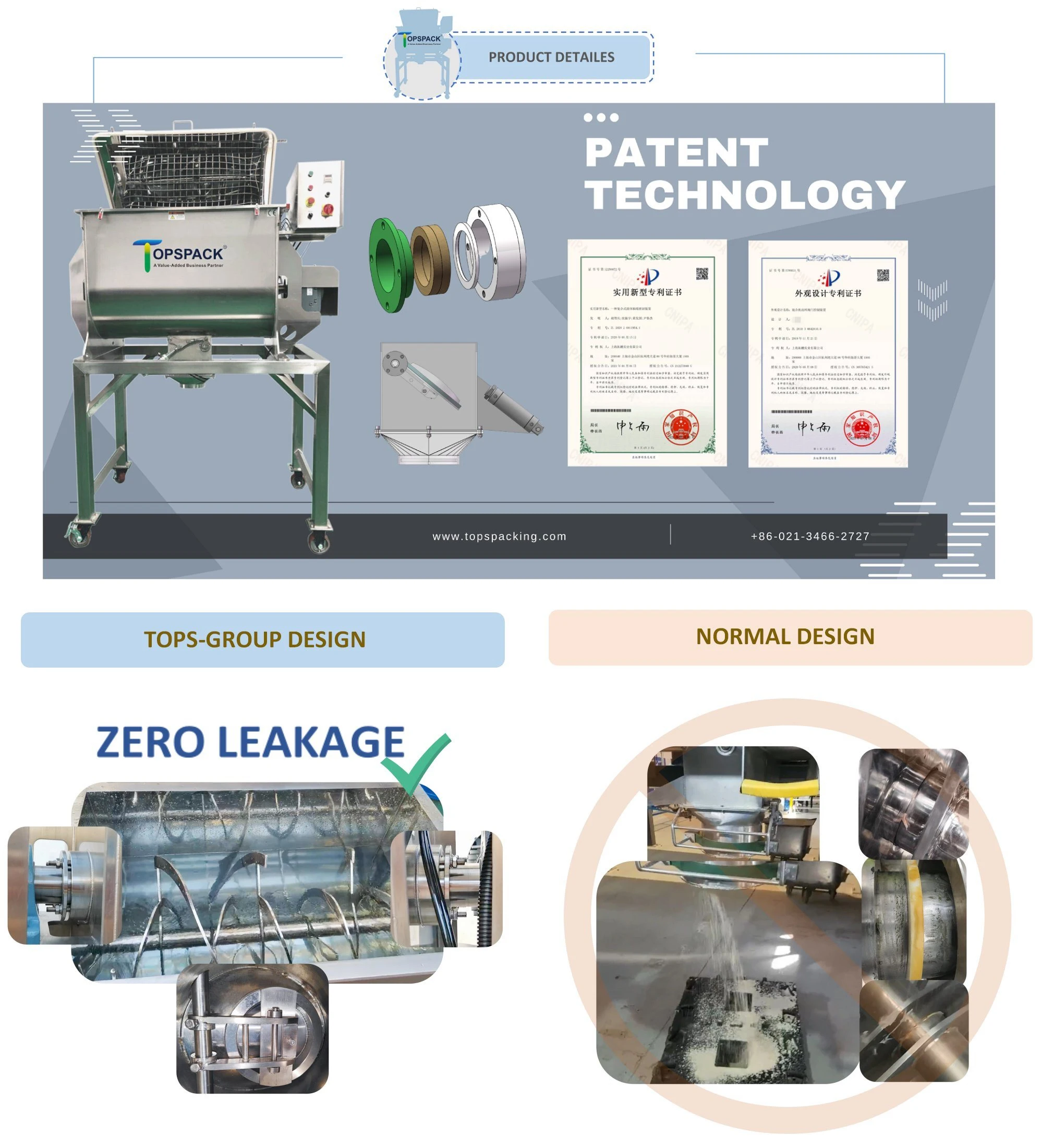

PATENT TECHNOLOGY: Water test to make sure ZERO LEAKAGE. Leakage at shaft sealing and discharge.

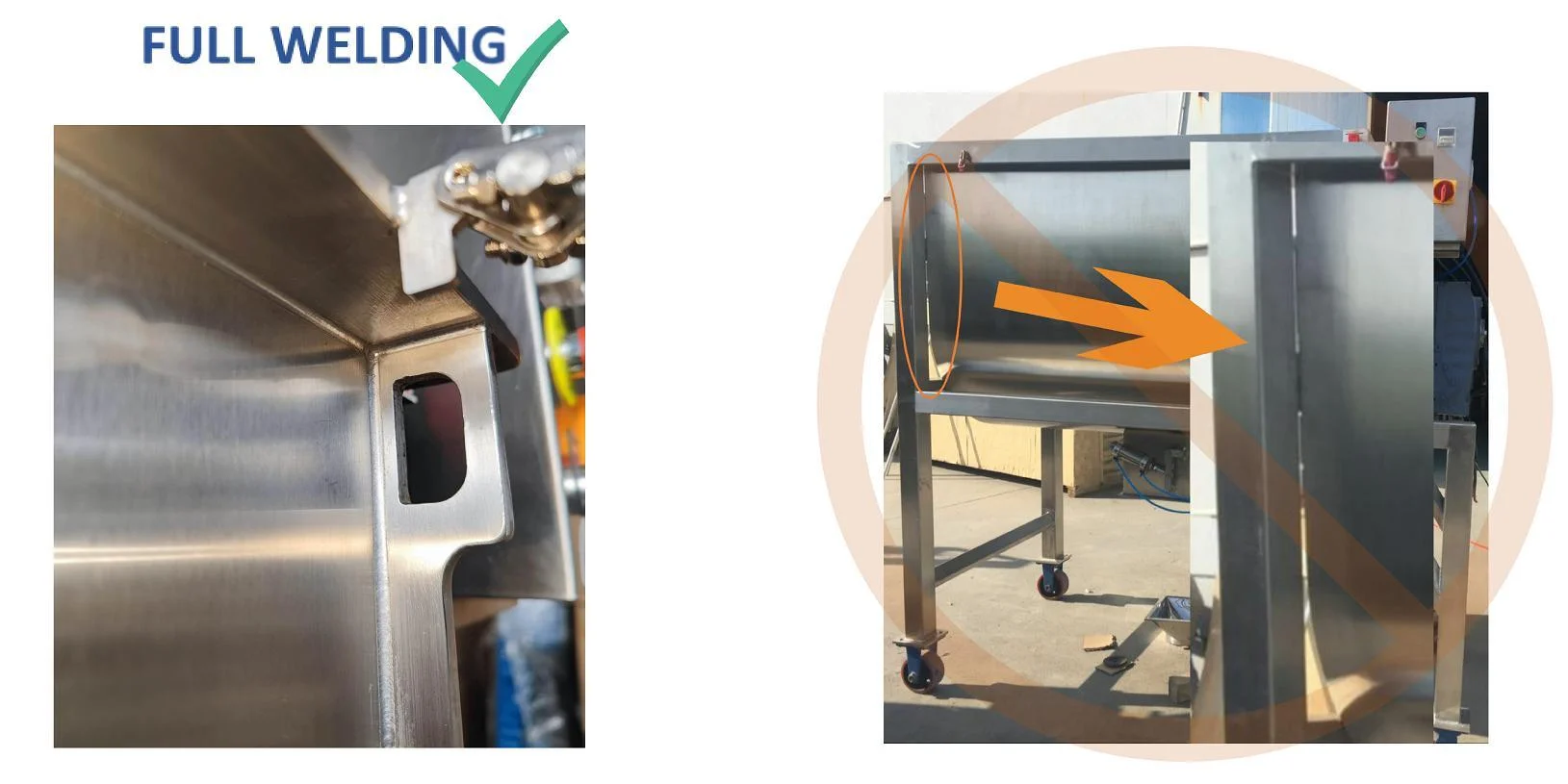

EASY CLEANING, food-grade standard. Powder hiding in gap and go bad, will pollute fresh materials.

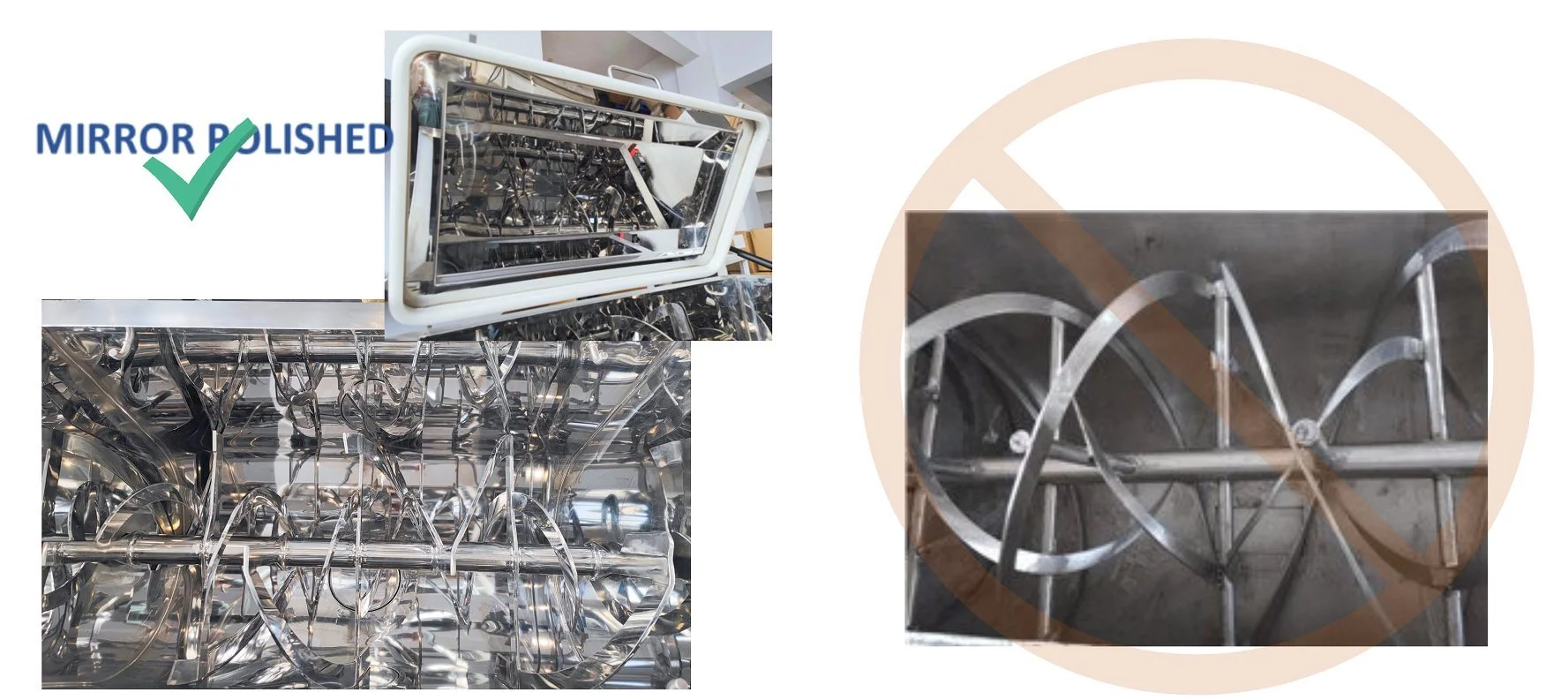

EASY CLEANING, food-grade standard. Powder is difficult to clean, will pollute fresh materials.

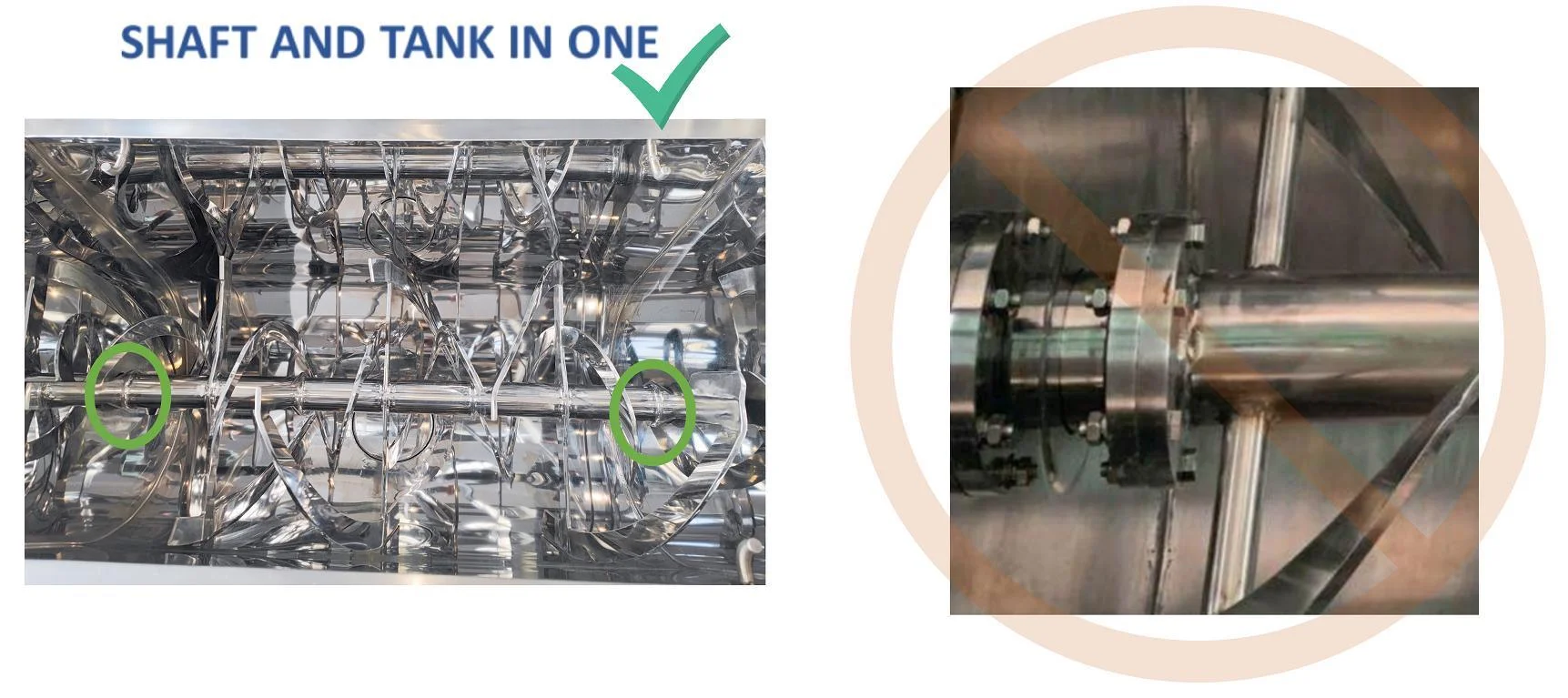

No any nut inside the tank. It has tick that loosing nuts fall into material.

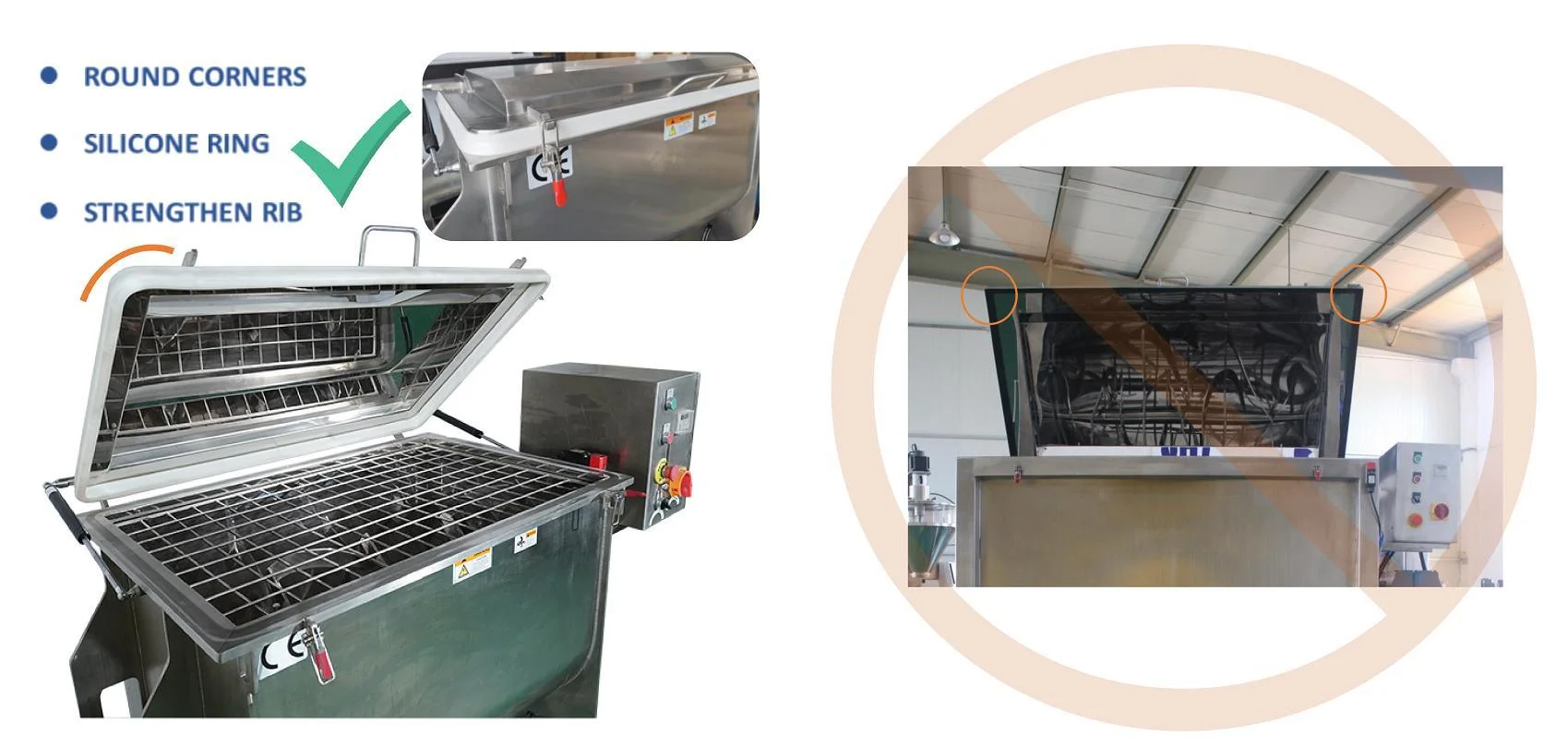

PROTECT OPERATOR, GOOD SEALING, LONGER USING LIFE. Might hurt workers, bad sealing, short using life.

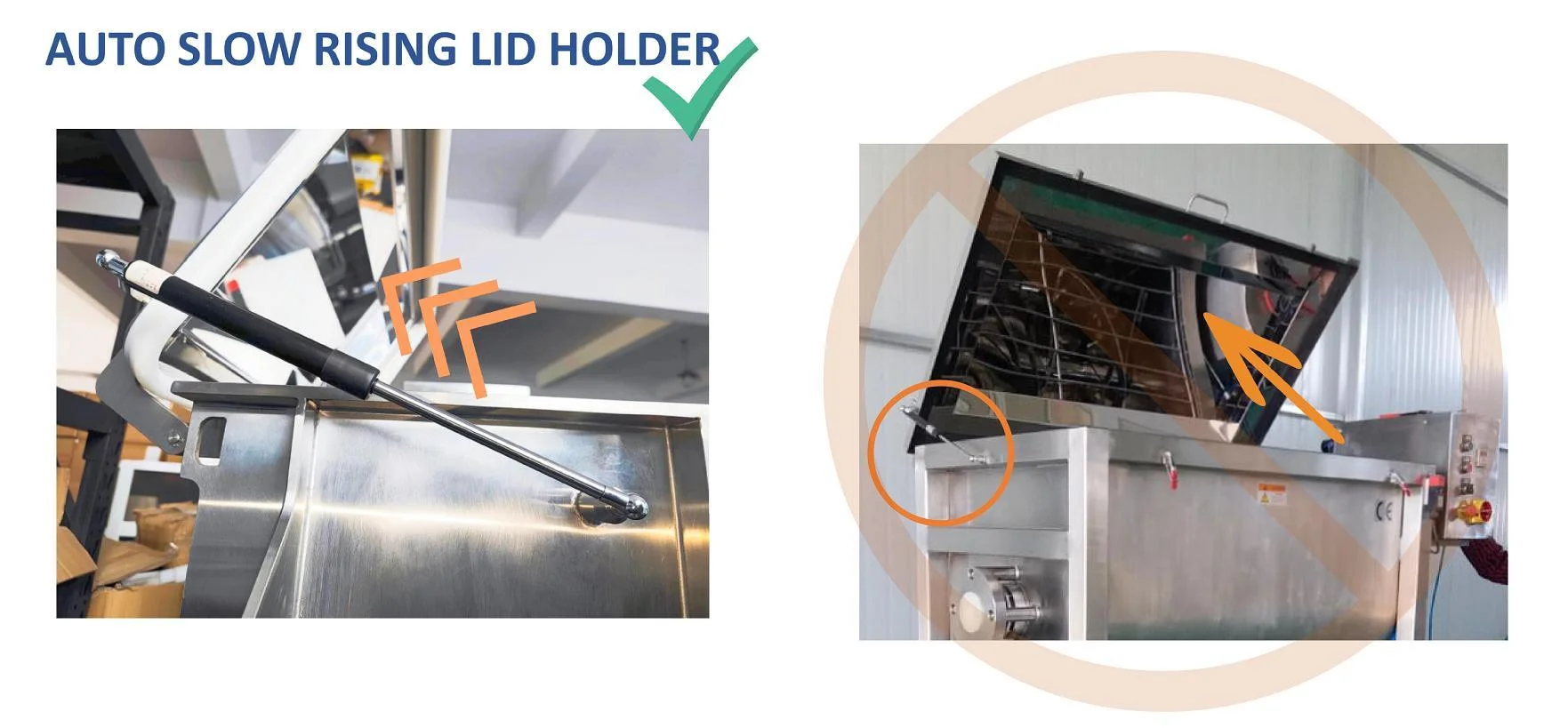

PROTECT OPERATOR, LONGER USING LIFE. Operator might hurt by falling lid. Needs manual hold.
333

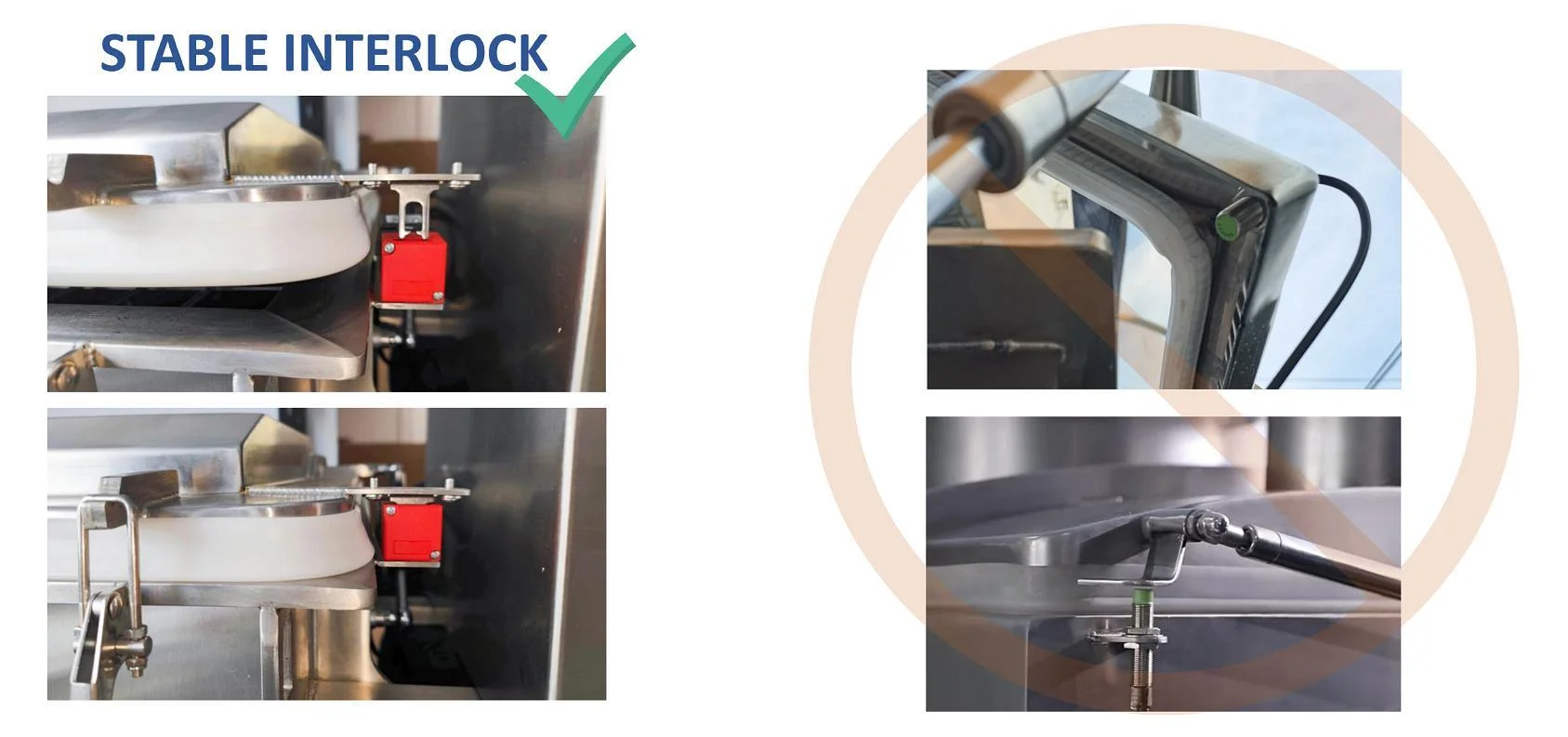

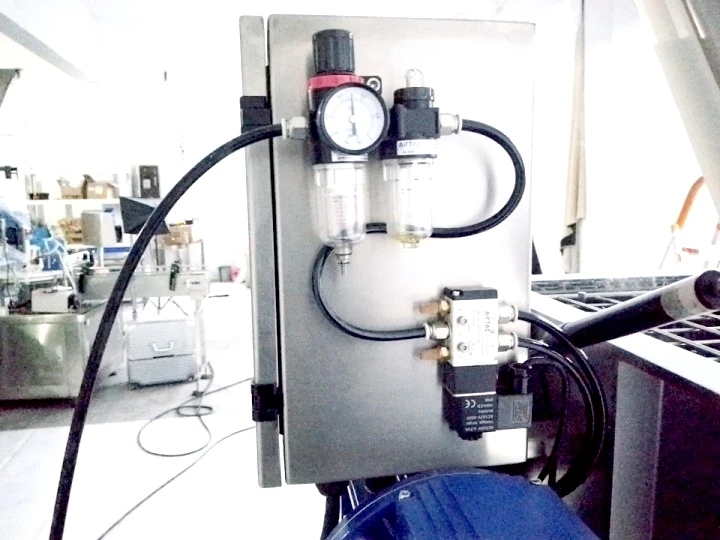

STABLE INTERLOCK, protect operators. Sensor interlock may failure to detect when powder stick on it.

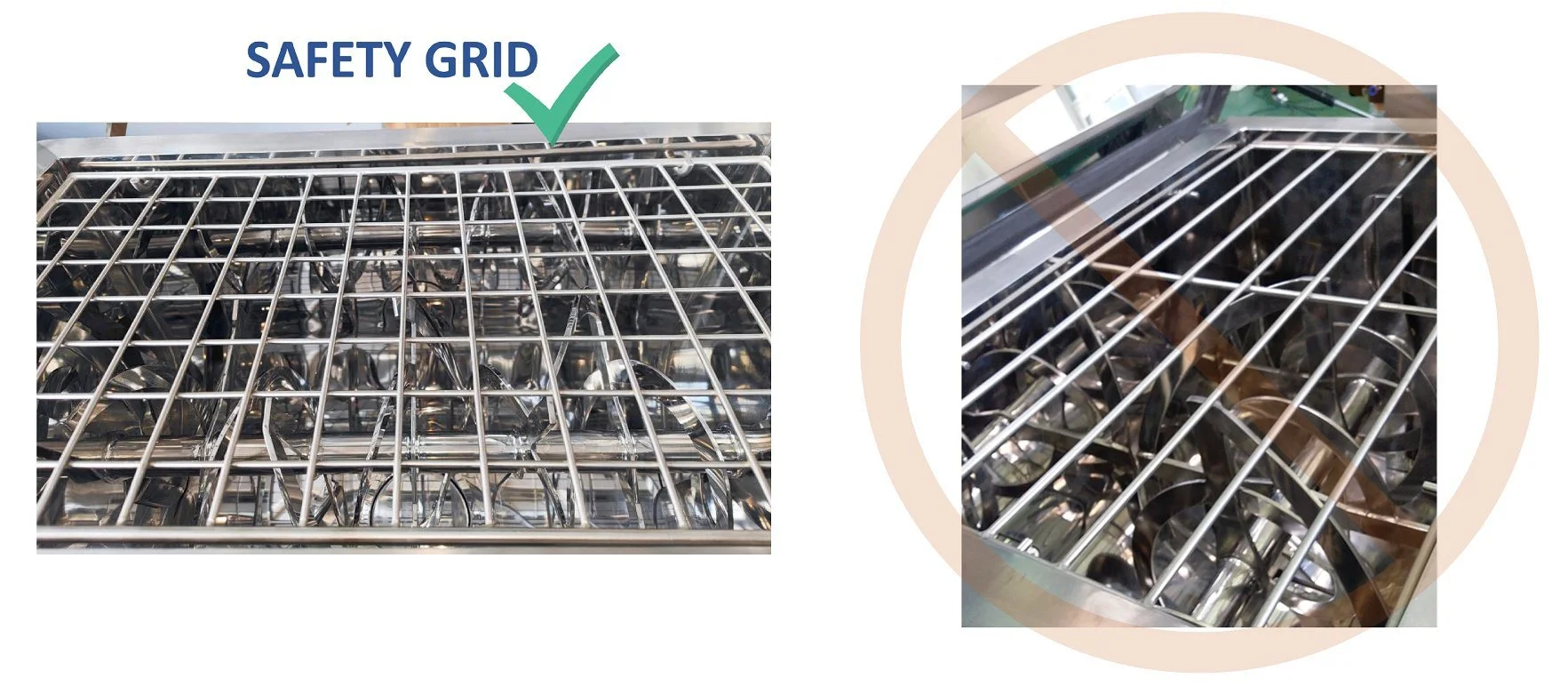

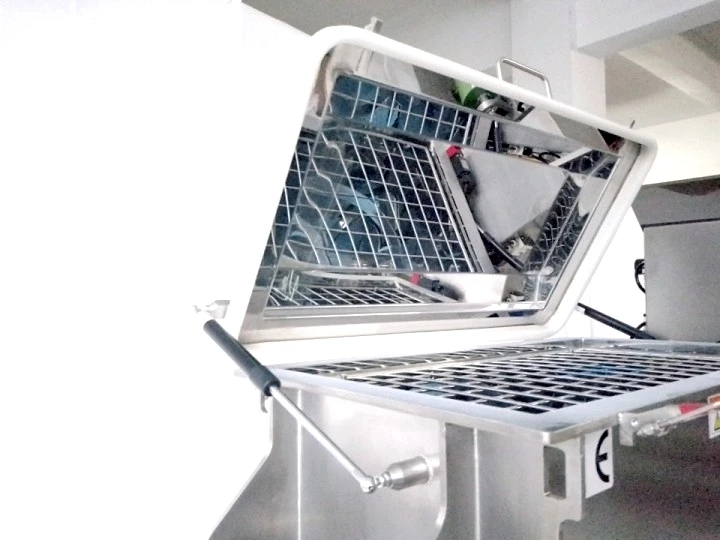

Densely grid brings EASIER MANUAL LOAD, and SAFER. Less safe.

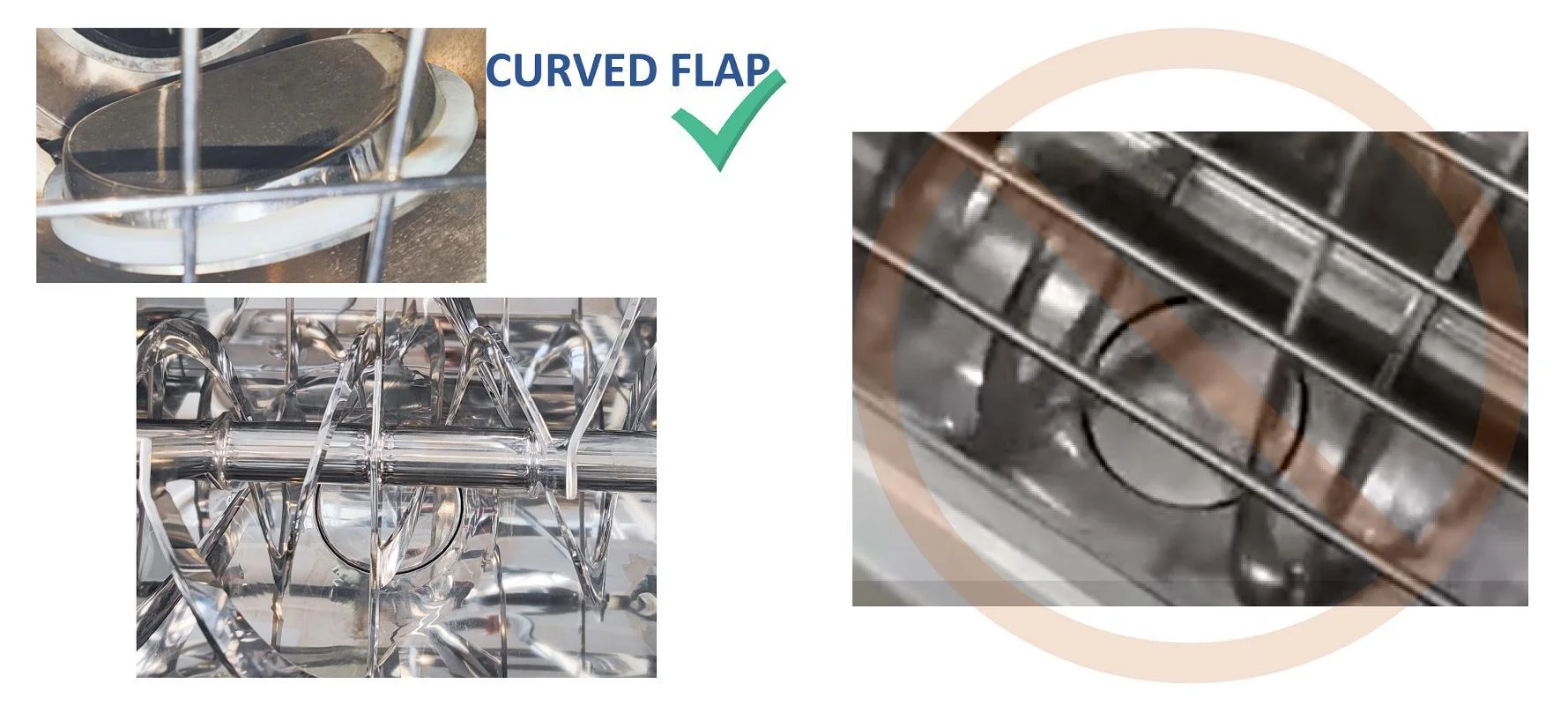

GOOD SEALING, NO MIXING DEAD ANGLE. Dead mixing angle, leakage problem.

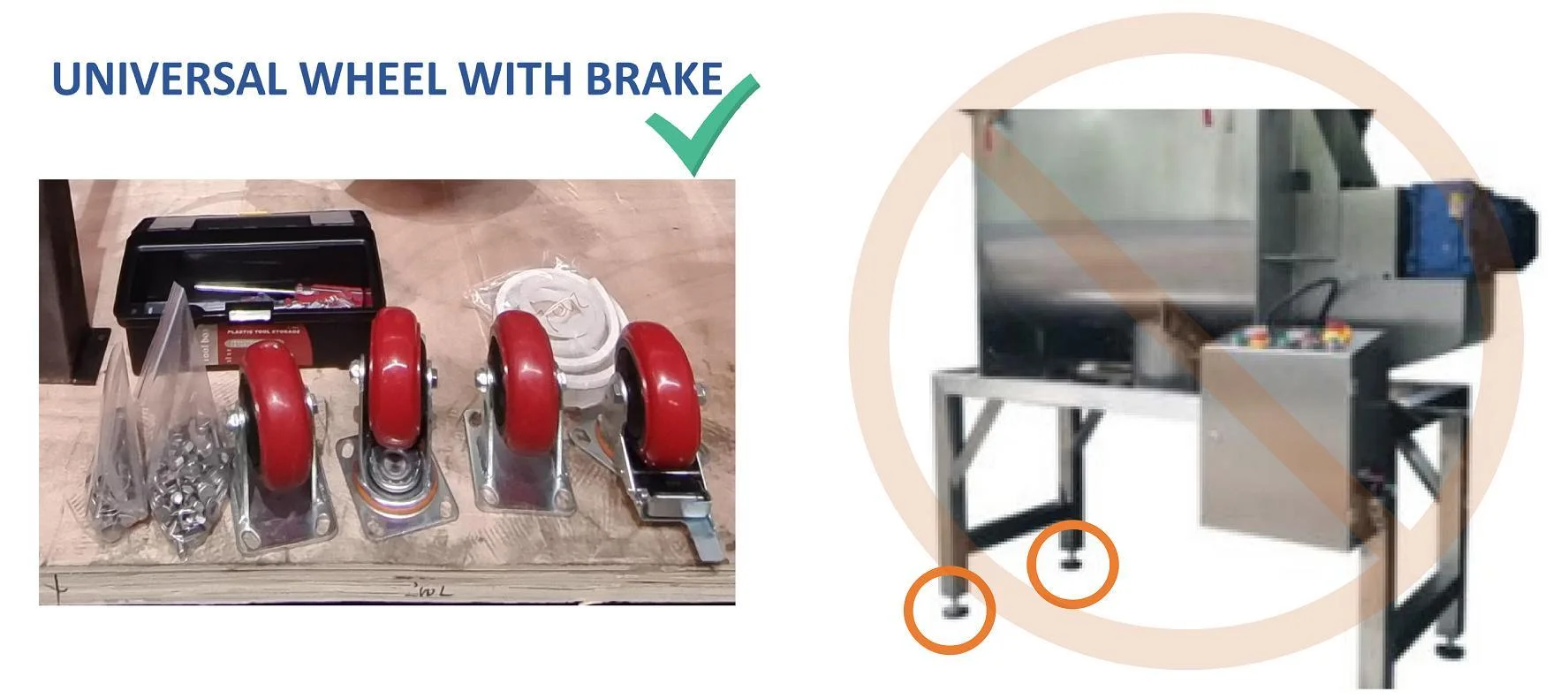

CONVENIENT TO BE MOVED. Are not able to be moved.

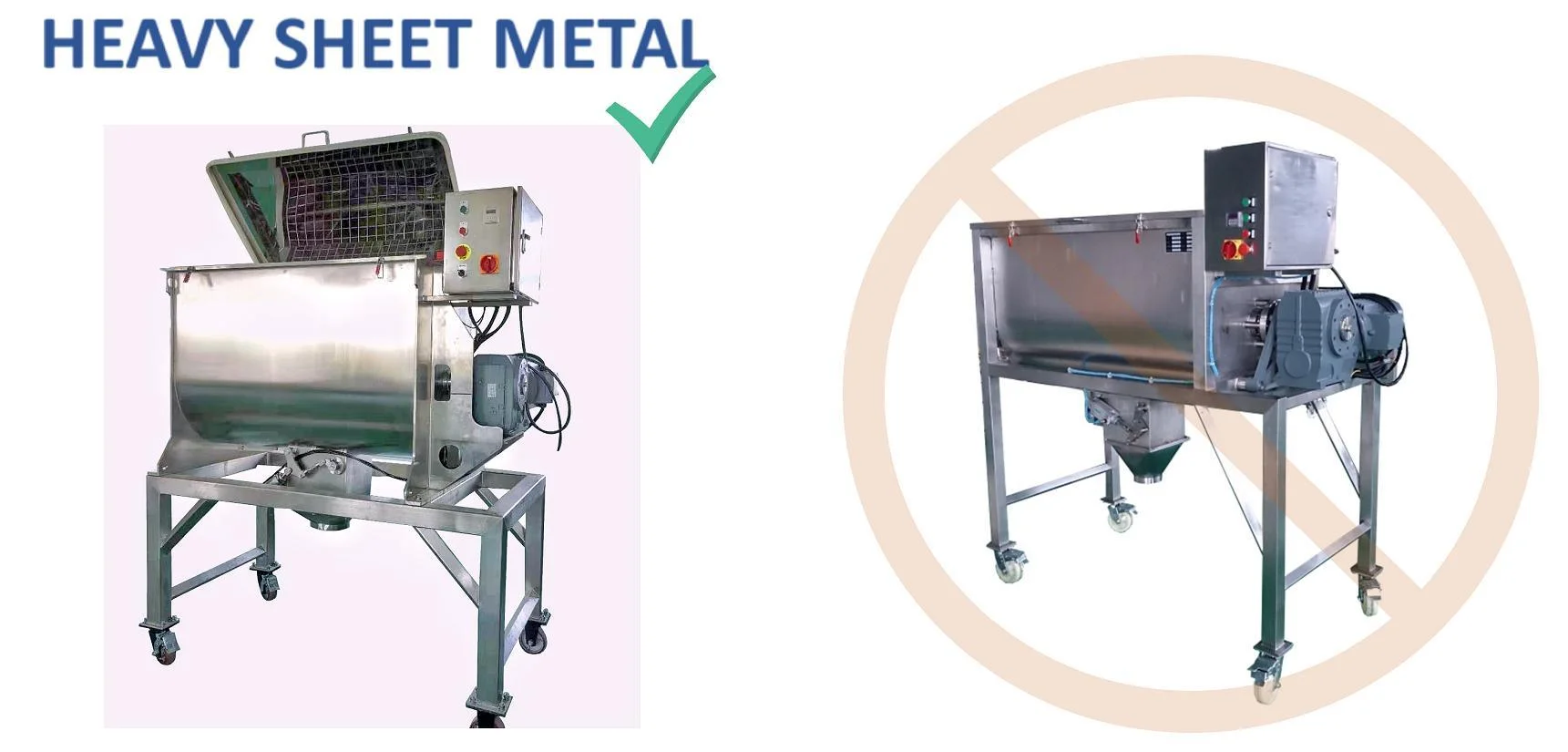

HEAVY SHEET METAL contruction. Not heavy industry design.

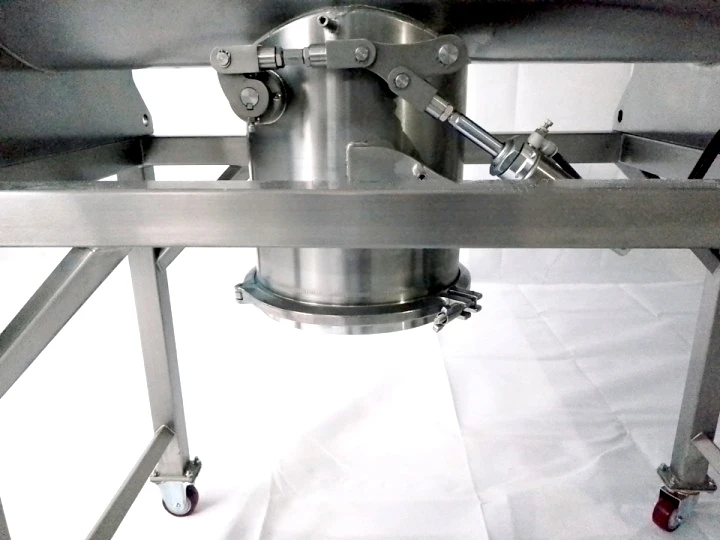

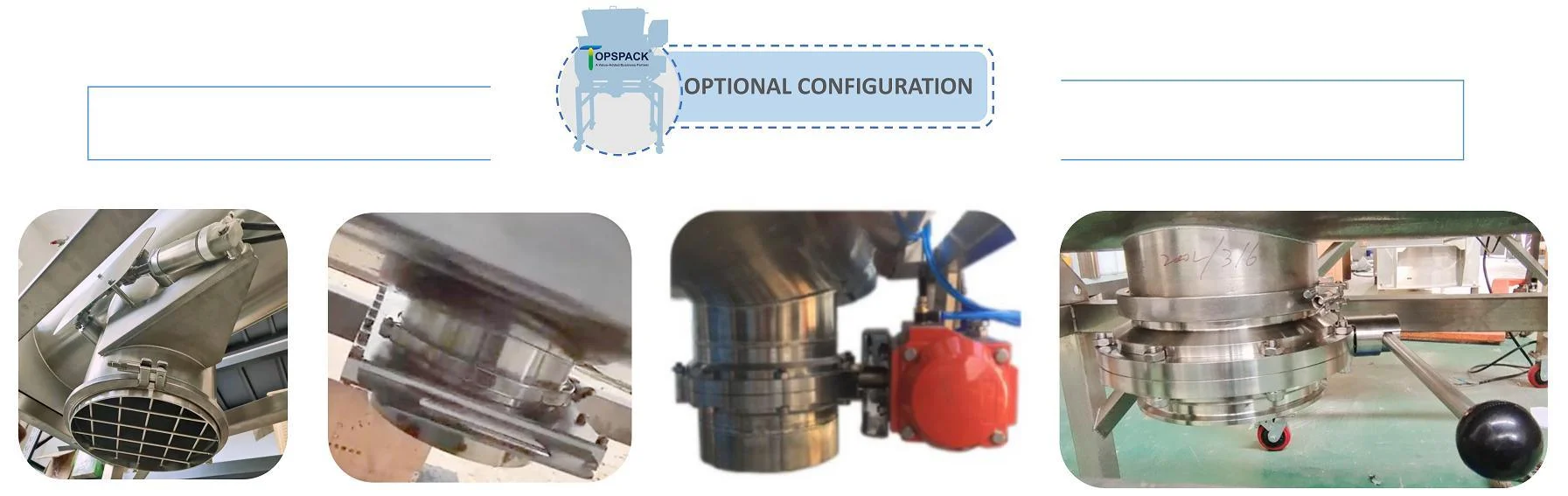

pneumatic square flap valve manual slide valve pneumatic butterfly valve manual butterfly valve

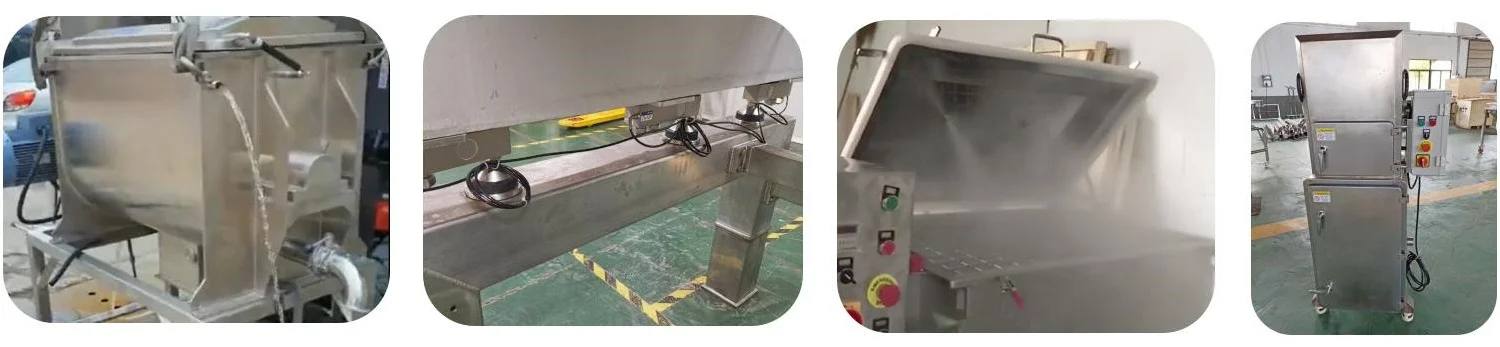

jacket heating/cooling weighing system spray dust collector

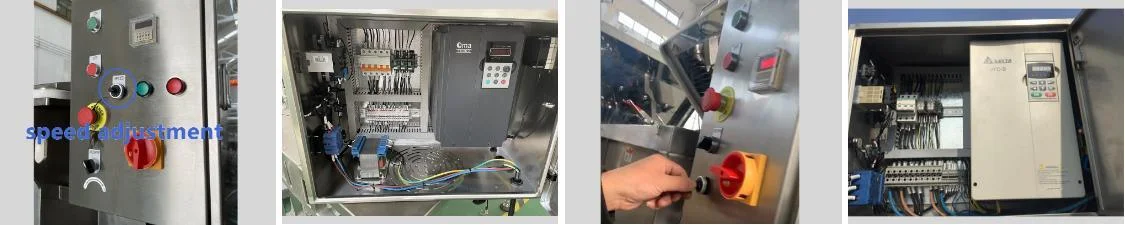

Install a frequency convertor to make speed adjustable

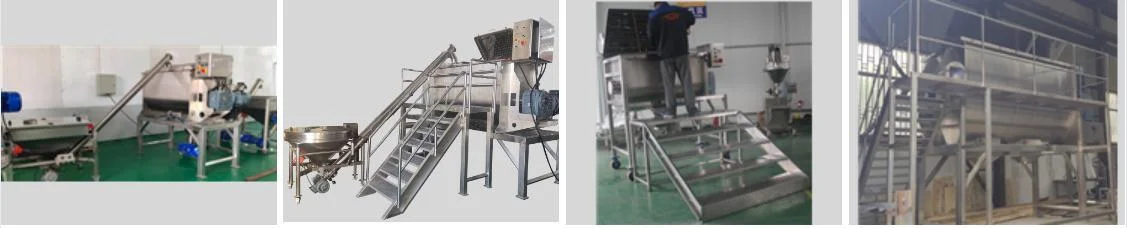

Different loading system: manual with platform and ladders, automatic with screw conveyor.

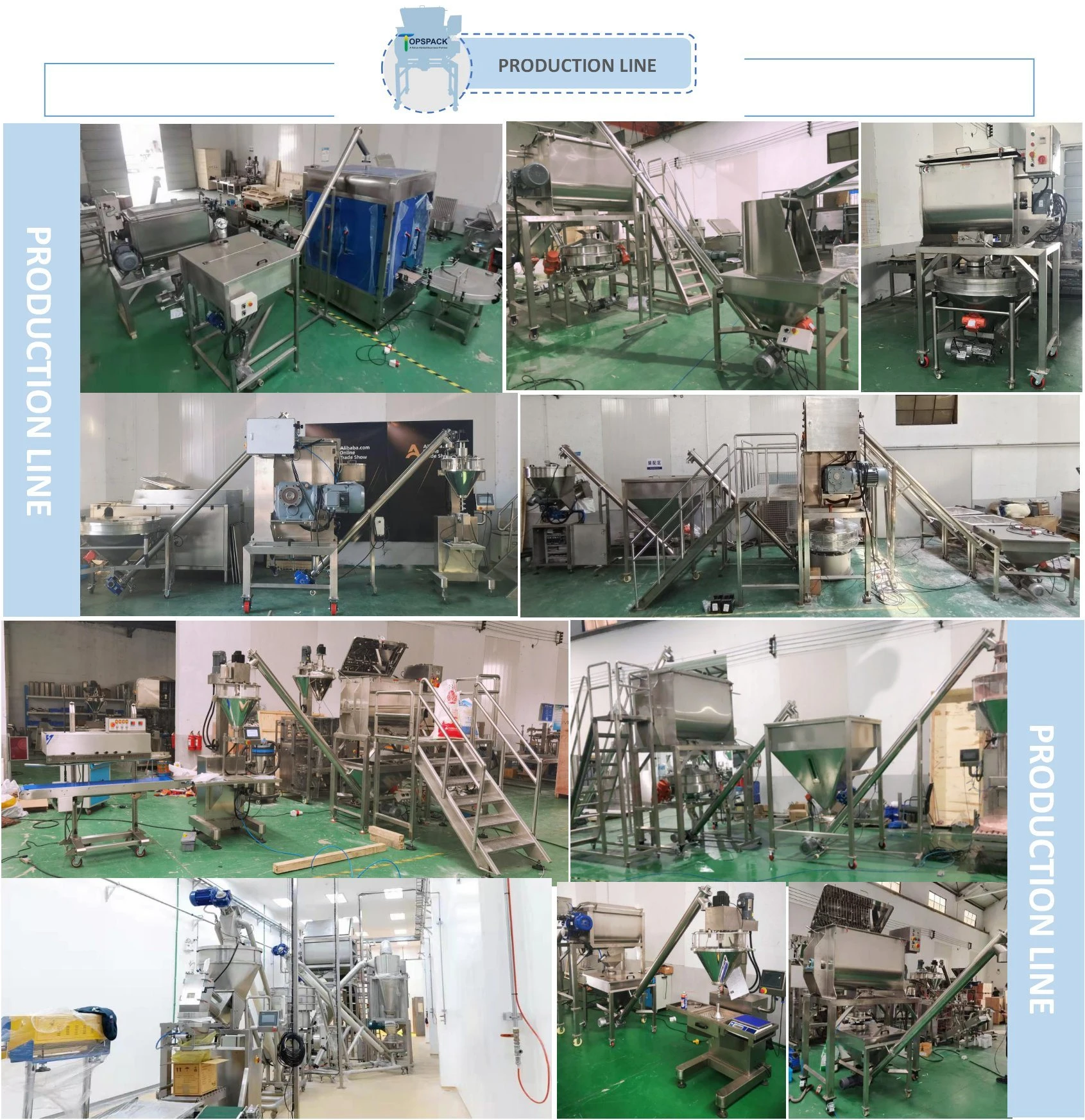

Product Line
