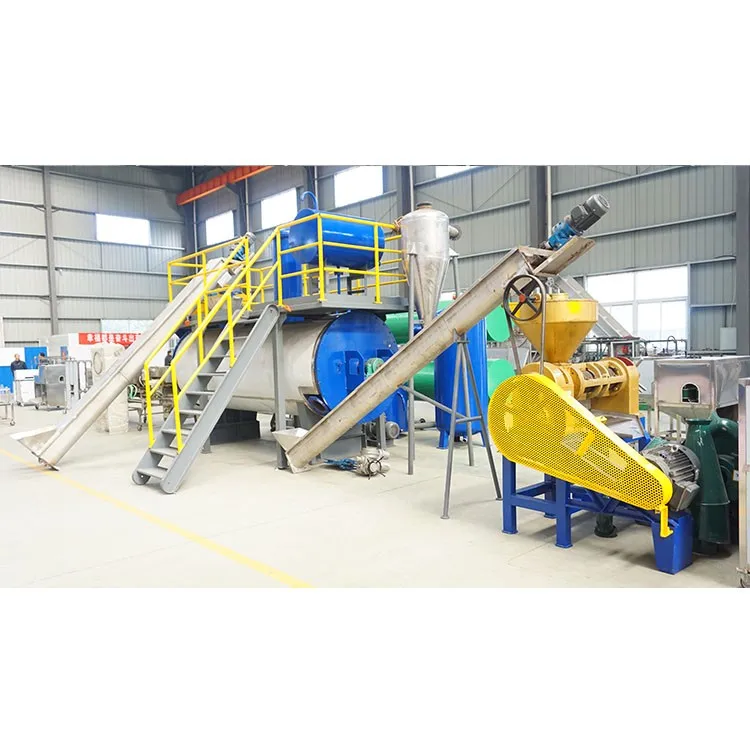

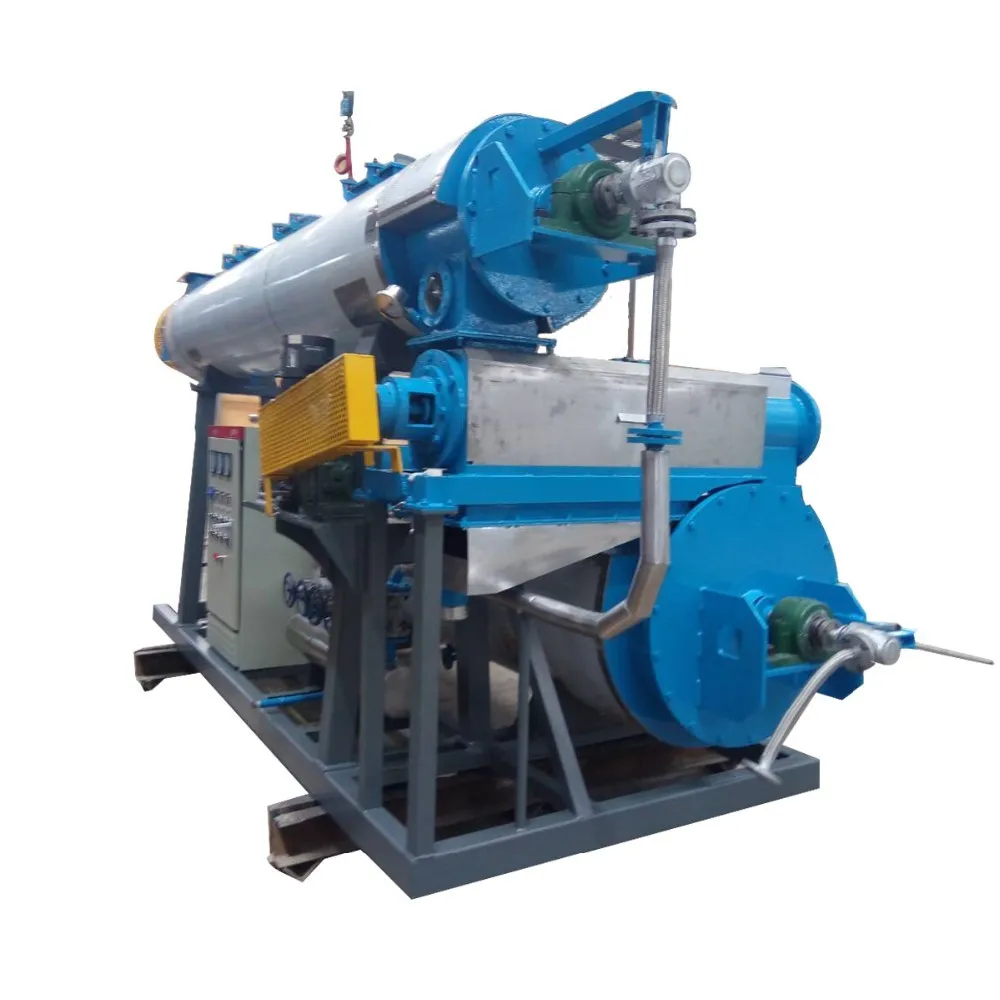

Fish Meal Making Machine
1. Description:
This small capacity fish meal machinery is specially designed and manufactured for our customers who want to process leftovers like fish head, fish sausages and offals, also can deal with small whole fresh fish, the whole production line has a compact structure, good-looking appearance, easy operate and good performance.

2. Raw material and capacity
Raw material: raw fish or fish fillet and scraps( fish head, fish bones, fish offals), etc
Capacity of raw fish: 300kg/H,500kg/H,1000KG/H, 2000kg / H, 5000 kg/H
Fish meal yield rate 20%-25%(for example 500kg raw fish can get about 100kg fish meal powder)
Note: usually the capacity of fish meal is based on fish type and fish quality

3. Final products
Final product: skimmed fish meal
Moisture of final product: less than 10%

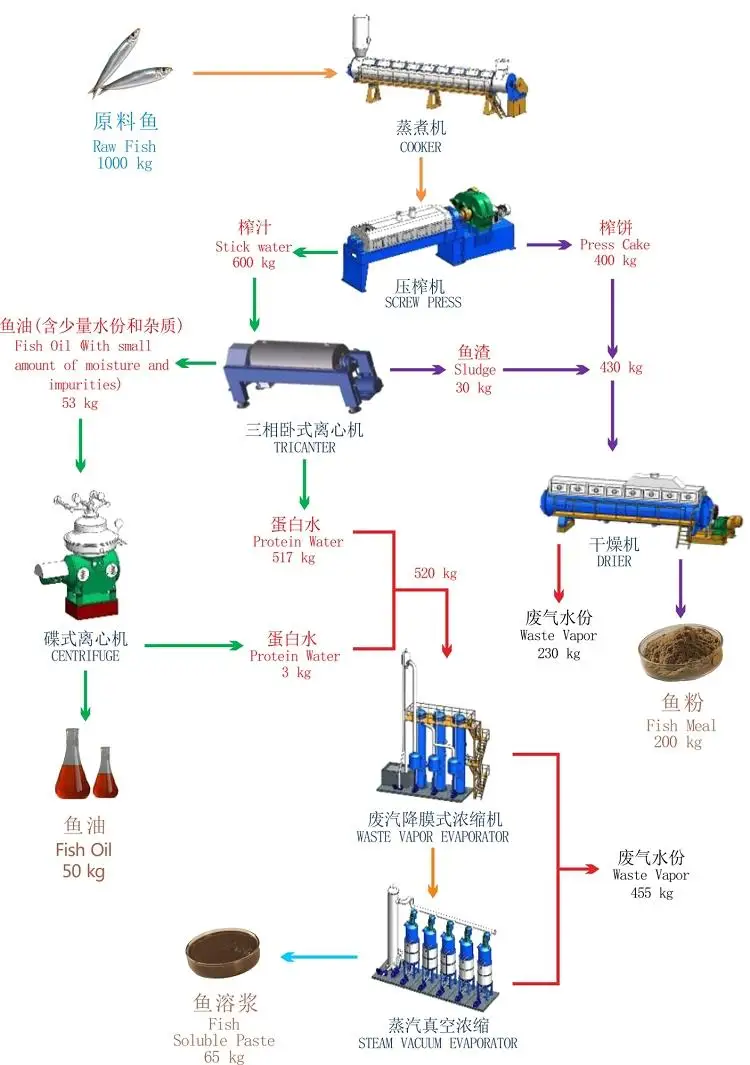

4. Procedure
Raw material -> cooking -> pressing -> drying -> skimmed fish meal
Heating method: electrical heating /steam heating









Specification


item
description
details
1
Screw conveyor
equipped with reducer 1 set, made of SUS304
2
electrical cooker
Equipment inside and outside of the cylinder is made of Q345 Carbon steel materials；Equipment outer jacket is made of Q235 carbon; steel materials: the external thermal insulation is made of stainless steel，thickness 0.7mm；
3
screw press
Frequency conversion，Equipment Screen mesh adopts 304 stainless steel material production；Housing cover is made of stainless steel 304，thickness 1.2mm。
4
dryer
 ●Equipment inside and outside of the cylinder is made of Q345Carbon steel materials,
●Equipment outer jacket is made of Q235 carbon steel materials，
●The external thermal insulation is made of 304 stainless steel，thickness 0.7mm； V=20 revolutions /min
5
thermal oil pump
driving power:1.5kw
6
electric control box
 Electrical control cabinet, wire and cable equipment and control cabinet connection
Main configuration and parameters：
●Electrical components using chint, reliable performance;
●Electrical control box operation indicator light;
●Electric control box adopts front open of the door design, convenient maintenance.

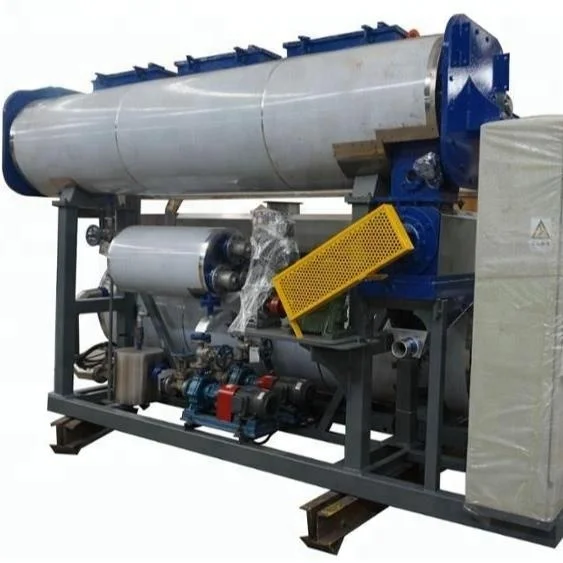

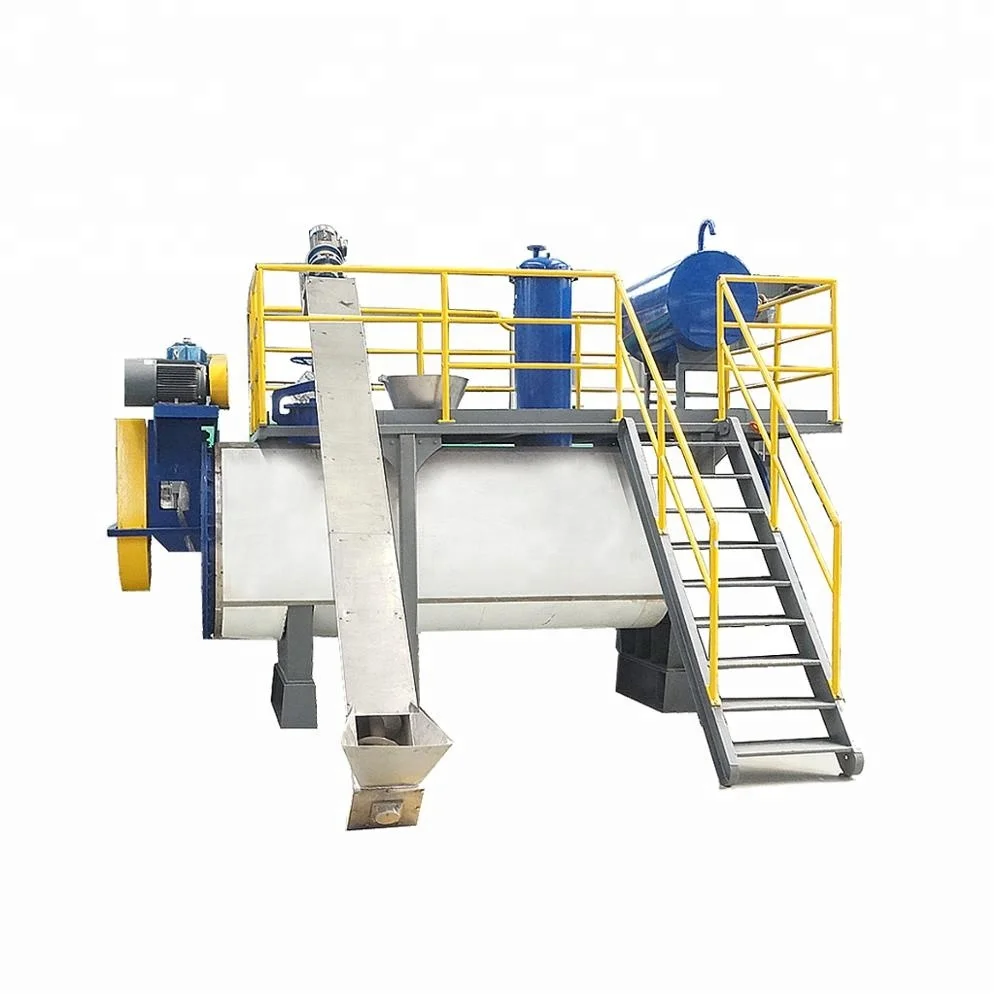

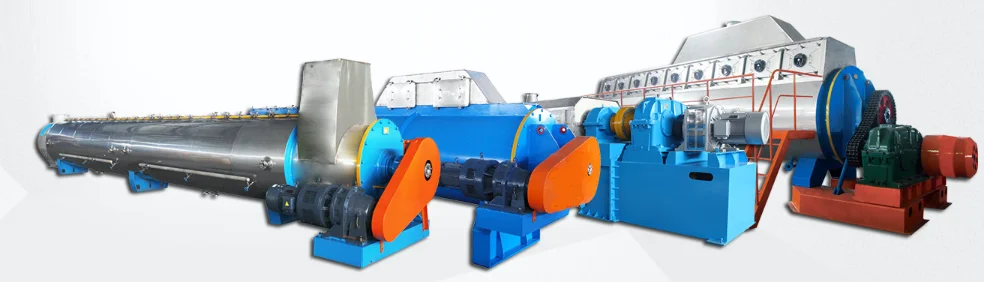

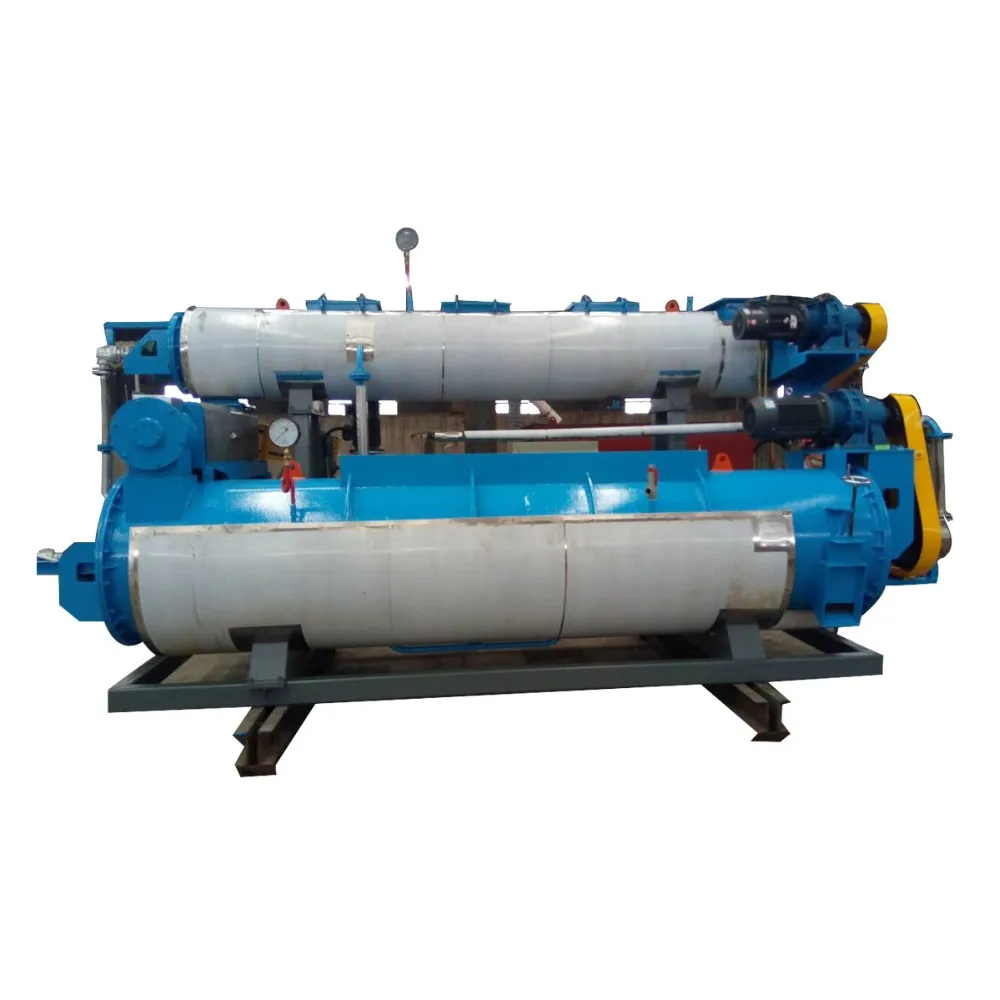

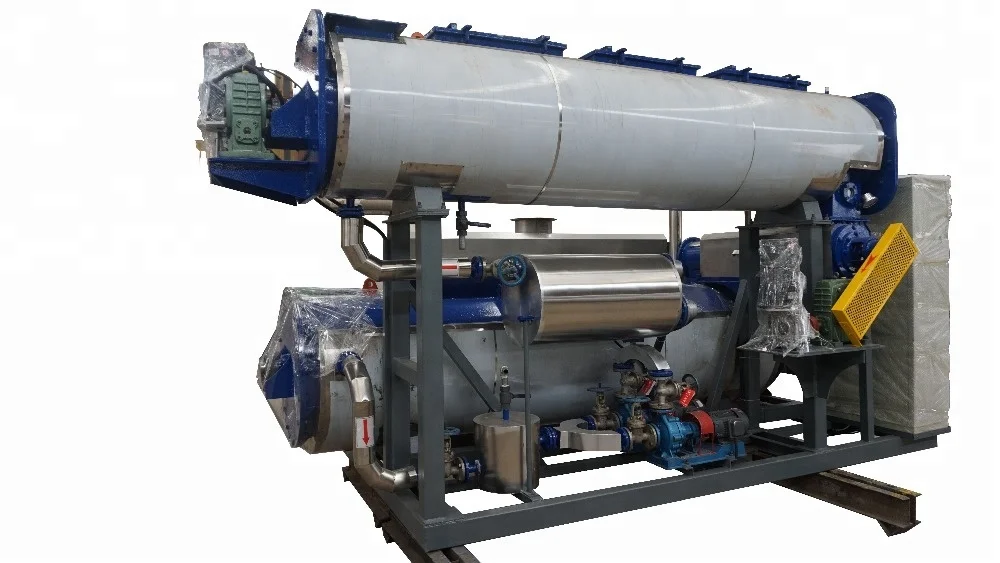

Fish Meal Main Machine


Steam cooker boiler
With combination of central shaft and jacket indirect steam heating to assure the raw material well cooked.
Steam Dryer
Large heating surface area and perfect drying performance to well assure the quality of finished fish meal.
Twin Screw Press
Twin screw design ensures excellent squeezing performance. Integrated structure, easy for installation and shifting. Electromagnetic speed variable motor, with wide range of speed, applied to various raw fish species.

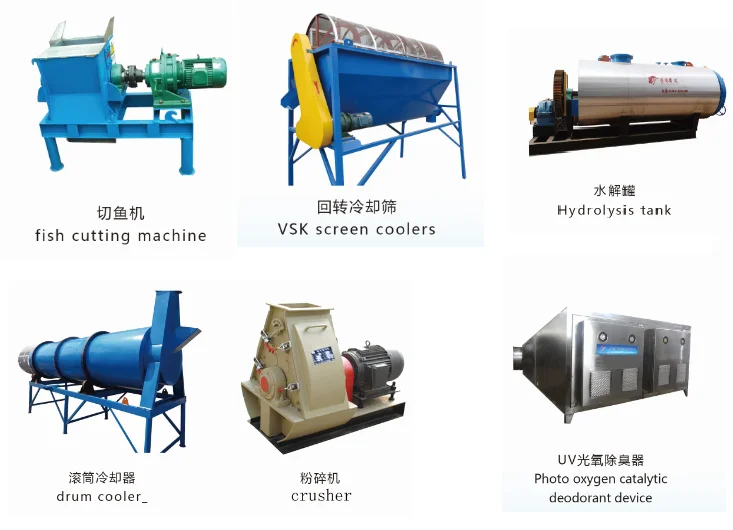

Other Optional Equipment

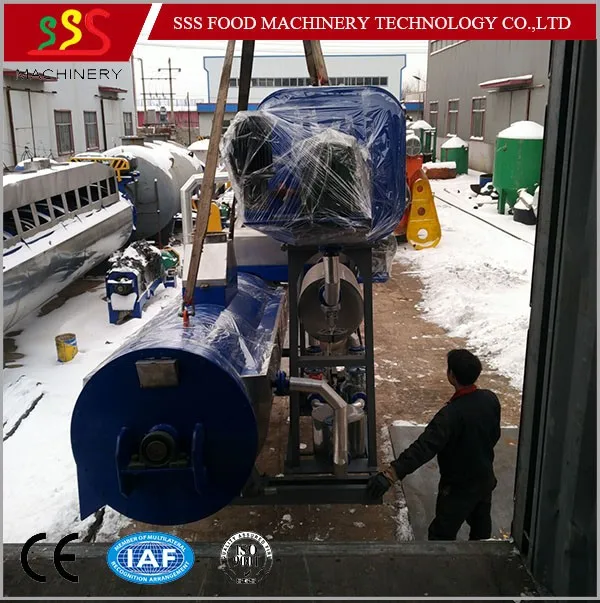

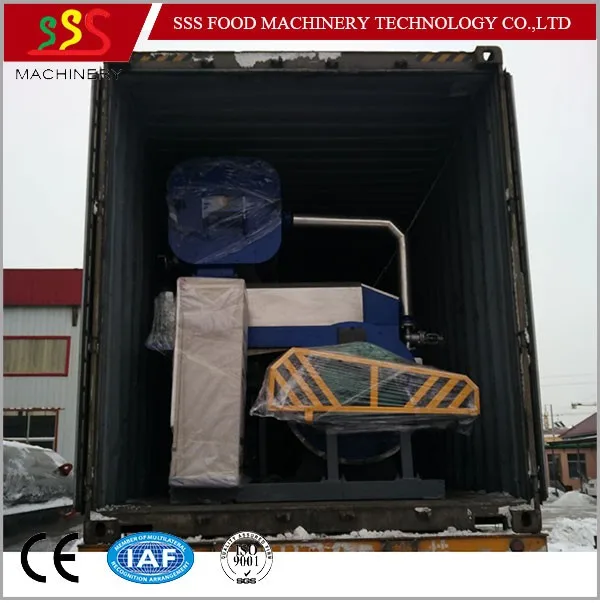

Packing & Delivery
