Product Overview
Description
Product Description

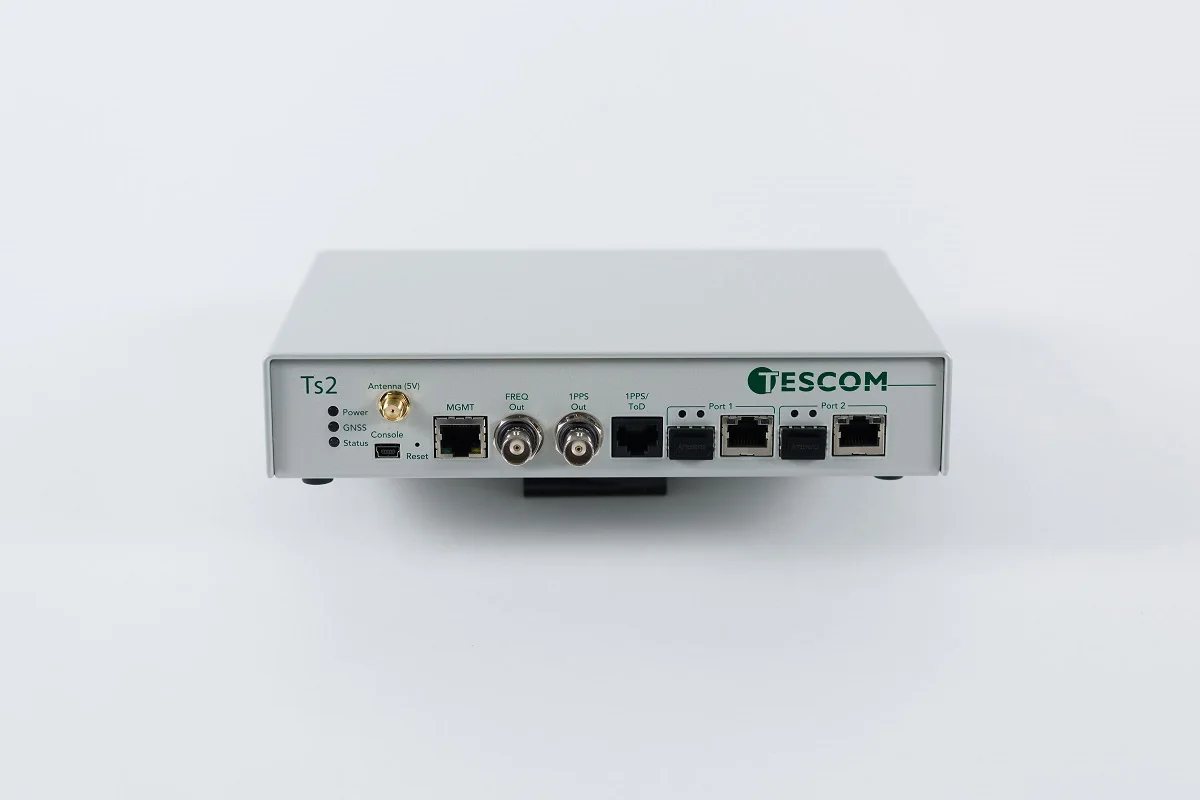

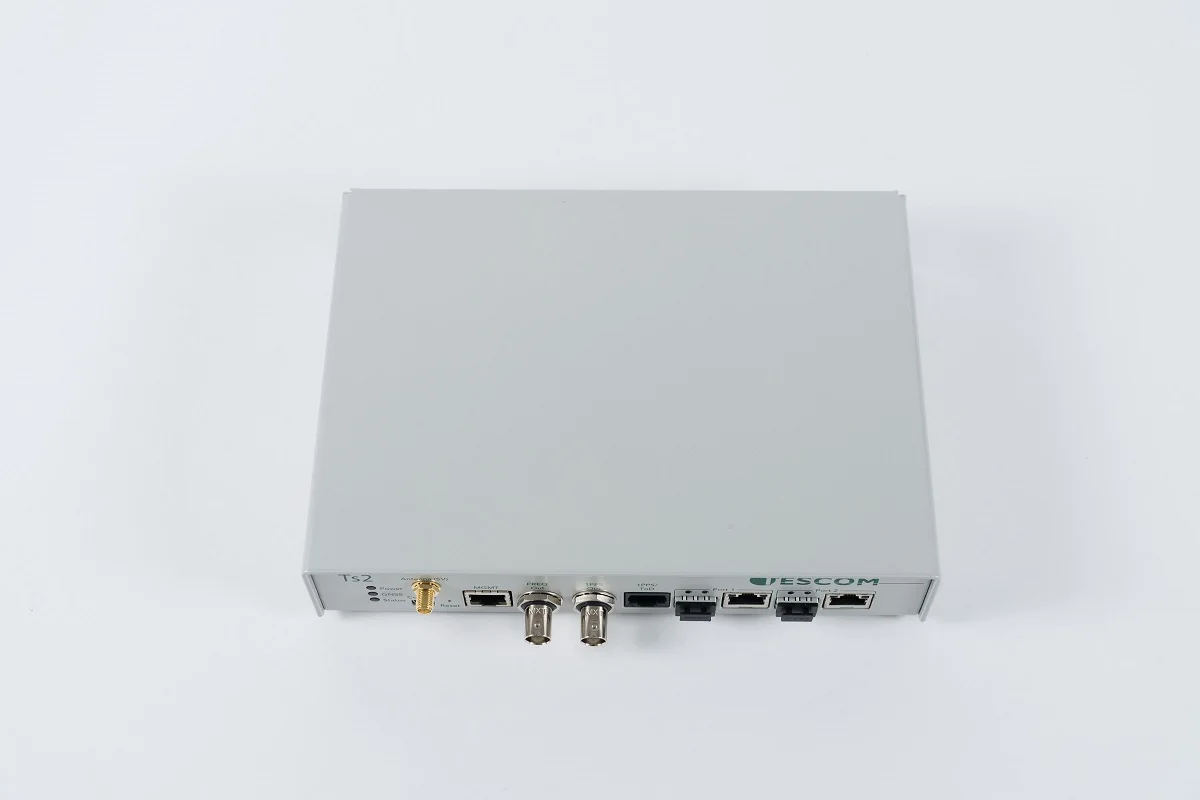

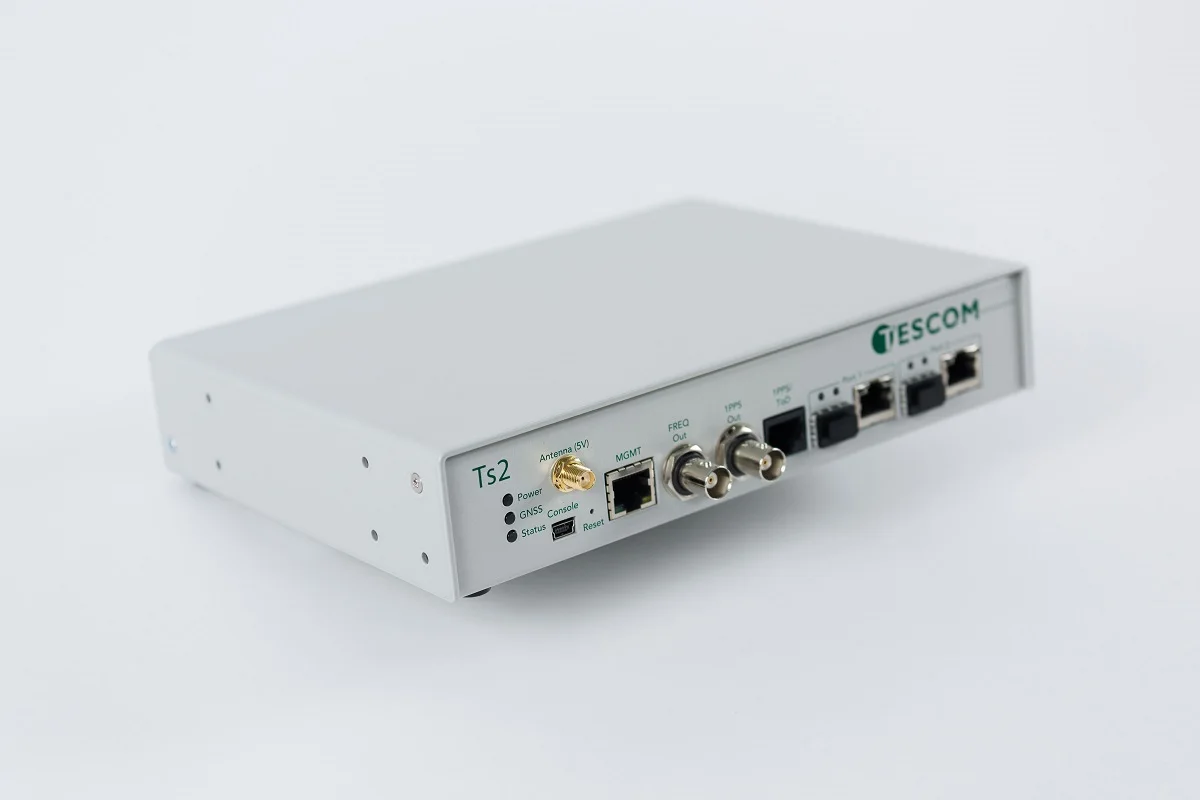

Ts2 Clock Multi-Sync Gateway w/ 128 Clients and 8 Hour Holdover
Mobile operators are deploying small cells to build out their LTE and 5G networks. This is occurring in a variety of locations
such as in urban canyons and indoors, where GNSS signals are weak or intermittent. TesCom's Ts2, a multi-sync gateway addresses the challenges of providing reliable and precise synchronization everywhere through IEEE 1588-2008 (PTP) and leveraging multiple sync references. Ts2 is designed for deployment in distributed clustered architectures. In such deployments, timing resources are deployed close to the edge of the network in order to meet the phase and frequency precision requirements at the small cell or remote distributed or radio units (DU / RU). Deploying a centralized Grand Master with full onpath support to deliver high precision sync imposes a significantly higher cost. Next-generation networks require a more decentralized approach. The Assisted Partial Timing Support (APTS) architecture is designed for these networks to deliver precise phase and frequency to small cells in a scalable and cost-effective manner. Ts2 is highly field-scalable and designed for such edge oriented distributed architectures. Ts2 provides IEEE 1588-2008 (PTP) Grand Master and Boundary Clock functionality at a low total cost of ownership. It leverages TesCom's unique industry-leading PTP algorithms to deliver stringent timing for LTE-A, LTE-TDD, CBRS (USA), SxGP (Japan), private LTE, and 5G architectures (both operator and private) and supports ITU-T G. 8265 and G.8275 frequency and phase profiles. The product features multiple oscillator options to deliver a range of holdover performance. Ts2 utilizes GNSS (GPS, Beidou, GLONASS, QZSS, and Galileo), PTP, and Synchronous Ethernet as input references and generates PTP, SyncE, and timing signals (frequency,

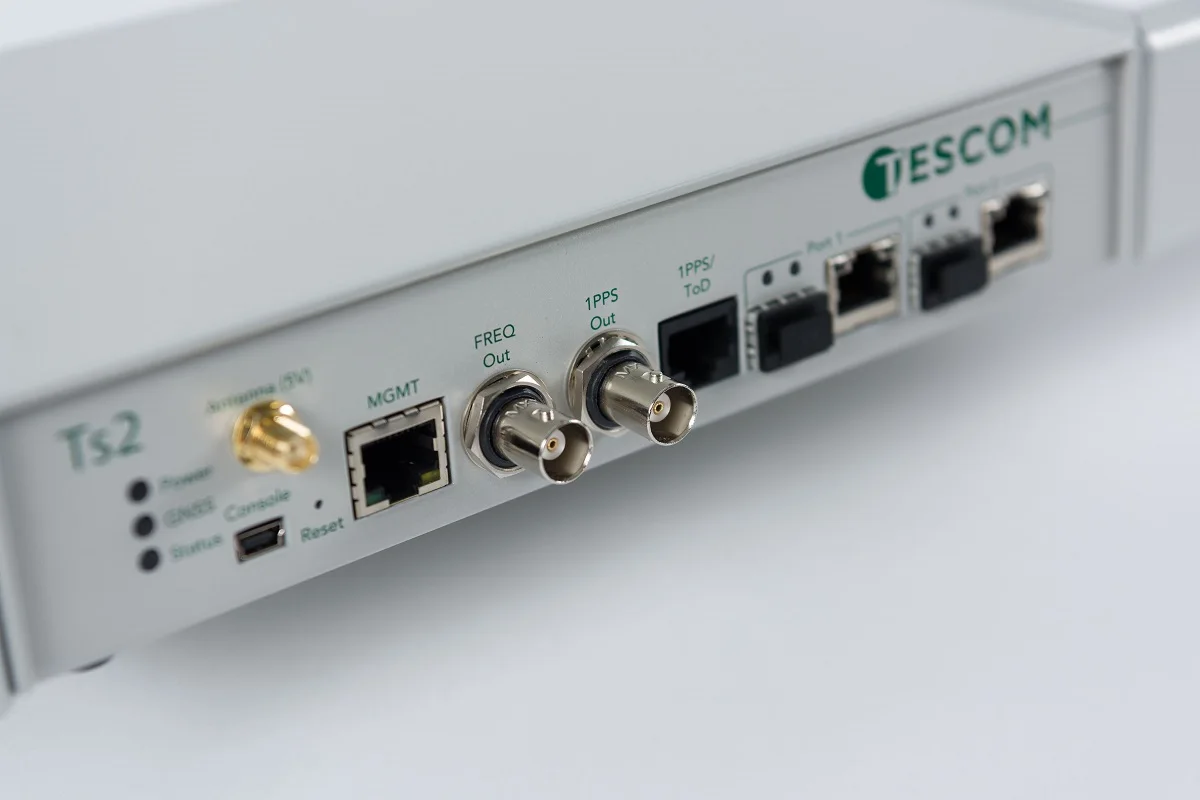

1PPS, and ToD) as outputs. The Multi-Sync Gateway features dual 1 GbE ports for both copper RJ45 and optical connections. It provides all the relevant timing interfaces such as GNSS, 1 Pulse Per Second (1PPS), Time of Day (ToD) (input / output), and frequency (programmable output). The true innovation in this product lies in its simplicity, high performance, scalability, and cost-effectiveness. The Ts2 has some unique features designed to make it easily manageable and provide resilient performance when reference sources are lost.
such as in urban canyons and indoors, where GNSS signals are weak or intermittent. TesCom's Ts2, a multi-sync gateway addresses the challenges of providing reliable and precise synchronization everywhere through IEEE 1588-2008 (PTP) and leveraging multiple sync references. Ts2 is designed for deployment in distributed clustered architectures. In such deployments, timing resources are deployed close to the edge of the network in order to meet the phase and frequency precision requirements at the small cell or remote distributed or radio units (DU / RU). Deploying a centralized Grand Master with full onpath support to deliver high precision sync imposes a significantly higher cost. Next-generation networks require a more decentralized approach. The Assisted Partial Timing Support (APTS) architecture is designed for these networks to deliver precise phase and frequency to small cells in a scalable and cost-effective manner. Ts2 is highly field-scalable and designed for such edge oriented distributed architectures. Ts2 provides IEEE 1588-2008 (PTP) Grand Master and Boundary Clock functionality at a low total cost of ownership. It leverages TesCom's unique industry-leading PTP algorithms to deliver stringent timing for LTE-A, LTE-TDD, CBRS (USA), SxGP (Japan), private LTE, and 5G architectures (both operator and private) and supports ITU-T G. 8265 and G.8275 frequency and phase profiles. The product features multiple oscillator options to deliver a range of holdover performance. Ts2 utilizes GNSS (GPS, Beidou, GLONASS, QZSS, and Galileo), PTP, and Synchronous Ethernet as input references and generates PTP, SyncE, and timing signals (frequency,
1PPS, and ToD) as outputs. The Multi-Sync Gateway features dual 1 GbE ports for both copper RJ45 and optical connections. It provides all the relevant timing interfaces such as GNSS, 1 Pulse Per Second (1PPS), Time of Day (ToD) (input / output), and frequency (programmable output). The true innovation in this product lies in its simplicity, high performance, scalability, and cost-effectiveness. The Ts2 has some unique features designed to make it easily manageable and provide resilient performance when reference sources are lost.
Specification
item | value |
Place of Origin | USA |
Brand Name | TesCom USA |
Model Number | Ts2 |
Feature1 | LTE and 5G networks |
Details Images
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
TesCom has been serving the Telecommunications and CATV Industry for over 35 years. TesCom was founded in 1982. We continue to follow three simple business principles that formed the basis for the company:
We provide the services and products our customers need.
We perform services and manufacture products with the high quality.
We give the customer exceptional value.
Today our company is divided into three divisions:
Manufacturing and Sales Divisions: We manufacture Applied Instruments satellite and CATV test equipment. We manufacture Tiempo timing and synchronization clocks. Everything we sell is guaranteed and certified by our internal Laboratories so our customers are assured of high quality products and full warranty coverage after the sale.
Calibration Laboratories: We have an ISO 17025 accredited laboratory in Austin, TX. Our services include Calibrating General Electronic Laboratory Test Sets, RF, Optical and Physical/Dimensional Equipment.
Repair Laboratories: With three repair labs located in Texas, California, and Indiana, our North American footprint provides regional service capabilities throughout the US. We service a broad range of equipment including general electronic lab equipment, fiber optic, transmission, broadband, telecom, power supplies and much more. If it's used to maintain a carrier network, or if it's used by manufacturers to design/build products, we repair it.
We provide the services and products our customers need.
We perform services and manufacture products with the high quality.
We give the customer exceptional value.
Today our company is divided into three divisions:
Manufacturing and Sales Divisions: We manufacture Applied Instruments satellite and CATV test equipment. We manufacture Tiempo timing and synchronization clocks. Everything we sell is guaranteed and certified by our internal Laboratories so our customers are assured of high quality products and full warranty coverage after the sale.
Calibration Laboratories: We have an ISO 17025 accredited laboratory in Austin, TX. Our services include Calibrating General Electronic Laboratory Test Sets, RF, Optical and Physical/Dimensional Equipment.
Repair Laboratories: With three repair labs located in Texas, California, and Indiana, our North American footprint provides regional service capabilities throughout the US. We service a broad range of equipment including general electronic lab equipment, fiber optic, transmission, broadband, telecom, power supplies and much more. If it's used to maintain a carrier network, or if it's used by manufacturers to design/build products, we repair it.
FAQ
1. who are we?
We are based in Indiana, United States, start from 1999,sell to North America(90.00%),Western Europe(4.00%),South America(2.00%),Eastern Europe(2.00%),Southeast Asia(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
NPRT
4. why should you buy from us not from other suppliers?
Under construction****
5. what services can we provide?
Accepted Delivery Terms: EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Credit Card,PayPal;
Language Spoken:English
We are based in Indiana, United States, start from 1999,sell to North America(90.00%),Western Europe(4.00%),South America(2.00%),Eastern Europe(2.00%),Southeast Asia(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
NPRT
4. why should you buy from us not from other suppliers?
Under construction****
5. what services can we provide?
Accepted Delivery Terms: EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Credit Card,PayPal;
Language Spoken:English
