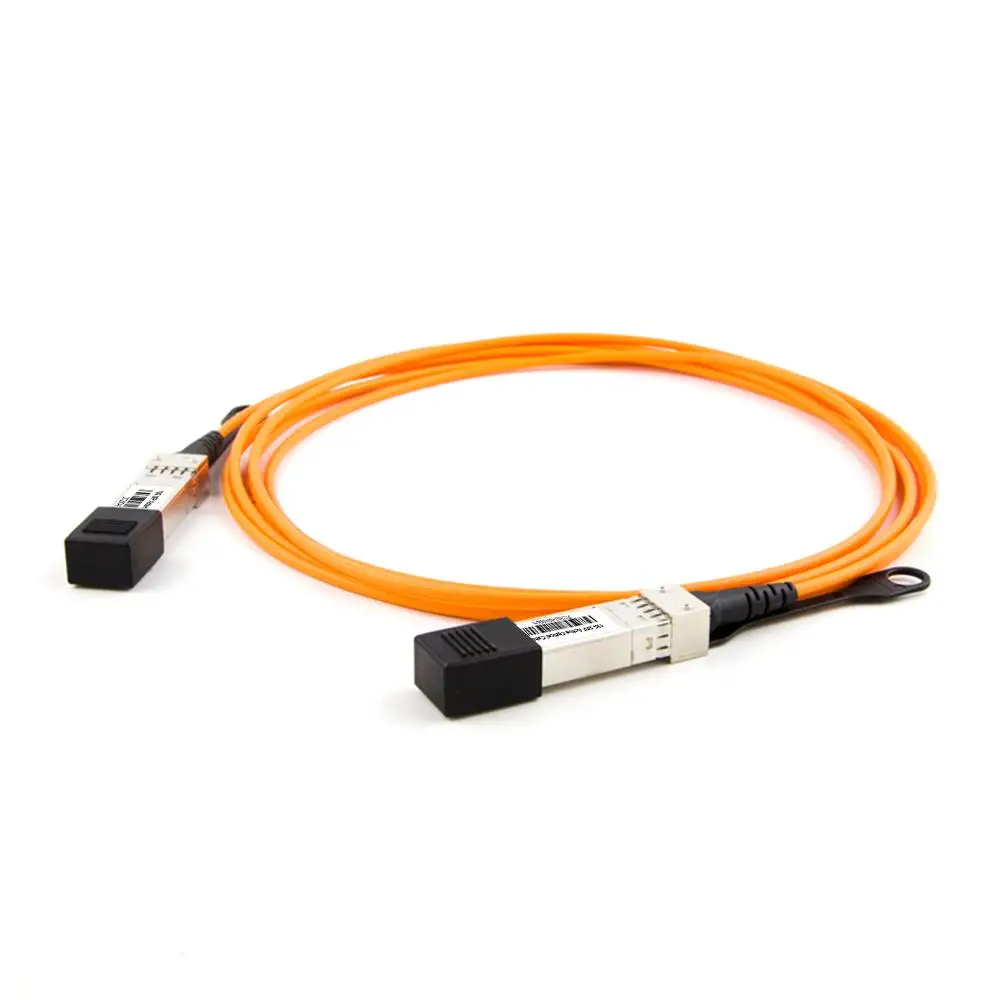

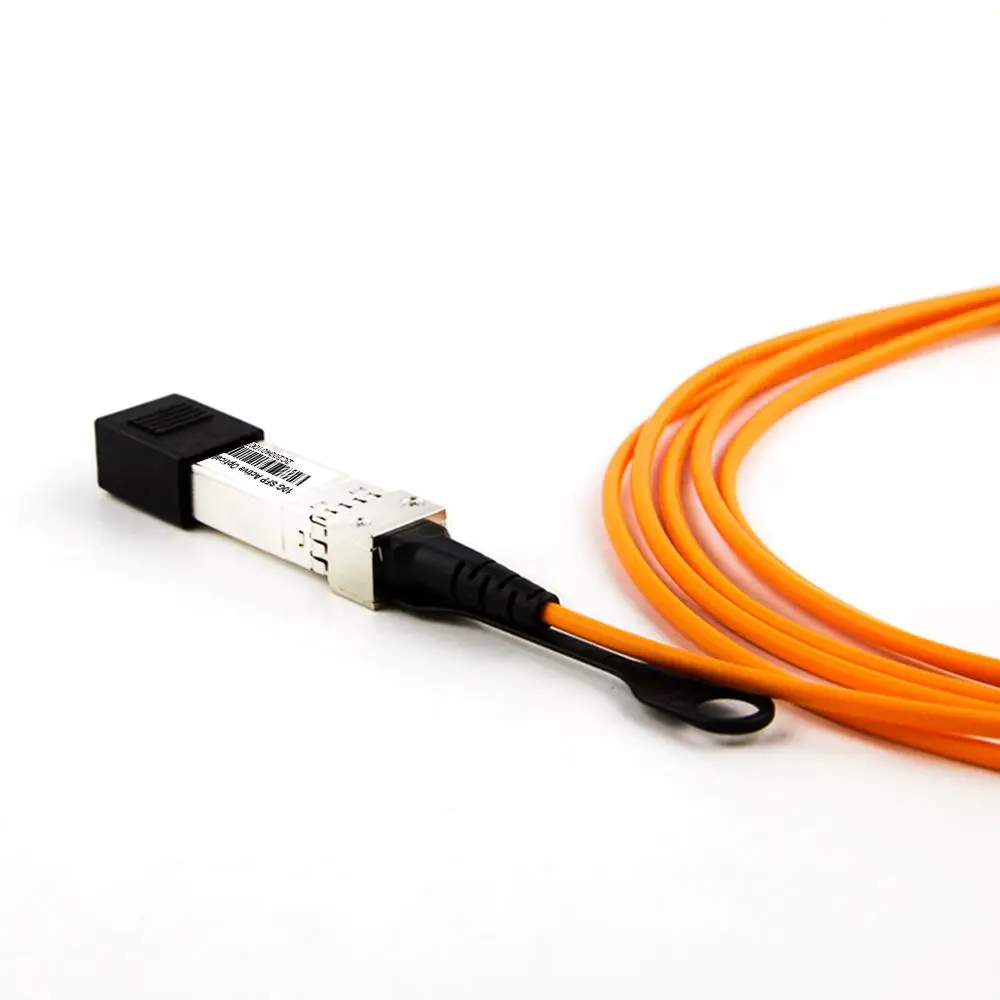

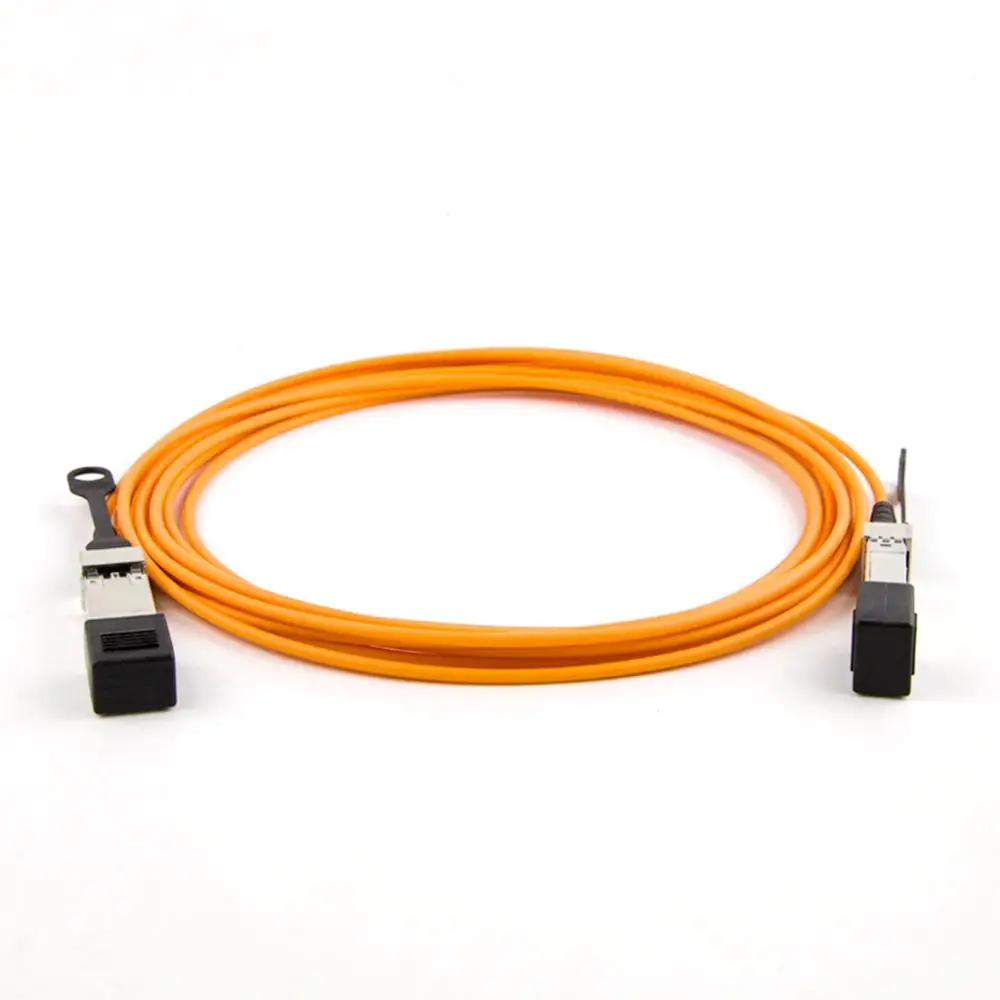

10G SFP Active Optical Cables OM3 Compatible SFP 10G AOC Length 1m to 20m SFP to SFP AOC 4G 8G Fiber Channel
- Category: >>>
- Supplier: Celesta International Electronics (shenzhen) Co. Ltd.
Share on (10000004958292):
Product Overview
Description
Product Description
Description

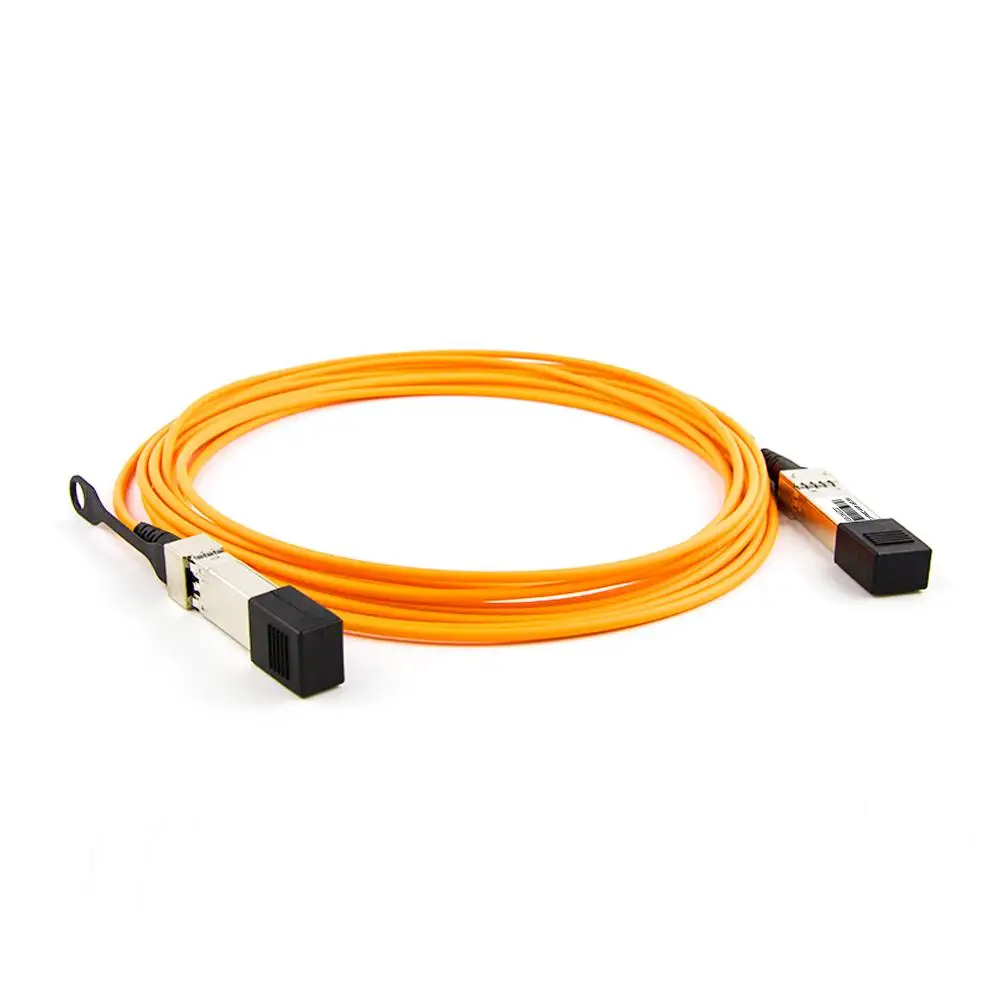

The SFP+ Active Optical Cables are direct‐attach fiber assemblies with SFP+ connectors. They have very good power consumption performance .
They are suitable for very short distances and offer a cost‐effective way to connect within racks and across adjacent racks. ESION SFP+ Active Optical Cables’s length is up to 300 meters on OM3 MMF.
Applications
• 10 Gigabit Ethernet
• 1x InfiniBand QDR. DDR, SDR • High‐performance computing clusters
• 4G and 8G Fibre Channel
Applications
Applications
• Servers, switches, storage，host card adapters and data center
Specification
item | value |
Model Number | ZAOACLAE00ST0012 |
Type | Fiber Optic Cable |
Place of Origin | China |
Brand Name | OEM |
Use | Indoor |
Warranty Time | 3 years |
Network | Wired LAN |
Use | Network |
Compatible | SFP-10G-AOC |
Max Data Rate | 10Gbps |
Optical Mode | OM2 |
Connector Type | SFP+ to SFP+ |
Temperature | 0℃ - 70℃ |
Length | 1m, 2m, 3m, 5m, 7m, 10m, 15m, 20m |
Compatible Brand | Arista, Aruba, Cisco, Dell, HPE, Juniper |
Fiber Type | Single 3.3V power supply |
Others | Programmable EEPROM for serial identification |
ESD
This transceiver is specified as ESD threshold 1KV for high speed data pins and 2KV for all others electrical input pins, tested per MIL‐STD‐883, Method 3015.4 /JESD22‐A114‐A (HBM).However, normal ESD precautions are still required during the handling of this module.
This transceiver is shipped in ESD protective packaging. It should be removed from the packaging and handled only in an ESD protected environment.
Our Advantages

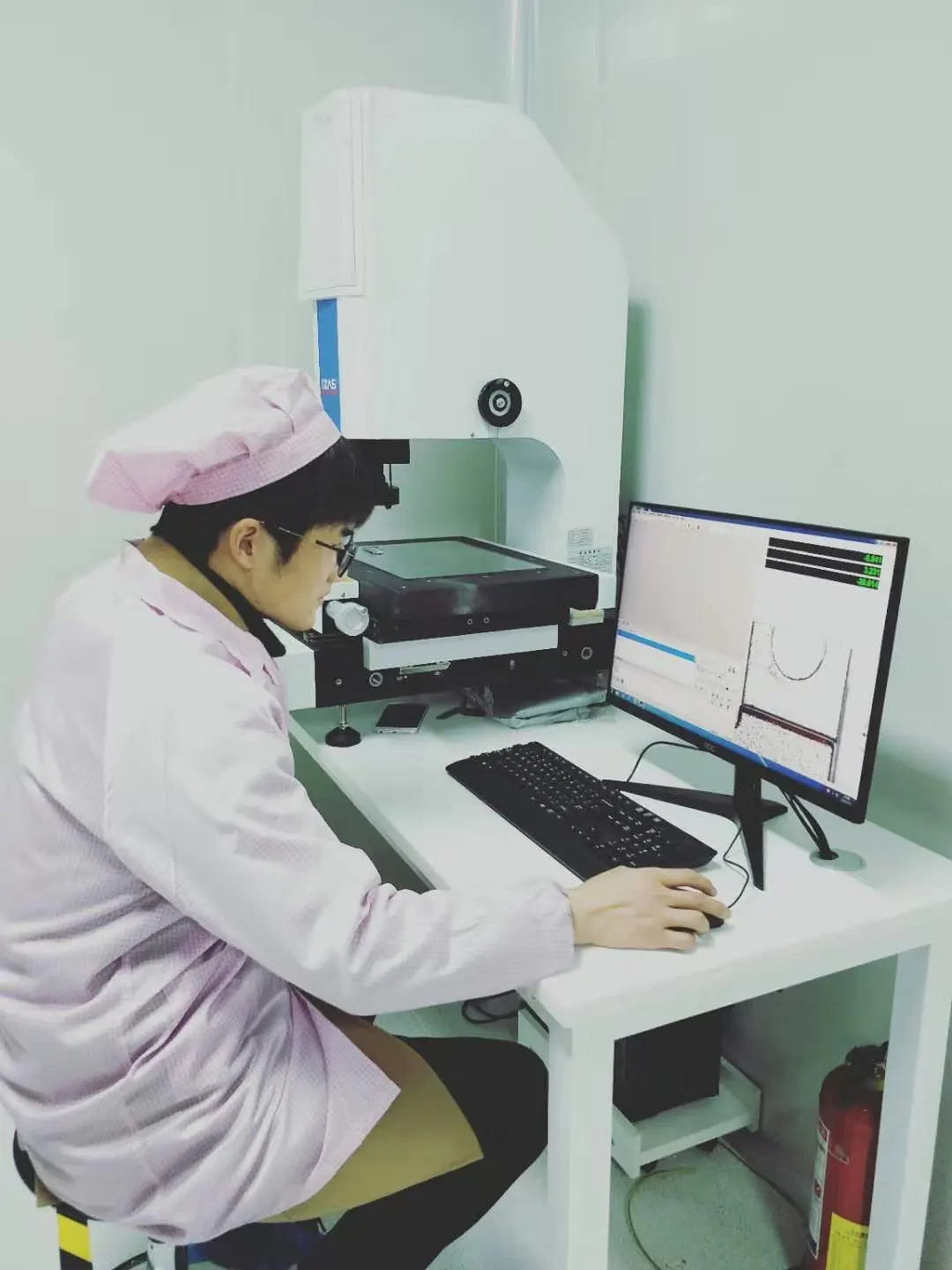

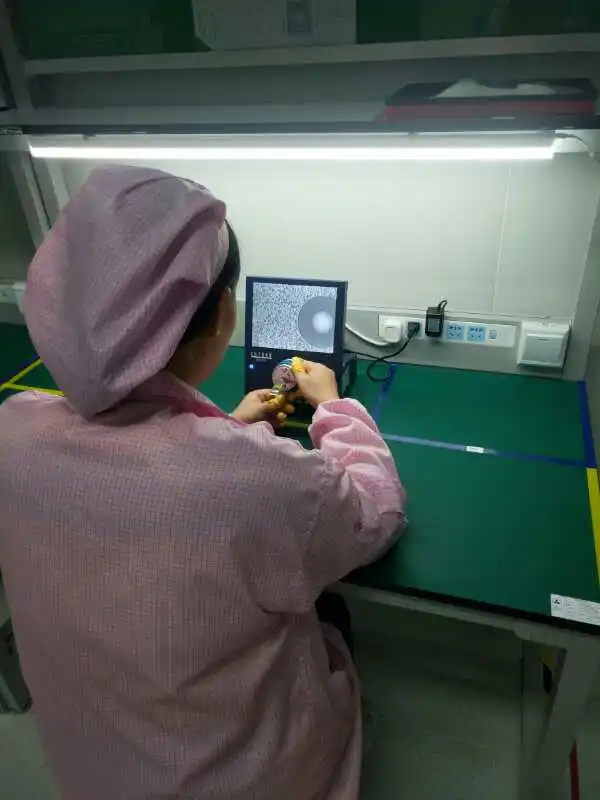

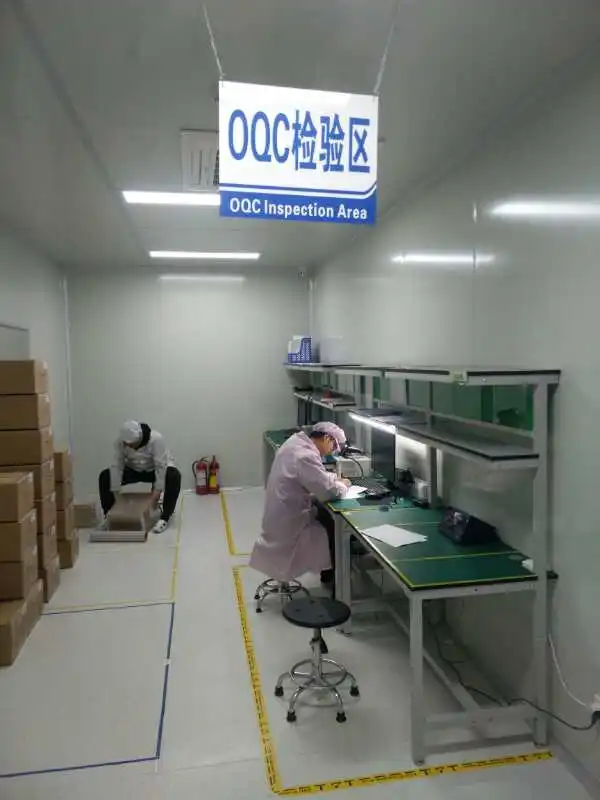

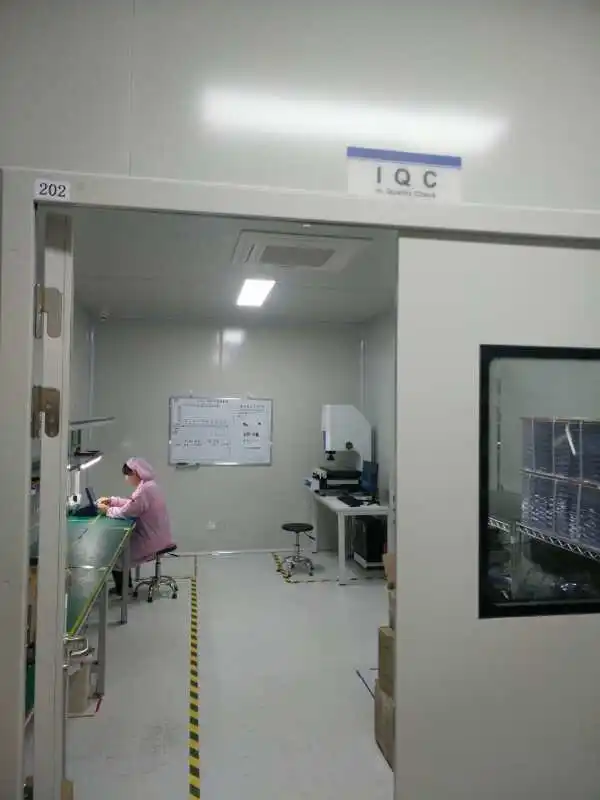

Quality Assurance in All Ways

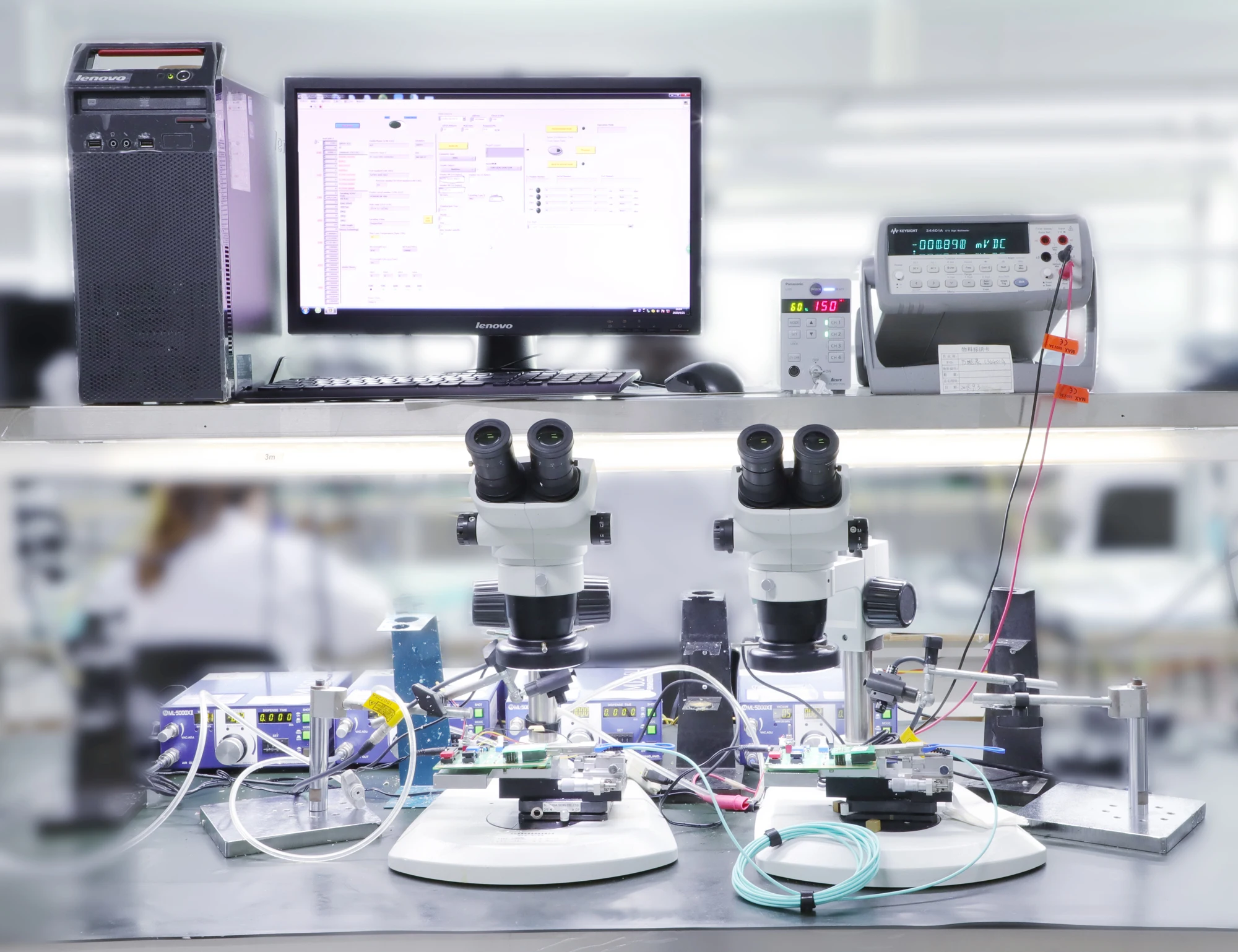

All our all transceivers and cables are individually tested on branded servers and switches to ensure compatibility in our cable test center.

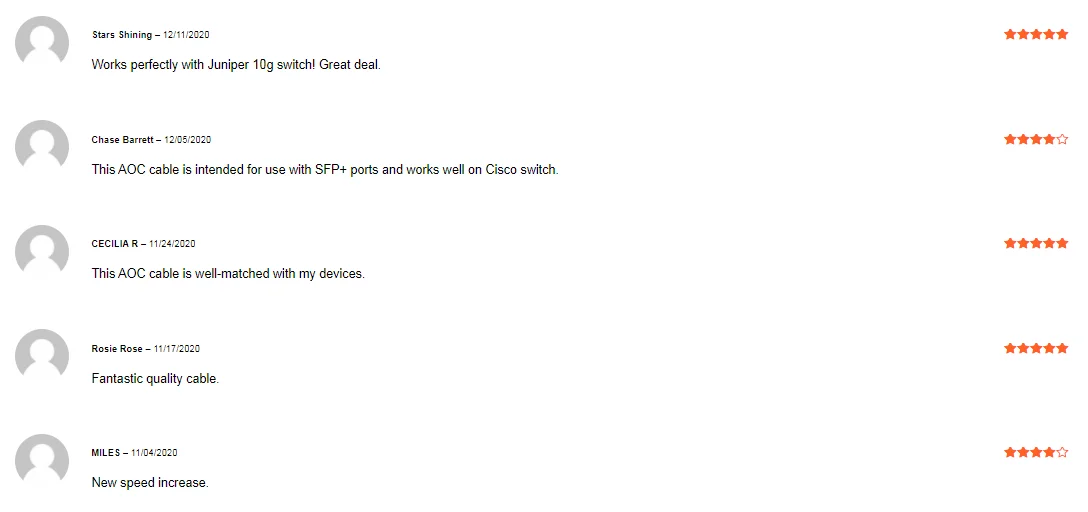

Reviews from our clients

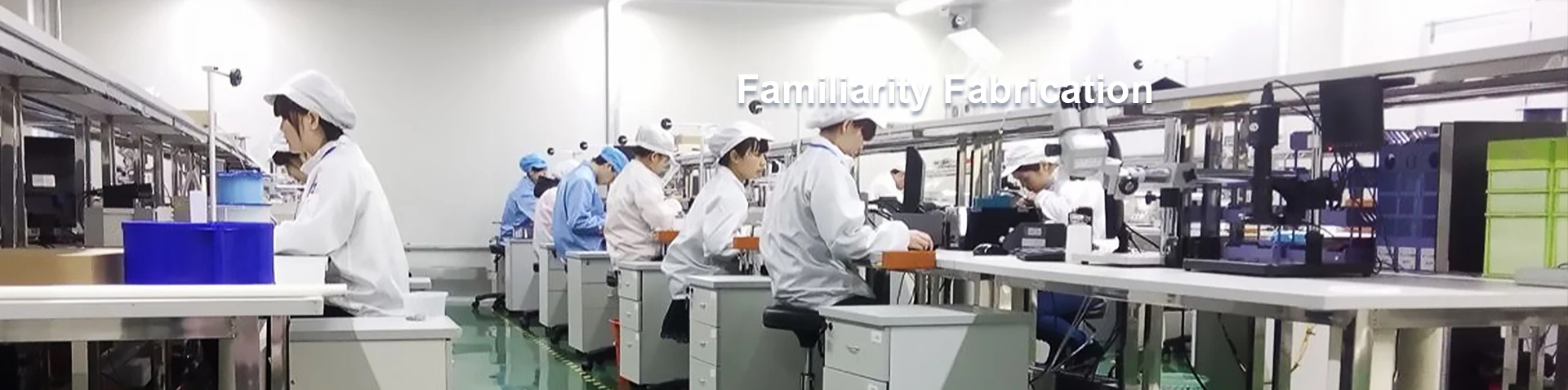

Company Profile
Quality, We Ensure
We provide high-quality products through persistent improvement activities. Quality is essential to building a successful business and delivering products to meet or exceed clients' expectations.
Product Development
Our R&D team is comprised of technical experts with many years' experience in this field. With their dedication to this product and to the work, we can always get the best performance products.
