DIN 1.0/2.3 Connector Bulkhead Crimp Jack For Flex 5 Cable
DIN 1.0/2.3 Connector Bulkhead Crimp Jack For Flex 5 Cable

DIN 1.0/2.3 Connector Bulkhead Crimp Jack For Flex 5 Cable

Share on (10000004974891):


Price:

Quantity:


Product Overview

Description


DIN 1.0/2.3 Connector Bulkhead Crimp Jack For Flex 5 Cable





1. ISO 9001 & IATF 16949 certified
2. RoHS & REACH compliant


3. Made in Taiwan








Features:



  1. Push-pull coupling

  2. Locking mechanism will not vibrate loose as threaded connectorsare prone to do

  3. Easy installation


Applications:



  1. Amplifiers

  2. Switching Equipment

  3. Base Stations


Electronical Specifications




































Impedance50 Ω & 75 Ω
Frequency Range0-10 GHz
Working Voltage250 VRMS max. at sea level
Dielectric Withstanding Voltage750 VRMS min. at sea level
VSWRStraight: 1.3 max.
Contact ResistanceCenter Contact: 10 milliohm Max.
Outer Contact: 3 milliohm Max.
Insulator Resistance10,000 megaohms min.







Material Specifications















































Parts NameMaterialFinish
Male(Plug)Body/Metal PartBrassNickel
Outer ContactBeCu3u" Gold
Center ContactBrass3u" Gold
Female(Jack)Body/Metal PartBrassGold/Nickel
Center ContactBeCu3u" Gold
InsulatorsPTFENone
Crimp FerrulesBrass or CopperNickel




Note: Other Material/Finish is available on request

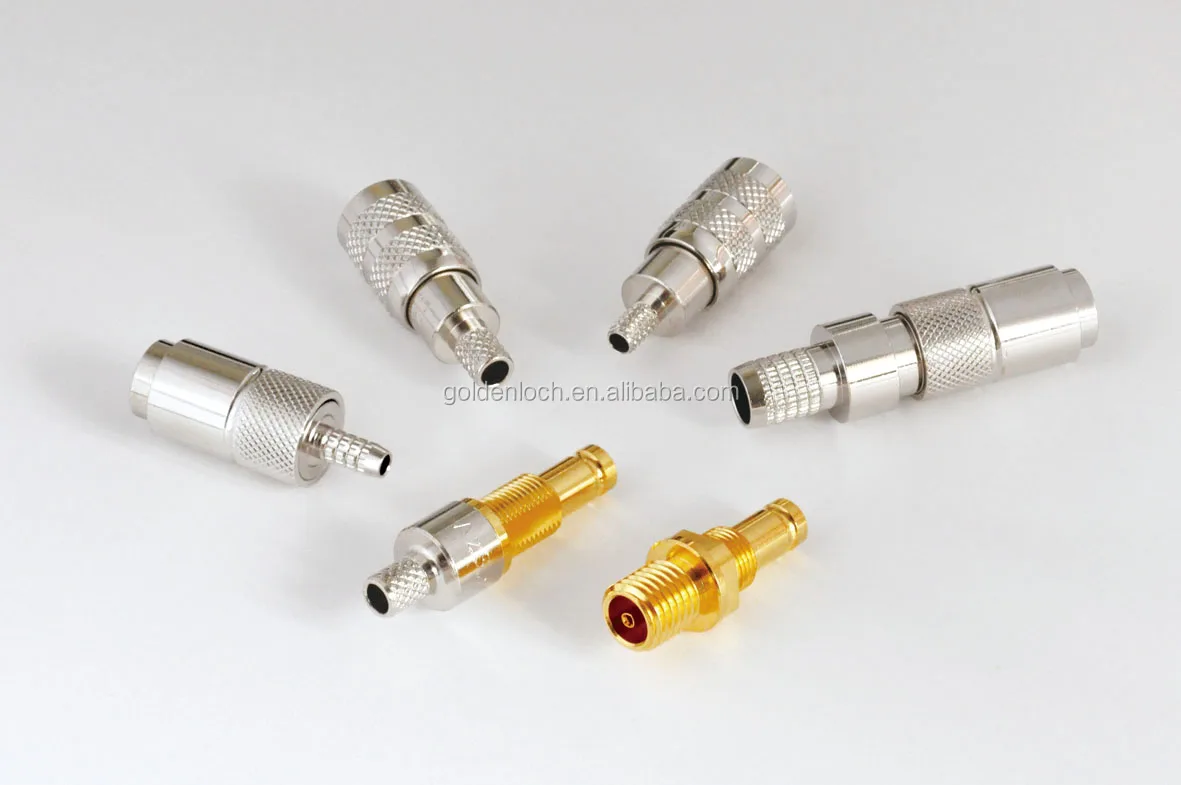

12341.0 2.3 Connector1.0 2.3
