RFID 13.56MHz Felica / MF UID Module, IC Card Reader Module, ISO14443A, ISO18092, NFC
- Category: >>>
- Supplier: PONGEE INDUSTRIES CO. LTD.
Share on (10000005124509):
Product Overview
Description
Introduction

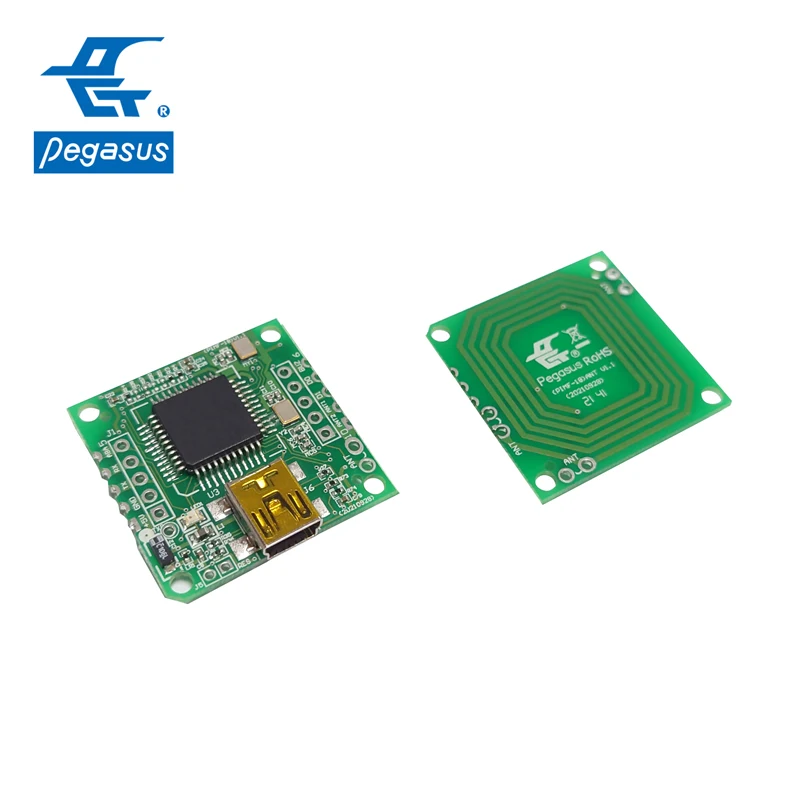

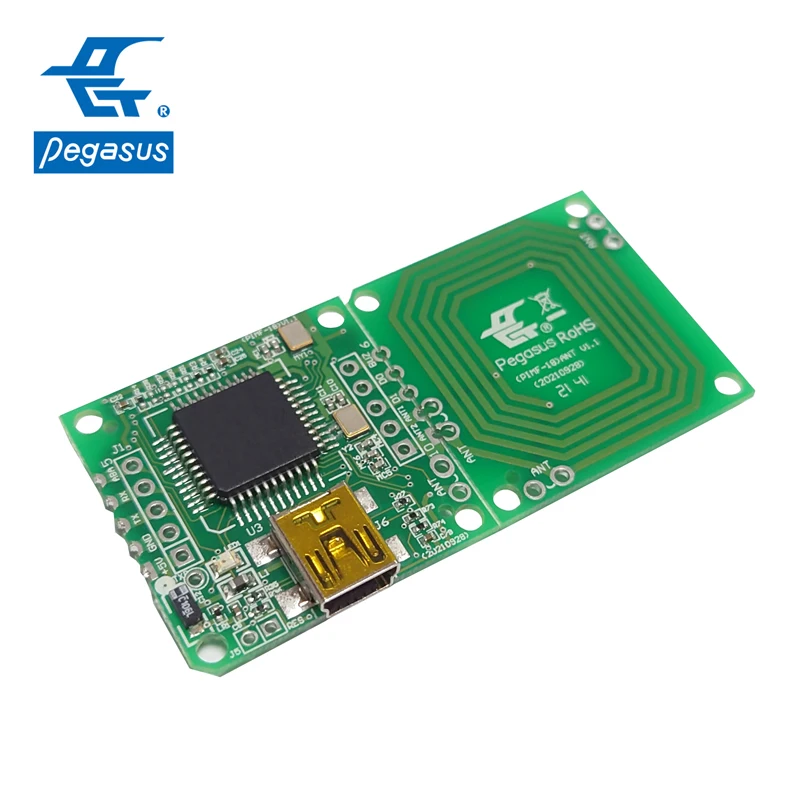

PIFC-18E is Felica ISO 18092(UID) & MF ISO 14443A(UID) reading module. It is power supplied via USB cable. It can provide easy ID filing by USB keyboard emulator without any driver (plug & play) and no request of external power supply. Compact design with mounting holes suitable for various integrations such as portable products.
We provide complete software/Hardware support and shorten schedule of RFID product development, OEM/ODM service is available.
Features
• Support Felica ISO 18092(UID) & MF ISO 14443A(UID).
• Antenna can be replaced upon request.
•Supply firmware modification accords to request of special function.
•High speed data transfer and high integrity.

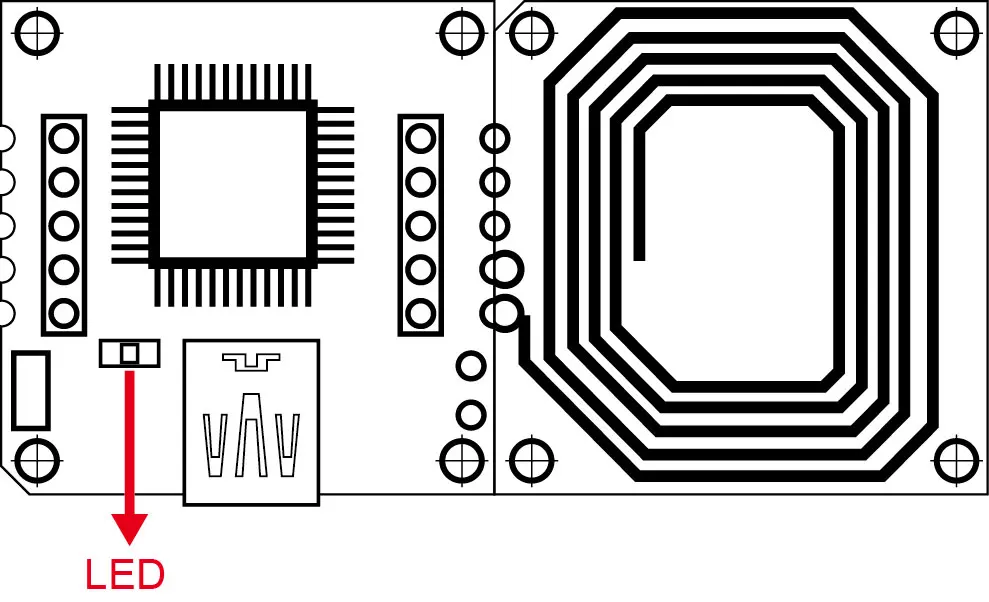

•With LED indicator.
•With fixed holes around the corner.
Specification
RFID frequency | 13.56MHz | |
Applicable cards | MF S50 / S70, MF Ultralight, Felica, NFC Tag or compatible | |
Reading range | Card (T:0.8mm) | Max.4 cm |
Tag | Max.3 cm | |
Output interface | USB Optional: Wiegand 26/34/58 bit, UART | |
Dimensions(L)×(W) ×(H) mm/inch | 58 x 29 / 2.3 x 0.7 | |
Operating temperature | -10℃~75℃ | |
Storage temperature | -20℃~85℃ | |

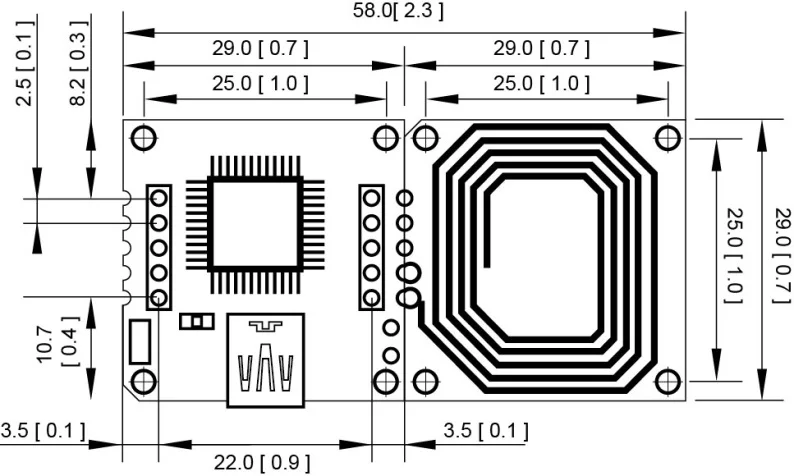

Dimension: mm[inch]
Application

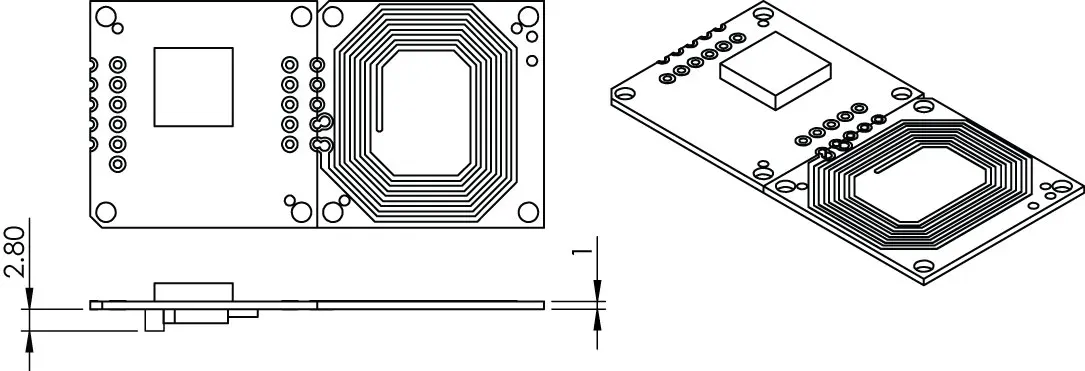

Type A

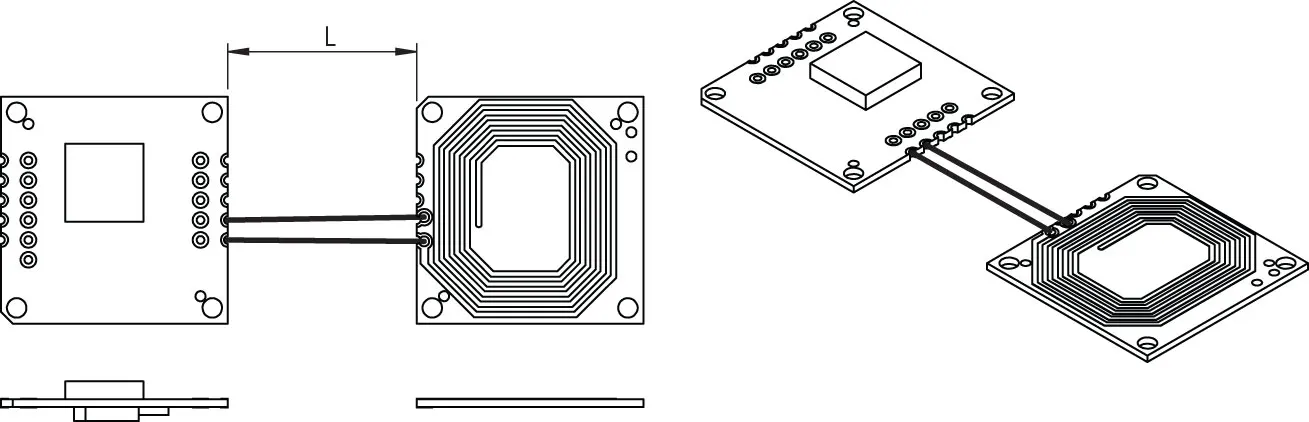

Type B

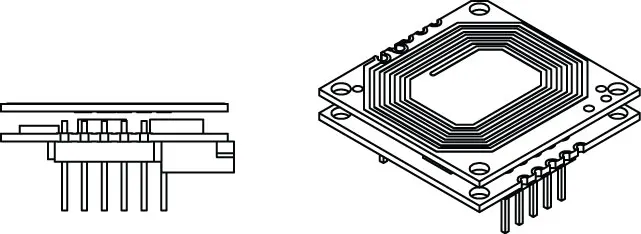

Type C
Ordering information
PIFC-18EU1D01: Plug & Play, USB, keyboard emulation, 8 digit,Decimal, 3bytes
PIFC-18EU1D02: Plug & Play, USB, keyboard emulation, 10 digit, Decimal, 3bytes
PIFC-18EU1D03: Plug & Play, USB, keyboard emulation, 8 digit, Decimal, 4bytes
PIFC-18EU1D04: Plug & Play, USB, keyboard emulation, 10 digit, Decimal, 4bytes
PIFC-18EU1D05: Plug & Play, USB, keyboard emulation, 8 digit, Decimal, 3bytes, card number: in positive
PIFC-18EU1D06: Plug & Play, USB, keyboard emulation, 10 digit, Decimal, 3bytes, card number: in positive
PIFC-18EU1D07: Plug & Play, USB, keyboard emulation, 8 digit, Decimal, 4bytes, card number: in positive
PIFC-18EU1D08: Plug & Play, USB, keyboard emulation, 10 digit, Decimal, 4bytes, card number: in positive
PIFC-18EU1H: Plug & Play, USB, keyboard emulation,Hexadecimal
PIFC-18EU1HS: Plug & Play, USB, keyboard emulation, Hexadecimal, card number: in positive
FeliCa is a trademark of Sony Corporation.
We reserve the right to change the specification without prior notice or obligation!
