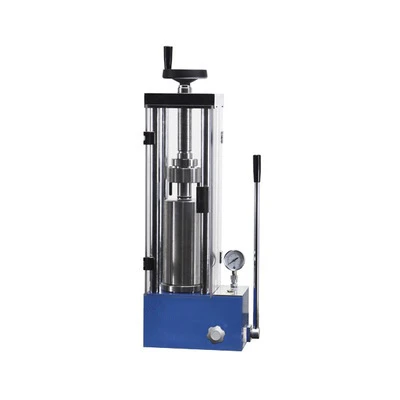

12 / 20 / 40 / 60 T Manual Cold Isostatic CIP Press Machine
- Category: >>>
- Supplier: Quanzhou Lineng Machinery And Equipment Co. Ltd.
Share on (10000005256935):
Product Overview
Description
12T-60T Laboratory Manual Cold Isostatic Press Machine For Sample Forming in Scientific Research/Teaching/Test/Pharmacy/Cataysis

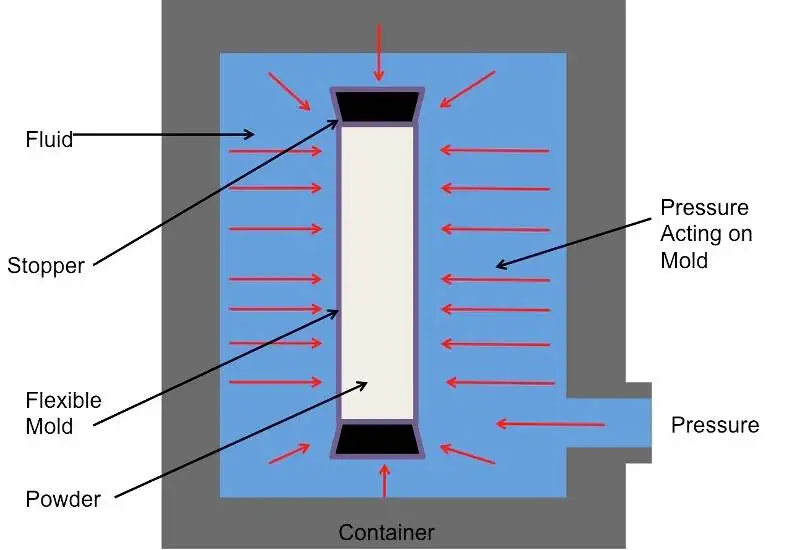

The compact isostatic press is suitable for users who have strict requirements on the uniformity of sample forming. The powder can be formed directly through an isostatic pressing chamber, or an already formed sample can be reformed to make its density more uniform. It has been widely used in scientific research, teaching, testing, pharmacy, catalysis, chemistry and other laboratory industries.

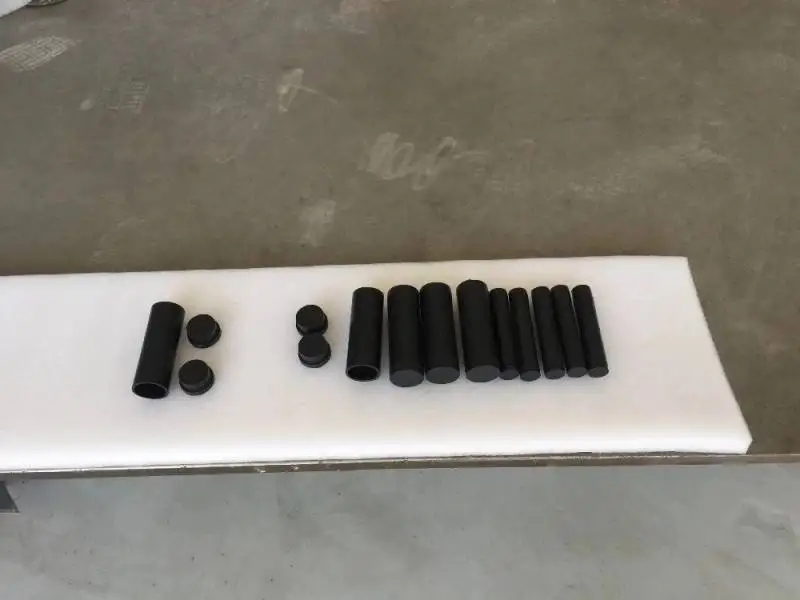

1. The sample made by isostatic pressing has high density, good uniformity, small sintering shrinkage rate and not easy to deform.
2. It can be formed into elongated rod-shaped or tubular blanks, which is difficult to prepare by conventional molding process.
3. The product has high strength and good processing performance, which can greatly reduce internal stress.
4. The mold is easy to manufacture, has a long service life and relatively low cost.
5. It can form large blanks, and each cylinder can press multiple blanks.
6. Suitable for laboratory use, small instruments

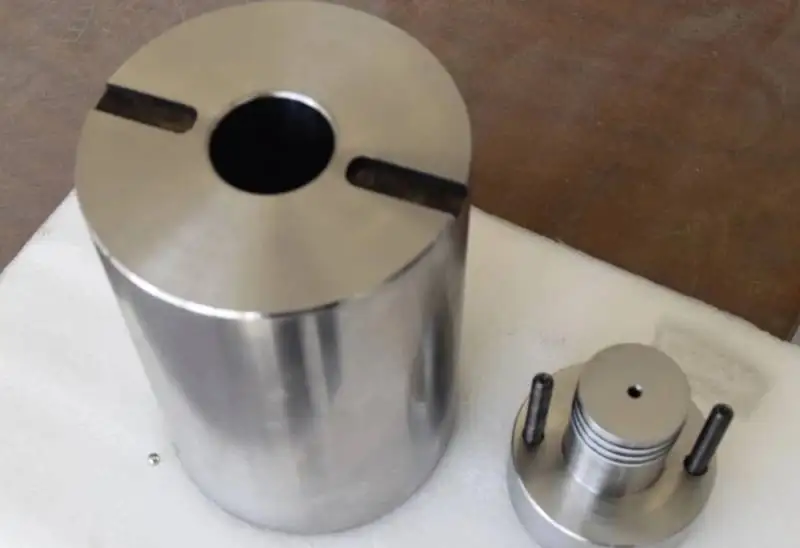

7. The instrument can remove the isostatic pressure chamber and replace the cold pressing mold, which has the characteristics of one machine and two functions.
8. Integrated structure patent technology
Technical parameters
Model | SJYP-12T | SJYP-20T | SJYP-40T | SJYP-60T | ||||
Pressure range | 0-12T(0-17MPa) | 0-20T(0-21MPa) | 0-40T(0-30MPa) | 0-60T(0-34MPa) | ||||
Piston diameter | Φ95mm | Φ110mm | Φ130mm | Φ150mm | ||||
Maximum piston stroke | 40mm | 40mm | 50mm | 50mm | ||||
Cavity Size | Φ22×70mm | Φ30×120mm | Φ40×150mm | Φ50×150mm | ||||
Analog pressure gauge | Analog pressure gauge is included in the standard package, Dual scale display: Mpa and Ton | |||||||
Pressurization mode | Manual pressure / manual slow | |||||||
protection cover | Plexiglass protective cover | |||||||
Isostatic pressure | 0-300 MPa | |||||||
Overall structure | Patent technology of integrated structure, no sealing connection of equipment, reducing oil leakage point | |||||||
Ambient temperature | 10℃ - 40℃ | |||||||
Machine dimensions | 305×195×530mm | 305×195×600mm | 355×215×710mm | 405×240×720mm | ||||
Weight | 90kg | 100kg | 130kg | 180kg | ||||
If you need rubber mould for the press, please contact the sales manager for further quote. | ||||||||
