Product Overview
Description
Products Description

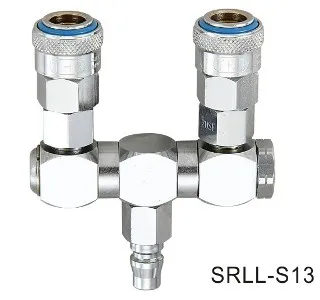

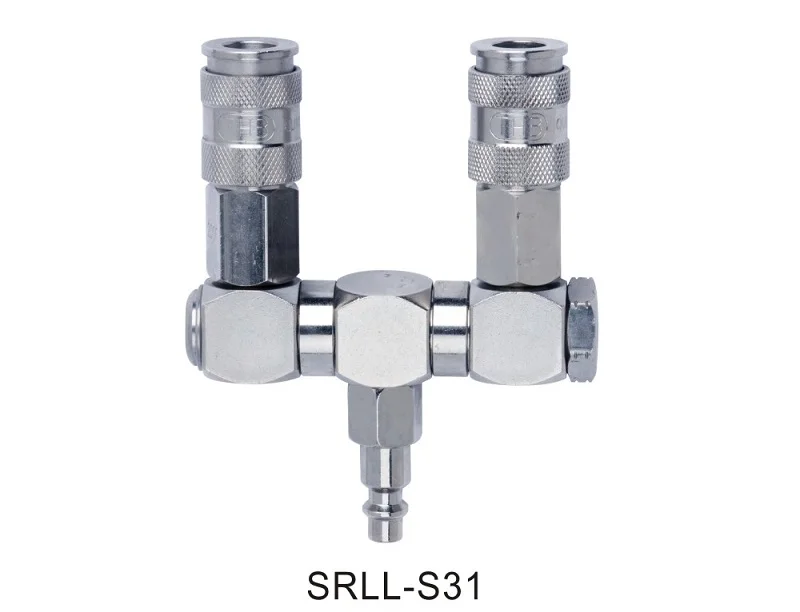

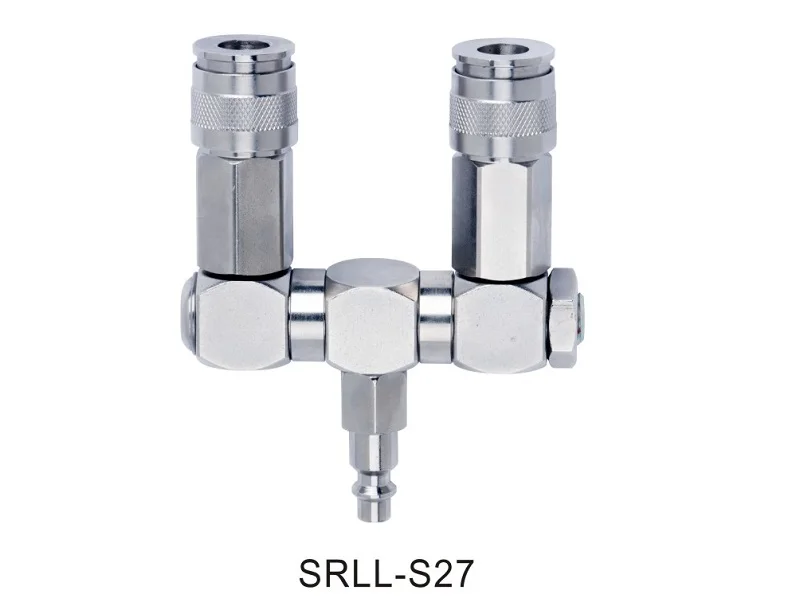

Part No. | SRT-S10 SRL-S10 SRLL-S10 | SRT-S13 SRL-S13 SRLL-S13 | SRT-S27 SRL-S27 SRLL-S27 | SRT-S31 SRL-S27 SRLL-S27 | |||
Coupler | Nitto Standard | Nitto One-Touch | Universal Type | Rectus Type | |||
Thread | PT | NPT | G | ||||
Working Pressure | 218PSI (15Bar/1.5MPa) | ||||||
Maximum Pressure | 290PSI (20Bar/2MPa) | ||||||
Temperature Range | -20℃ ~ +80℃ | ||||||
Port Size | 1/4" | ||||||
FEATURES:

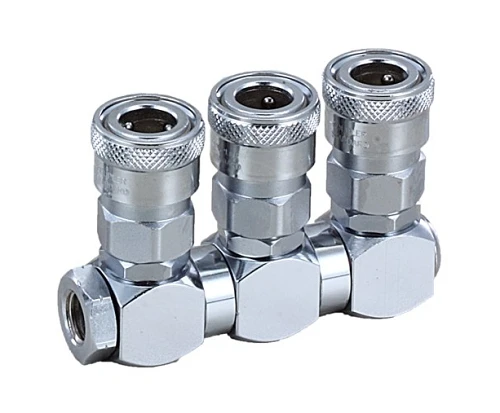

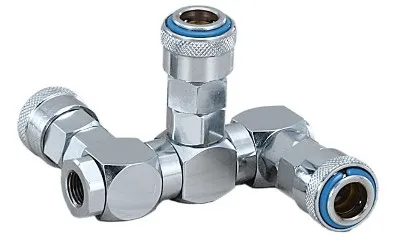

1. Three or two couplers can apply for three or two working stations.
2. The manifold can be 360 rotated which would be more convenience for users.
3. The couplers can be replaced in Nitto type, American type or European type for various market demands.
1. Three or two couplers can apply for three or two working stations.
2. The manifold can be 360 rotated which would be more convenience for users.
3. The couplers can be replaced in Nitto type, American type or European type for various market demands.
