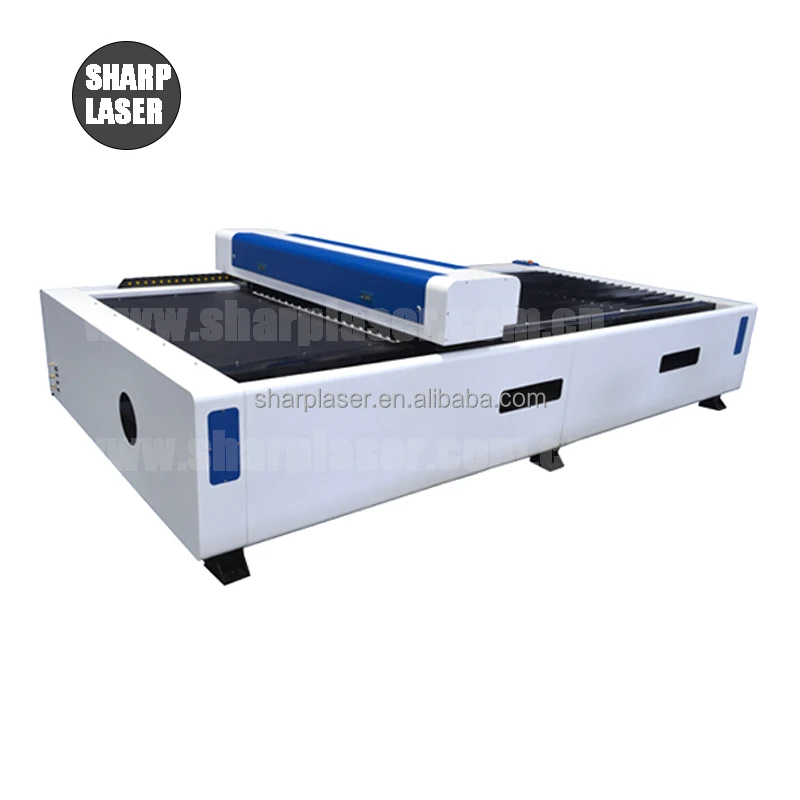

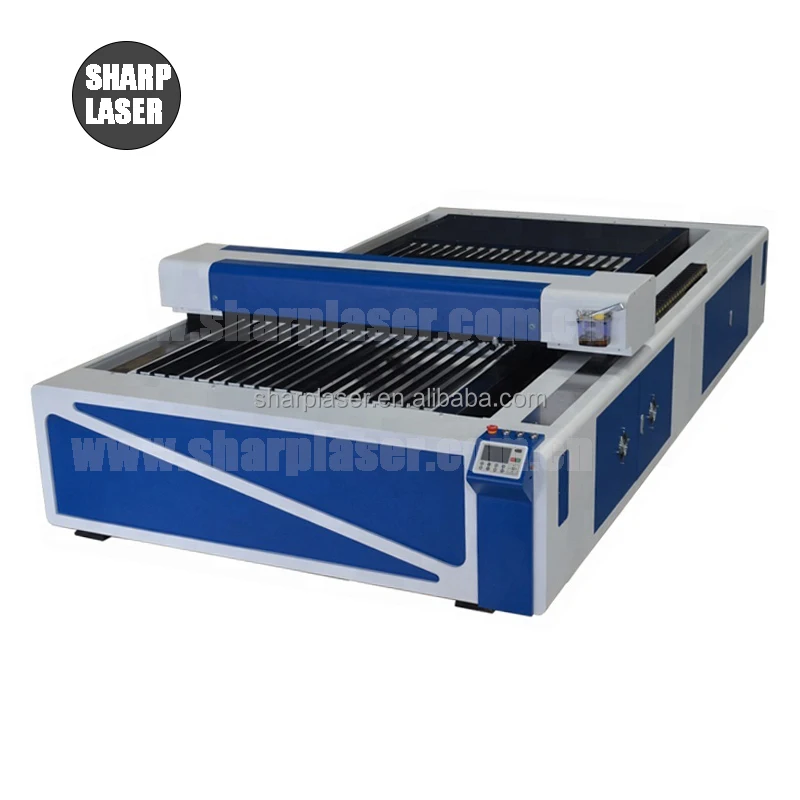

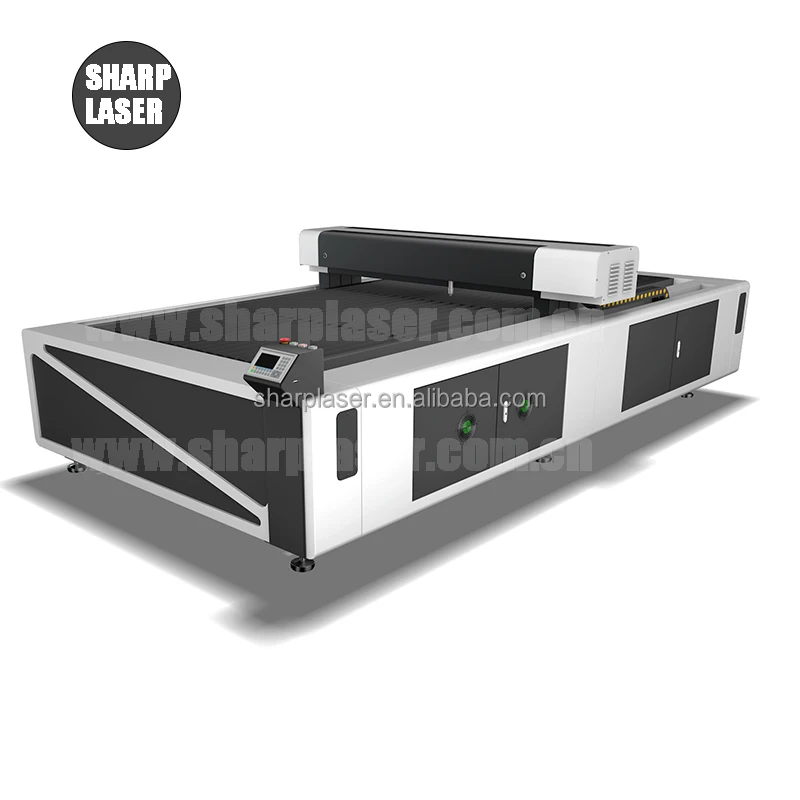

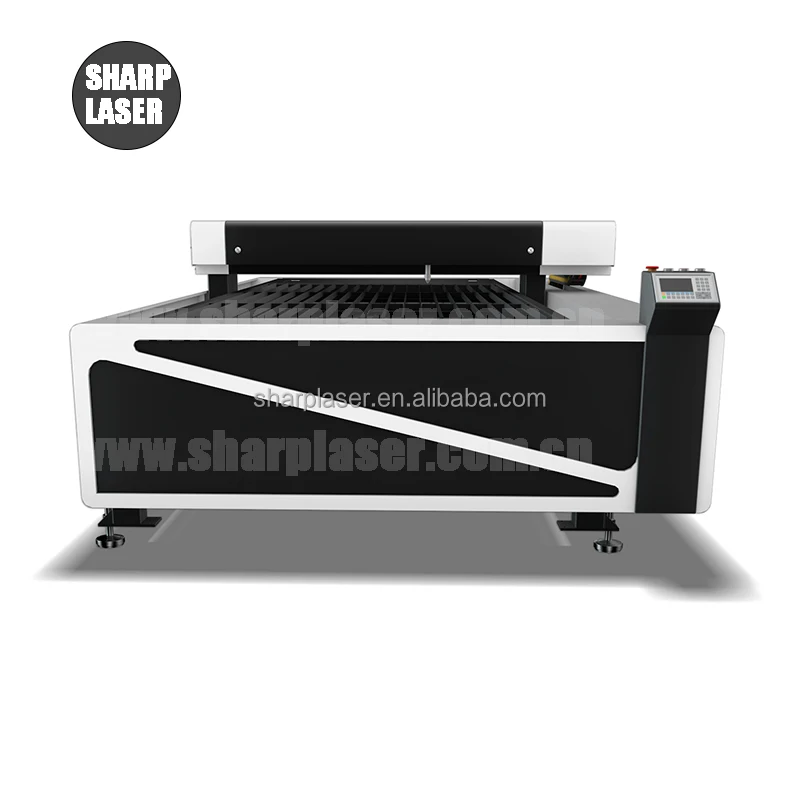

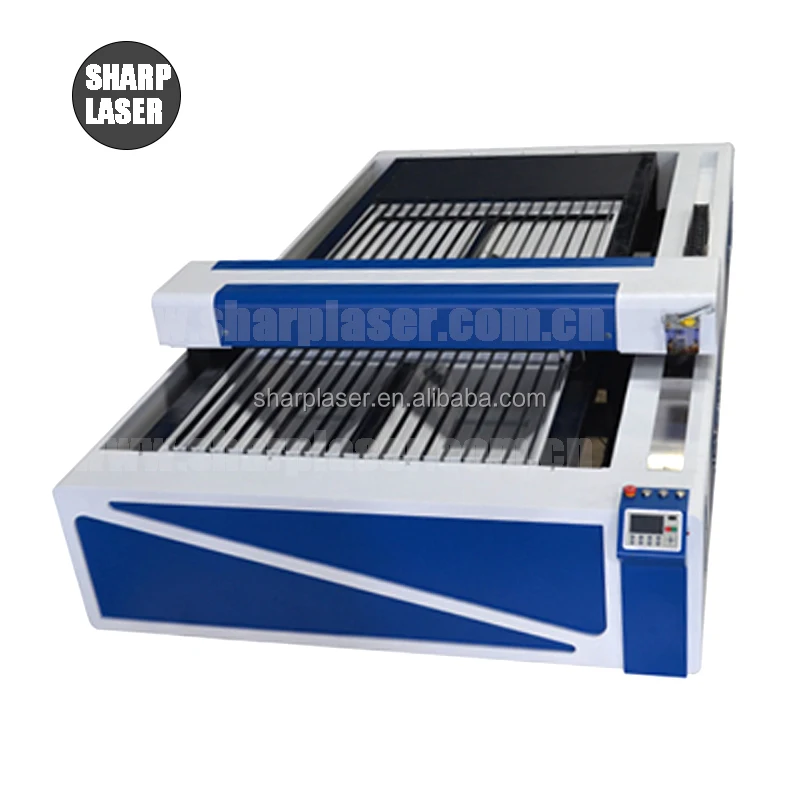

CC1325 co2 laser cutting machine 1325 300w

Product Overview

Description

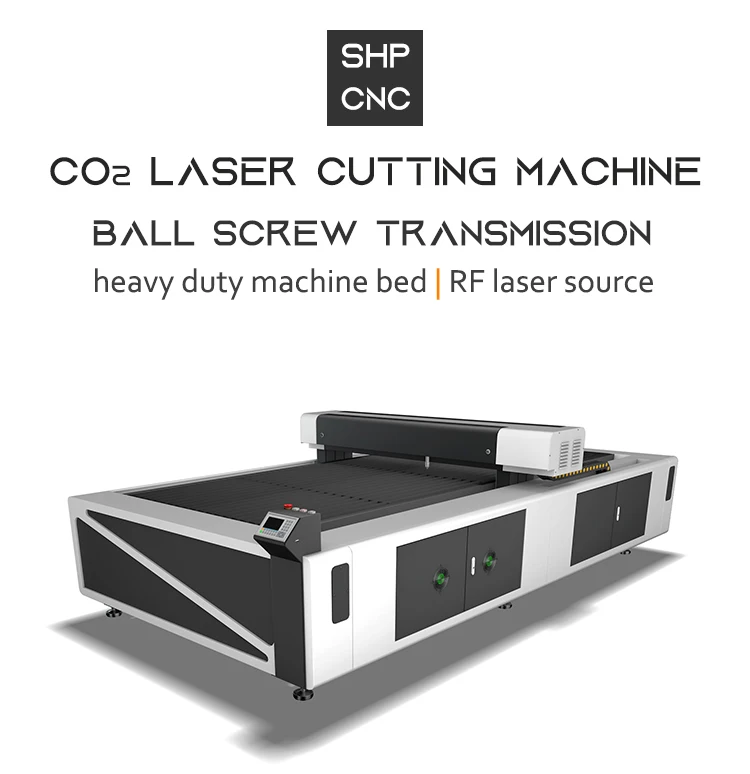

CC1325RF RF CO2 laser cutting machine

The laser cutter is CO2 standing laser cutting machines designed for efficient processing of plastics, wood, textiles and many more. Available in different workstations sizes with several power options, these laser cutting systems provide high-quality results at maximum speed.



1.The cutting is smooth ,fine, few material waste ,can save much cost.
2.The exhaust fan to discharge fume to get no pollution.

3.Special mechanical structure and optical structure, iTaiwan linear guide and advanced numerical control system to ensure the cutting of high stability and repeatability

what material can the laser handle?
Material	Engrave	cut
Acrylic	√	√
Glass	√	×
Laminates	√	√
Leather	√	√
Paper	√	√
Plastics	√	√
Stone	√	×
Textiles	√	√
Wood	√	√
Metal	×	×

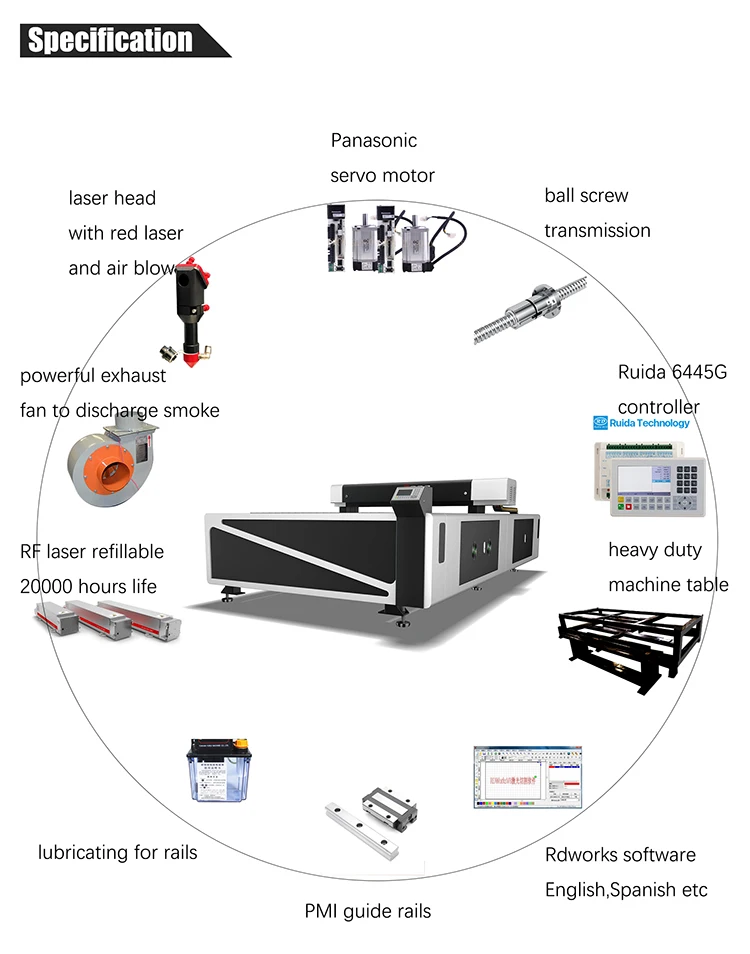

Parameter
Name	RF laser CO2 laser cutting machines
Model	CC1325  /  CC1530
Working area	1300*2500mm  /  1500*3000mm
Laser power	300w / 500w
Laser type	RF laser ,RECI  brand,>20000 hrs service life
Cooling ways	air cooling
Engraving speed	0-60000mm/min
Cutting speed	0-40000mm/min
Laser output control	0-100% controlled by software
Min engraving size	English letters,1*1mm
Scanning resolution	4000DPI
Locating accuracy	≤0.01mm
Controlling software	DSP controlling system,RDWORKS V8
Format supported	DST,PLT,DXF,AI,LAS,BMP,JPG,PNG,etc
Software environment	Windows xp/7/8/10
Compatible software	Coreldraw,Autocad
Color separation output	Yes
Slope engraving	Yes
Driving system	High precision stepper motor with belt
Auxiliary accessories	Exhaust fan,fume tubes,air pump
Working table	Blades table or Honey comb
Applicable materials	Acrylic,wood,plywood,MDF,glass,stone,plastic,rubber ,leather
Working environment              Temperature	0-45℃,Humidity5-95%(no condensate water.)
Power supply	110v/220v,50hz/60hz
Weight	1800kg
Dimension	295*190*110cm

1, Within 7 days since your local customs clearance: if the machine’s any parts has any problems,
we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the machine parts
have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the machine parts have any problems, we can offer new machine parts
with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, email.
5, Our technician can give you remote guide online(Skype / MSN/What's app/viber/Tel/Etc) if you have any question.
6, We can record videos of operating the machine.
7, Free training course in our factory.
8,Machine will be adjusted before it is delivered , operation flash drive/CD was included.

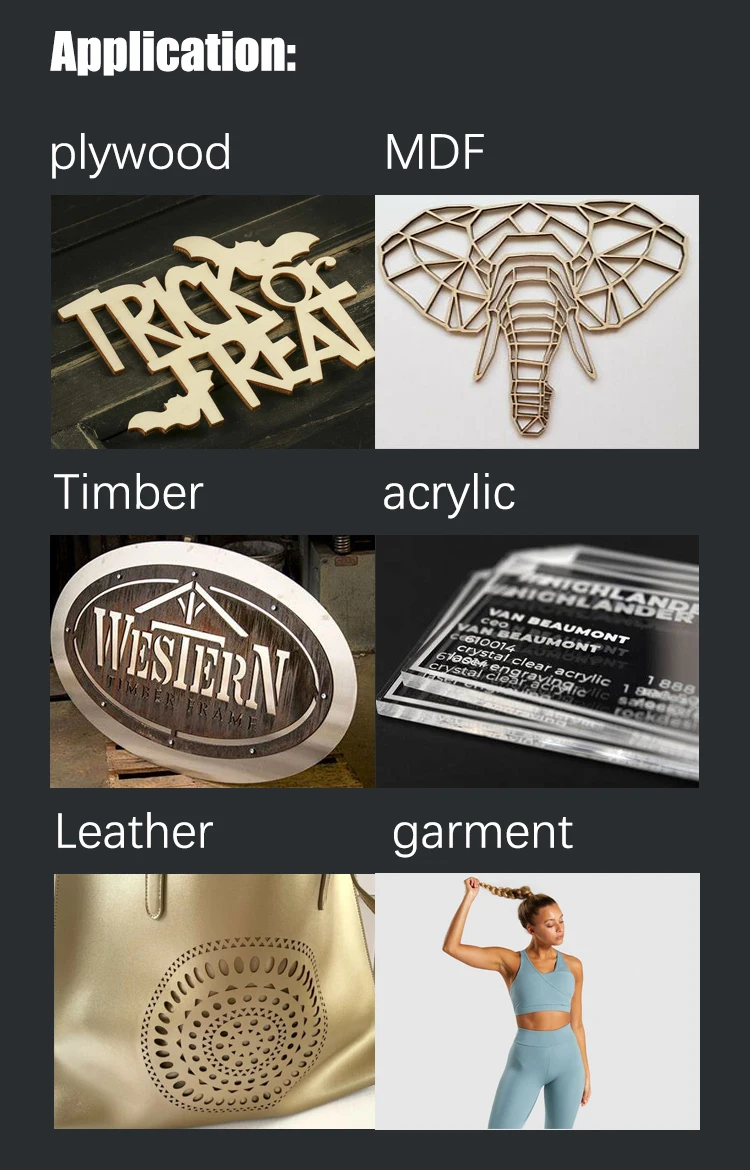

Application

Arts and crafts industry:

Paper cutting, wood, bamboo, leather, shell, ivory and other materials engraving and cutting.

Model industry:

Building models, aviation and maritime models, wooden toys engraving cutting etc;

Leather garment processing industry:

Leather, fabric carve or hollow out patterns .

Advertising industry:

Acrylic plate.color board and other advertising materials engraving and cutting.

Decoration industries:

Electrical and electronic industry materials’ engraving and cutting.

Packaging industry:

Rubber printing plate engraving cutting, bilayer plate, knife model cutter board etc.

 This machine can use Wifi control, no need the wire to connect the computer.  So one computer can control many machines . Applicable materials:wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials.Applicable industries:advertisement, arts and crafts, leather, toys, garments, model , building upholster, computerized embroidery and clipping, packaging and paper industry.
