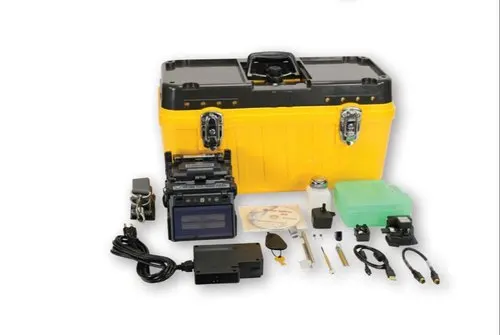

used splicing machine price optical fiber fusion splicer in good quality

Description:

The Fujikura 62S+ provides active core alignment splice loss performance while utilising a conventional wind protector and tube heater design. An alternative to the fully automated core-alignment model 70S+, the 62S+ includes an auto-start feature for both the splicing and tube heating process that minimises the steps necessary to process splices. With a shrink time of 23 seconds with standard splice sleeves, the 62S+ ensures a high level of productivity. Incorporating the proven ruggedised features pioneered by Fujikura, durability is greatly enhanced by a mirrorless optical system and "severe impact resistant" monitor. Battery capacity is 200 splices/shrinks. The transit case doubles as a built-in or mobile workstation and makes splicing easier than ever.

Features and Benefits

•


  5,000 splices electrode life





•


  23 second tube heating time with standard sleeves





•


  Fully ruggedised for shock, dust and moisture





•


  Li-ion battery with 200 splices/shrinks per charge





•


  5 mm cleave length for splice on connector or small package needs





•


  Sheath clamp or fibre holder operation • Internet software upgrades





•


  Multi-function transit case with integrated workstation





•


  Optional non-wireless model available









Specifications

Applicable fibres: Single / SMF(G.652/657), MMF(G.651), DSF(G.653), NZDSF(G.655)
Cladding dia. / Sheath dia.: 80-150μm / 100- 3000um
Cleave length: 5mm to 16mm with sheath clamp
Splice mode / heating mode: Total 100 splice modes / 30 heating modes
Typical splice loss:0.02dB (SM), 0.01dB(MM), 0.04dB(DS) and 0.04dB(NZDS) Measured by cut-back method relevant to ITU-T and IEC standards.
Return loss: >>60dB
Typical splice time: 6sec ULTRA FAST 7sec SM FAST, 10sec SM AUTO
Typical tube heating time: 23sec FP-03, coating dia.250μm 25sec FP-03, coating dia.900μm 15sec Slim60mm, Slim40mm coating dia.250um
Splice result storage: Last 15,000 splices
Viewing methods / magnification: 2 axis 2CMOS camera with 4.73" colour LCD. 320X magnification. 400X magnification after splicing.
Tension test: 1.96 to 2.25N
Applicable protection sleeve: 60mm, 40mm and Fujikura micro sleeves
No. of splice / heating per battery full charge: Typical 200 cycles with BTR-09
Electrode life:5000 splices
Wireless connectivity Wireless technical standard:®4.1*1 OS: Android 5.0 or above, iOS 8.0 or above (iPhone 6 above)
Size / weight: 146W x 163D x148H mm / 2.6kg (including battery)
Operating condition Altitude: 0 to 5,000m above sea level, Wind: 15m/sec Temperature: -10 to 50°C, Humidity: 0 to 95%RH, non-dew
Other features :PC software upgrade / data management
Resistance features Shock resistance: 76cm (30inch) 5 difference surface drop*2 Dust resistance: Exposure to dust (0.1 to 500μm dia. Alumina Silicate).*2 Rain resistance: H=10mm/hr for 10min*2
