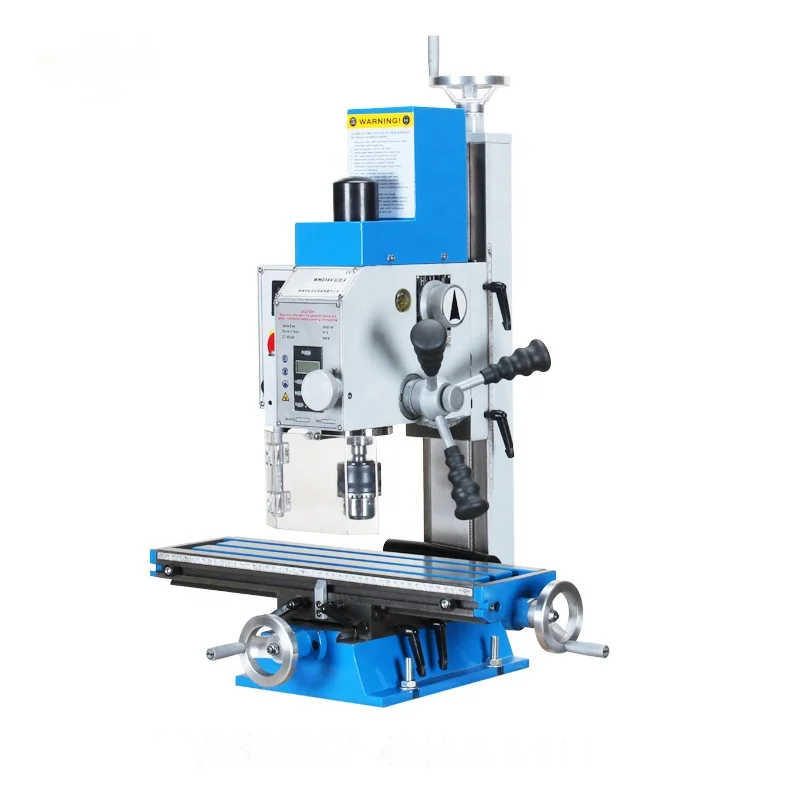

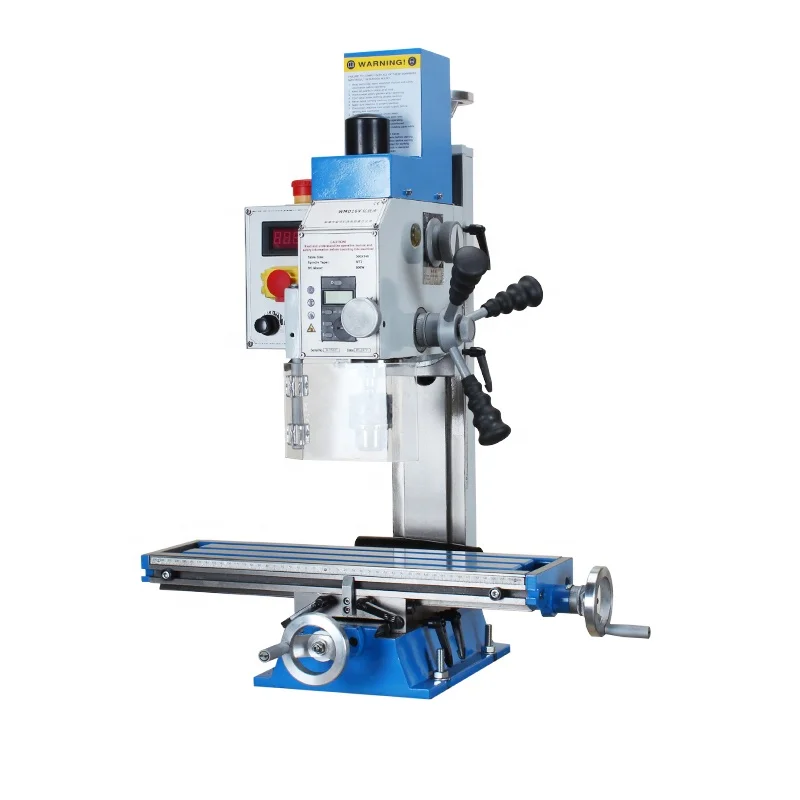

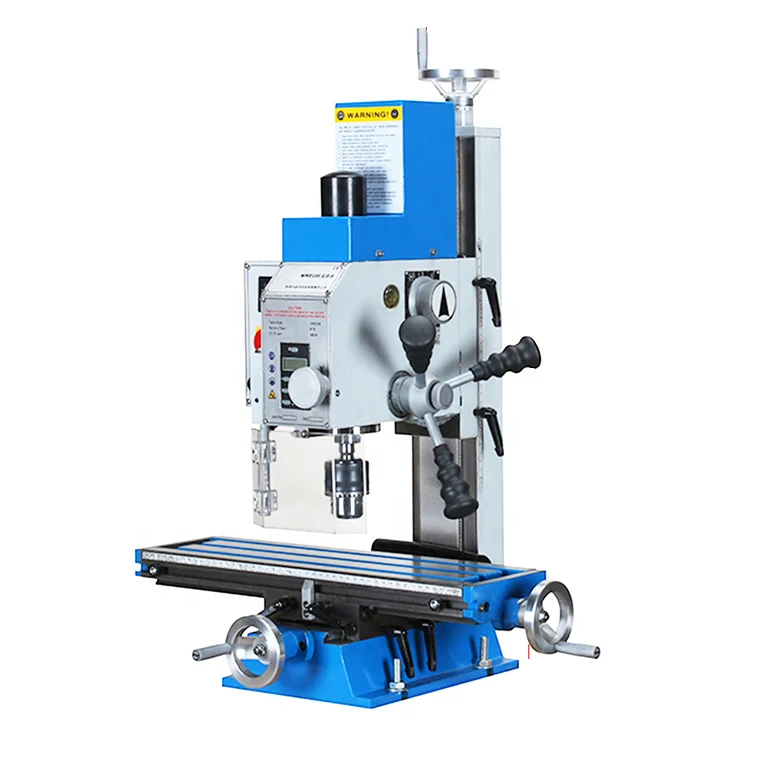

WMD16V precision variable speed mini bench drill press mini metal wood drilling milling machine
- Category: >>>
- Supplier: Chizhou Syntop CNC Industrial Co. Ltd.
Share on (10000005559020):
Product Overview
Description
Product Description
Features
Milling, drilling, tapping, boring and reaming.
Variable speed.

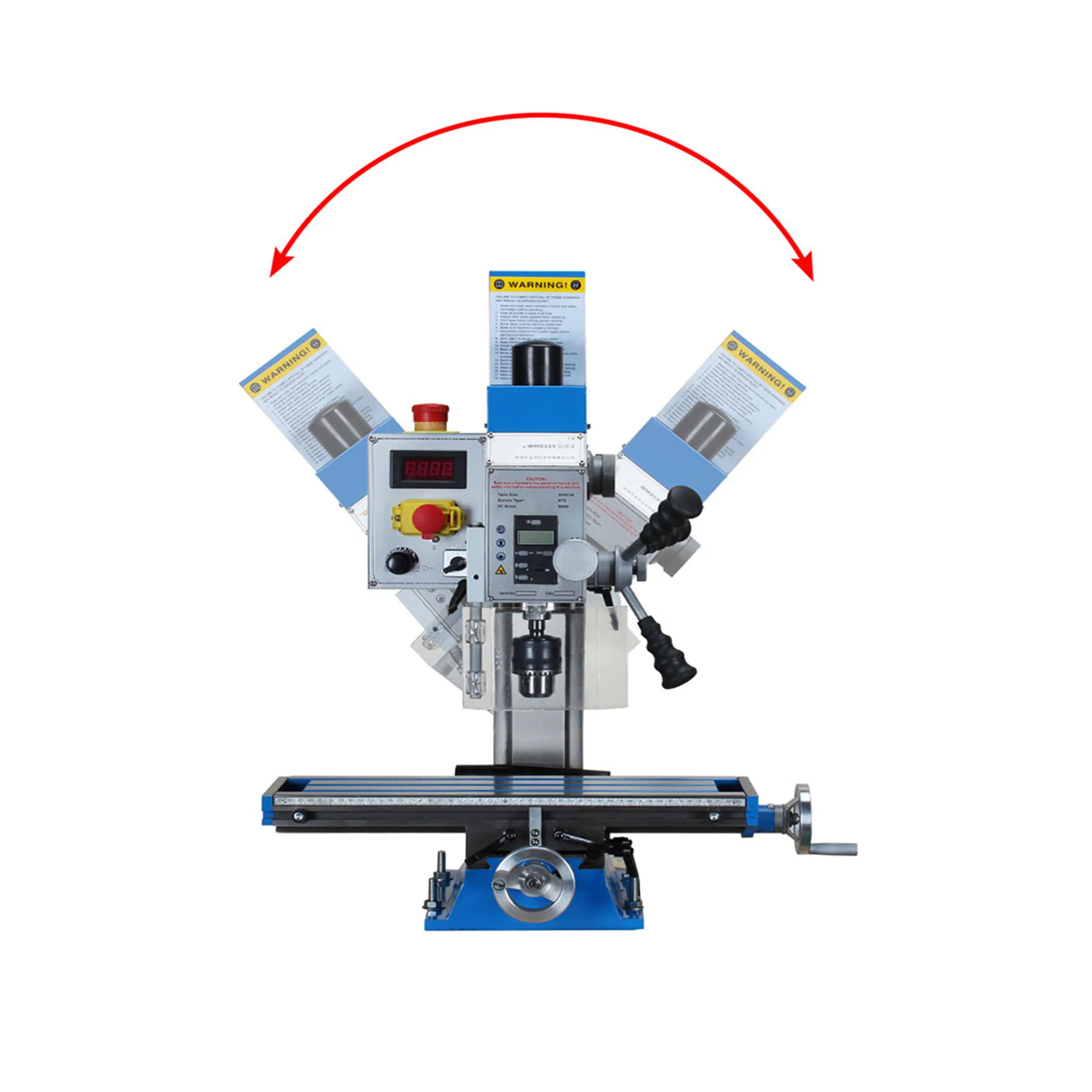

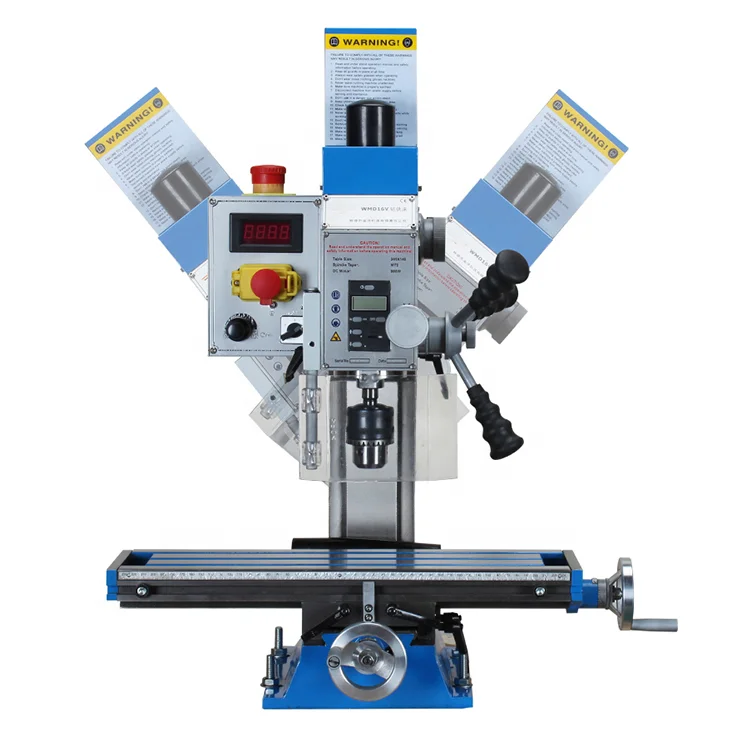

Head swivefs ±45º.
Easily opeating.
Manual tapping.
Strong rigidity, powerful cutting and precisely positioning.
Variable speed.
Head swivefs ±45º.
Easily opeating.
Manual tapping.
Strong rigidity, powerful cutting and precisely positioning.
Specifications for WMD16V | ||
Drilling Capacity | 20mm | |
Face Milling Capacity | 52mm | |
End Milling Capacity | 16mm | |
Spindle Taper | MT2 | |
Spindle Stroke | 50mm | |
Spindle Speed | 50-2250r.p.m | |
Head Rotation | ±45° | |

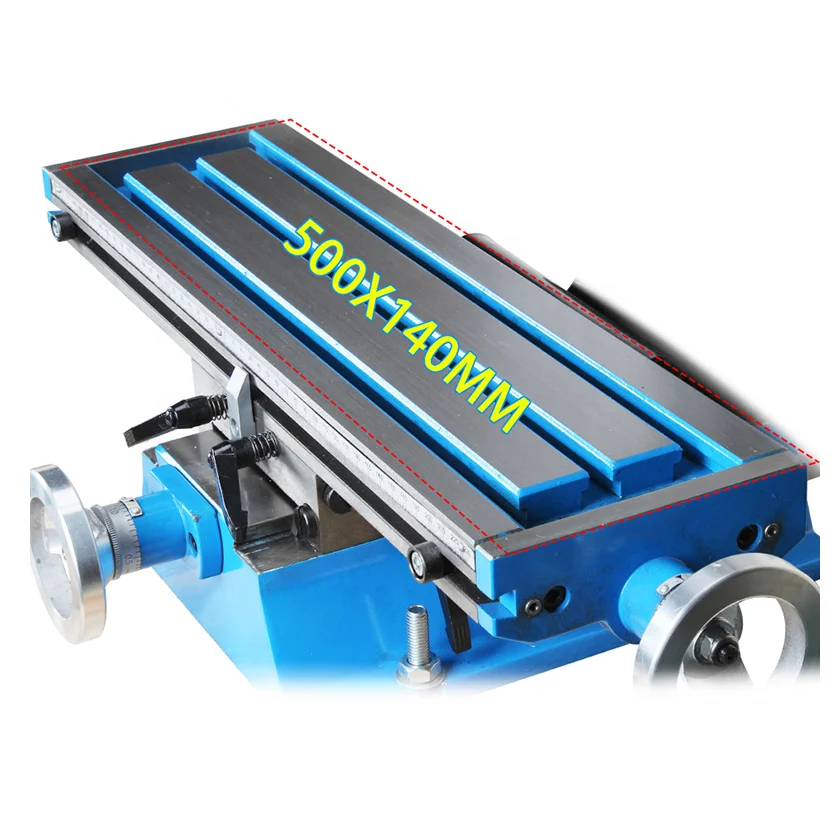

Table size | 500*140mm | |
X-axis Travel | 230mm | |
Y-axis Travel | 145mm | |
Z-axis Travel | 220mm | |
T-slot Size | 10mm | |
Motor Power | 600W | |

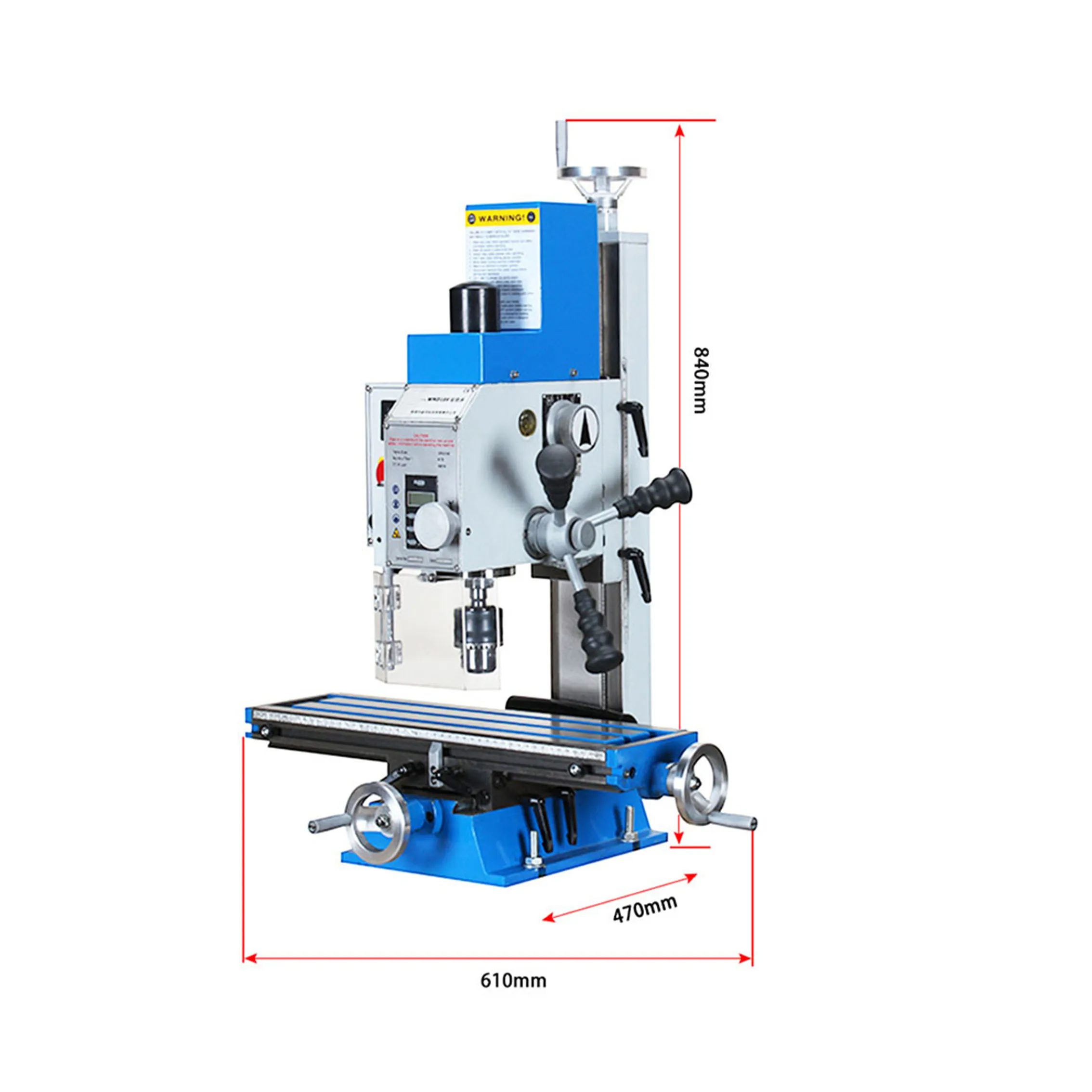

Packing Size | 520*505*840mm | |
N.W./ G.W. | 65*85kgs | |
Standard accessiories:
● Depth ruler
● Arbor MT2/B16. MT10
● Drawbar MT2/M10
● Operating tools
● Arbor MT2/B16. MT10
● Drawbar MT2/M10
● Operating tools
Optional accessories:
● Stand & chip tray
● Keyless drill chuck 3-16mm
● ER25/6pcs collet chuck (4-16mm)
● End mill 7pcs (4-16mm)
● 58pcs of clamping kits /M10 * 11.7mm
● Drill chuck 3-16mm
● X-axis power feed
● Digital readout
● ER25/6pcs collet chuck (4-16mm)
● End mill 7pcs (4-16mm)
● 58pcs of clamping kits /M10 * 11.7mm
● Drill chuck 3-16mm
● X-axis power feed
● Digital readout
