3D height deviation measurement 5D Master
- Category: Optical Instruments >>>
- Supplier: Machine&Vision Co. Ltd
Share on (10000005568805):
Product Overview
Description
Products Description

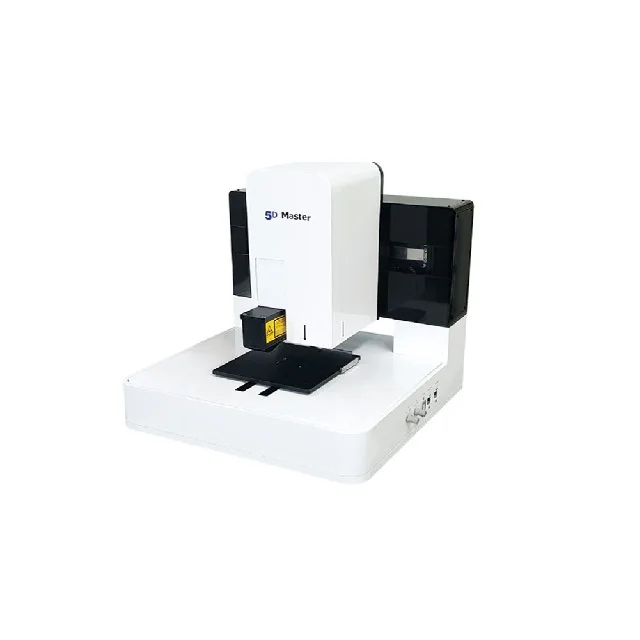

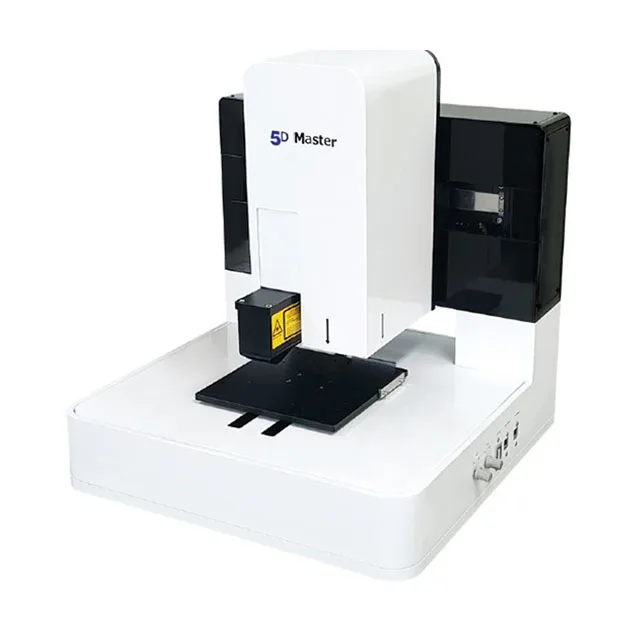

5D Master
* Tabletop MI (Measurement & Inspection) system
• 2D/3D measurement and inspection.
• Length, area, height, flatness.
• Automatic inspection is implemented by setting the inspection recipe.
• One equipment can be used as various measurement equipment.
(Shape measuring instrument + Roughness measuring instrument + 3D measuring instrument + Projector + Measurement microscope, etc.)
• 2D/3D measurement and inspection.
• Length, area, height, flatness.
• Automatic inspection is implemented by setting the inspection recipe.
• One equipment can be used as various measurement equipment.
(Shape measuring instrument + Roughness measuring instrument + 3D measuring instrument + Projector + Measurement microscope, etc.)

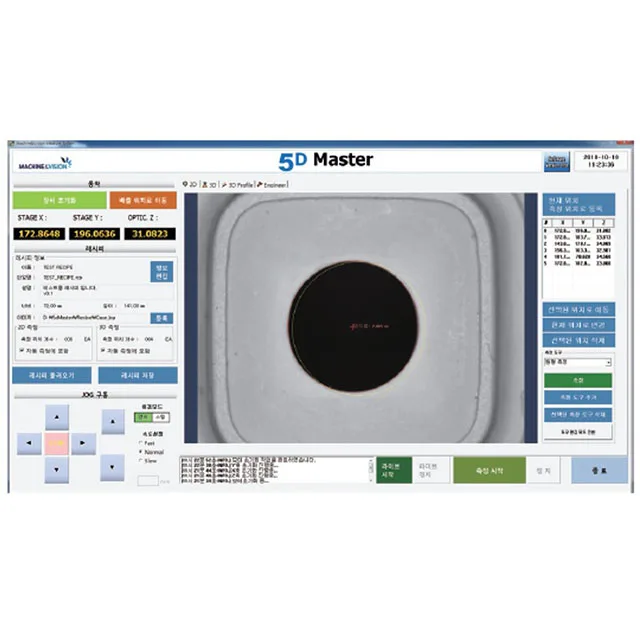

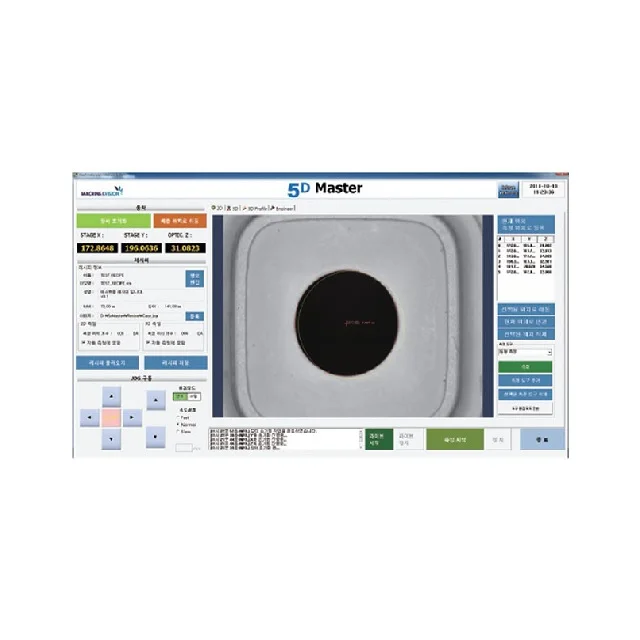

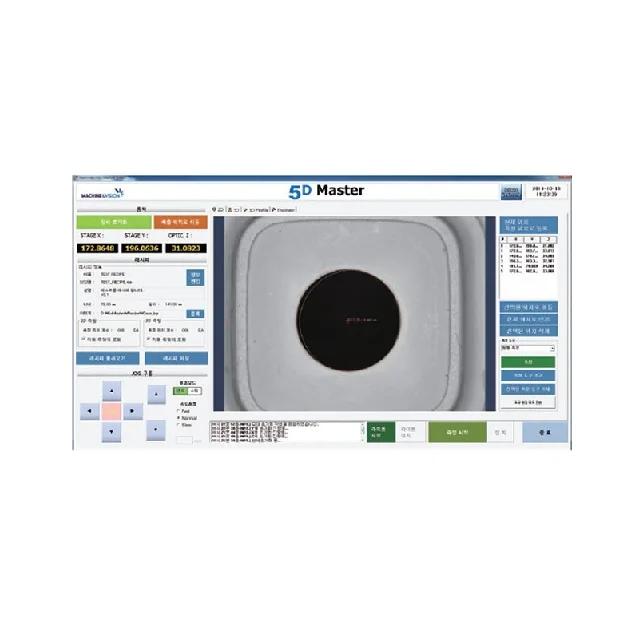

* Contactless 3D optical sensors and 2D cameras are installed simultaneously to enable 2D magnification observation, 2D length measurement, 3D height deviation measurement, and 3D Profile View.
* User can select 3D sensors and 2D optical heads at the performance and price range user want.
* The XYZ three-axis servo motor is built in to automatically measure objects of 200mm wide x long.
* The setup is completed only by power connection and communication connection with the user's PC.
* User can select 3D sensors and 2D optical heads at the performance and price range user want.
* The XYZ three-axis servo motor is built in to automatically measure objects of 200mm wide x long.
* The setup is completed only by power connection and communication connection with the user's PC.
