Механический манометр уровня топлива с наружной резьбой, уровень жидкости с плавающей системой в алюминиевой нержавеющей стали, латуни для дизельного топлива и
- Category: Exterior Accessories >>>
- Supplier: Tappi Stampati S.r.l.
Share on (10000005577807):
Product Overview
Description
Product Description

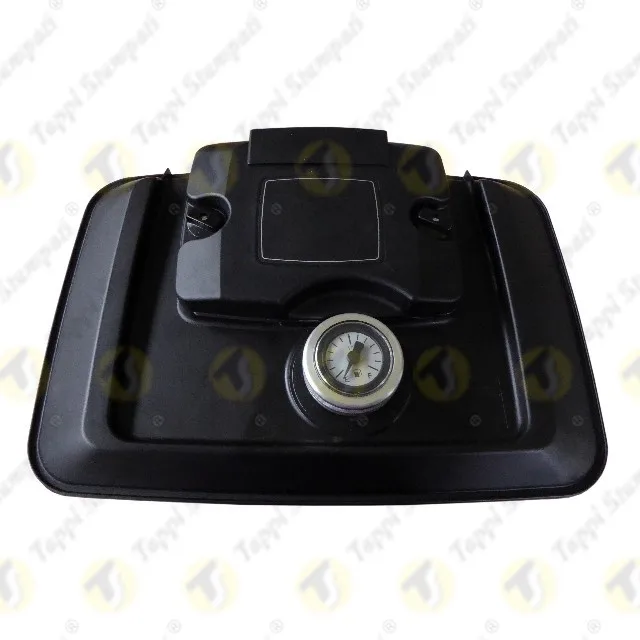

PKF 2″.1/4 female threaded mechanical level gauge cap with 5 threads per inch, in aluminium, plastic, steel and brass, with different types of sealing gasket in relation to the fluid in the tank.
It’s available hermetic or ventilated and in different lengths (minimum 90 mm, maximum recommended 540 mm: for longer lengths we suggest you to directly contact the Technical Office).
The construction characteristics of our liquid level indicators guarantee the non-deformability of the body in which float moves.
We can supply versions with customized dials.
This mechanical liquid level gauge can be used with different inclinations up to the maximum recommended angle to the vertical of 20°.
We manufacture types with all metal components in stainless steel for nautical applications and corrosive environments.

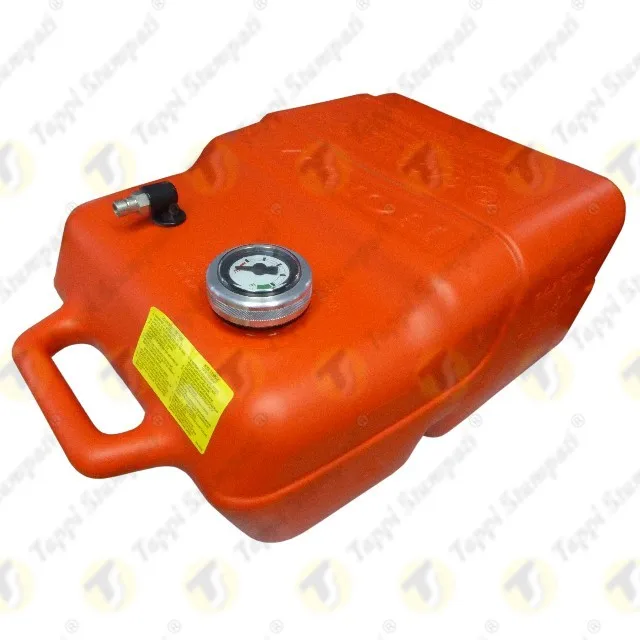

2″.1/4 threaded visual level indicator cap is used on tanks of several application in different fields, in particular on
generating sets, excavators, nautical tanks and snowmobiles.
We make different resistance and durability tests on our mechanical gauges (i.e. termal shock, pressure test, loss of retention, vent control, aggressive fluids or salt spray fogs compatibility and so on); moreover the careful selection of raw materials for each component and the adopting of innovative and rigorous production processes, allow us to always guarantee quality and reliability over time of our product.
The price range is indicative and depends on lengths, materials and quantities. For more information on variants and accessories, please contact us.
It’s available hermetic or ventilated and in different lengths (minimum 90 mm, maximum recommended 540 mm: for longer lengths we suggest you to directly contact the Technical Office).
The construction characteristics of our liquid level indicators guarantee the non-deformability of the body in which float moves.
We can supply versions with customized dials.
This mechanical liquid level gauge can be used with different inclinations up to the maximum recommended angle to the vertical of 20°.
We manufacture types with all metal components in stainless steel for nautical applications and corrosive environments.
2″.1/4 threaded visual level indicator cap is used on tanks of several application in different fields, in particular on
generating sets, excavators, nautical tanks and snowmobiles.
Since it doesn’t require a power source for functioning, this product is also ideal for tanks used in remote areas or where electricity is not available.
We make different resistance and durability tests on our mechanical gauges (i.e. termal shock, pressure test, loss of retention, vent control, aggressive fluids or salt spray fogs compatibility and so on); moreover the careful selection of raw materials for each component and the adopting of innovative and rigorous production processes, allow us to always guarantee quality and reliability over time of our product.
The price range is indicative and depends on lengths, materials and quantities. For more information on variants and accessories, please contact us.
Specification
item | value |
Material | Aluminum; Steel; Galvanised steel; Stainless Steel; Brass |
Size | Cap covering diam. 70 mm |
Place of Origin | Italy |
Brand Name | Tappi Stampati |
Model Number | 926.180.PI6 |
Coupling | Female threaded 2 inches 1/4 with 5 threads per inch |
Gasket | Different types depending on the liquid in the tank |
Length range | 90 / 540 mm (ask for others) |
Dial | Different dials available (2-4 colors) |
Filler neck | Male threaded 2 inches 1/4 with 5 threads per inch |
Applications | Generating sets, excavators, nautical tanks and snowmobiles |
Temperature range | -20°C / 60°C |
Use inclination | 0°- 20° |
Industry standards | RoHS complicant |
Packing & Delivery
Carton boxes, europallets.

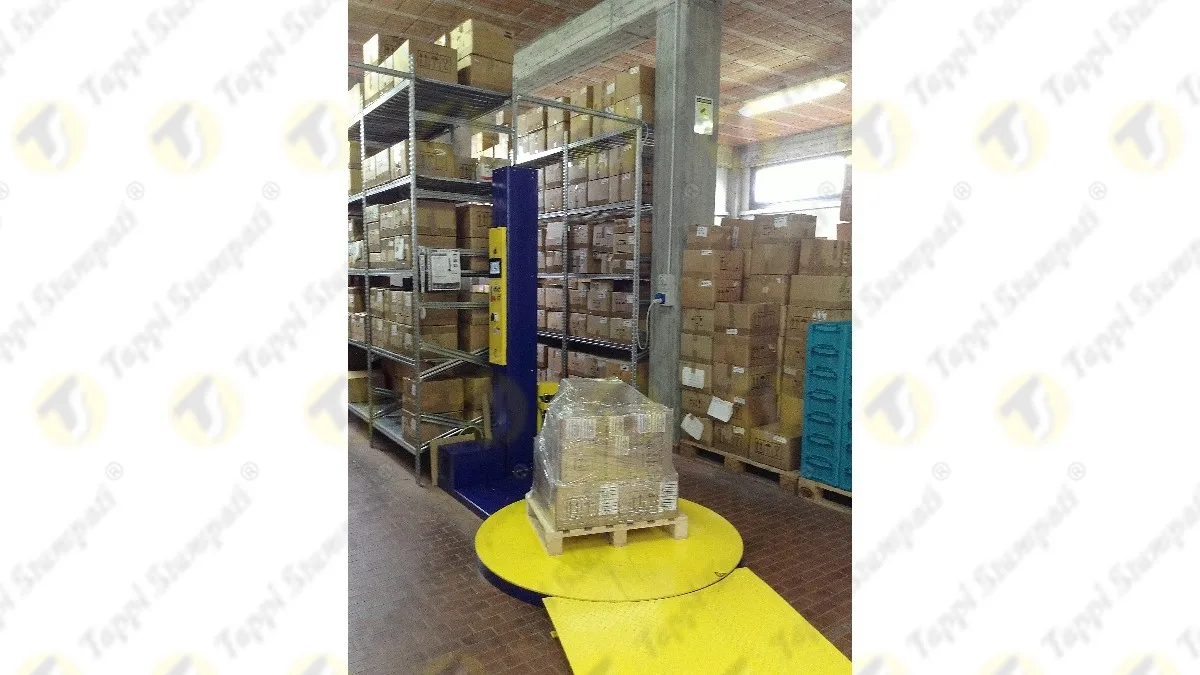

We use only high quality and resistant packaging, specifically indicated for transports on long distances.
We use only high quality and resistant packaging, specifically indicated for transports on long distances.
On request the level gauges can be packed individually.
Company Profile
Tappi Stampati is a historical Italian company that, since 1972, has been designing and manufacturing fuel tank caps, mechanical level gauges, fuel filling systems and flush-mount plastic compartments, for fuel, lubricant and auxiliary tanks.

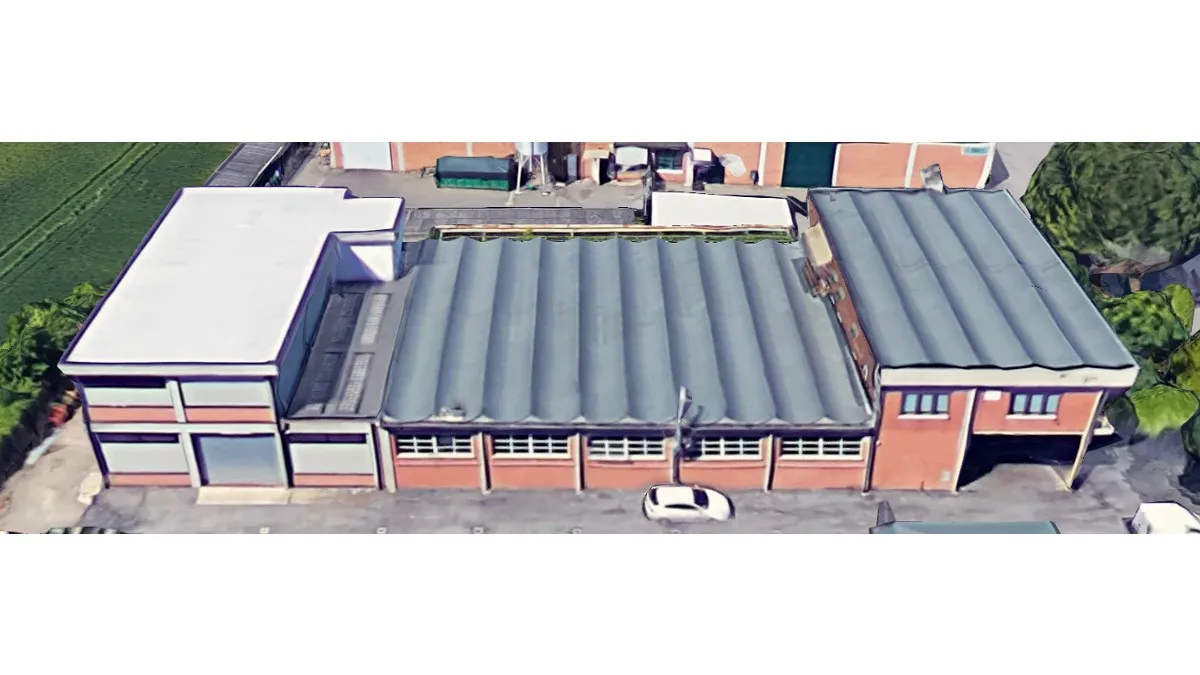

We manufacture all our products into our factory based in Bologna and the 40% of our revenue comes from export within different sectors, like generating sets, motor pumps, agriculture, manufacturing, scooters and motorcycles, nautical and hydraulic industry, etc..
The experience acquired during almost 50 years of activity contributed to the success of Tappi Stampati that, still now, is considered one of the main points of reference in its field, both at national and international level.
Even today, all items are appreciated and used by the most prestigious manufacturers in the different market, to the extent that the Company can boast customers in all continents.
Our main strengths are:
- the highest quality and reliability of all our products, that can be used without any problem also in hostile environment, with low or high temperatures, dust, etc.;
- the support to all our Customers in looking for the best solutions for their specific needs, putting our technical knowledge at disposal to understand and analyze their requests, for their full satisfaction and in order to establish with them a continuous and long lasting relationship;
- the particular importance given, in all products, included the ones destined to industrial fields, not only to functionality and safety, but to aesthetic aspect too, thanks to the experience in motorcycles sector;
- the quality and guarantee of all items, ensured by the use of top-grade raw materials, certified according to the current European and American laws, as well as by the great care and professionalism put into designing and productive process, realized entirely in Italy with state-of-the-art tools and machines operated by highly specialized staff;
- the design of our products, made to simplify and make faster their installation in most application. At request we can also supply the whole assembly kit, that is cap, screws, gaskets, filters, safety chain, ecc.; we also supply fillers or fitting inserts to be welded or screwed on tanks, for the correct assembling of all our caps.
Some components' manufacturers, given the increasing interest of the market, have tried to copy several products of our, thus attacking the market with similar solutions but of much lower quality and not consistent with current European and American safety regulations, that are today the highest reference standards and the best guarantee for users. Our products, on the contrary, is not only competitive thanks to the high organizational capacity and the optimized production processes, but it complies with all applicable safety regulations and it is designed and manufactured respecting the rights of people we work with as well as safety at the work and environmental regulations.
We manufacture all our products into our factory based in Bologna and the 40% of our revenue comes from export within different sectors, like generating sets, motor pumps, agriculture, manufacturing, scooters and motorcycles, nautical and hydraulic industry, etc..
The experience acquired during almost 50 years of activity contributed to the success of Tappi Stampati that, still now, is considered one of the main points of reference in its field, both at national and international level.
Even today, all items are appreciated and used by the most prestigious manufacturers in the different market, to the extent that the Company can boast customers in all continents.
Our main strengths are:
- the highest quality and reliability of all our products, that can be used without any problem also in hostile environment, with low or high temperatures, dust, etc.;
- the support to all our Customers in looking for the best solutions for their specific needs, putting our technical knowledge at disposal to understand and analyze their requests, for their full satisfaction and in order to establish with them a continuous and long lasting relationship;
- the particular importance given, in all products, included the ones destined to industrial fields, not only to functionality and safety, but to aesthetic aspect too, thanks to the experience in motorcycles sector;
- the quality and guarantee of all items, ensured by the use of top-grade raw materials, certified according to the current European and American laws, as well as by the great care and professionalism put into designing and productive process, realized entirely in Italy with state-of-the-art tools and machines operated by highly specialized staff;
- the design of our products, made to simplify and make faster their installation in most application. At request we can also supply the whole assembly kit, that is cap, screws, gaskets, filters, safety chain, ecc.; we also supply fillers or fitting inserts to be welded or screwed on tanks, for the correct assembling of all our caps.
Some components' manufacturers, given the increasing interest of the market, have tried to copy several products of our, thus attacking the market with similar solutions but of much lower quality and not consistent with current European and American safety regulations, that are today the highest reference standards and the best guarantee for users. Our products, on the contrary, is not only competitive thanks to the high organizational capacity and the optimized production processes, but it complies with all applicable safety regulations and it is designed and manufactured respecting the rights of people we work with as well as safety at the work and environmental regulations.
FAQ
1. What detailed information do you need before supply?
We need to know the following information: type of needed level gauge (with cap or fixed to be screwed on tank), application, measurement range (or tank depth), type of liquid in the tank, quantity.
We need to know the following information: type of needed level gauge (with cap or fixed to be screwed on tank), application, measurement range (or tank depth), type of liquid in the tank, quantity.
2. Are you trading company or manufacturer?
3. How can you guarantee quality?
It is possible to provide a pre-production sample to be tested before order: please contact us for specifics.
We always run a final inspection before shipment.
We are Italian manufacturer specialized in high quality fuel tank caps, mechanical level gauges and other components for fuel tanks of different secors. Since 1972.
3. How can you guarantee quality?
It is possible to provide a pre-production sample to be tested before order: please contact us for specifics.
We always run a final inspection before shipment.
4.What can I buy from you?
Fuel tank caps, mechanical level gauge caps, caps with key, filler necks, protective compartments for emergency stop push button.
5. Why should I buy from you and not from other suppliers?
We have almost 50 years experience of design and manufacture of fuel tank caps, mechanical level gauge caps, flush-mount plastic niches and fuel filling systems. All our products are exclusively made in Italy. We also have a wide range of spare tank caps.
6. How long is your lead time?
The lead time for the minimum order quantity of 36 pieces is generally 6 days from order confirmation, but it also depends on the ordered quantity: please contact us for specifics
7. How can I pay?
We accept T/T bank and Paypal.
Fuel tank caps, mechanical level gauge caps, caps with key, filler necks, protective compartments for emergency stop push button.
5. Why should I buy from you and not from other suppliers?
We have almost 50 years experience of design and manufacture of fuel tank caps, mechanical level gauge caps, flush-mount plastic niches and fuel filling systems. All our products are exclusively made in Italy. We also have a wide range of spare tank caps.
6. How long is your lead time?
The lead time for the minimum order quantity of 36 pieces is generally 6 days from order confirmation, but it also depends on the ordered quantity: please contact us for specifics
7. How can I pay?
We accept T/T bank and Paypal.
8. How can I have the best offer?
Prices depend on lengths and materials. The more quantity you order, the better discount we can offer.
For more information on variants and accessories, please contact us.
