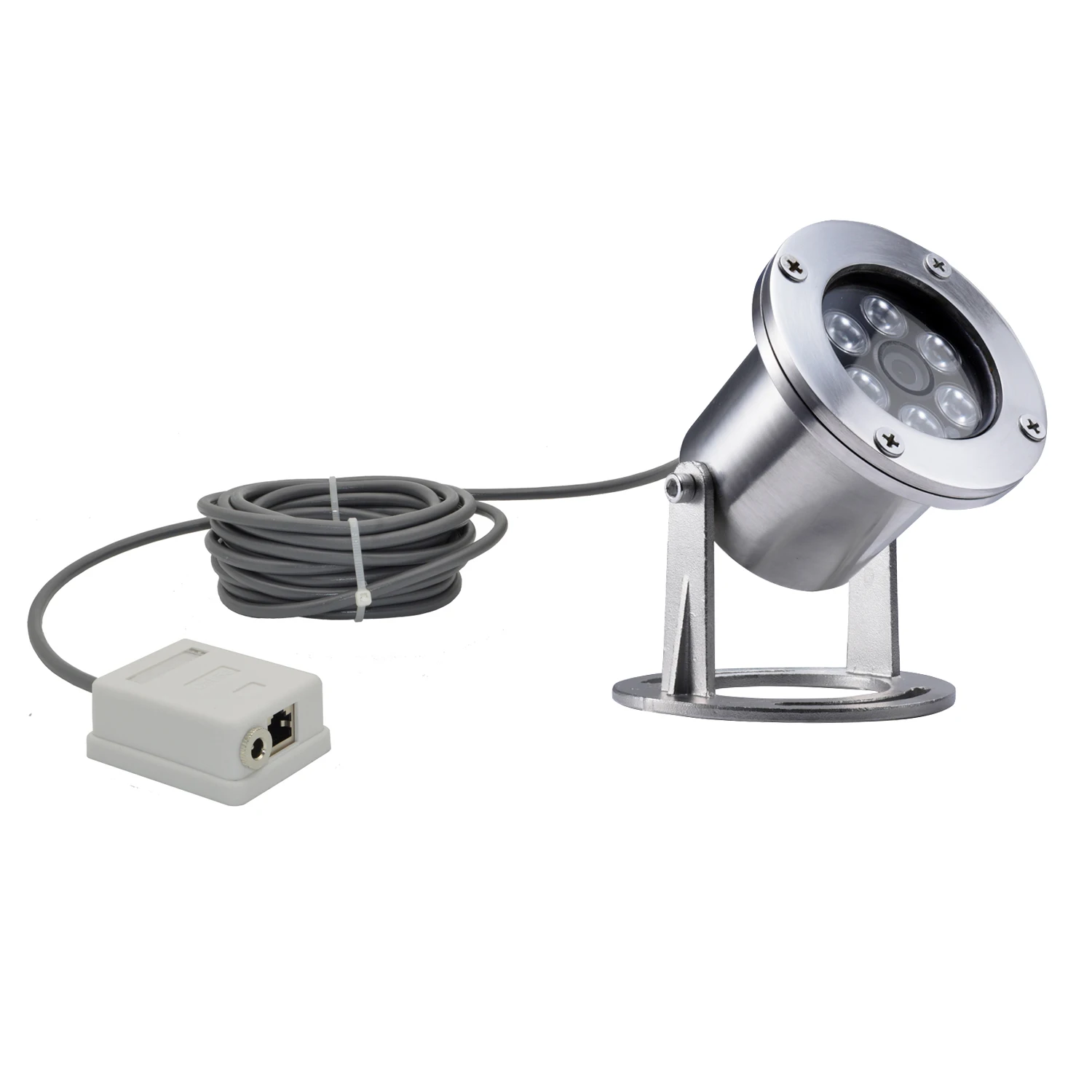

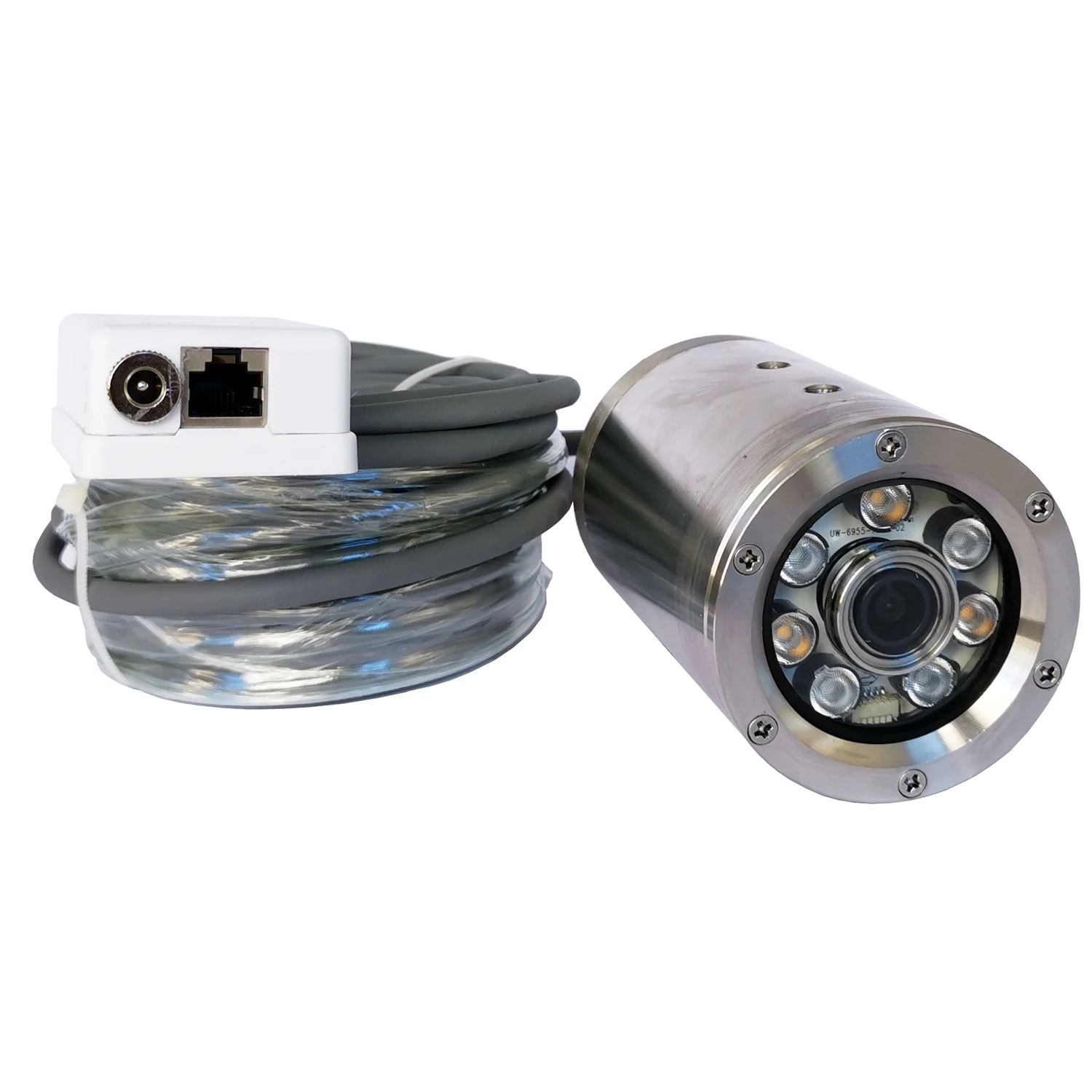

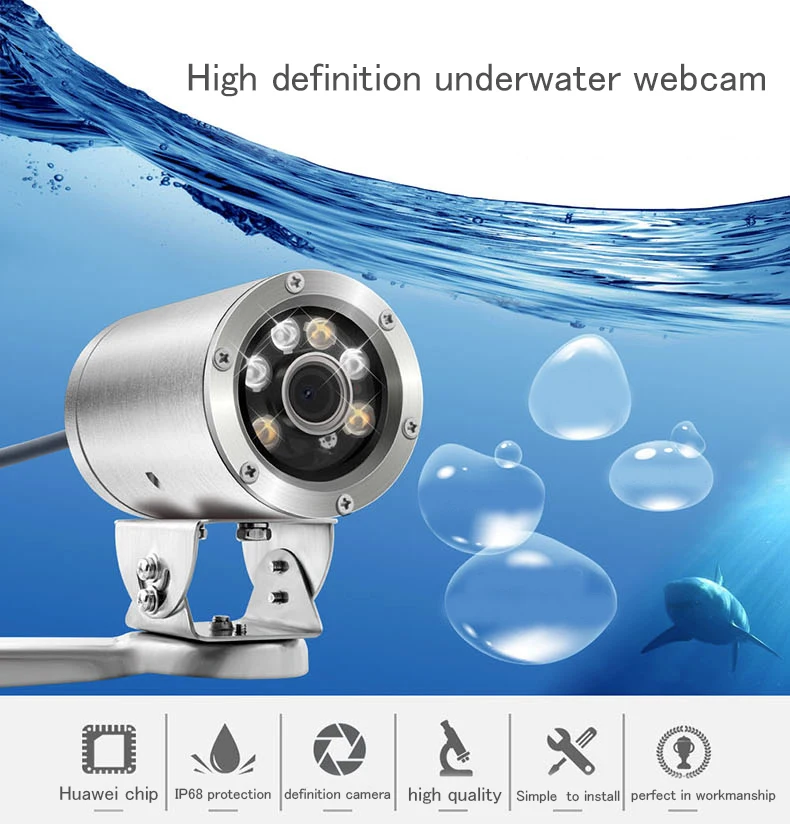

BARLUS 316L Stainless Steel 1944P 5MP Underwater PoE IP Camera WAN/LAN Remote Adjustment 2.8 12mm Electric Zoom Lens

Model

UW-S5ZP-C

Lens

2.8mm (H.FOV:100° )lens

Resolution

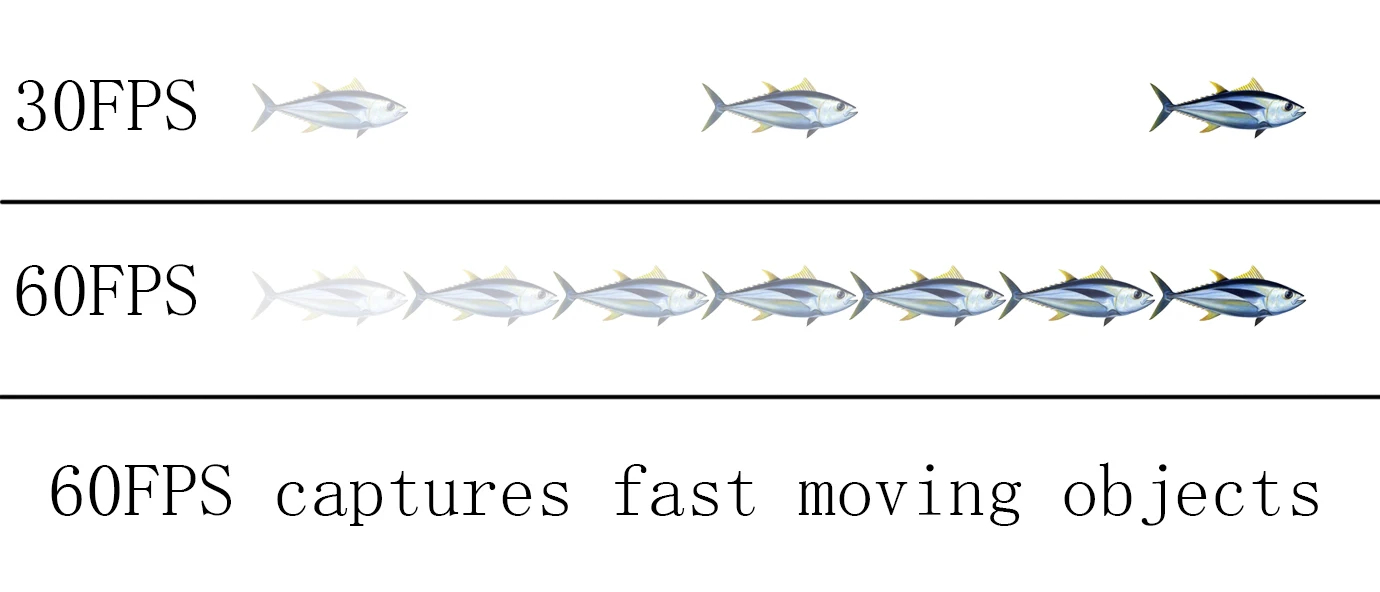

2 MP 1920×1080P 60FPS

1 MP 1280×720P  60FPS

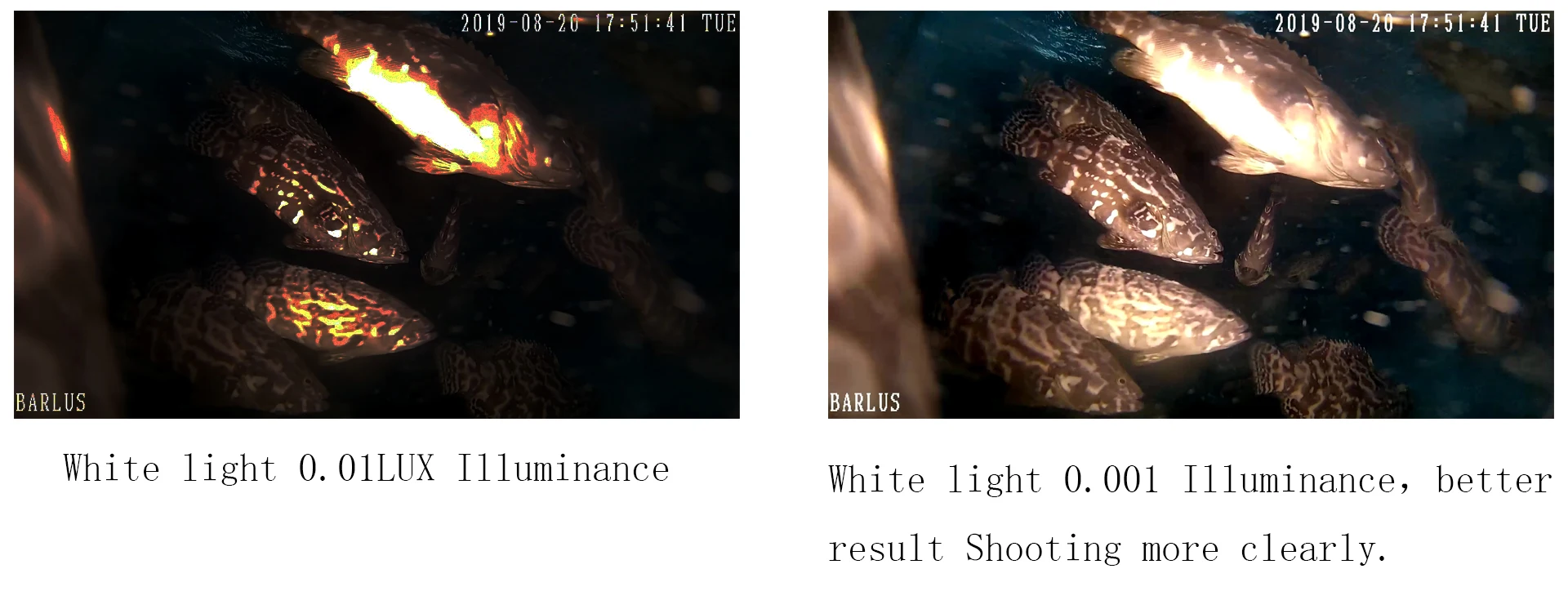

1/2.8" SONY 291 CMOS sensor ,color 0.001Lux F1.2,black/white 0.0001Lux F1.2

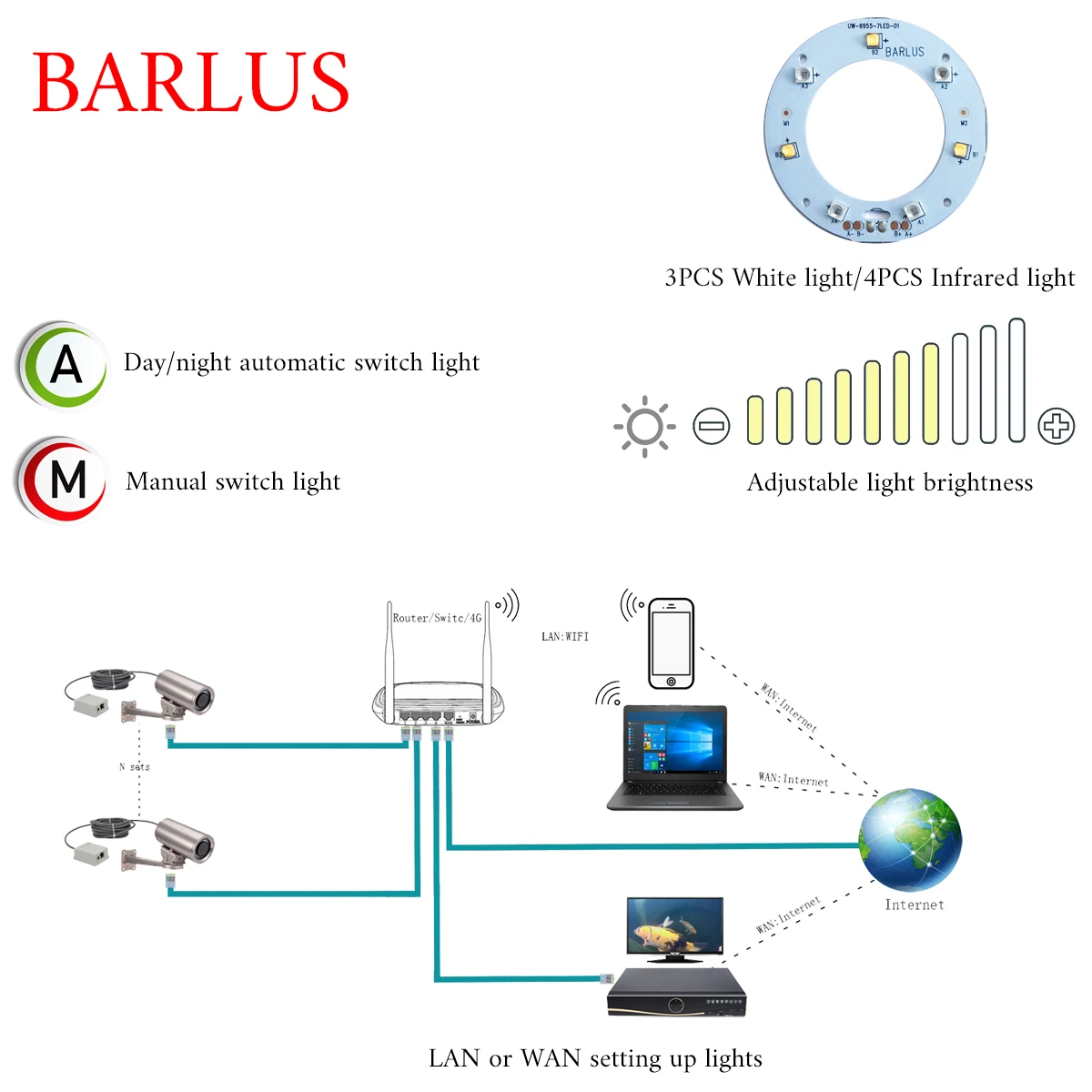

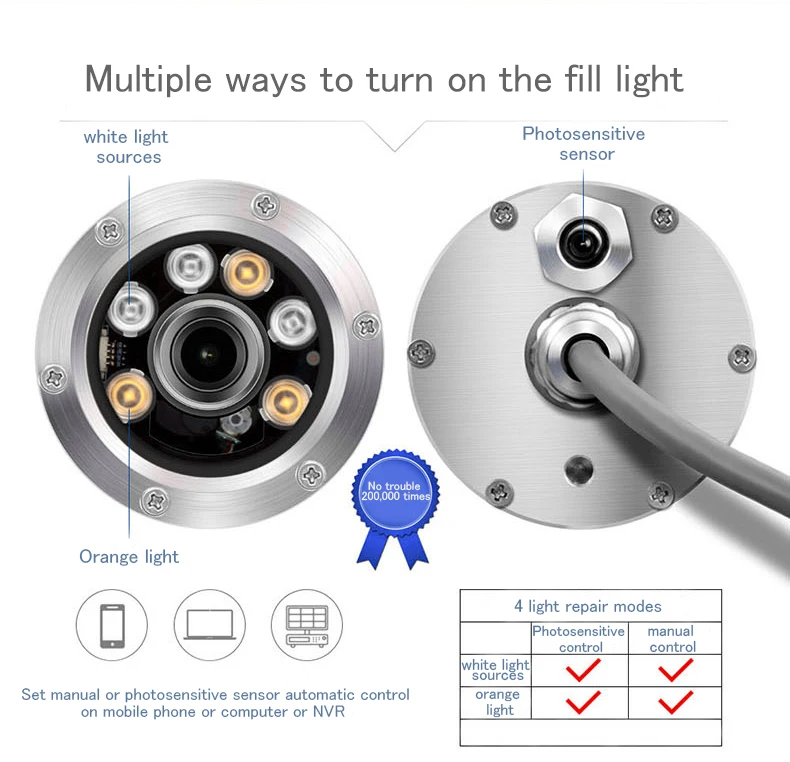

Fill light (mobile / computer

 / NVR settings)

Light  sensor contorlled  3 white light ,10 level brightness settings

Manual contorlled 3 white light , 10 level brightness settings

Light  sensor contorlled 4 infrared light ,10 level brightness  settings

Manual contorlled 4 infrared light ,10 level  brightness settings

Image color

Two modes: 1: white light - full color; 2: infrared light - automatic color to black;

supporting device

Support iOS, Android, computer, NVR.Compatible with hikvision, dahua, proprietary protocol.(Only support windows-IE browser for camera internal parameter setting)

supporting agreement

RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/ONVIF;SDK Secondary development

Material

316L stainless steel, anti-corrosion

Waterproof level

IP68(permanent Installed under water)

Water pressure resistance

Maximum  500Kpa   (Waterpressure resisitance  50M)

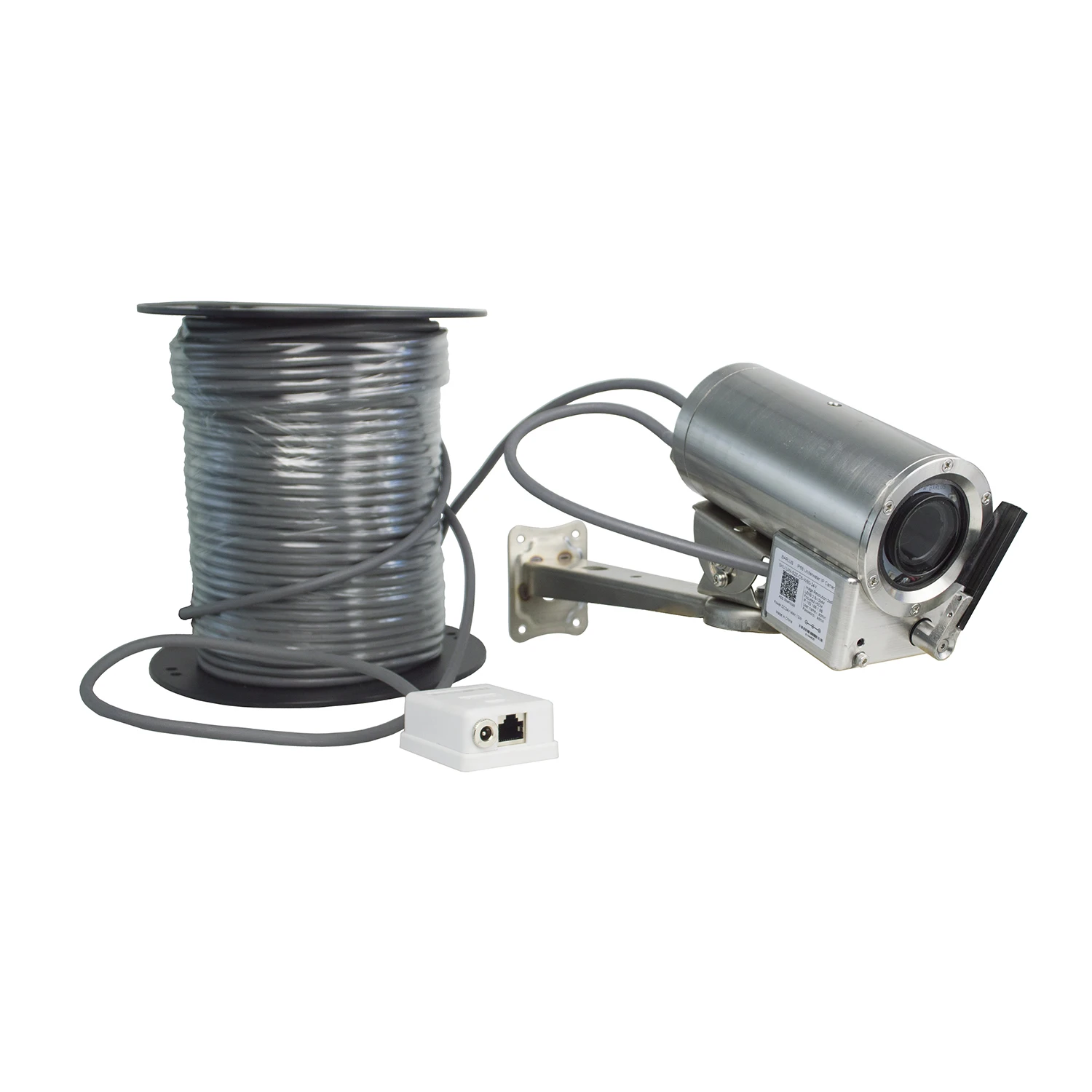

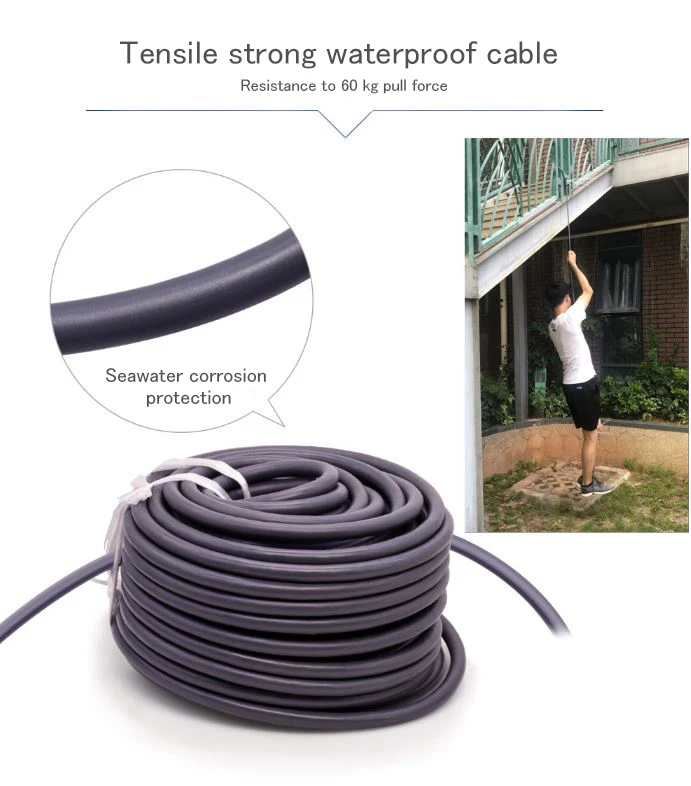

Camera wire

The default length is 10 meters (the longest is no more than 80 meters),

PU material,Diameter 6.7MM.Resistance to 60KG pull,Anti-aging,Anti-friction,Resistance to seawater corrosion,Special underwater wire.

Use environment

Sea water / fresh water /Underwater,land,Car,Shipborne.

Working humidity

0%-100%

working temperature

-20°~55°

Power Supply

Line length ≤ 10 meters;3 options:options 1:DC12V/POE 48V-54V IEEE.802.af

power input and output pin: 1, 2 (+) / 3, 6 (-);

                                                             options 2:DC12-DC28V/AC12-AC28V;

                                                             options 3:POE 48V-54V;

Line length 11-80 meters;2 options:options 1:DC15-DC28V/AC15-AC28V;

                                                                options 2:POE 48V-54V;

Camera size

70*70*100mm

Weight

2KG

Package

1* camera

1* camera bracket

1*U disk (instruction and software)
