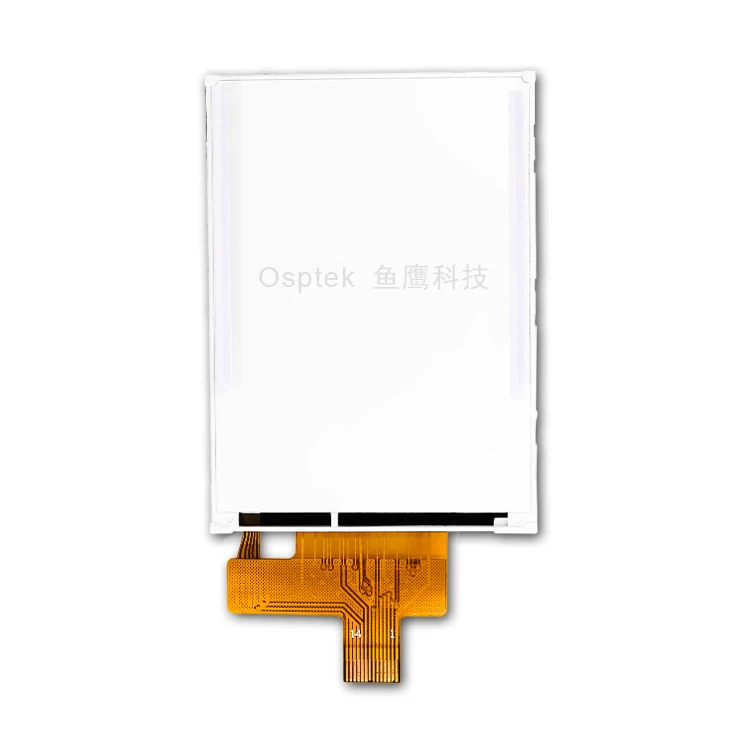

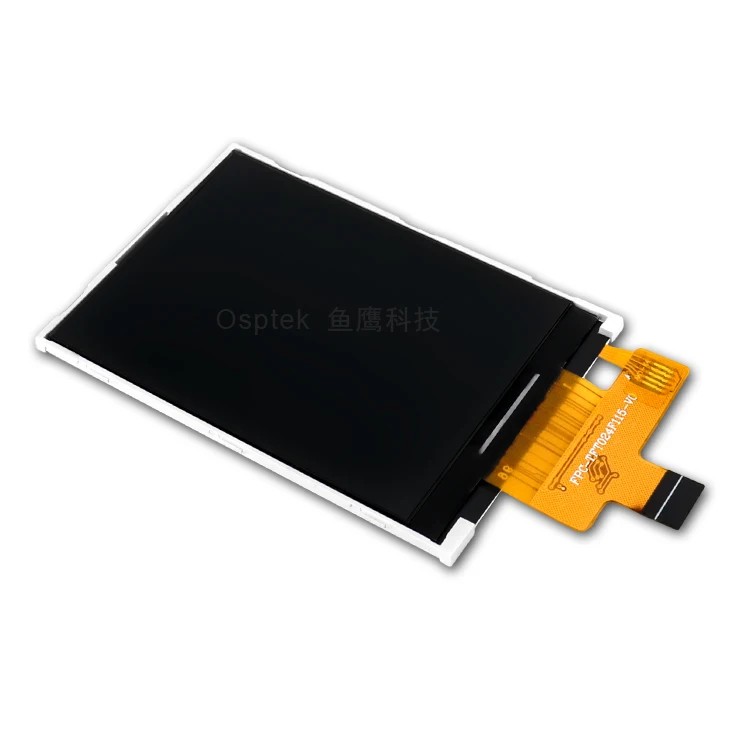

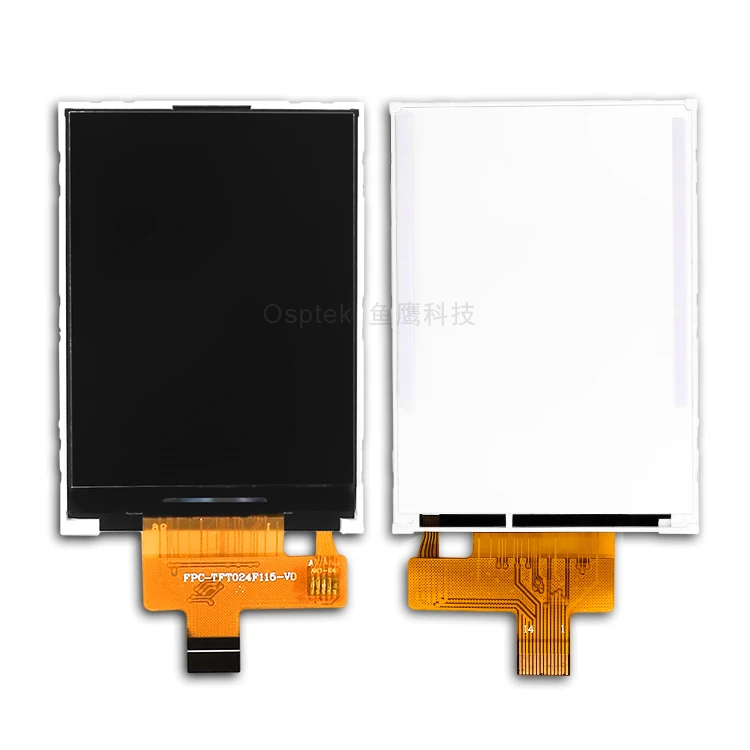

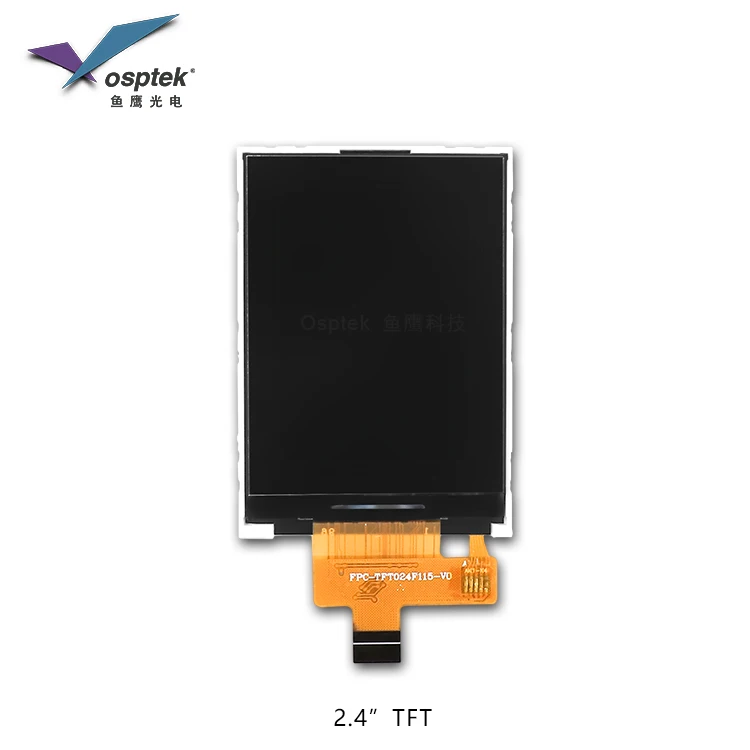

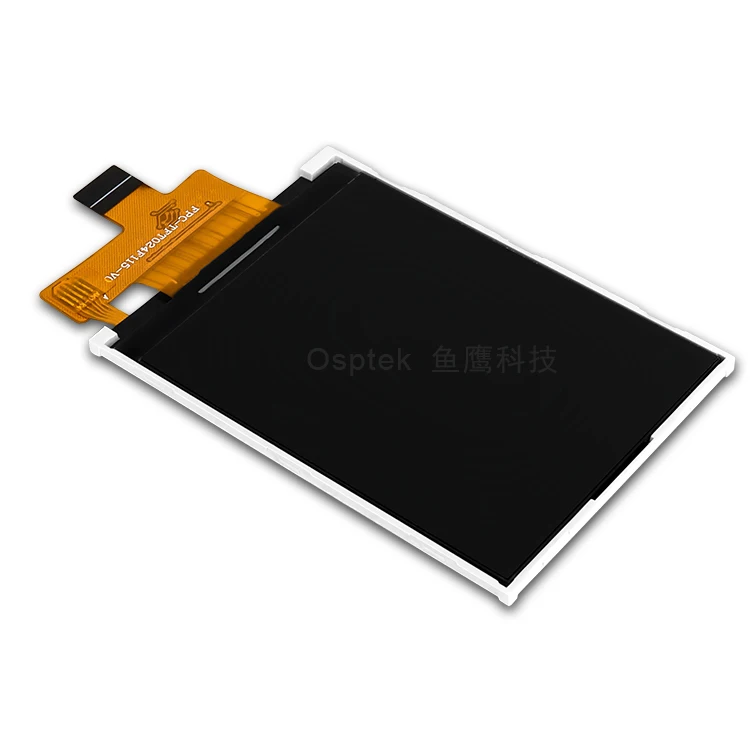

14 PIN 2.4 inch TFT LCD display 240xRGBx320 dot full color TN panel SPI 4W interface screen Module
- Category: >>>
- Supplier: Shenzhen Osprey Optoelectronics Technology Co. Ltd.
Share on (10000005610673):
Product Overview
Description
Product Description

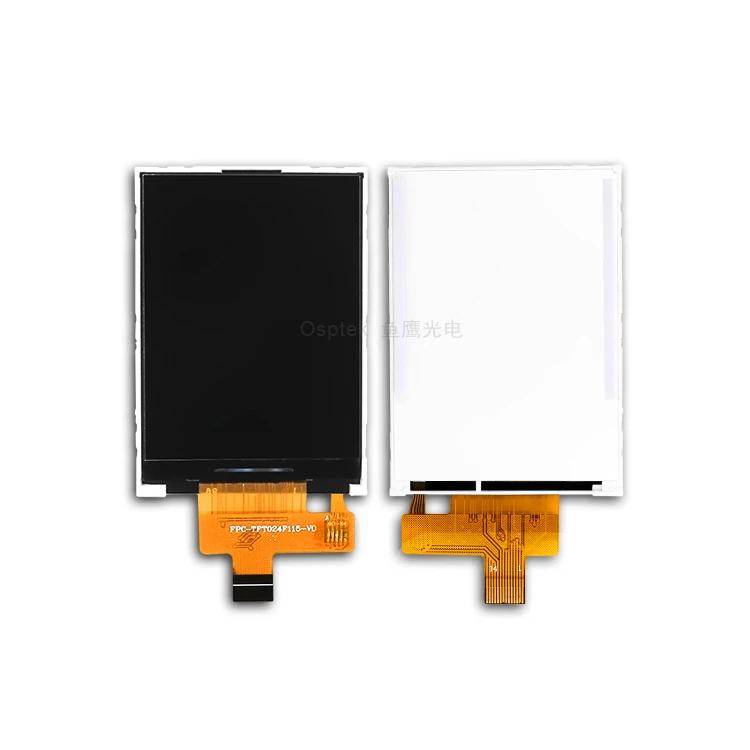

1.PRODUCT DISPLAY
2.MECHANICAL DATA
NO | ITEM | SPCIFICATION | UNIT |
1 | Display Type | TFT | |
2 | LCD Size | 2.4 | Inch |
3 | Panel Type | TN | - |
4 | Resolution | 240RGBx320 | Pixel |
5 | Display Mode | Normally White | - |
6 | Number of Colors | 262 | K |
7 | Viewing Direction | 12 O'clock | - |
8 | Contrast Ratio | 250 | - |
9 | Luminance | 350 | cd/m2 |
10 | Module Size | 42.72(H)x60.26(V)x2.2(D) | mm |
11 | Active Area | 36.72x48.96 | mm |
12 | Pixel Pitch | 0.153x0.153 | mm |
13 | Pixel Arrangement | RGB stripe | - |
14 | With / Without TP | Without TP | - |
15 | Driver IC | ST7789V3 | - |
16 | TP IC | / | - |
17 | Light Source | 4 LED | - |
18 | Interface | 4 Line | - |
19 | Operating Temperature | -20~+70 | ℃ |
20 | Storage Temperature | -30~+80 | ℃ |

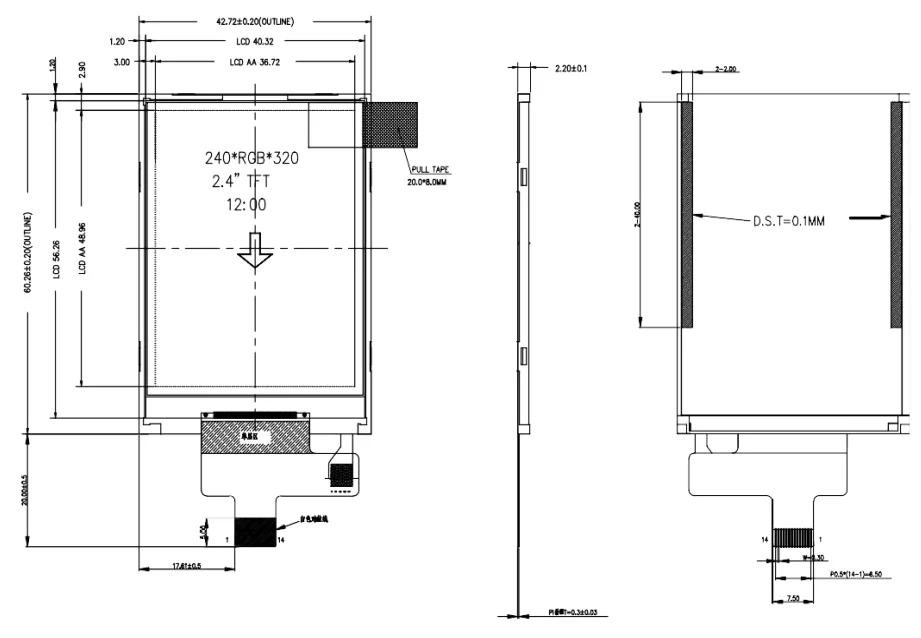

3.EXTERNAL DIMENSION

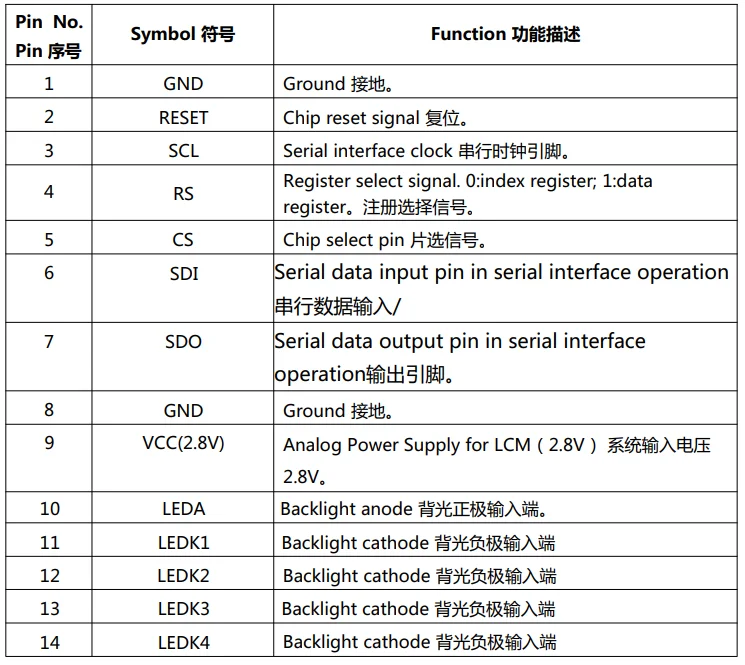

4.PIN ASSIGNMENTS
Company Profile
--------------------------------------------------------------------
About us
·We are a Shenzhen,China-based manufacturer of LCD, TFT, OLED, and custom displays for all industries.
·For more than 10 years, we’ve established our reputation by providing top quality products, services, and custom design solutions to customers worldwide across various industries such as Medical, Industrial, Consumer, Handheld device, Test & Measurement.
·For more than 10 years, we’ve established our reputation by providing top quality products, services, and custom design solutions to customers worldwide across various industries such as Medical, Industrial, Consumer, Handheld device, Test & Measurement.
·Our core values will help you to shorten the custom design cycle time and you can count on our professional and excellent support towards your success.

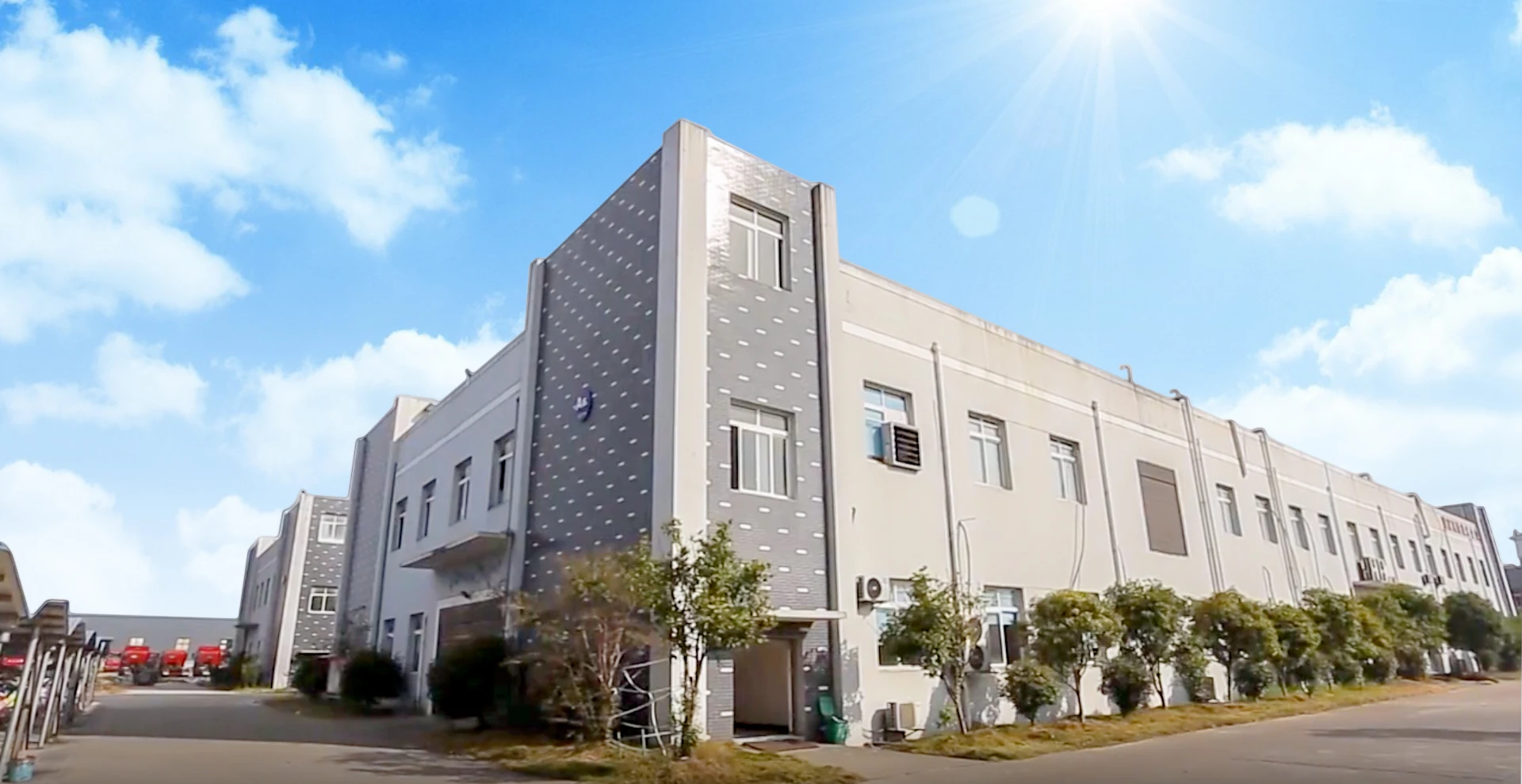

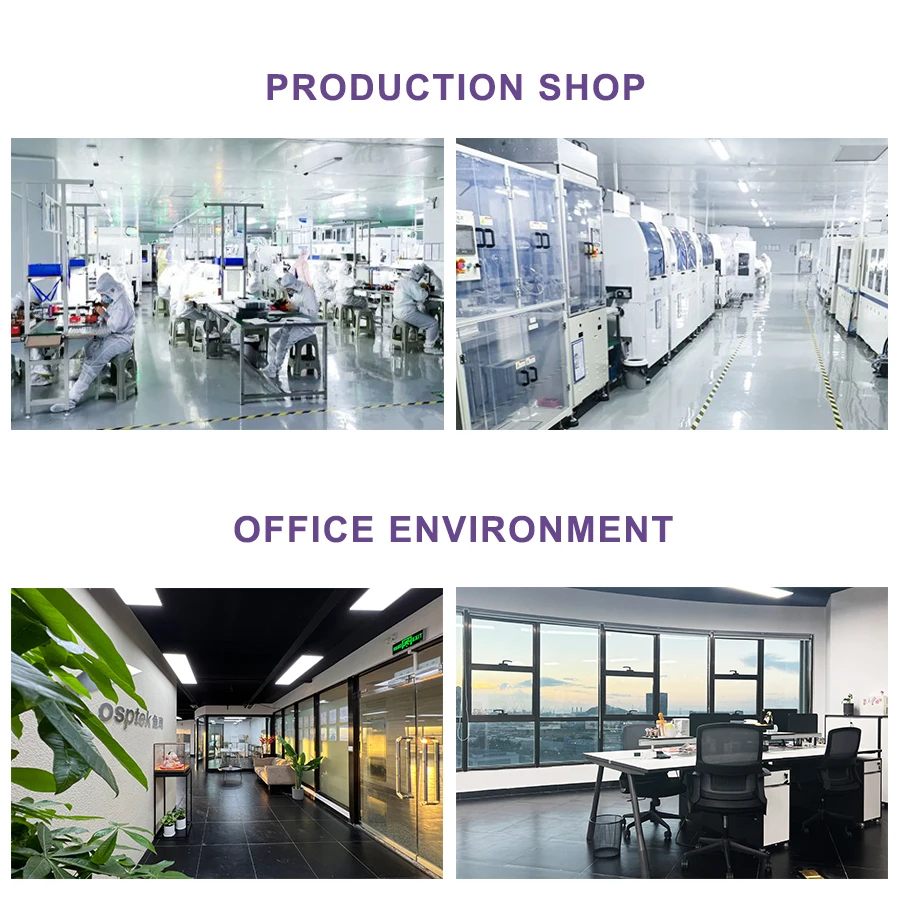

10000+ Square Meter Workshop
1000+ Production Line Workers
300+ Products Model
30+ Product Engineers
20+ Production Lines
----------------------------------------------------------------------------
Provide a 12-month warranty period.

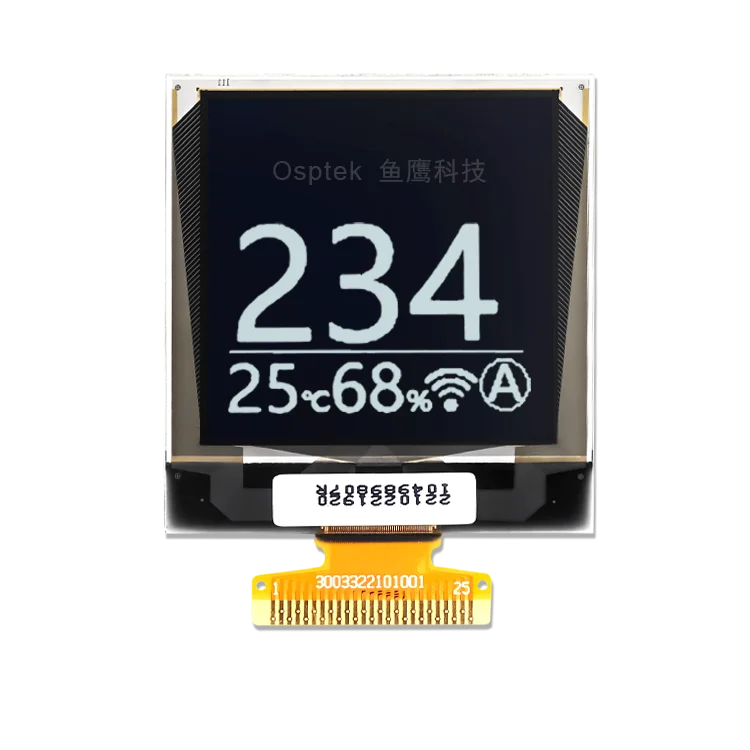

Product Selection
0.33''~3.83''
60+ Sizes
0.85''~9.35''
50+ Sizes
Character / Graphic
20+ Sizes
Click the picture >>> get more product information.
Contact me >>> get the latest product profile.
-----------------------------------------------------------------------

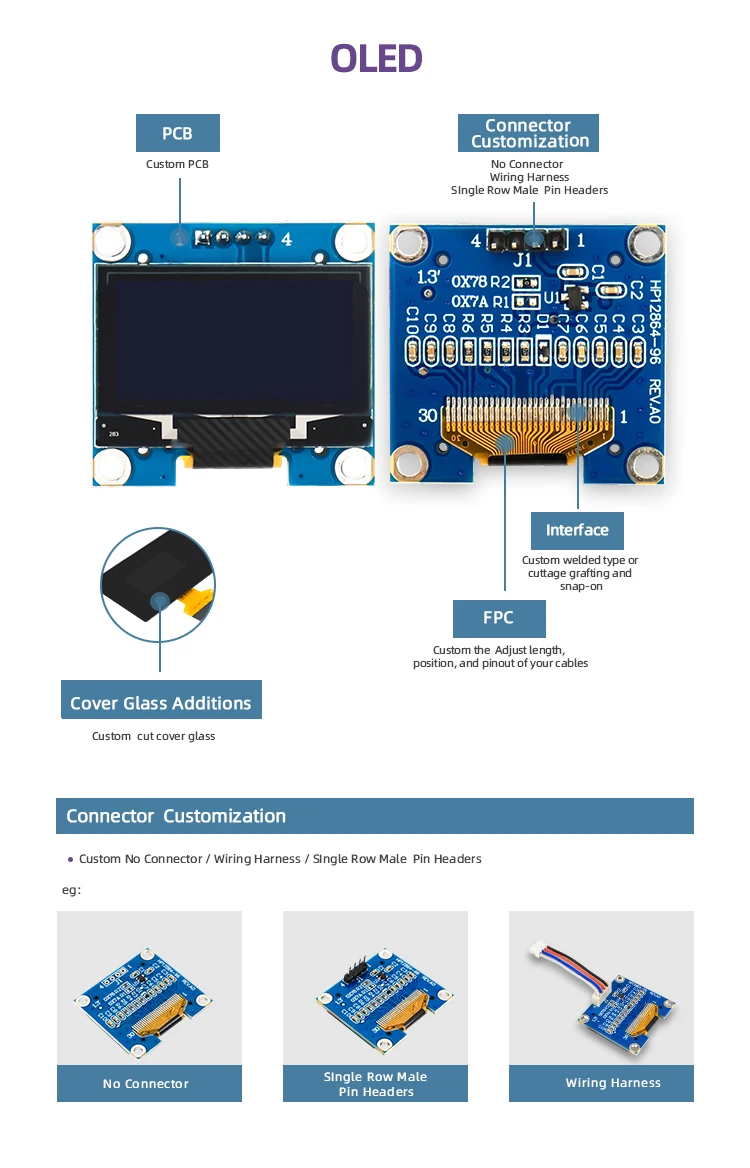

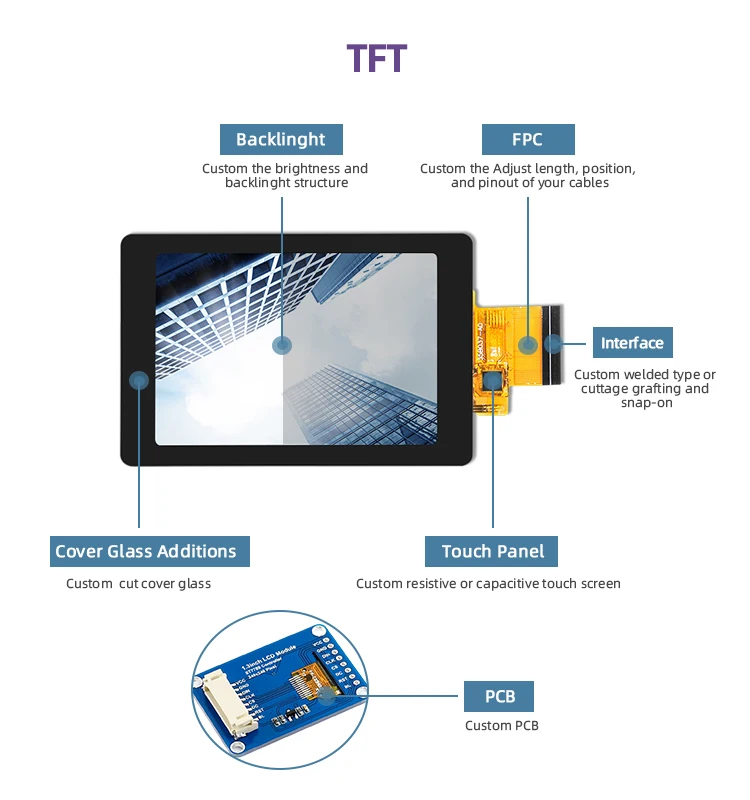

Custom Design Solutions
Contact me >>>
get more about custom solution.
More technical data, including product specifications, initial code,
IC specifications, etc. can be downloaded from our website.
https://www.osptek.com/>>>
Packing & Delivery
PACKAGE: Plastic Tray + Anti-Static Foam + Vacuum Bag+ Carton
SHIPPING:Shippingvia DHL,UPS,FedEx,EMS,TNT,Airmail and Seamail.
FAQ
1.Q: Order process
A:PO is placed by clients → PI is issued by Osptek → Payment by clients → Lead time is confirmed by Osptek → Shipping instrction by Clients → Delivery → Cargo tracking→ Receipt of cargo2.Q: Lead time ( after payment is confirmed)
A: Sample: 1-10 working days
Volume: 3-60 working days
3.Q: Payment
A: T/T , Western union, L/C, Credit card, and Cash
4.Q: Warranty
A: 12 months warranty ( Please find more details via our datasheet by item of Limited
Warranty)
5.Q:RMA Process
A:Claimed by cliens with photos or videos → Sales rep of Osptek confirm if have questions
→ Sales rep issue RMA No to clients if confirmed by QA → Return to Osptek → Formal
report after goods received by Osptek → Clients confim the analysis report → Proceeding
as per the Report both agreed
6.Q:Notes
A:Please check both appearance and function of products prior to installation.
Any damage caused by improper use or unprofessional installation is not covered under warranty.
7.Q:Custom
A: You could let us know the concrete requirements then we will design and confirm with you.
