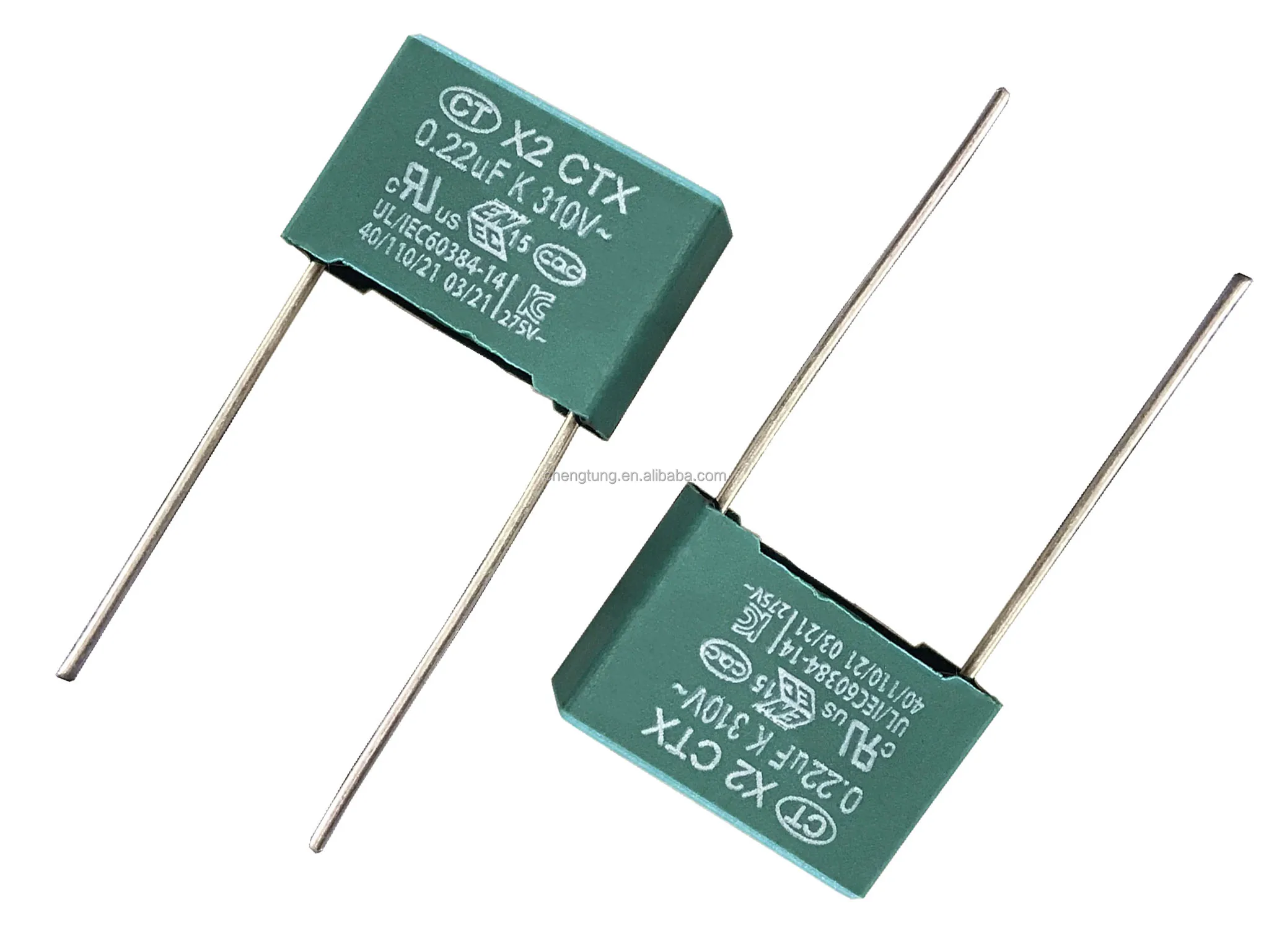

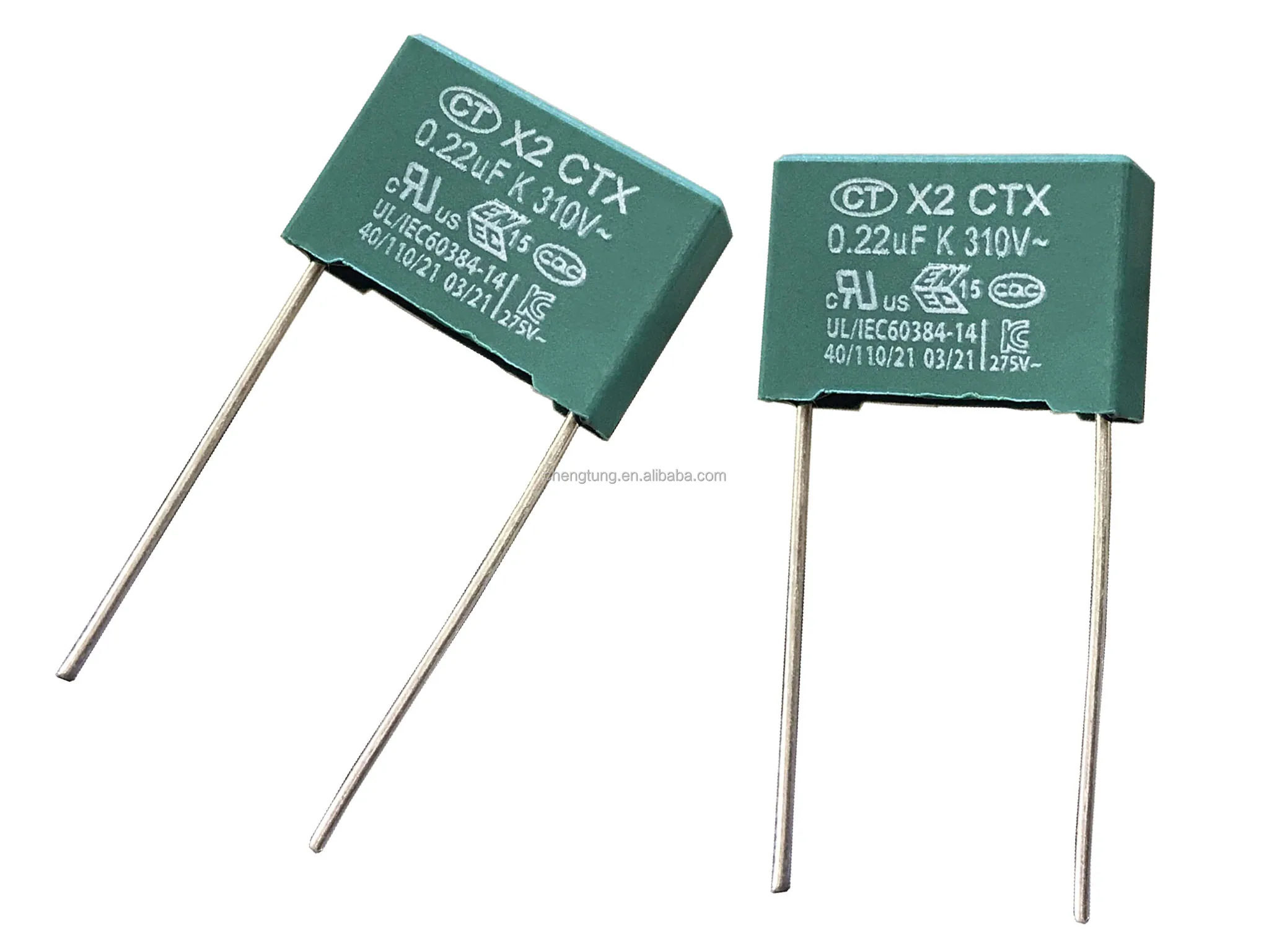

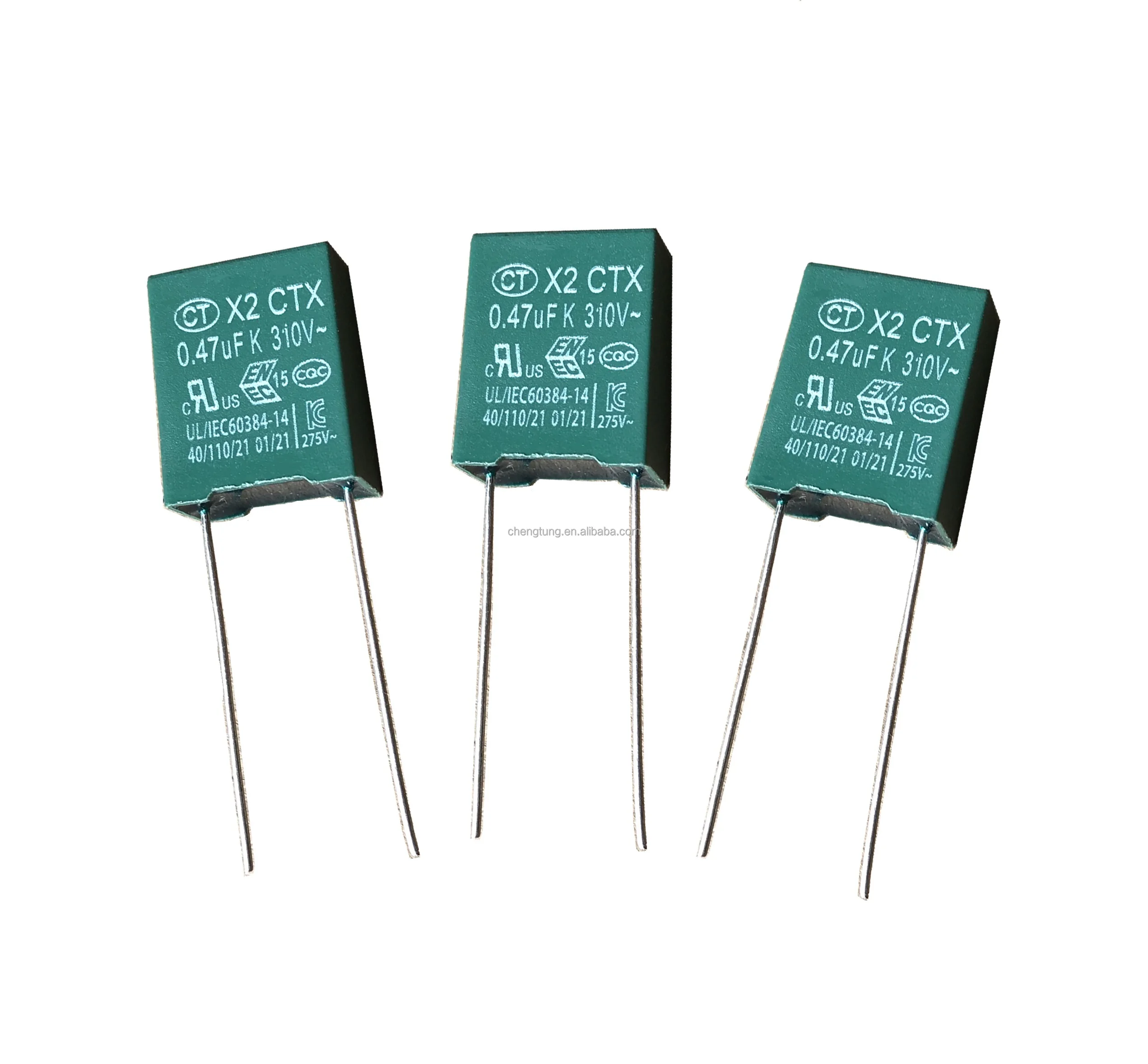

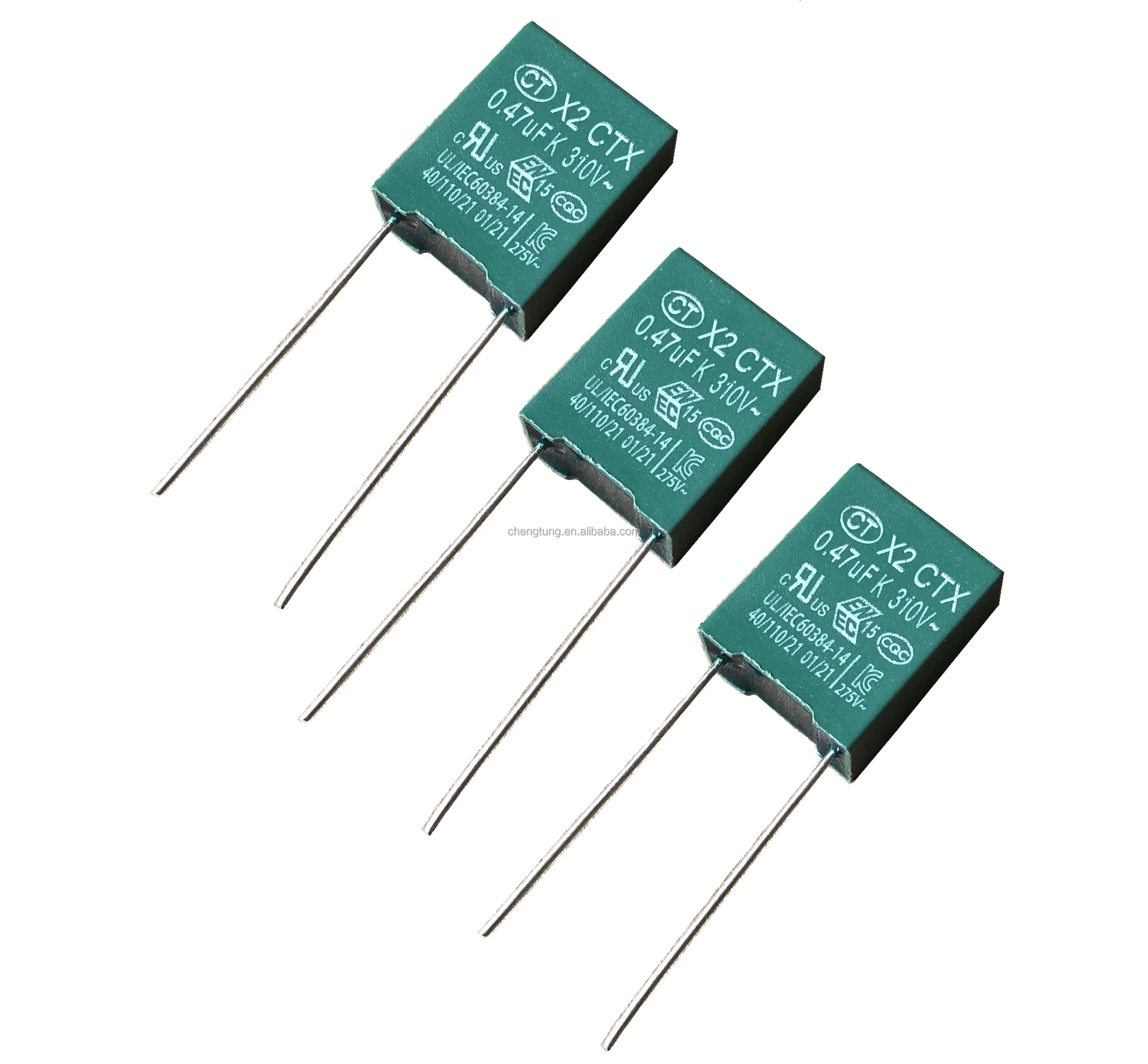

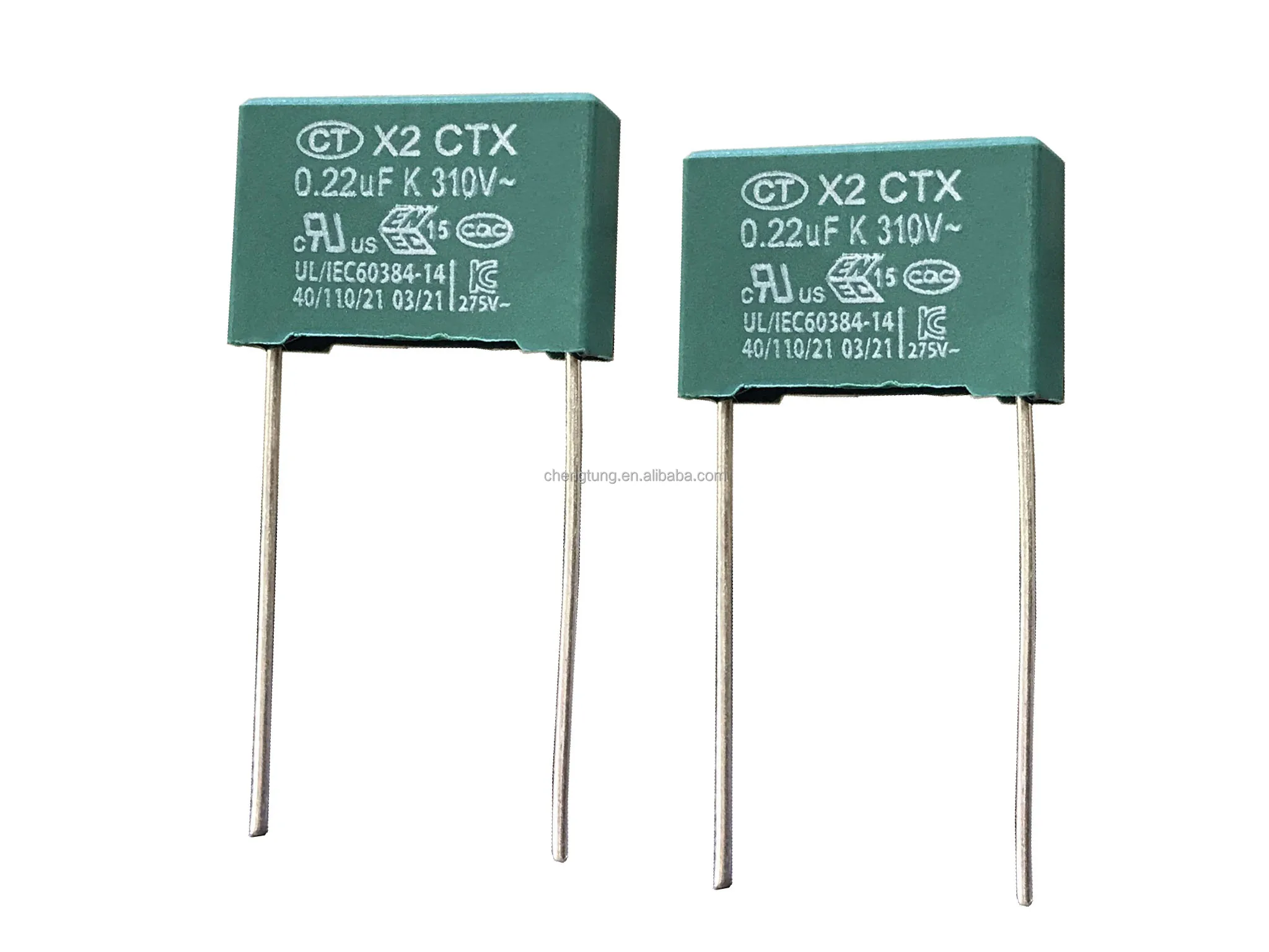

Защитный конденсатор из металлизированной полипропиленовой пленки X2

   TYPE: X1/X2 CLASS (440/480/500VAC)

FEATURES

• Provides interference suppression, all safety approval


• Overvoltage stress withstanding


• Self-healing properties


• Active and passive flame retardant


• High voltage, applicable to the lighting and lamp

• Ideal for use in line bypass, antenna coupling, across-the-line and spark killer circuits.


• Available for EMI filter.


• Switching power supply applications.


• Business machines appliances, such as: typewriters, adding machines, computer displays and monitors.


• Household appliances, such as: mixers, fans, coffee grinders,audio and TV circuits.


• Thyristor and triac appliances, such as: dimmers.

Dielectric

Polypropylene film

Electrodes

Vacuum evaporated metal

Coating

Encapsulated in flame retardant

(UL94V-0) plastic case and epoxy resin end seal.

Leads

Radial leads of tinned wire

Climatic Catalogue

40 / 110 / 21

Capacitance versus Rated Voltage   (U_R)

440/480/500V.AC (50/60Hz) 0.0047uF ~ 4uF

Capacitance Tolerance

J = ± 5%  K = ±10%  M = ± 20%

Dissipation Factor (Tangent of Loss)

<=0.1% at 1KHz and 20℃

<=0.3% at 10KHz and 20℃

Voltage Proof

T-T 2150V.DC 60 Sec. or 2700V.DC 1 Sec.

T-C 2500V.AC 50/60Hz 60 Sec.

Insulation Resistance

C<=0.33uF  IR>=30,000MΩ

C>0.33uF  IR>=10,000MΩ / uF
