Small 3D printer filament extruder machine/3D filament extrusion line
- Category: >>>
- Supplier: Hunan Yasin Technology Co. Ltd.
Share on (10000005655169):
Product Overview
Description
Product Description
Work Flow of the Extrusion Line：
100KG Mixer Machine →50KG Hopper Dryer→ 45 Single Screw Extruder → 3D Extrusion Die Head →2.5m Stainless Steel Warm Water Trough
with Water Circulation Tank→4m Stainless Steel Water Cooling Trough →Laser Gauge Online→Haul-off Machine→Horizontal Accumulator
Machine→Double Station Winding Machine → Vacuum Packing Machine
Remarks: red color characters are auxiliary machines. Price in the 5-6pages
1. Application：
3D filament mainly used for 3D Printer.
The Filament Extruder Machine used to manufacture: 1.75mm, 3.00mm ABS/PLA/PA/HIPS/PET 3D filament.
100KG Mixer Machine →50KG Hopper Dryer→ 45 Single Screw Extruder → 3D Extrusion Die Head →2.5m Stainless Steel Warm Water Trough
with Water Circulation Tank→4m Stainless Steel Water Cooling Trough →Laser Gauge Online→Haul-off Machine→Horizontal Accumulator
Machine→Double Station Winding Machine → Vacuum Packing Machine
Remarks: red color characters are auxiliary machines. Price in the 5-6pages
1. Application：
3D filament mainly used for 3D Printer.
The Filament Extruder Machine used to manufacture: 1.75mm, 3.00mm ABS/PLA/PA/HIPS/PET 3D filament.
Specification
No | Item | Specification | QTY/Set | Remarks |
1 | ¢45mm 3D Printer Filament Extrusion Line | 1.75-3.0mm | 1 | 12-20kg/Hrs |
2 | 50KG Hopper Dryer | 50KGS | 1 | |
3 | 45 Single Screw Extruder | Φ45*28D | 1 | |
4 | 3D extrusion Die Head | 1.75-3.0mm | 1 | |
5 | Stainless steel warm water trough | 2.5M | 1 | |
6 | Stainless steel water cooling trough | 4M | 1 | |
7 | Haul-off Unit | Full-Roll | 1 | |
8 | Laser Gauge Online | 1 | Single axis | |
9 | Horizontal Accumulator | 8M | 1 | |
10 | Double-station Winding Machine | Standard |
3. Main Technical Parameters：
3.1 Screw Diameter：45mm
3.2 L/D: 28:1;
3.3 Screw Rated Speed: 0-90rpm (adjustable)
3.4 Capacity: 10-15kg/hr;
3.5 Center-Height: 1000mm±50mm
3.6 Motor (AC): variable frequency motor
3.7 Main Motor Power: 11kw
3.8 Inverter: Delta (Taiwan)
3.9 Temperature-controlled Meter: High precision master temperature controlled meter, Tolerance: ±1 centigrade degree.
3.10 Dimension of the line: about12000mm*1200mm*2050mm
3.11 Tri-phase Voltage: 450V/60 Hz (can be customized)
3.12 Start Power of the line：40kw
3.14 Tolerance: ±0.05mm
3.15 Package: wrapped by film, 1*20GP container
3.1 Screw Diameter：45mm
3.2 L/D: 28:1;
3.3 Screw Rated Speed: 0-90rpm (adjustable)
3.4 Capacity: 10-15kg/hr;
3.5 Center-Height: 1000mm±50mm
3.6 Motor (AC): variable frequency motor
3.7 Main Motor Power: 11kw
3.8 Inverter: Delta (Taiwan)
3.9 Temperature-controlled Meter: High precision master temperature controlled meter, Tolerance: ±1 centigrade degree.
3.10 Dimension of the line: about12000mm*1200mm*2050mm
3.11 Tri-phase Voltage: 450V/60 Hz (can be customized)
3.12 Start Power of the line：40kw
3.14 Tolerance: ±0.05mm
3.15 Package: wrapped by film, 1*20GP container

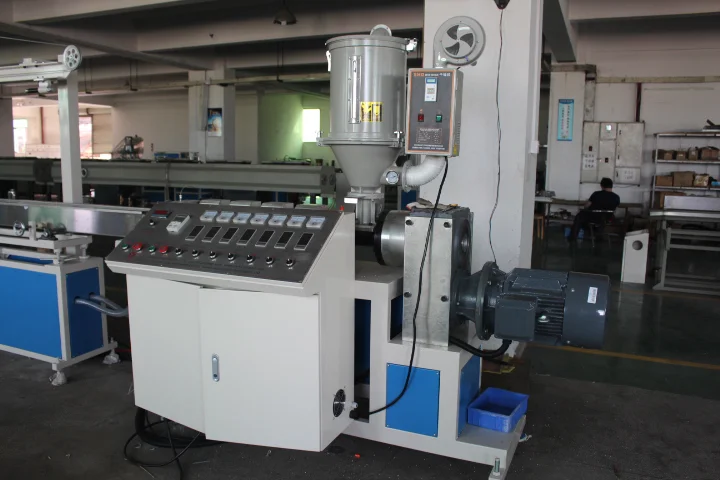

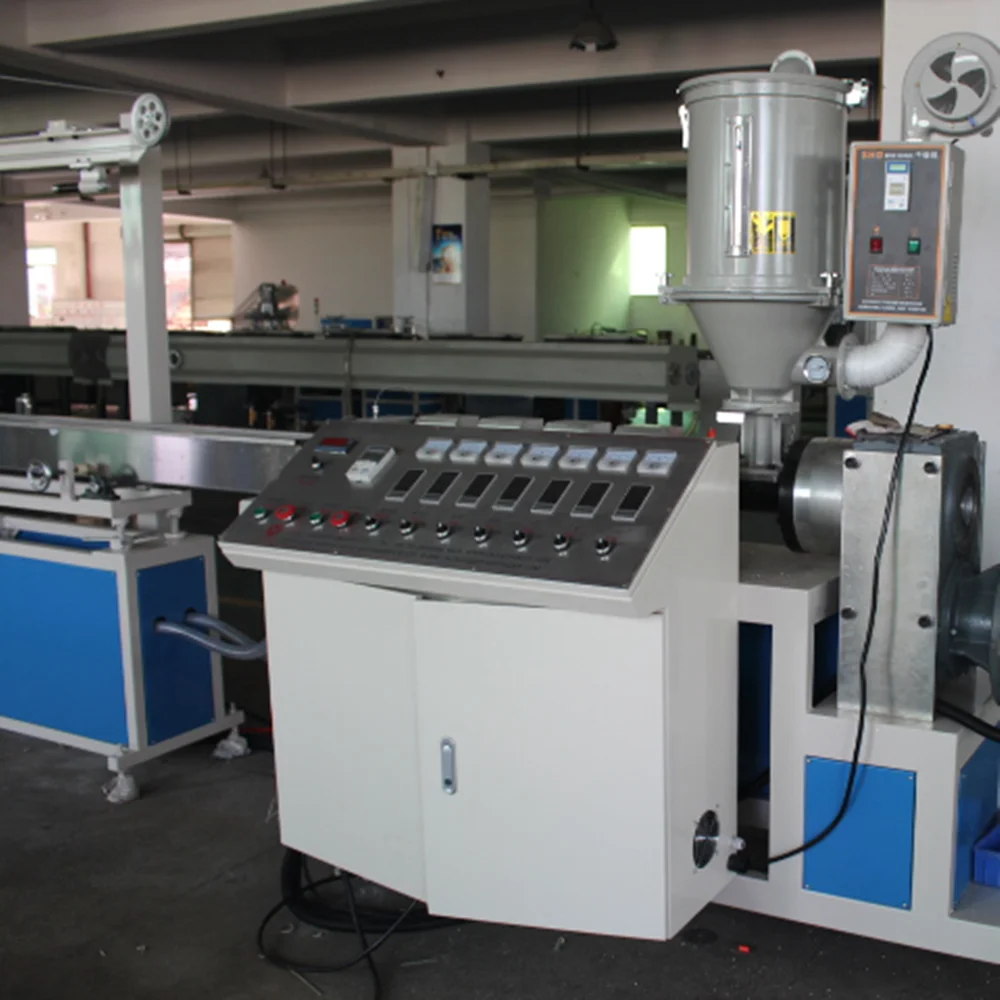

Φ45mm Single Screw Extruder : One set
Screw Diameter: 45mm
L/D: 28:1
Screw Material: 38CrMoALA Nitriding Chrome plated, mirror polish treatment.
Motor: Siemens Beide Brand
Motor: Siemens Beide Brand
Driving power: 11kw
Inverter: Taiwan Delta
Control mode：Frequency control
Heating Zone: 7 zones
Radiating mode: 4zones
Reduction Gearbox: Extruder exclusive use

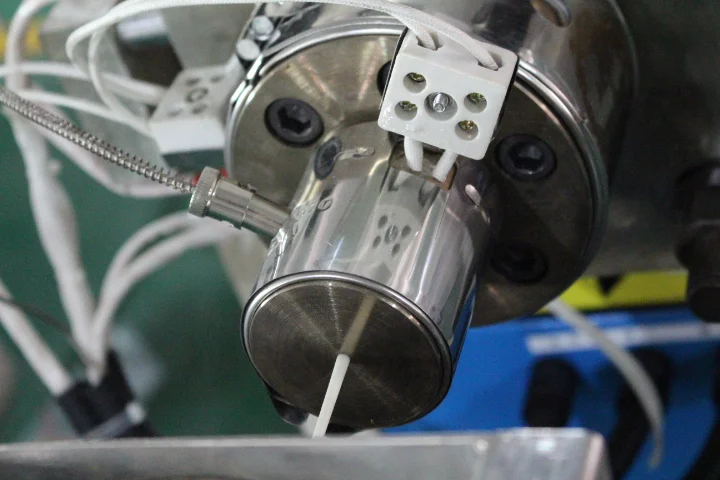

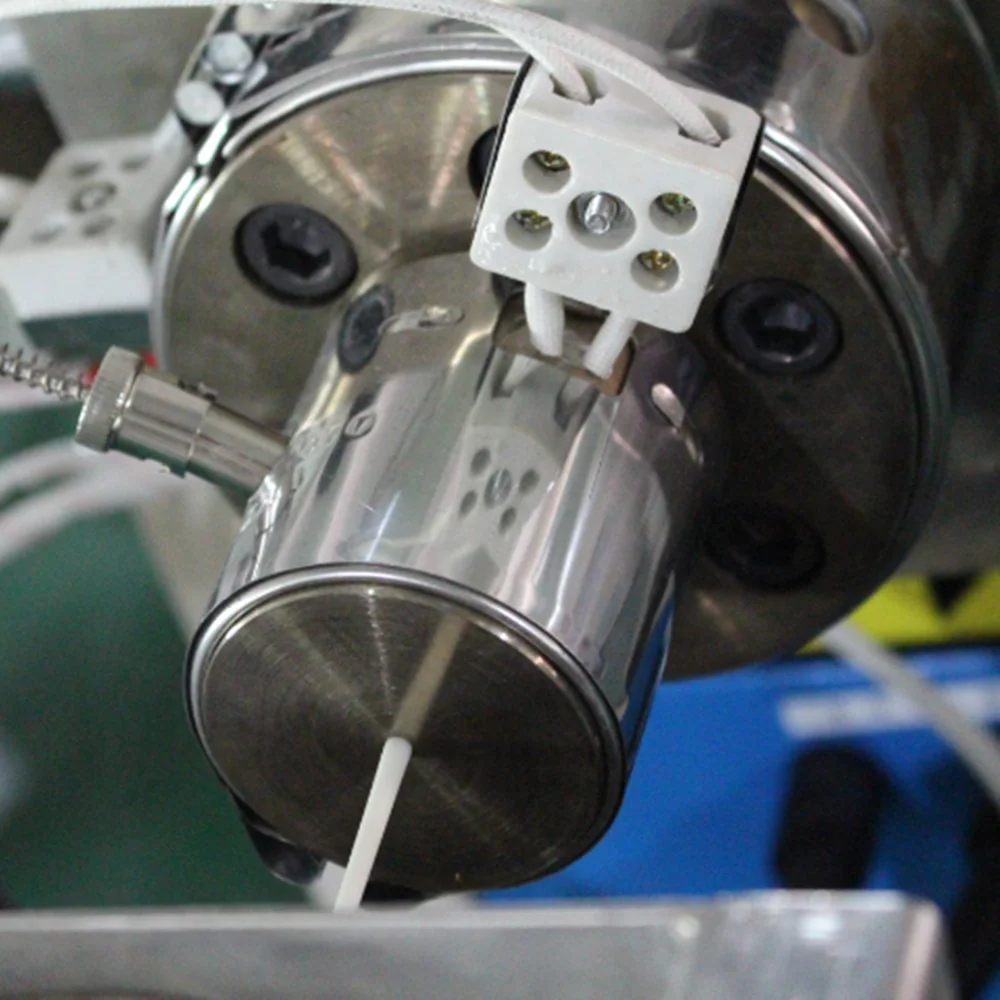

3D Extrusion Die Head ： One set
Mater: S-136 thermo-stabilization mirror surface steel，short runner, no dead angle, brightness surface without dark spot. Precision dimension
Size: 1.75mm, 3.00mm
Tolerance: +/-0.05mm
Size: 1.75mm, 3.00mm
Tolerance: +/-0.05mm

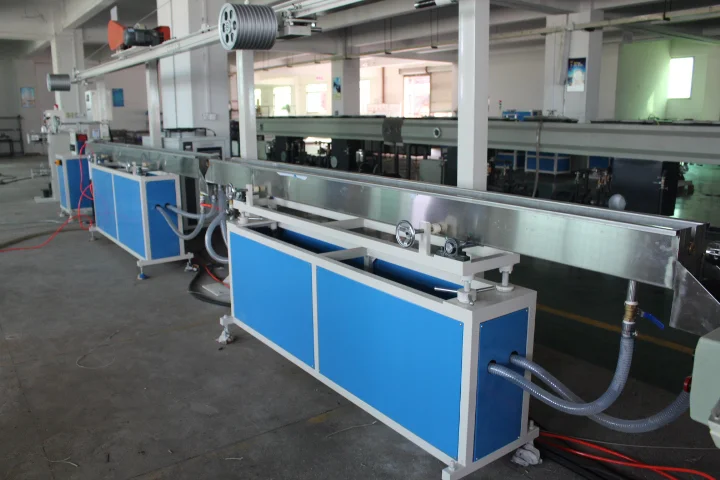

Stainless Steel Warm Water Trough: one set
Length: 2.5M
Water trough material: 2.0mm thickness stainless steel
Centre height: 1000mm±50mm
Adjustment mode: three-dimensional, flexible operation with concise and beautiful appearance.
Power of the water pump: 0.37kw
Stainless Steel water Circulation Tank: one set
Water trough material: 2.0mm thickness stainless steel
Centre height: 1000mm±50mm
Adjustment mode: three-dimensional, flexible operation with concise and beautiful appearance.
Power of the water pump: 0.37kw
Stainless Steel water Circulation Tank: one set
Stainless Steel Water Cooling Trough: one set
Length: 4M
Water trough material: 2.0mm thickness stainless steel
Centre height: 1000mm±50mm
Water trough underbed: one set
Material: square steel
Water blower equipment: Nylon material, sealed water blower, no water splash.
Water trough material: 2.0mm thickness stainless steel
Centre height: 1000mm±50mm
Water trough underbed: one set
Material: square steel
Water blower equipment: Nylon material, sealed water blower, no water splash.

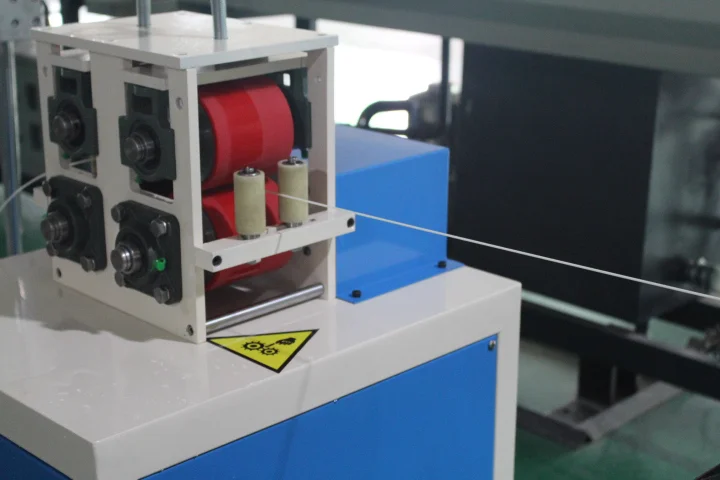

Haul-off Unit: one set

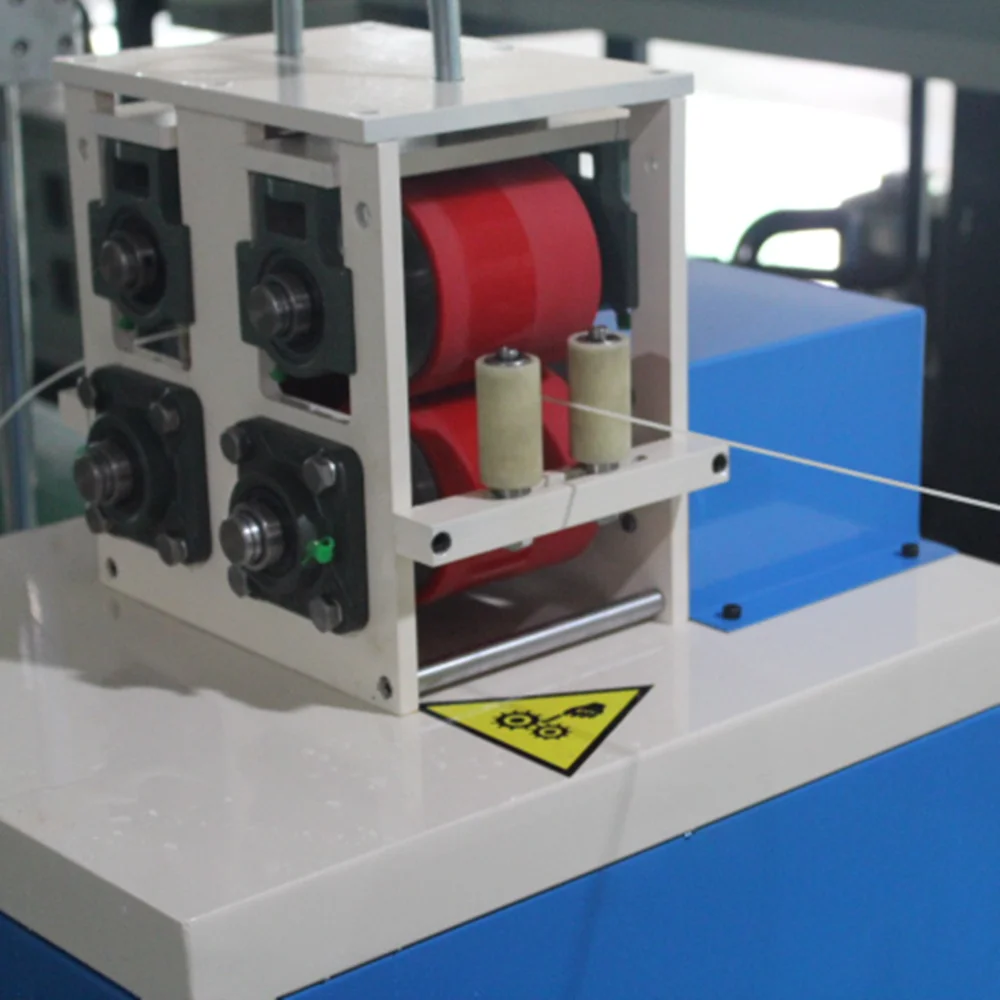

Haul off Roll: Four-Roll
Haul-off roller: PU Rubber Covered
Linear guard rail for up and down
Transmission type: Bevel gear
Haul-off power: 1.5kw
Control style: Taiwan Delta
Haul-off speed: 0-100m/minute
Haul-off roller: PU Rubber Covered
Linear guard rail for up and down
Transmission type: Bevel gear
Haul-off power: 1.5kw
Control style: Taiwan Delta
Haul-off speed: 0-100m/minute
Online diameter measurement system: one set
Brand name: Laser Online
Model No: LST-25
Measuring range: 0.1-25mm
Accuracy: ±0.002mm
Resolution: 0.001mm
Model No: LST-25
Measuring range: 0.1-25mm
Accuracy: ±0.002mm
Resolution: 0.001mm

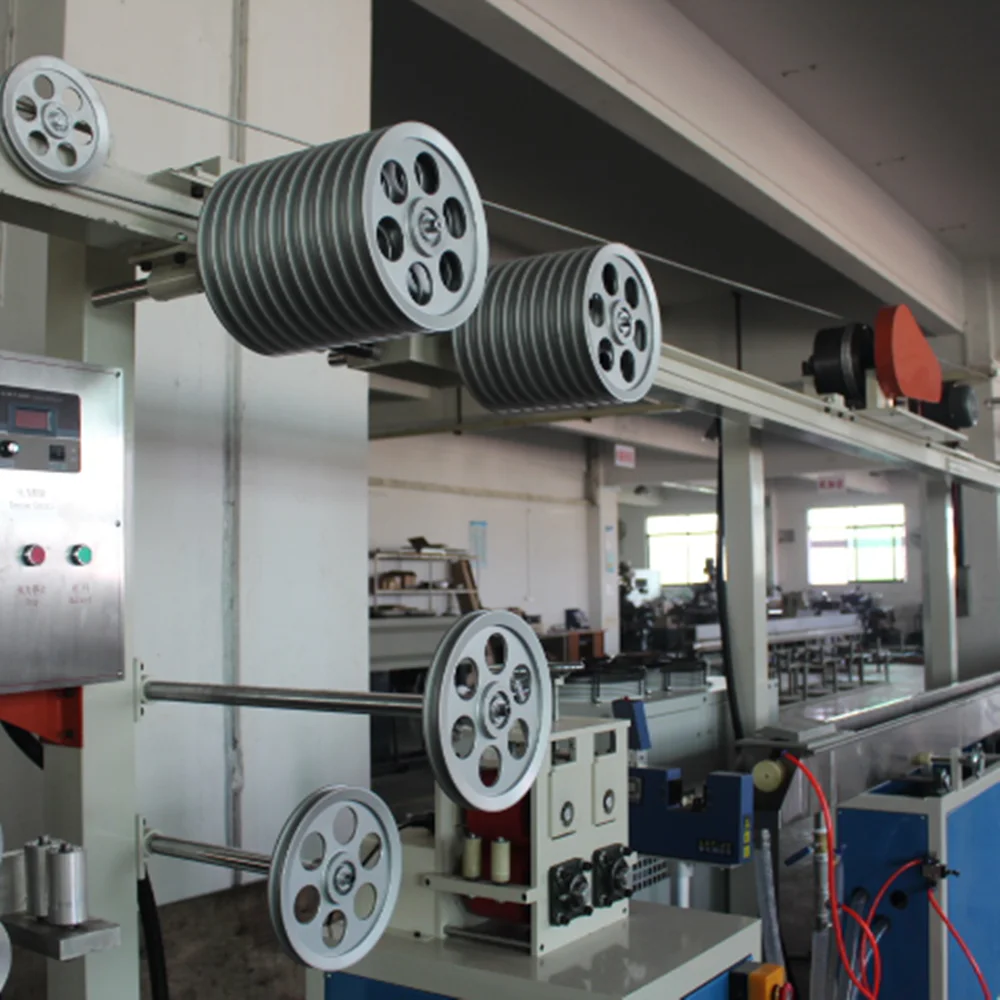

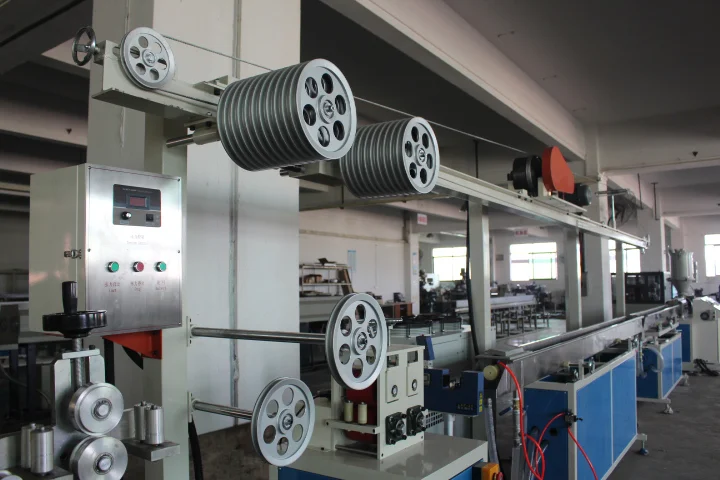

Horizontal Accumulator Machine: one set
Whole length: 8m
Height: 1.9m
Accumulator rolls: 10+11 pcs
Storage Meter: 150m around
Pulley slide mechanism
Adjustable
Magnetic powder clutch: 5kg
Height: 1.9m
Accumulator rolls: 10+11 pcs
Storage Meter: 150m around
Pulley slide mechanism
Adjustable
Magnetic powder clutch: 5kg

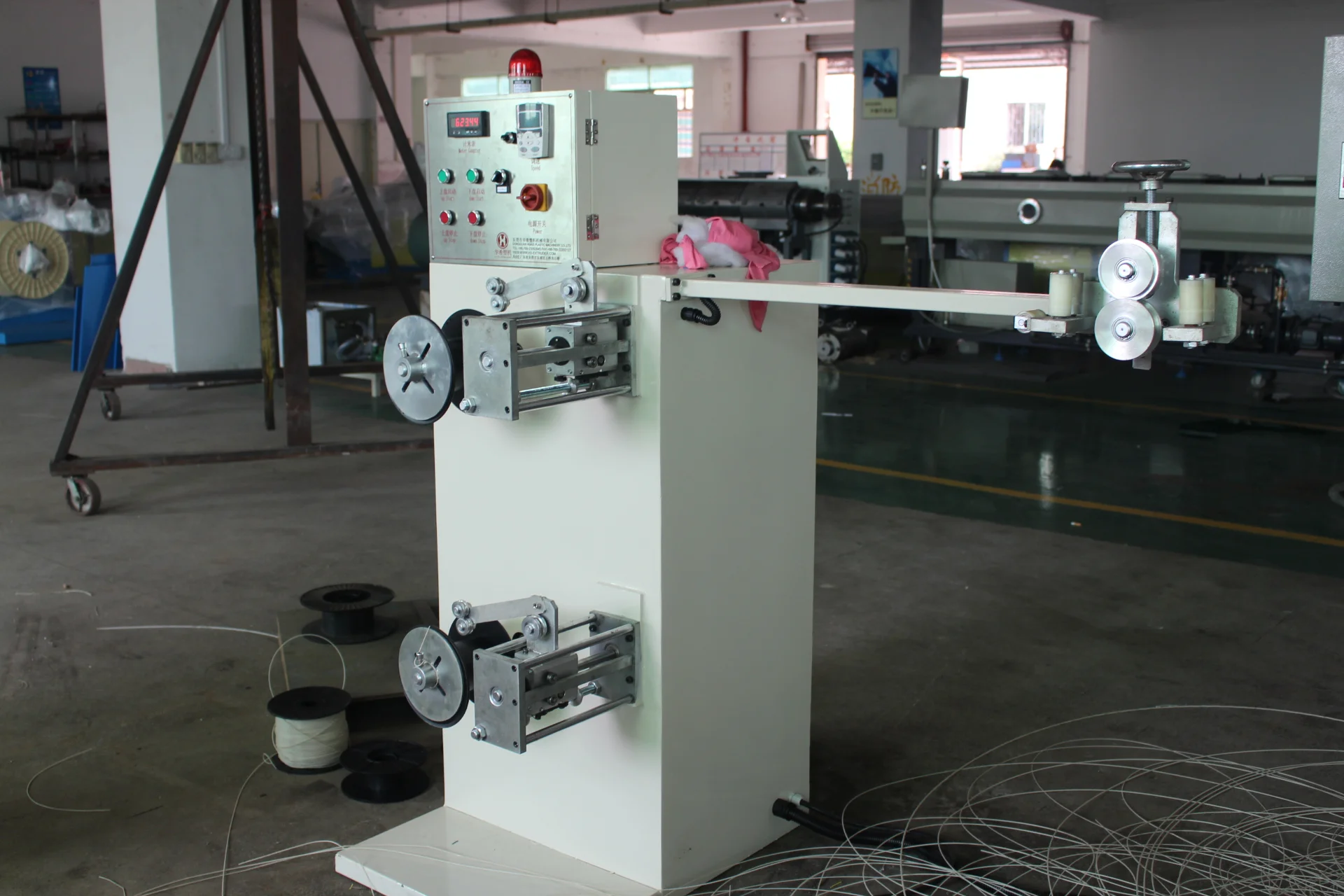

Double-Station Winder: one set
Coil: 2pcs
AC Motor: 2 sets
Flat cable: automatic traverse unit
Control power: 0.37kw*2
Control Mode: frequency control, winding tension adjustable, easy operation, shortcut and simple ness closing session.
AC Motor: 2 sets
Flat cable: automatic traverse unit
Control power: 0.37kw*2
Control Mode: frequency control, winding tension adjustable, easy operation, shortcut and simple ness closing session.

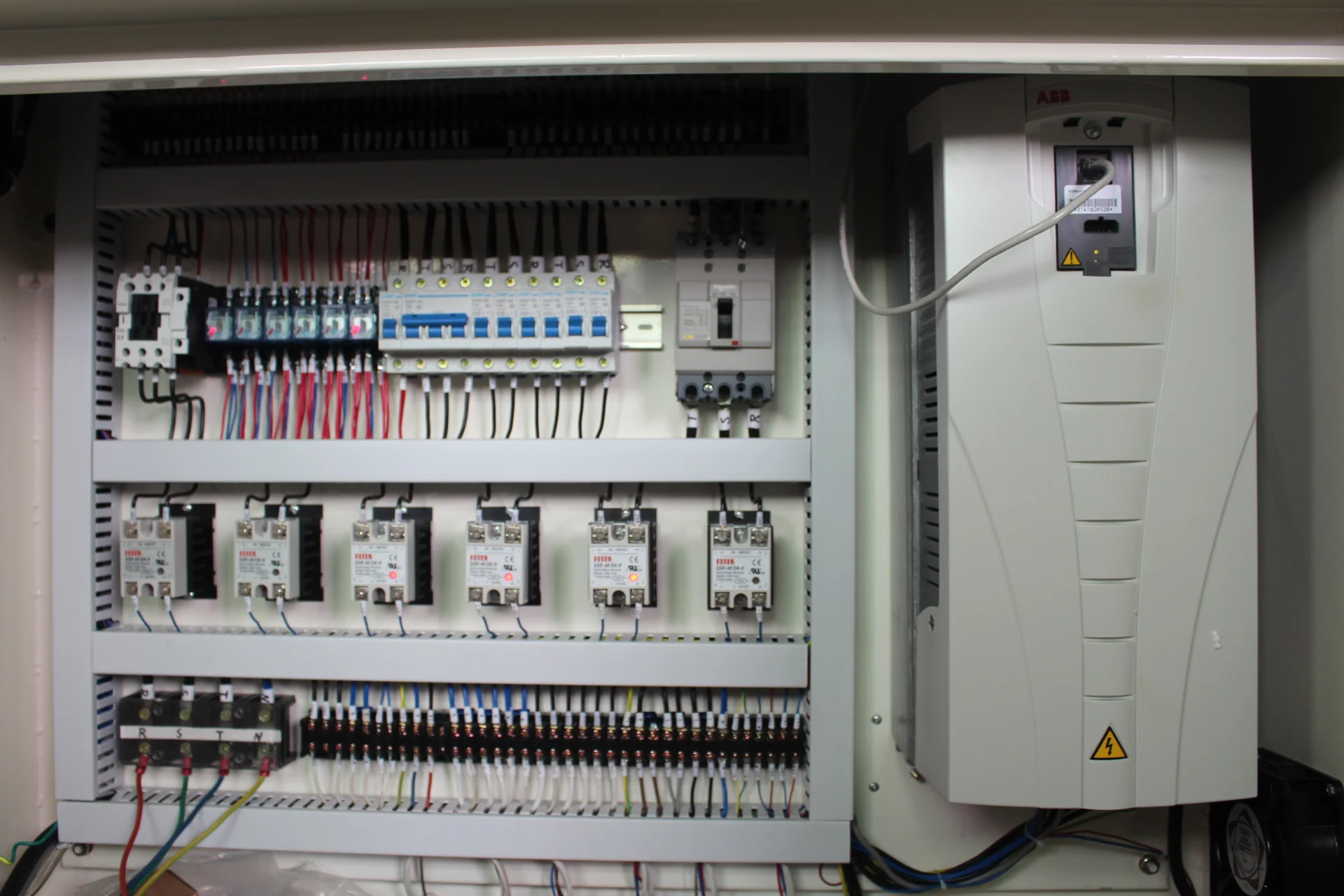

Electric control boxes: one set
Japanese Omron temperature control meter, Taiwan Yangming Solid State Relay, Taiwan Delta, Japanese Mitsubishi Servo motor, electrical wiring in alignment, color and clear, accuracy mark number.
