AXIAL ROOF FANS FOR WORKSHOP VENTILATION DWT SERIES HIGH QUALITY
- Category: >>>
- Supplier: TOMECO MECHANIC ELECTRICAL JOINT STOCK COMPANY
Share on (10000005684748):
Product Overview
Description
Product Photo
Application

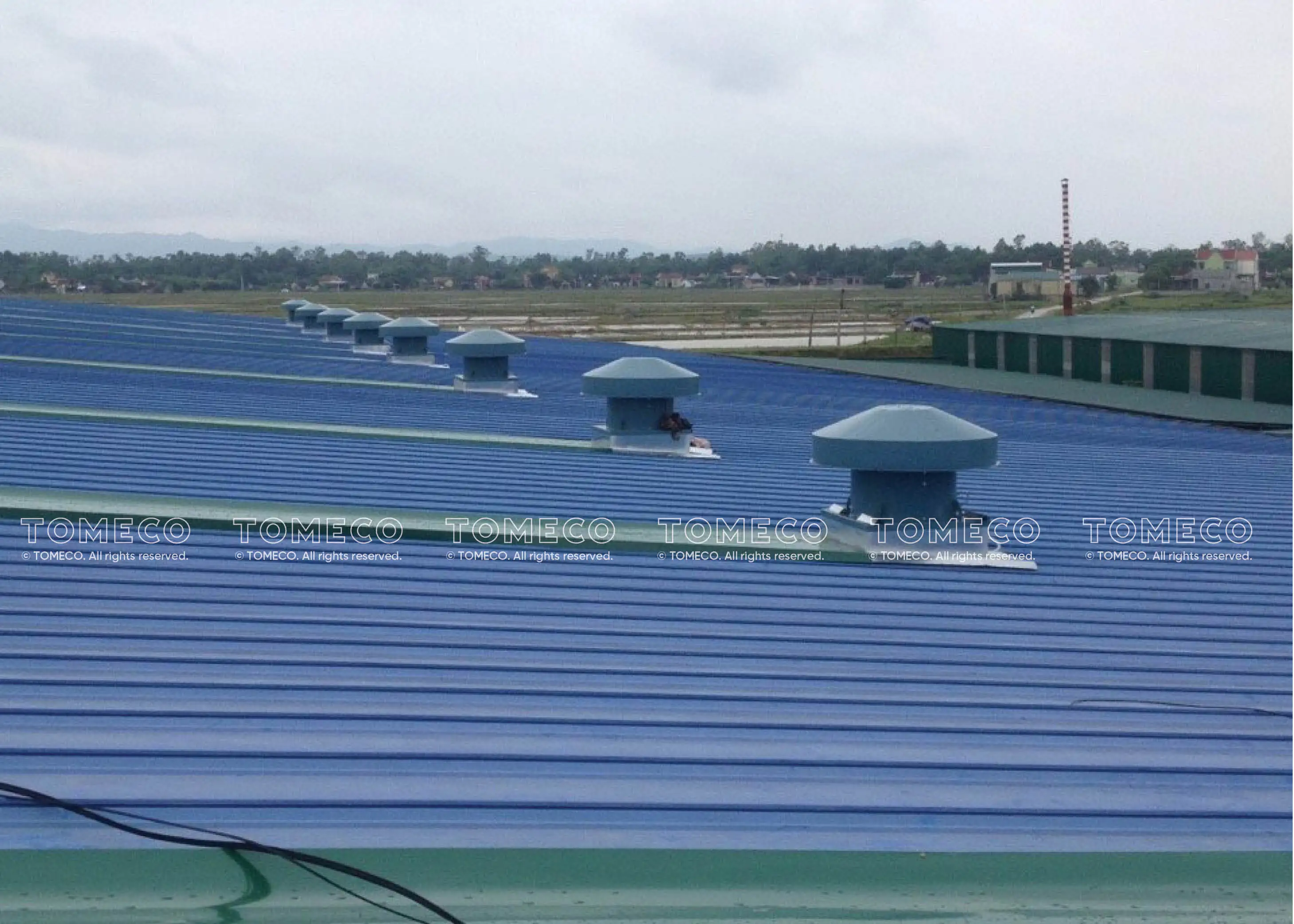

The DWT is a axial fan that allows the evacuation of polluted air to the workstations.
Installed on the roof and connected to piping networks, it is used to:
- Cleaning and air renewal;
- Cooling of hot locations;
- Acceleration of drying and evaporation;
- Evacuation of vapors and mists;
- Ventilation of confined areas.
It is also available in ATEX version.
Technical Specifications
Air volume | 1.000-50.000 | m3/h |
Pressure | 300-3.000 | Pa |
Motor power | 0,37-37 | kW |
Speed | 720-1.450 | Rpm |
Impeller diameter | 200-800 | mm |
Voltage | 220/1/50 hoặc 380/3/50 | V/Ph/Hz |
CONFIGURATION
Material | SS400/SUS201/SUS304/SUS316 |
Drive type | Direct |
Motor brand | ABB/SIEMENS/WEG/HEM(VIETNAM) |
Motor type | Foot mount/Flange mount |
Impeller design | Forward curved (sirocco) |
Finish | Powder coated, Epoxy coated, hot dip galvanized |
TECHNICAL DATA TABLE
GENERAL INSTALLATION DIMENSIONS
Accessories
Inlet & outlet flexible duct
Spring vibration isolator
Inlet & outlet silencer
Inlet & outlet damper
Company Profile
TOMECO is a leading company in Vietnam in the field of researching, designing and manufacturing industrial fans. With great diversity, industrial fans manufactured by TOMECO can serve from small products, small capacity to large capacity, specific requirements to mass production to meet the demand of the Vietnamese market as well as foreign counterparts . We are known as a professional unit, knowledgeable about the system and own absolute technology solutions. TOMECO's mission is to bring customers the perfect experience, beyond expectation, with the motto of "Prestige and quality in every detail.
