LED Power Adapter Lighting Transformer AC 100V 240V To DC 5V 12V 24V Switching Power Supply 1A 2A 3A 5A 10A 20A 30A LED Drive
- Category: >>>
- Supplier: Shenzhen Bryson Science Technology Co. Ltd.
Share on (10000005700542):
Product Overview
Description
LED Power Adapter Lighting Transformer AC 100V-240V To DC 5V 12V 24V Switching Power Supply 1A 2A 3A 5A 10A 20A 30A LED Drive
Product Description
Features
* Input: 110V/220V AC; Output: DC 24V 5A max. Output voltage is adjustable 10%.
* Safety features: Automatic overload cut-off, over Voltage cut-off, automatic thermal cut-off, short circuit protection.
* Voltage consistency: There is no voltage fluctuations to speak of at power on, during transmit, receive, or at power off.
* There is no fan inside the case, silent running. Metal case with many holes makes heat dissipation more efficient.
* Great for LED Strips, 3D Printer, ham radio transceiver, CCTV cameras ，car subwoofer amp, audio amplifier, wireless router,
ADSL Cats, HUB, audio/ video power supply. Indoor use only!
* Safety features: Automatic overload cut-off, over Voltage cut-off, automatic thermal cut-off, short circuit protection.
* Voltage consistency: There is no voltage fluctuations to speak of at power on, during transmit, receive, or at power off.
* There is no fan inside the case, silent running. Metal case with many holes makes heat dissipation more efficient.
* Great for LED Strips, 3D Printer, ham radio transceiver, CCTV cameras ，car subwoofer amp, audio amplifier, wireless router,
ADSL Cats, HUB, audio/ video power supply. Indoor use only!
Parameter
* Input: AC110V/220V 50/60Hz
* Output Voltage : DC 24V
* Output Current: 5A max
* Output Wattage: 120W max
* Fix Screw Hole Diameter: 2.5mm (0.1inch)
* Working temperature: -10 to 50 degree Celsius
* Storage temperature: -20 to 60 degree Celsius
* Environmental humidity: 10-95%
* Material: Metal, Electronic Parts
* Safety Compliance: CCC/ FCC / CE

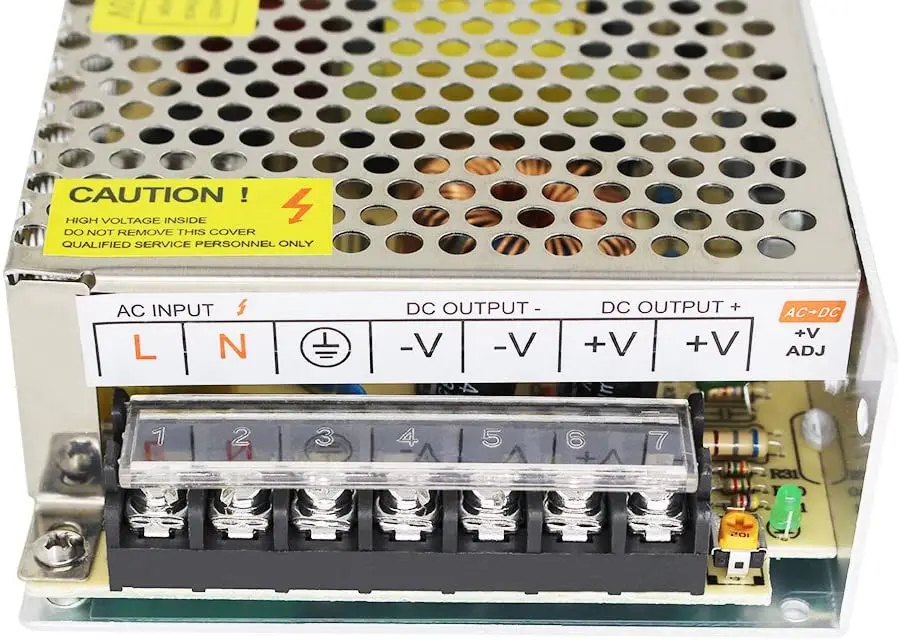

Connection instruction
* L: Live wire
* N: Negative wire
* +V: DC power output “+”
* -V: DC power output “-“
* +V ADJ: Adjust the output voltage (10%)
Kindly note
1. High Voltage inside, do not remove the cover.
2. It comes without installation instruction, wiring cable, on/off switch and screws. Professional Installation of qualified
electrician is highly recommended.
* Input: AC110V/220V 50/60Hz
* Output Voltage : DC 24V
* Output Current: 5A max
* Output Wattage: 120W max
* Fix Screw Hole Diameter: 2.5mm (0.1inch)
* Working temperature: -10 to 50 degree Celsius
* Storage temperature: -20 to 60 degree Celsius
* Environmental humidity: 10-95%
* Material: Metal, Electronic Parts
* Safety Compliance: CCC/ FCC / CE
Connection instruction
* L: Live wire
* N: Negative wire
* +V: DC power output “+”
* -V: DC power output “-“
* +V ADJ: Adjust the output voltage (10%)
Kindly note
1. High Voltage inside, do not remove the cover.
2. It comes without installation instruction, wiring cable, on/off switch and screws. Professional Installation of qualified
electrician is highly recommended.
