INDON Dump Semi Trailer Heavy Duty Used Or New Customized 5 Axles Hydraulic U Shape Hing Rear Dump Semi Trailer Truck For Sale
- Category: >>>
- Supplier: Tangshan Yingdong International Trading Co. Ltd.
Share on (10000005703549):
Product Overview
Description
Products Description

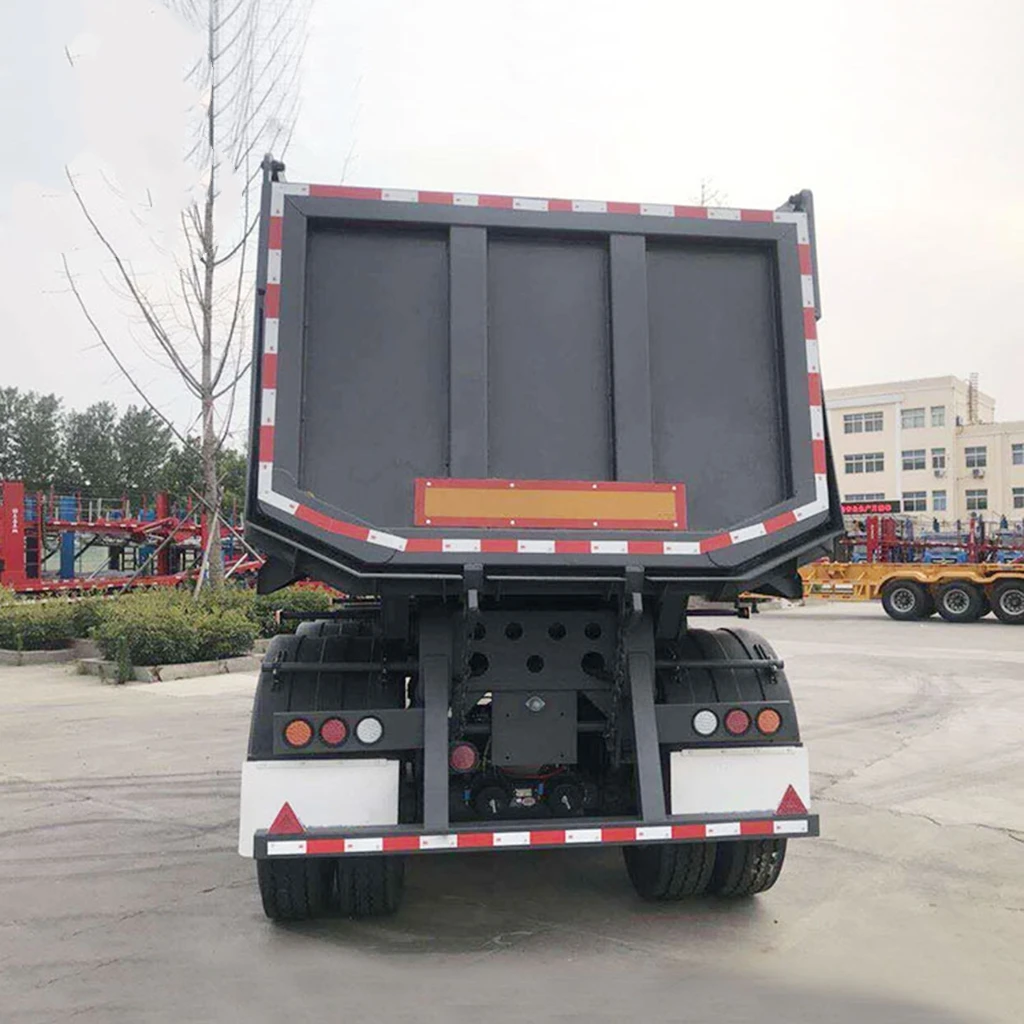

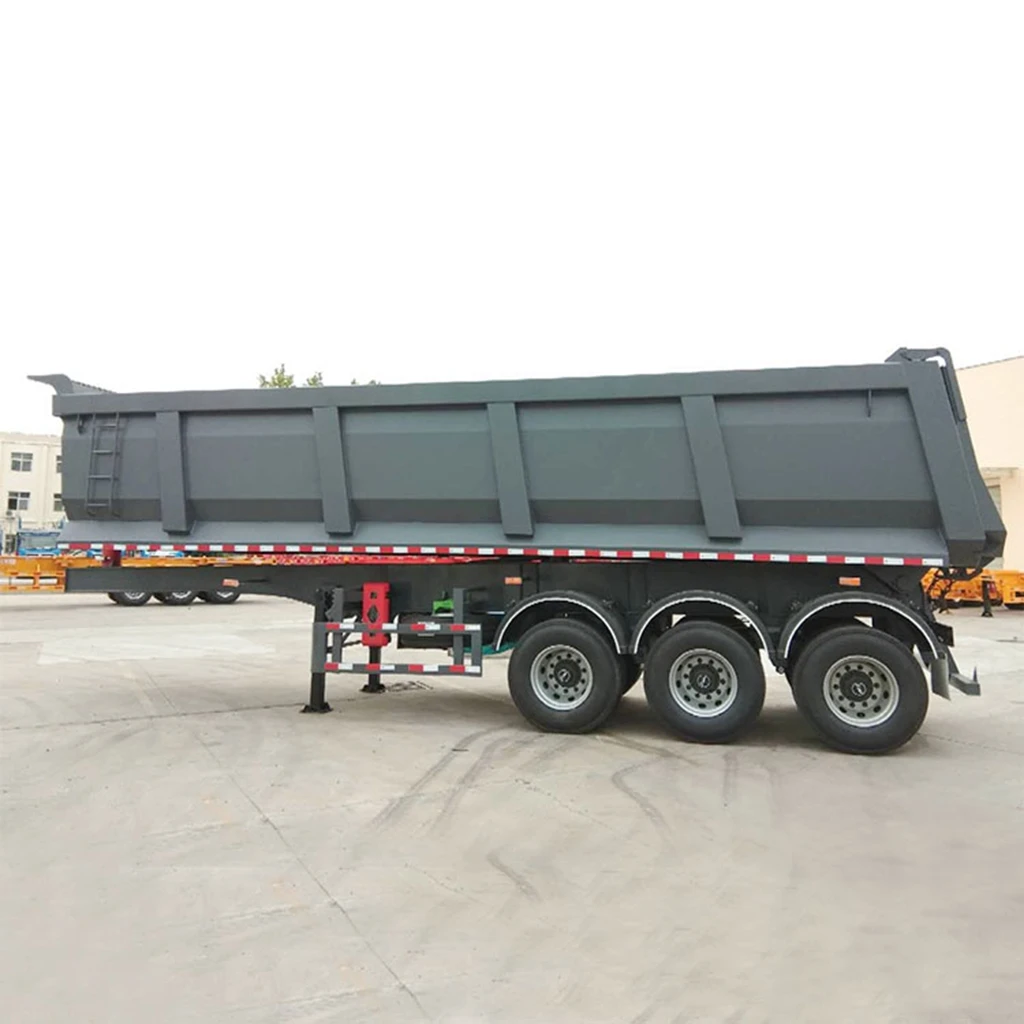

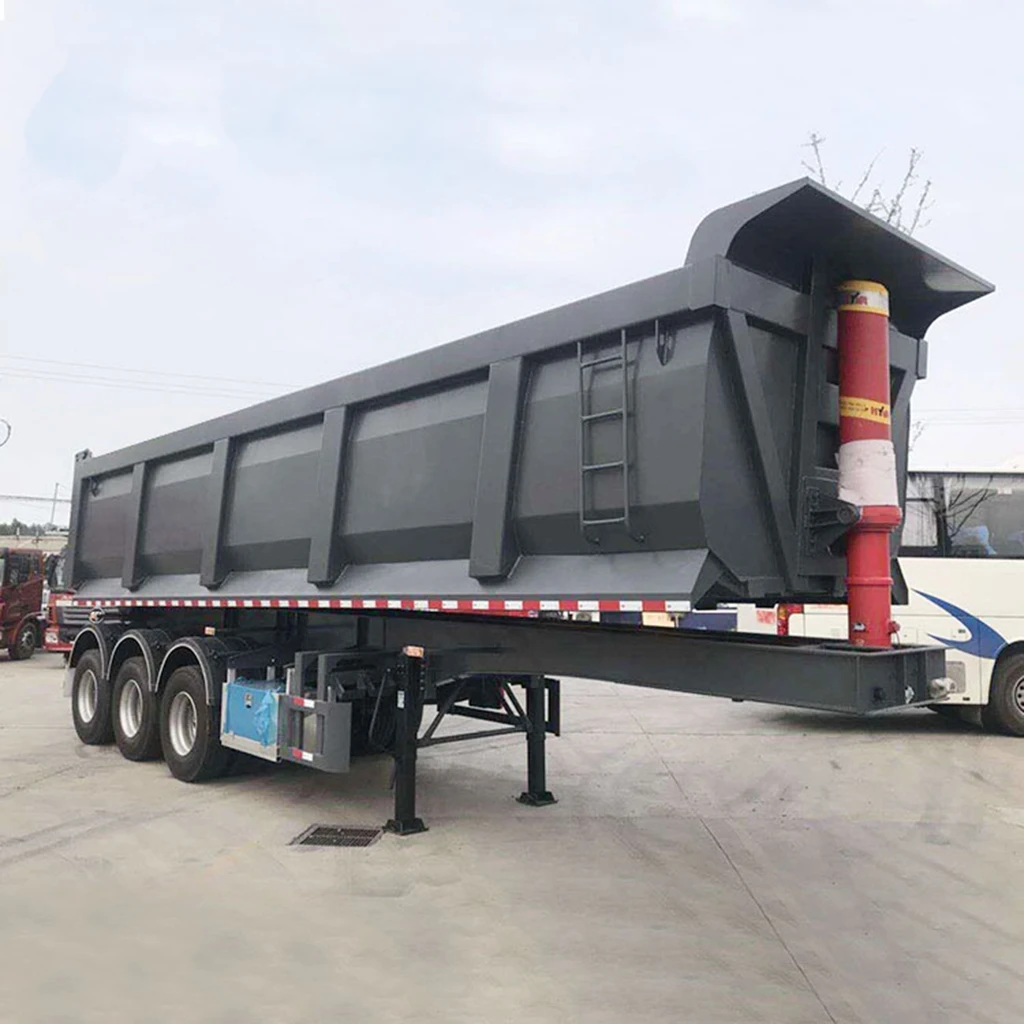

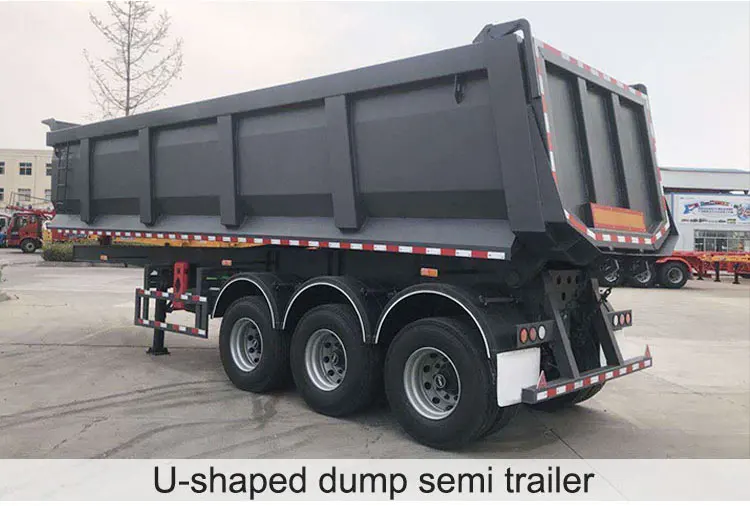

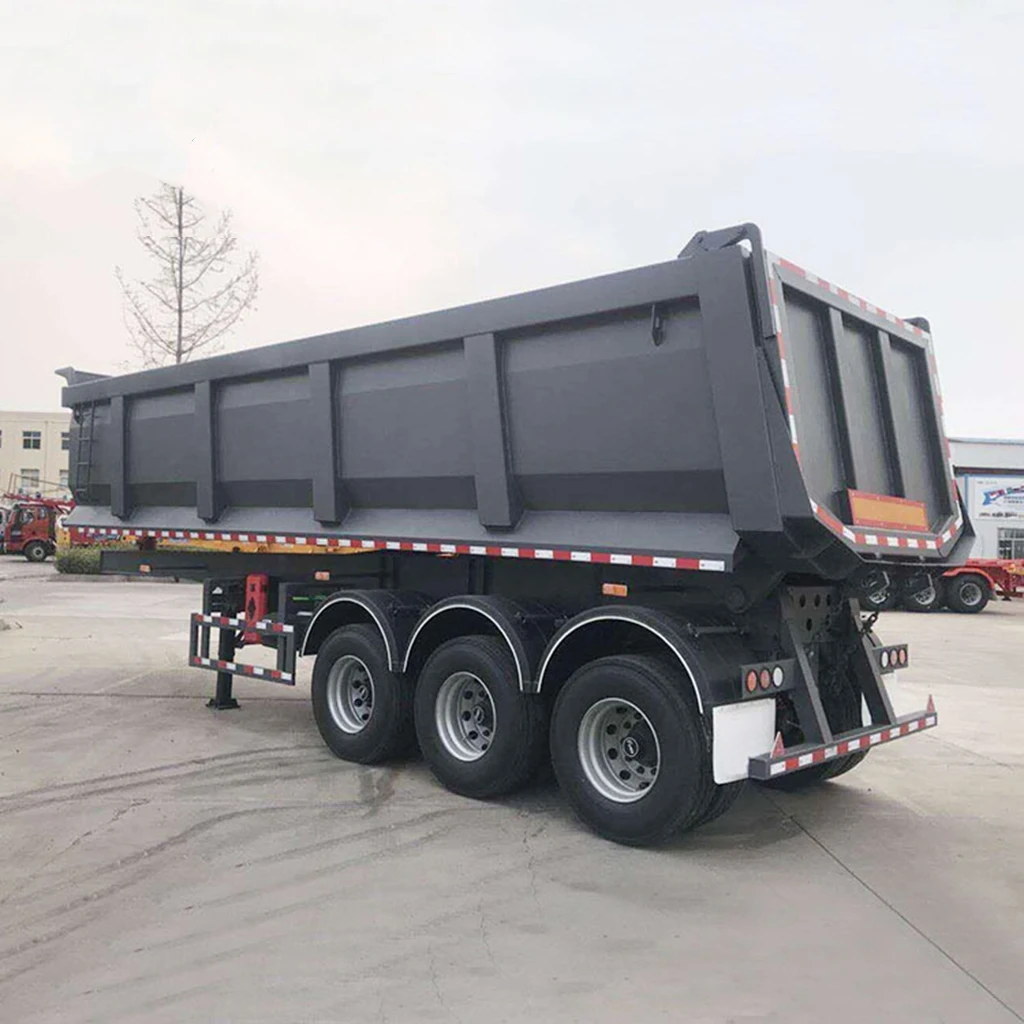

U-shaped 3 axle dump semi truck trailer

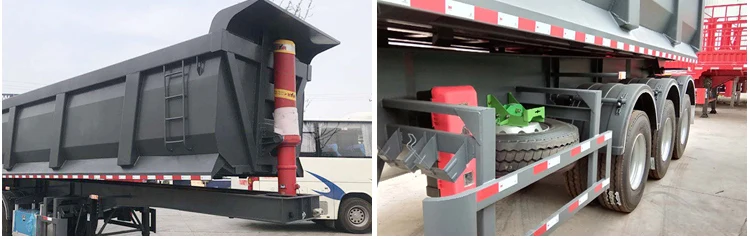

U-shaped dump semi trailer is used to transport of bulk cargo, coal, ore and build materials. The corner of U-shaped box doesn't exist dead ends, unloading more clean; Adopt T700 High strength plates to lower the tare weight; reduce the damage of ore head on the box; U-shaped structure of the lower center of gravity to avoid the goods spilled.We adopt world famous brand of parts, like JOST, WABCO braking valve, etc. We can also produce the semi trailers like lowbed trailer, flatbed trailer, skeleton trailer, fuel tanker trailer, bulk cement tank trailer, etc.
We are manufacturer, provide customized service, design as the customers’ every request. We have a professional trailer design department , rich production experience, short delivery time. Our factory has passed ISO9001 quality system certification. Our phone service 24 hours service for you. Our cooperation can be ODM or OEM mode.
Product Paramenters
Specification For Dump Trailer | ||
Type | Dump semi trailer | |
Semi trailer Dimension | 11280*2495*3970mm(can be customized) | |
Tare Weight | About 10-15T | |
Total Volume | 37m3 or less than 80tons | |
Side wall thicknes(mm) | 3mm-6mm Q235 steel | |
Bottom plate thickness(mm) | 5mm-8mm Q235steel or can be optional | |
Lifting system | Full set of Hyva(FC214-5-07130)Hydraulic Lifting Cylinder | |
Main beam | Q345B Steel | |
Axle | 13T/16T,FUWA/BPW/Huajing Brand | |
Spring leaf | 90(w)mm*13(thickness)mm*10Layer or 100mm*12mm*12 | |
King pin | Jost brand 2.0 0r 3.5 inch bolts type or welding type | |
Landing Gear | JOST brand C200T or China brand 28Tons (Double speed) | |
Suspension | Mechanical suspension/America Type/Germany Type | |
Rim | 9.00-22.5/8.00-20/8.5-20China Brand | |
Tire | 12.00R22.5/315 80R22.5/11.00R20/12.00R20 Various tire brands are available | |
Pneumatic Braking system | WABCO RE 6 relay valve;T30/30+T30 Spring brake chamber, 45L air tank | |
ABS | Optional | |
Tool box | One piece,1m*0.5m*0.5m(Size can be choose freely) | |
Painting | 1 coat of anticorrosive prime, 2coats of final paint | |
Any parts fitted could according to clients request, contact us to get more. | ||

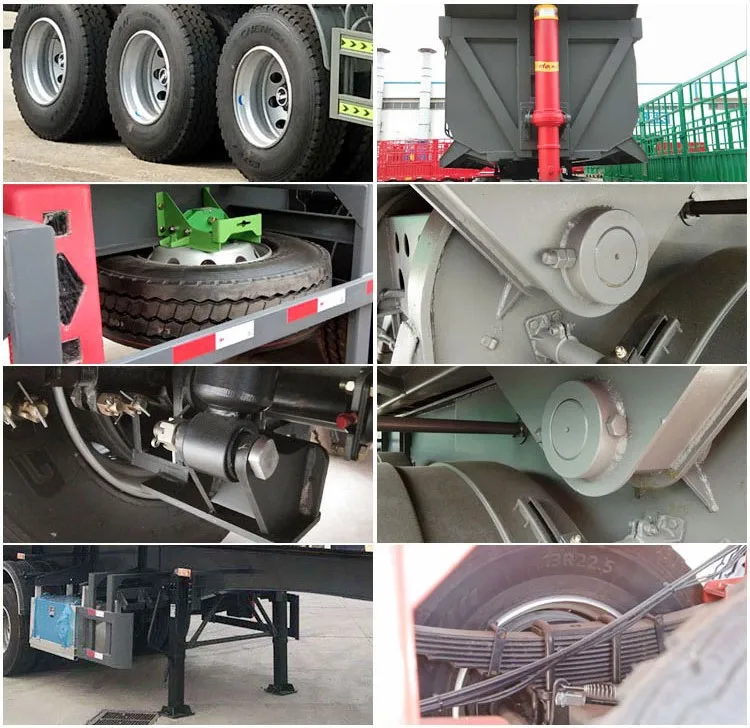

Product Advantages
1. High stength full thickness steel, which ensure Beam and frame’s toughness and strength. 2. H-beam for side beam instead of channel steel.
3. Strong Loading Capacity, 30-100 Tons Loading Range.
4. Tough ribs design, Ensure the safety and carrying capacity of trailer.
5. Stable and Long-Using Life Hydraulic Support System. HYVA Brand.
6. Rectangle Type or U Type Tanker Optional.
7. Trailer Main Parts Warranty Period Reach 12 Months.
3. Strong Loading Capacity, 30-100 Tons Loading Range.
4. Tough ribs design, Ensure the safety and carrying capacity of trailer.
5. Stable and Long-Using Life Hydraulic Support System. HYVA Brand.
6. Rectangle Type or U Type Tanker Optional.
7. Trailer Main Parts Warranty Period Reach 12 Months.
Application for Truck Trailer or Semi Trailer
1. This series container semi trailers are mainly suitable for the MID/Long distance transportation of Standard containers or ISO tank container,this series container semi trailer divides the flatbed.skeleton type etc.
Carrying for dry cargos, 1*40FT,2*20FT,1*20FT or 1*45FT etc. containers / High Quality Body/BPW, FUWA or Certificated Chinese Axles / ABS brake system / JOST or Chinese brand parking leg and king pin / Air and Mechanical Suspension / Strengthen the Chassis Instructure.
2. The capacity is for 50tons , we can manufacture it according to your needs.
3. The axles can be Fuwa / Bpw with different tonnages by your need with price differences.
4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc.
5. The loading deck can be concave beams, tire appeared cover, totally flatbed, or extendable.
6. The loading ramps can be rear end designed, or front loading ladders, which can be mechanic spring ladders and hydraulic loading ramps by different needs .
Additional information for Truck Trailer or Semi Trailer
1.The parameters of the truck trailer are just common configurations, not absolute.The specific configuration of thetruck trailer will be executed according to your needs.
2.We also do OEM and ODM.If you are interested in understanding our abilities and the truck trailer, we are always welcome.
3.The final price of all truck trailer is determined by the truck trailer configuration you choose.Therefore, if you are
interested in purchasing products, please contact us.
1. This series container semi trailers are mainly suitable for the MID/Long distance transportation of Standard containers or ISO tank container,this series container semi trailer divides the flatbed.skeleton type etc.
Carrying for dry cargos, 1*40FT,2*20FT,1*20FT or 1*45FT etc. containers / High Quality Body/BPW, FUWA or Certificated Chinese Axles / ABS brake system / JOST or Chinese brand parking leg and king pin / Air and Mechanical Suspension / Strengthen the Chassis Instructure.
2. The capacity is for 50tons , we can manufacture it according to your needs.
3. The axles can be Fuwa / Bpw with different tonnages by your need with price differences.
4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc.
5. The loading deck can be concave beams, tire appeared cover, totally flatbed, or extendable.
6. The loading ramps can be rear end designed, or front loading ladders, which can be mechanic spring ladders and hydraulic loading ramps by different needs .
Additional information for Truck Trailer or Semi Trailer
1.The parameters of the truck trailer are just common configurations, not absolute.The specific configuration of thetruck trailer will be executed according to your needs.
2.We also do OEM and ODM.If you are interested in understanding our abilities and the truck trailer, we are always welcome.
3.The final price of all truck trailer is determined by the truck trailer configuration you choose.Therefore, if you are
interested in purchasing products, please contact us.

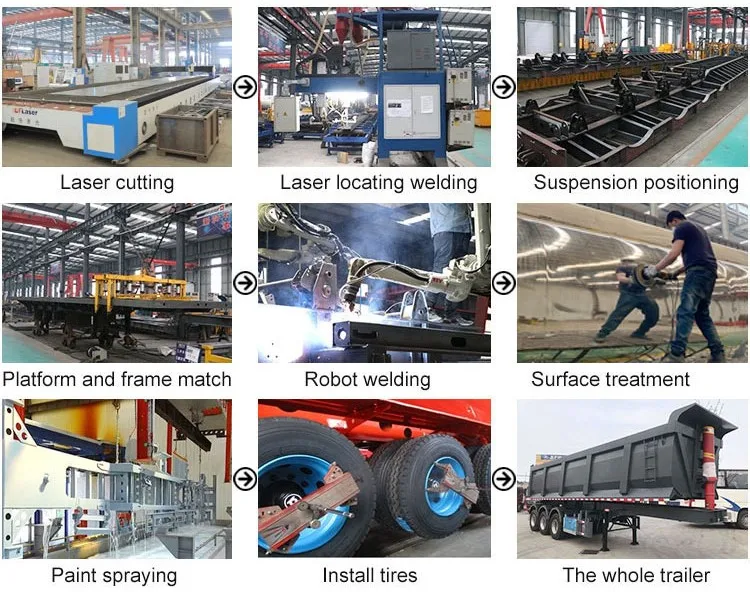

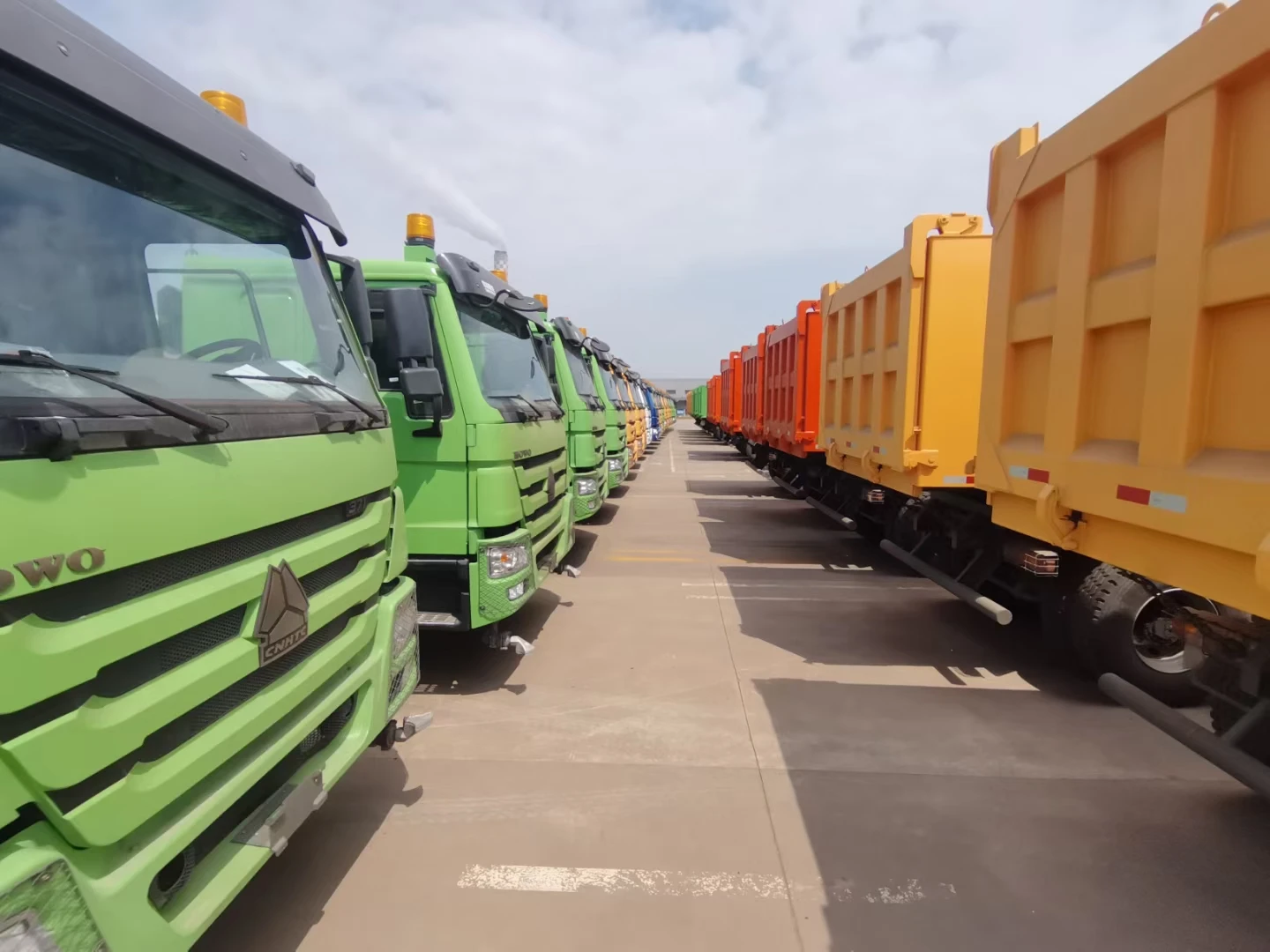

Production Line
Certifications

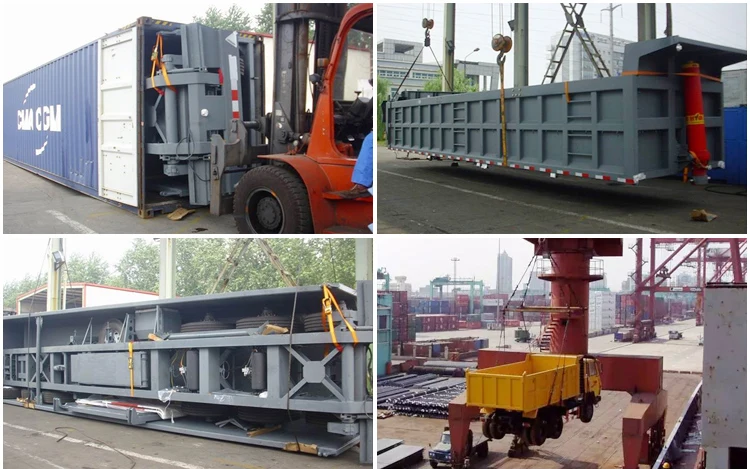

Packing & Shipping
We usually adopt shipping by bulk cargo, flat rack, container container and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trailers will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time:10-20 working days after payment receipt confirmed (based on actual quantity).
Packing:Standard export packing, or customized packing as your request.
Professional goods shipping forwarder.

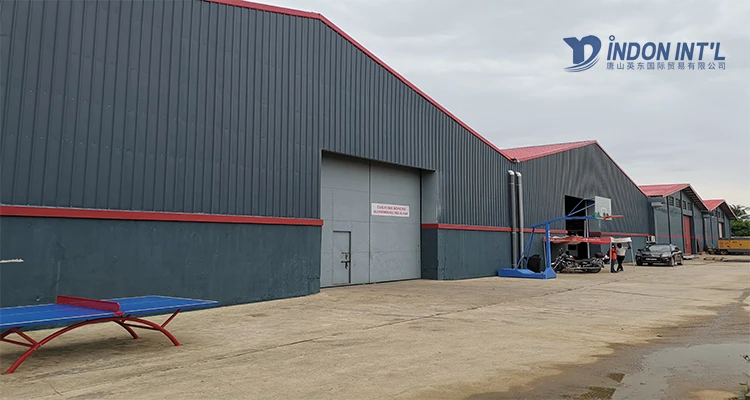

Company Introduction
Established in 2008, Tangshan YingDong is one of the biggest truck tipper exporter in china. Located in Bohai Economic Rim of China, near to the Jingtang Port and Tianjin Port, fast cargo loading and land freight saving.
One-stop shop of truck tipper, meet all of your requirements.
Indepent Logistic in Air, train and sea, offer best service with good quality.
YingDong is accredited with ISO9001-2000 quality system authentication, owning a professional and strict technical inspection team to ensure the quality by tracking whole course from production to shipment. This guarantee our customers could get the best quality products and best business relationship with us.
Our Service
1. Advanced equipment and rich experience workers are applied during the whole producing process to ensure the quality of Low bed semi trailer.
2. We have passed ISO9001:2008, CCC, BV, SGS, TUV.
3. We have more than 20 years of experience and a strong team of engineers, we are manufacturer, we could design the product according to your special requirements.
4. We have rest assured after-sales service.
2. We have passed ISO9001:2008, CCC, BV, SGS, TUV.
3. We have more than 20 years of experience and a strong team of engineers, we are manufacturer, we could design the product according to your special requirements.
4. We have rest assured after-sales service.
FAQ
Our products are manufactured in strict accordance with national and international standards, and we test each product before delivery. If you would like to view our quality certification and various test reports, please contact us.
We are a factory and able to give you the lowest price. Please trust the quotation we would give you, and it is professional one.
Choosing us happens because of quality, then price, and we can give you both. Additionally, we can also offer professional products inquiry,products knowledge train(for agents), smooth goods delivery, excellent customer solution proposals.
Our company supports Alibaba online trading, which not only ensures the safety of the buyer's funds, but also guarantees the quality of the goods. From the outbound, to the loading, and finally to the receiving, the whole process is transparent.
We are a factory with a large inventory of stock, which guarantees that the goods will be shipped within the shortest time from the date of signing the contract.
We can provide samples for buyer's testing free of charge, but buyers need to pay for shipping costs.
