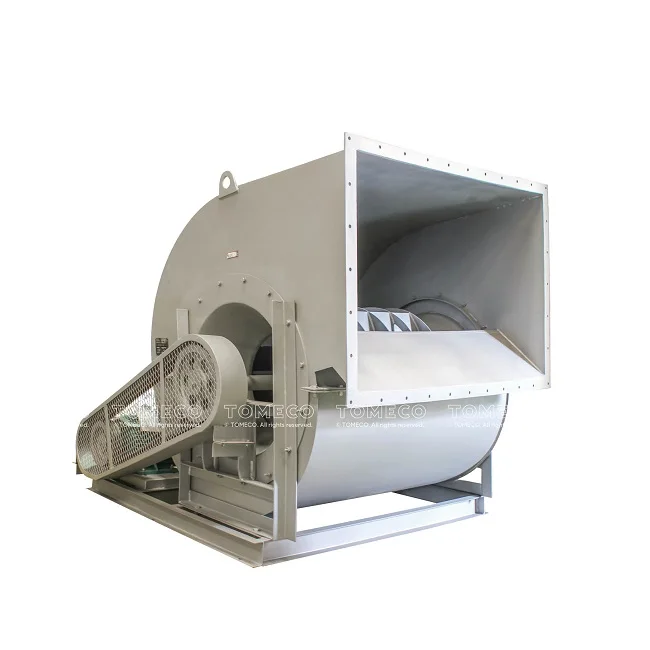

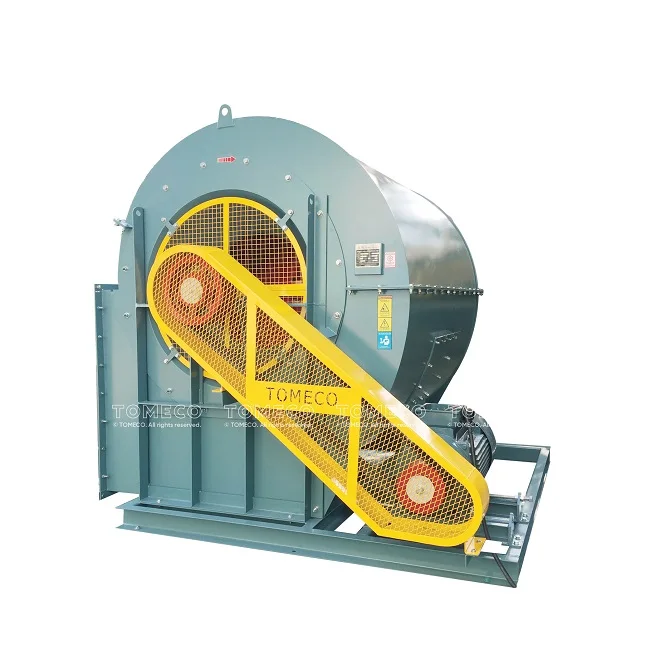

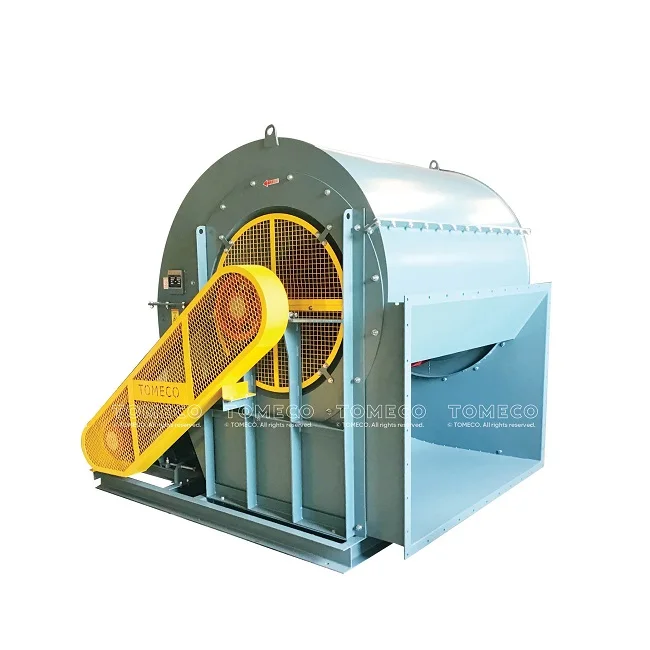

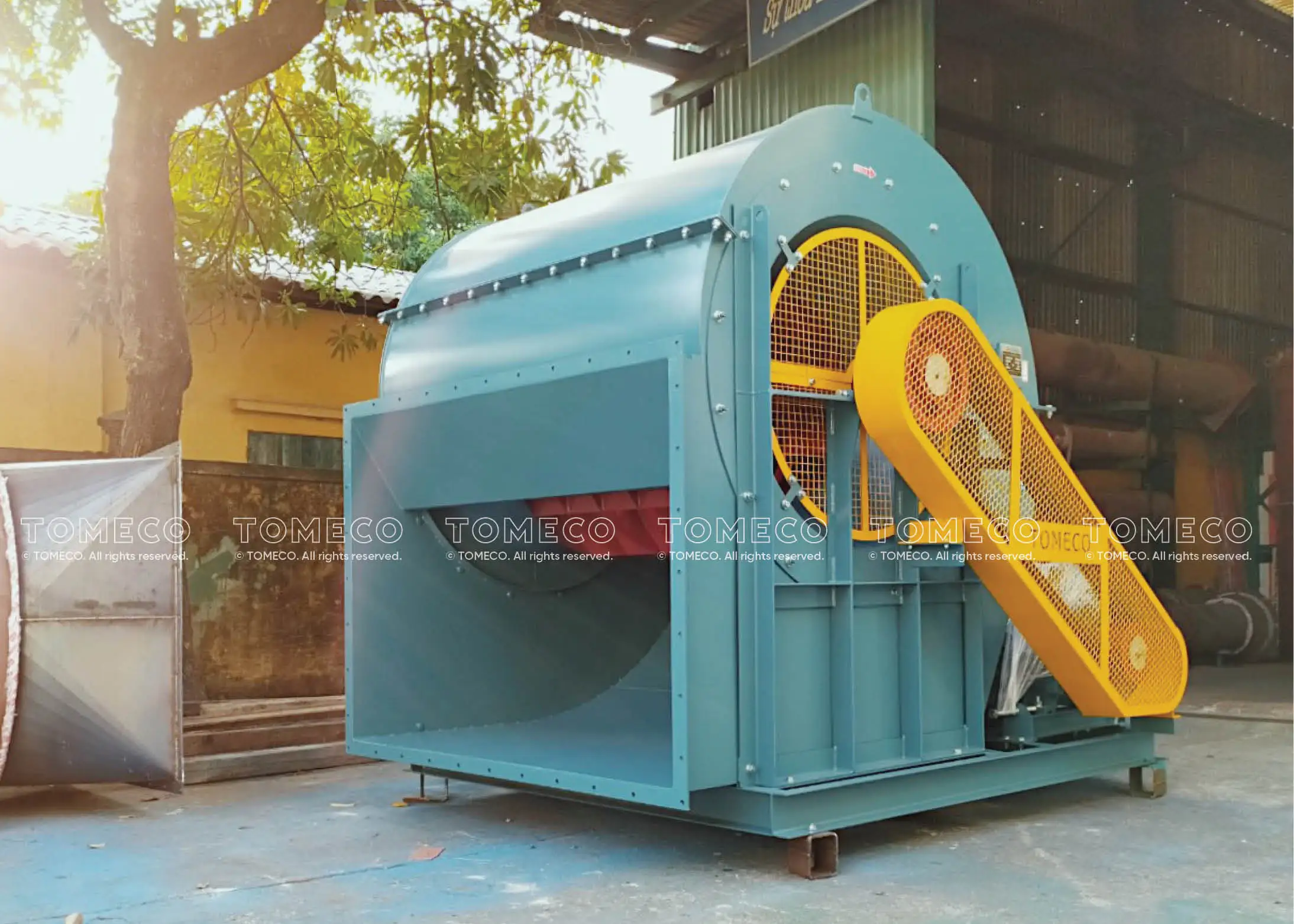

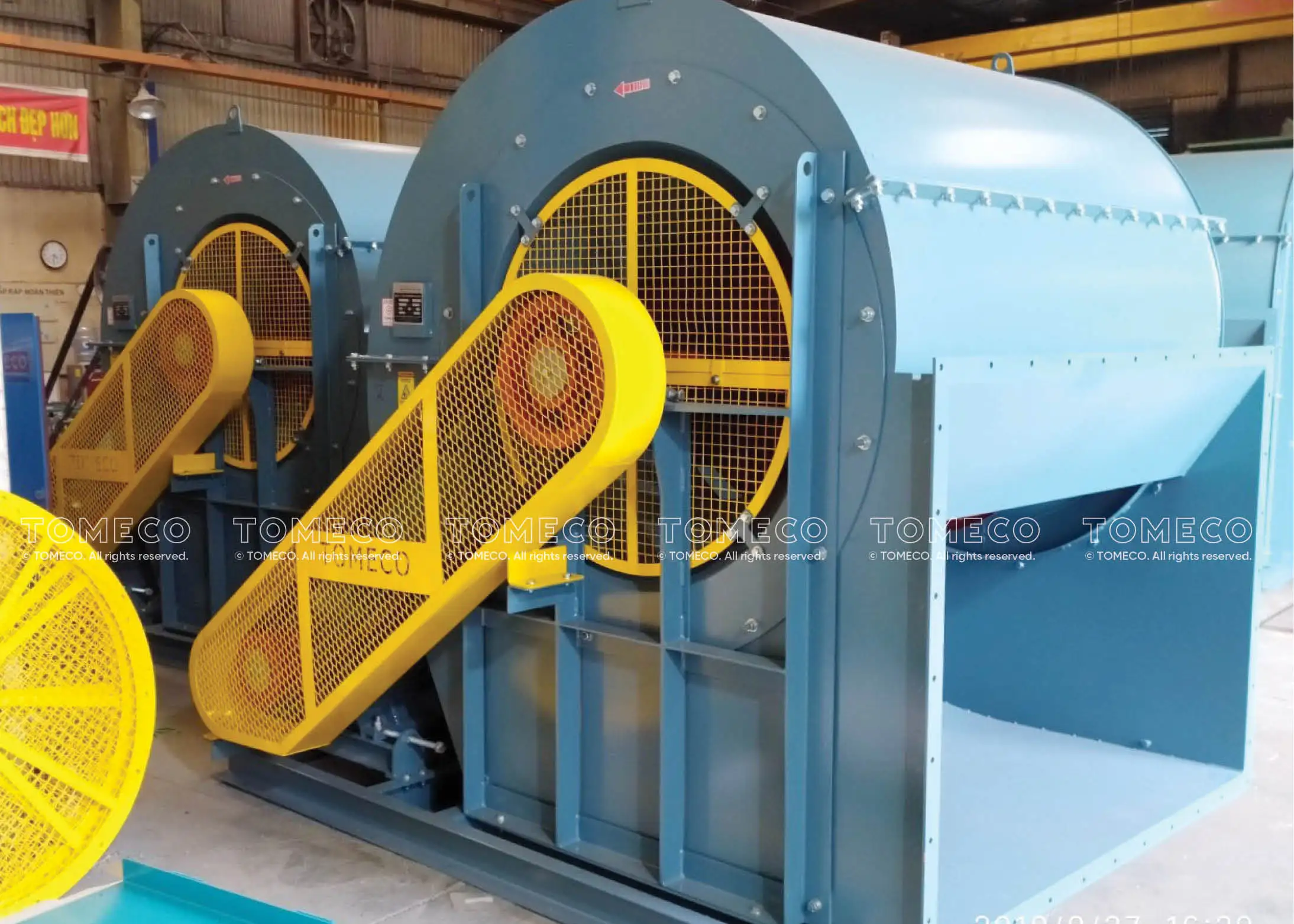

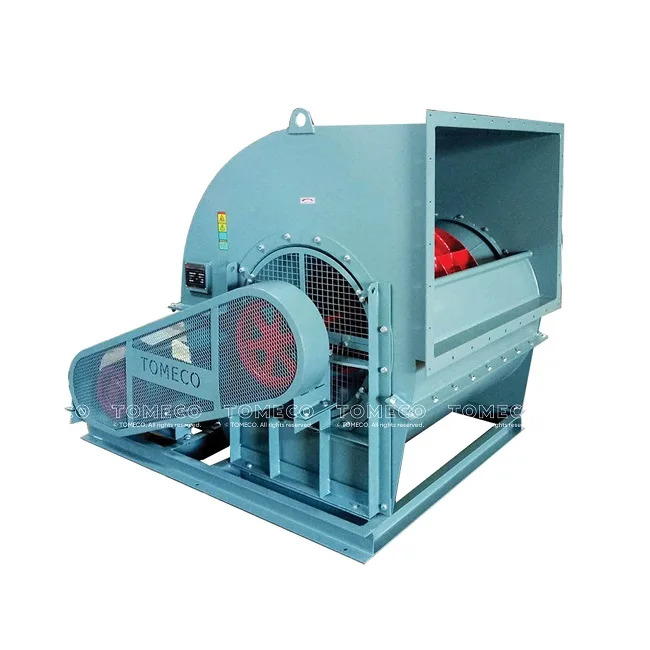

FACTORY WORKSHOP INDUSTRIAL DOUBLE WIDTH DOUBLE INLET BELT DRIVE CENTRIFUGAL FAN CFC.LQ01 2X SERIES
- Category: >>>
- Supplier: TOMECO MECHANIC ELECTRICAL JOINT STOCK COMPANY
Share on (10000005717064):
Product Overview
Description

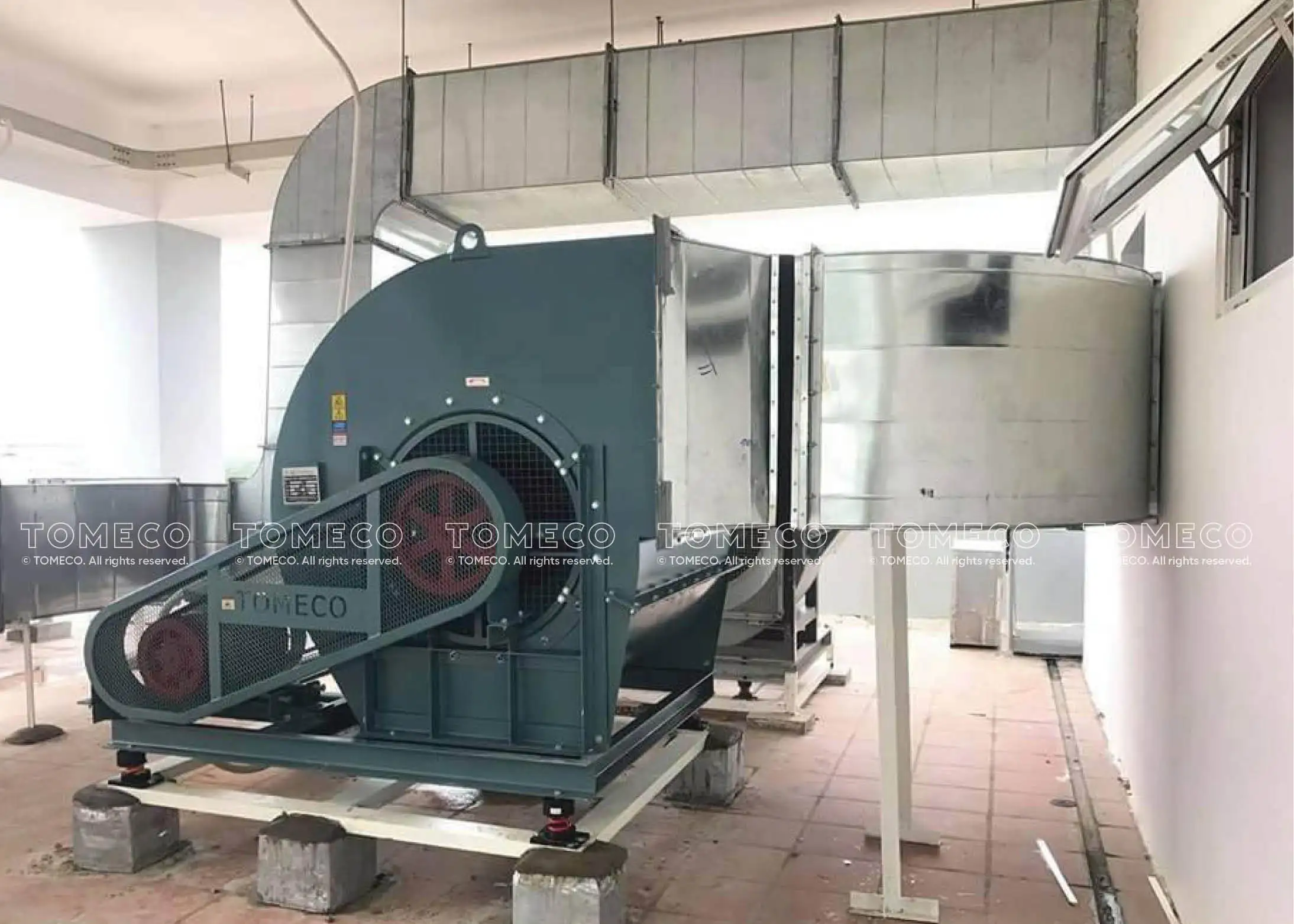

Product Photo
Application

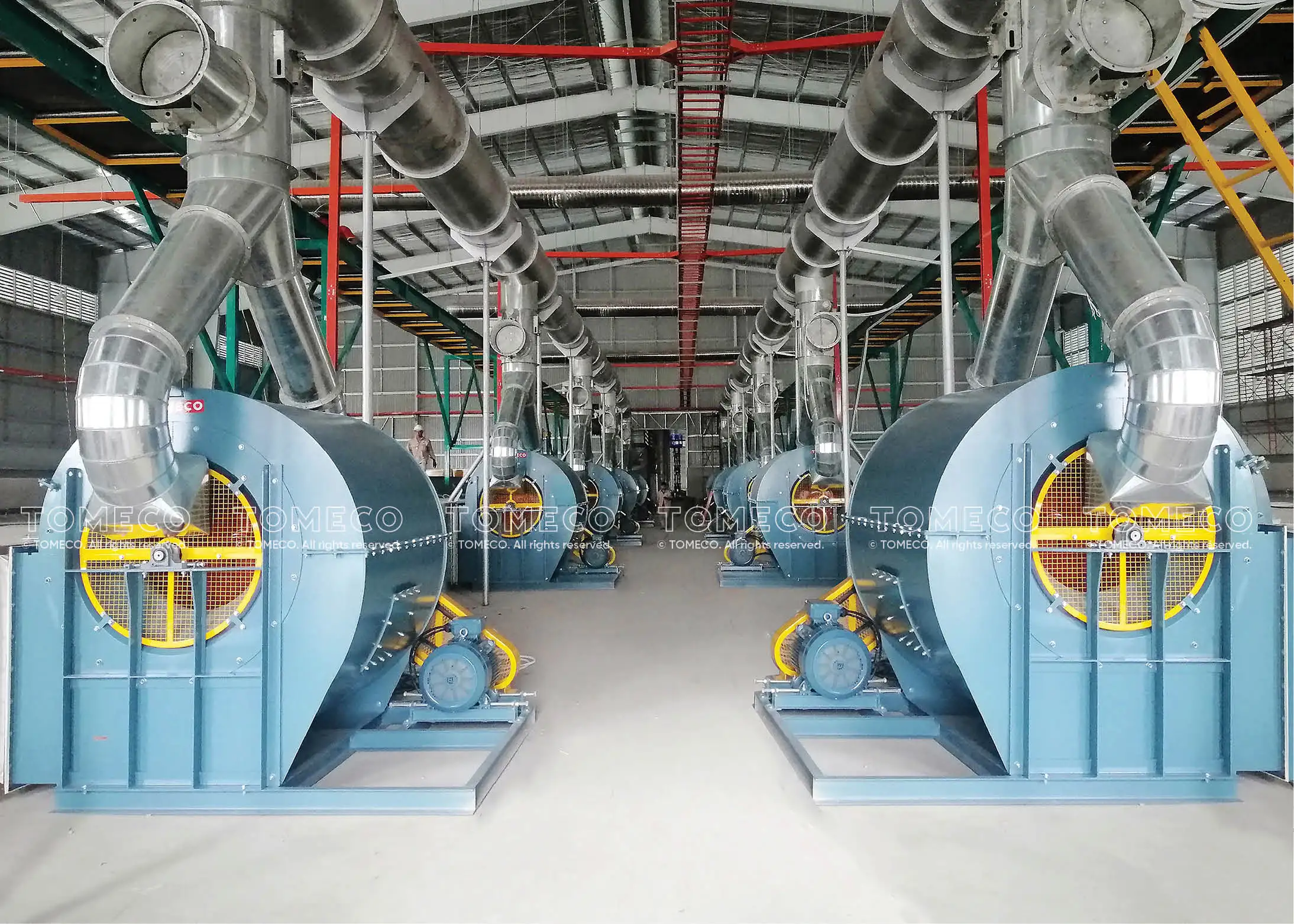

The CFC.LQ01-2X belt drive double with - double inlet centrifugal fan products designed and manufactured by TOMECO are widely applied to the needs:
This series of double suction fans with rotor with reversed curved blades, which therefore has very high outputs, finds a wide use in the suction of vitiated air, solvents steams, danferous gasses; aeration of forages and cereals in the silos and buildings; tiles and ceramics drying, etc. In all those applications where the transport of air , gasses or fumes at a temperature of 40°C max at low pressure is required.
With the use of bearings with clearance C3 it is possible to effect the suction of fluids at a temperature higher than 40°C up to max 80°C.
operation. Fans are dynamically balanced and calibrated on a digital dynamic balancer, in accordance with ISO 10816. Materials and important components such as motors and bearings are imported from international manufacturer.
Use: for the suction of elevated volumes of clean or slightly dusty air in the civil and industrial conditioning plants.
This series of double suction fans with rotor with reversed curved blades, which therefore has very high outputs, finds a wide use in the suction of vitiated air, solvents steams, danferous gasses; aeration of forages and cereals in the silos and buildings; tiles and ceramics drying, etc. In all those applications where the transport of air , gasses or fumes at a temperature of 40°C max at low pressure is required.
With the use of bearings with clearance C3 it is possible to effect the suction of fluids at a temperature higher than 40°C up to max 80°C.
PREMIUM CHARACTERISTICS
Meeting all the demands of large flow: The superior design with dual blades and two intakes allows the LQ01-2X product lines to achieve flow parameters up to over 500,000 m3/h with advantages in size and capacity.
High efficiency - energy saving: The blades are designed and engineered with a rear-curved aerodynamic profile to help TOMECO's dual-suction and dual-blade fan products operate with outstanding efficiency. up to 83%.
Quiet operation - low noise: The inboard blade design with two side supports helps the fan achieve maximum reliability in
operation. Fans are dynamically balanced and calibrated on a digital dynamic balancer, in accordance with ISO 10816. Materials and important components such as motors and bearings are imported from international manufacturer.
Durable in all harsh operating conditions: Depending on the degree of corrosion, chemical composition, temperature and humidity of the gas stream, TOMECO can propose solutions to choose materials such as wear-resistant steel. , stainless steel,...
Technical Specifications
Air volume | 3.000-90.000 | m3/h |
Pressure | 500-100 | Pa |
Motor power | 0,25-37 | kW |
Speed | 325-2.920 | Rpm |
Impeller diameter | 400-1.500 | mm |
Voltage | 220/1/50 or 380/3/50 | V/Ph/Hz |
CONFIGURATION
Material | SS400/SUS201/SUS304/SUS316 |
Drive type | Belt Drive |
Motor brand | ABB/SIEMENS/WEG/HEM(VIETNAM) |
Motor type | Foot mount |
Impeller design | Propeller Axial Impeller |
Finish | Powder coated, Epoxy coated, hot dip galvanized |

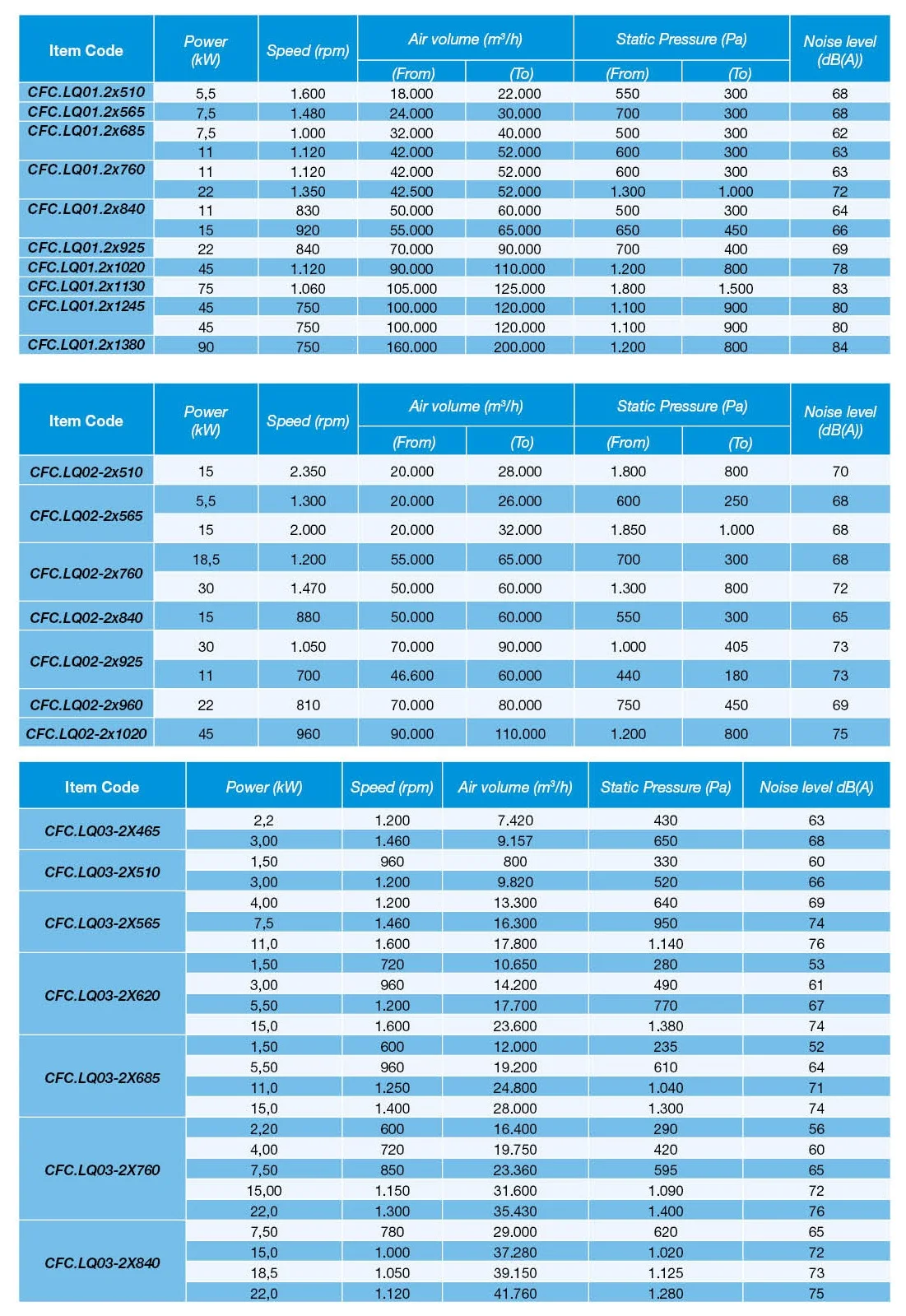

TECHNICAL DATA TABLE
Accessories
Inlet & outlet flexible duct
Spring vibration isolator
Inlet & outlet silencer
Inlet & outlet damper
