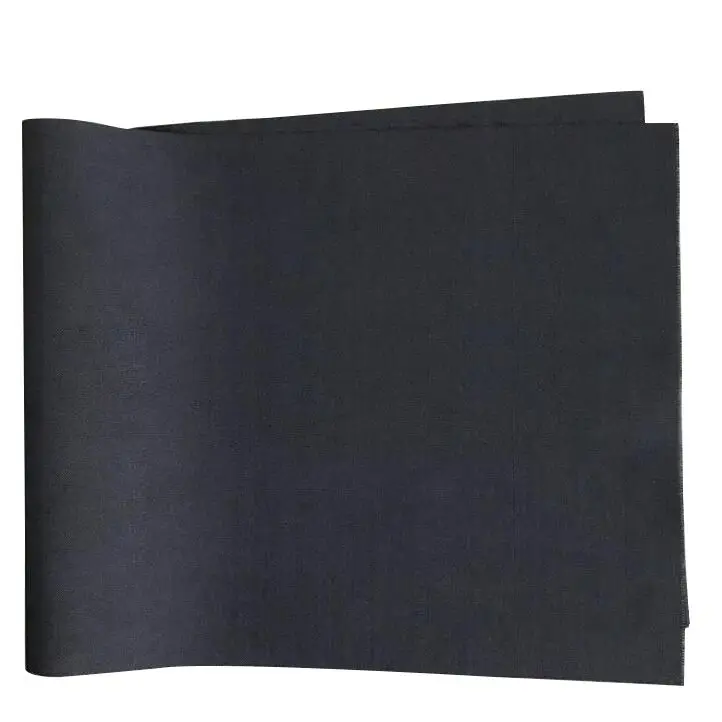

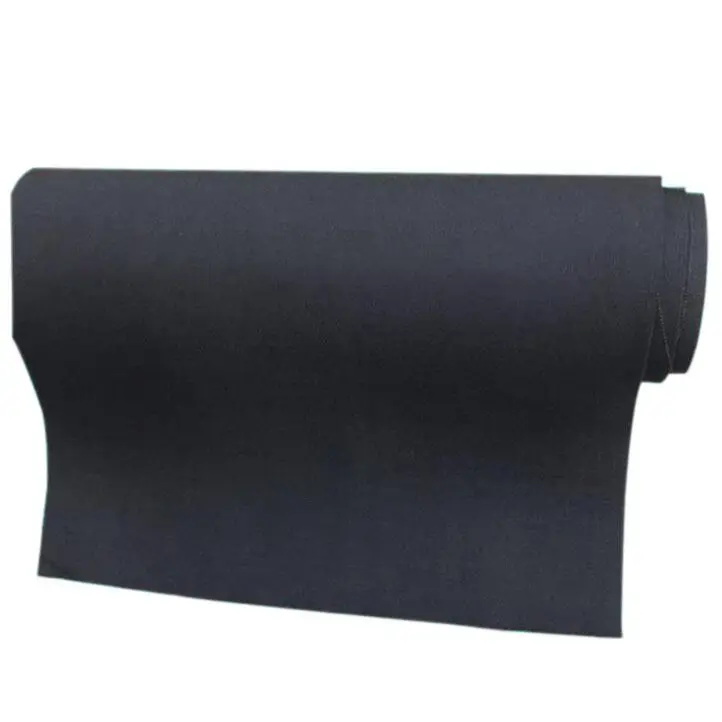

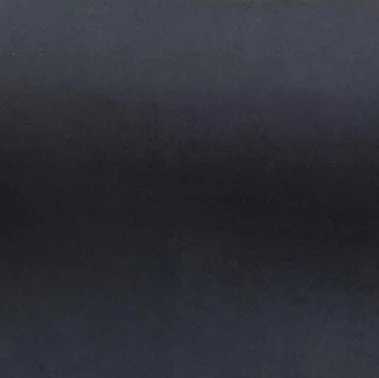

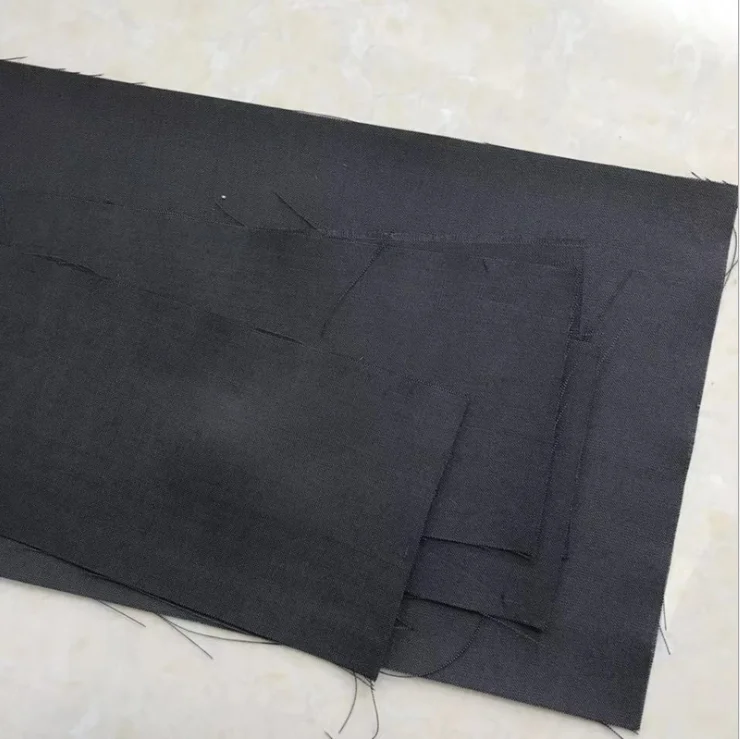

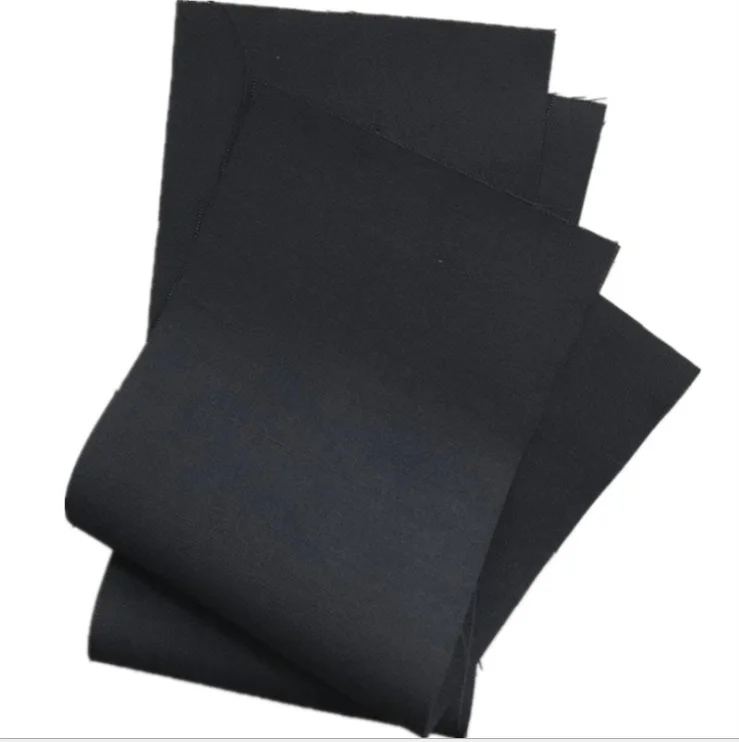

Electrical Conductive Carbon Fiber Fabric or Non woven Carbon Cloth
- Category: >>>
- Supplier: Xiamen Zopin New Material Limited
Share on (10000005737702):
Product Overview
Description
Product Description
Description:
Carbon Cloth- Graphitized Spun Yarn Carbon Fabrics
WOVEN CARBON FABRICS are carbon fiber fabrics made from spun yarn. Fabric tailor-ability results from controlling the yield on weaving and yarn, and allows for a variety of finished composite thicknesses.
The spun yarns have many surface fibrils that protrude in various directions at various lengths from the surface. This fiber loft contributes to high cross ply tensile and inter-laminar shear strengths for 2 D composite materials. Contour conformation without wrinkling is another advantage of spun yarn fabrics.
Materials undergo a vacuum graphitizing process and long temperature soak, resulting in a very thermally stable and chemically pure fabric with low oxidation rate.
WOVEN FABRICS include low cost carbon, carbon materials and other processes where efficient chemical vapor infiltration or prepregging is required.
Standard wet proofing is 5%.
Carbon Cloth- Graphitized Spun Yarn Carbon Fabrics
WOVEN CARBON FABRICS are carbon fiber fabrics made from spun yarn. Fabric tailor-ability results from controlling the yield on weaving and yarn, and allows for a variety of finished composite thicknesses.
The spun yarns have many surface fibrils that protrude in various directions at various lengths from the surface. This fiber loft contributes to high cross ply tensile and inter-laminar shear strengths for 2 D composite materials. Contour conformation without wrinkling is another advantage of spun yarn fabrics.
Materials undergo a vacuum graphitizing process and long temperature soak, resulting in a very thermally stable and chemically pure fabric with low oxidation rate.
WOVEN FABRICS include low cost carbon, carbon materials and other processes where efficient chemical vapor infiltration or prepregging is required.
Standard wet proofing is 5%.
W0S1009-18080202 | ||||||||||
Actually measure a value | AVG. | |||||||||
Thickness(mm) | 0.32 | 0.31 | 0.32 | 0.31 | ||||||
0.30 | 0.30 | 0.31 | ||||||||
Nominal Basis Weight (g/m2) | 116 | 112 | 115 | 114 | ||||||
Air Permeability (Gurley) | 1.68 | 2.31 | 1.86 | 1.95 | ||||||
Resistance (mΩcm2) (Through Plane) | 2.69 | 2.70 | 2.61 | 2.67 | ||||||
Tensile Strength (N/cm) | MD | 13.8 | 20.4 | 19.0 | 17.73 | |||||
XD | 12.3 | 14.2 | 13.2 | 13.23 | ||||||
Company Profile
Cooperative Partner
Customers Feedback
Package & Transport
FAQ
Q1：What is the pore size on the foam and what is the PPI range？
A：100um<pore size<10mm, PPI range is 5ppi-500ppi.
Q2：Do you accept credit card payment?
A：We accept any payment method, credit card, bank transfer, Paypal, etc.
Q3：Can you customize the size and shape？
A：Yes, we accept customization, not only the size and shape, but also PPI or porosity and pore size.
Q4：Can I place one small order for first time to test the quality?
A：Small order are also welcomed.
Q5：Can I visit your factory?
A：Your are welcomed to visit our factory，and we offer free hotel and free car.
A：100um<pore size<10mm, PPI range is 5ppi-500ppi.
Q2：Do you accept credit card payment?
A：We accept any payment method, credit card, bank transfer, Paypal, etc.
Q3：Can you customize the size and shape？
A：Yes, we accept customization, not only the size and shape, but also PPI or porosity and pore size.
Q4：Can I place one small order for first time to test the quality?
A：Small order are also welcomed.
Q5：Can I visit your factory?
A：Your are welcomed to visit our factory，and we offer free hotel and free car.
