Product Overview
Description
Products Description
DeviceGateway DGW-W710 - Data Access Unit for IoT
Feature
DeviceGateway is a unit which can gather production information and bridge to IoT services.
It enables to build an IoT system in a short time.
●PC less
Ideal for embedded applications with its small casing. Also suitable for replacing from Windows PC.

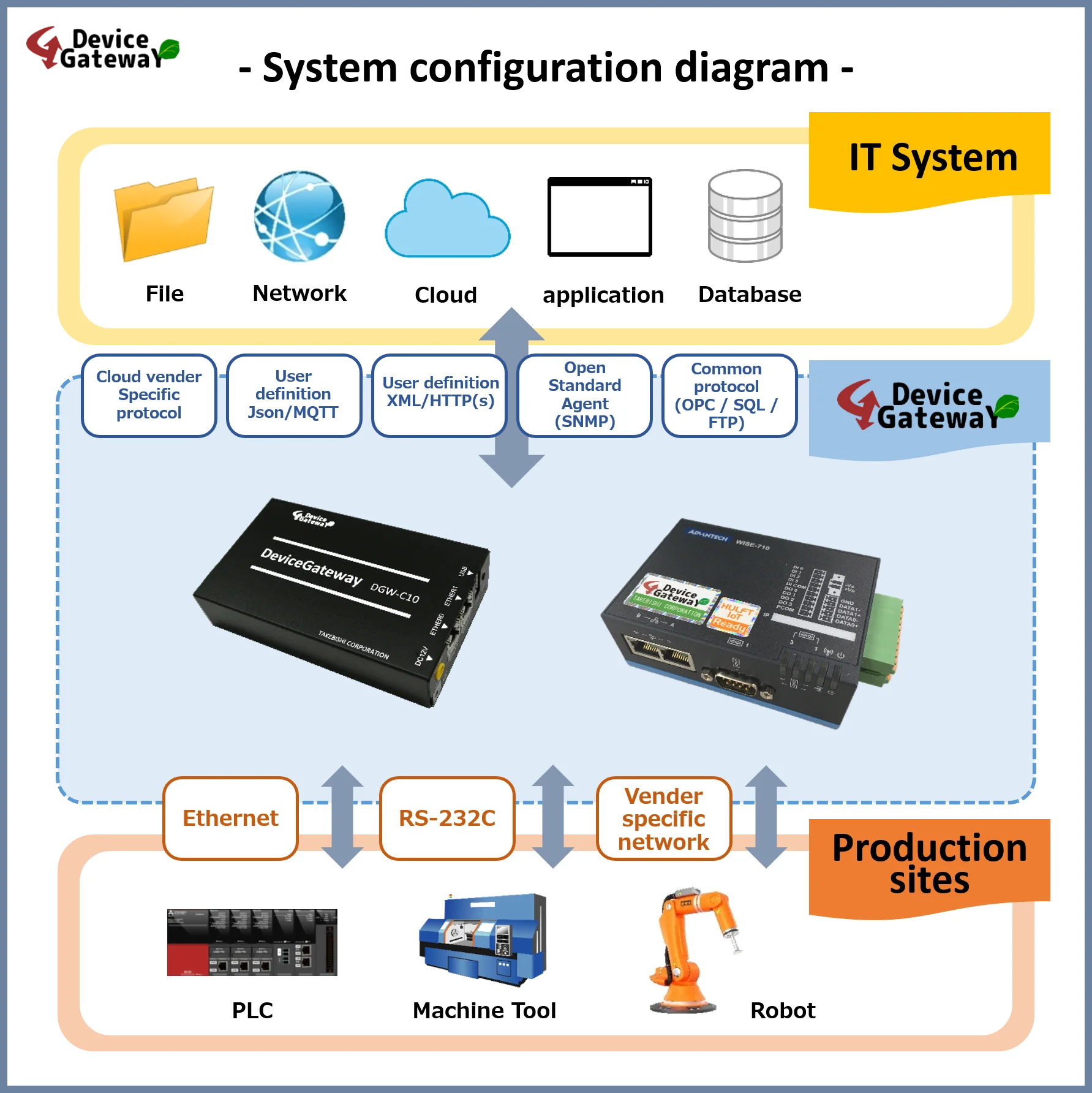

●IoT communication
Implemented servers of OPC UA, FTP, and SNMP Agent,
and clients of MQTT, HTTP(S), SQL, FTP and AWS Kinesis, HULFT IoT agent, MotionBoard and MindSphere.
●Supported cloud system
Amazon Web Services, Microsoft Azure, Google Cloud Platform, Alibaba Cloud, SIEMENS MindSphere, WingArc1st MotionBoard Cloud
and FUJITSU COLMINA etc. We have already tested with many cloud services.
●Event function
You can configure event settings that actions are executed when trigger is satisfied.
- Trigger :Cycle, Time, Changing value, Received MQTT, Tag Alarm Change, Beacon detection etc.
- Action :Loop, Jump, Compare, Edit Text, Calculate, Get CSV Element, Get Json Elements, Write Value,
Send MQTT, Send HTTP, Send SQL, FTP Upload, Send Kinesis, Write File e.g.

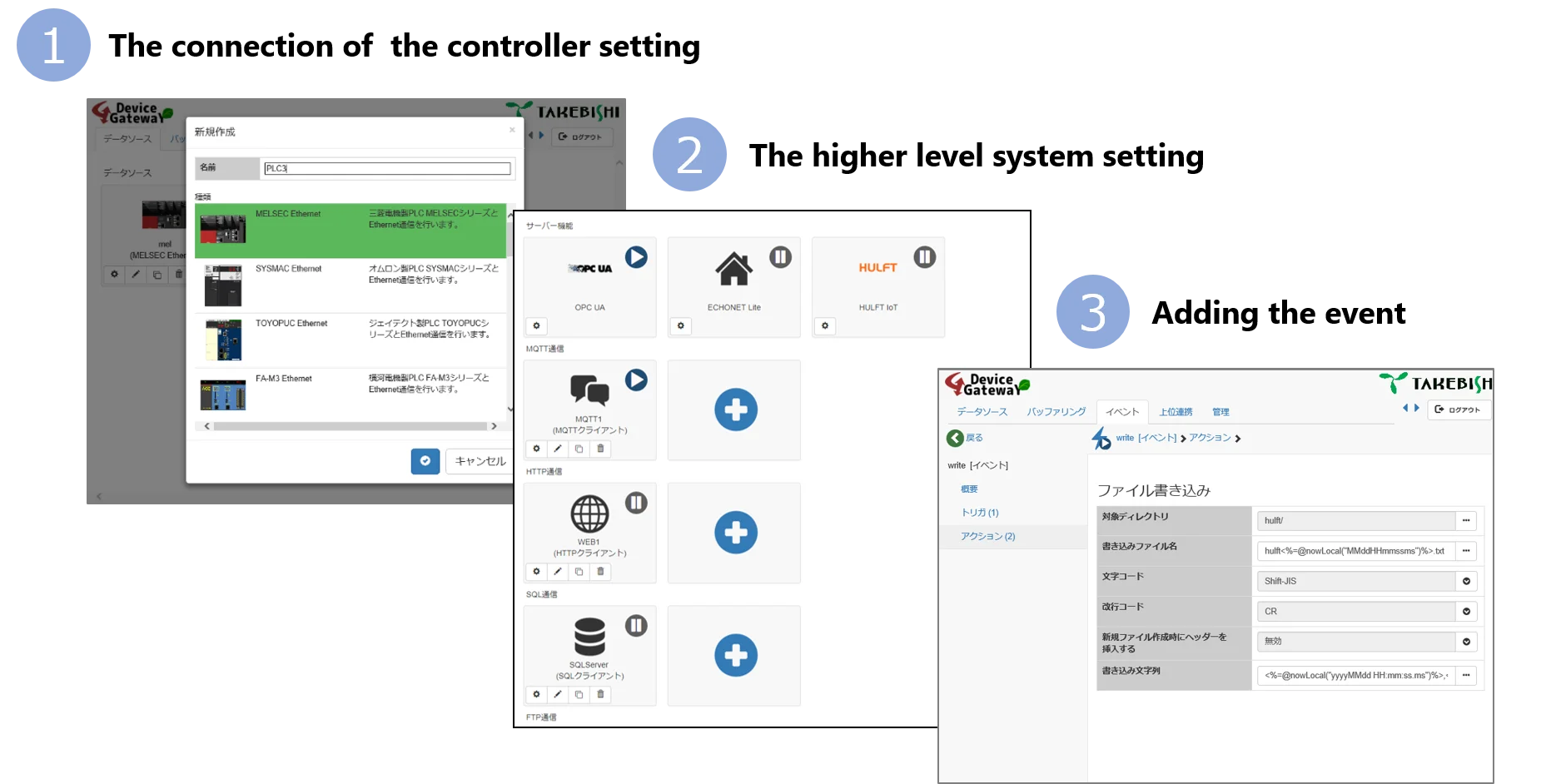

●User Interface
You can configure all setting on web browser.

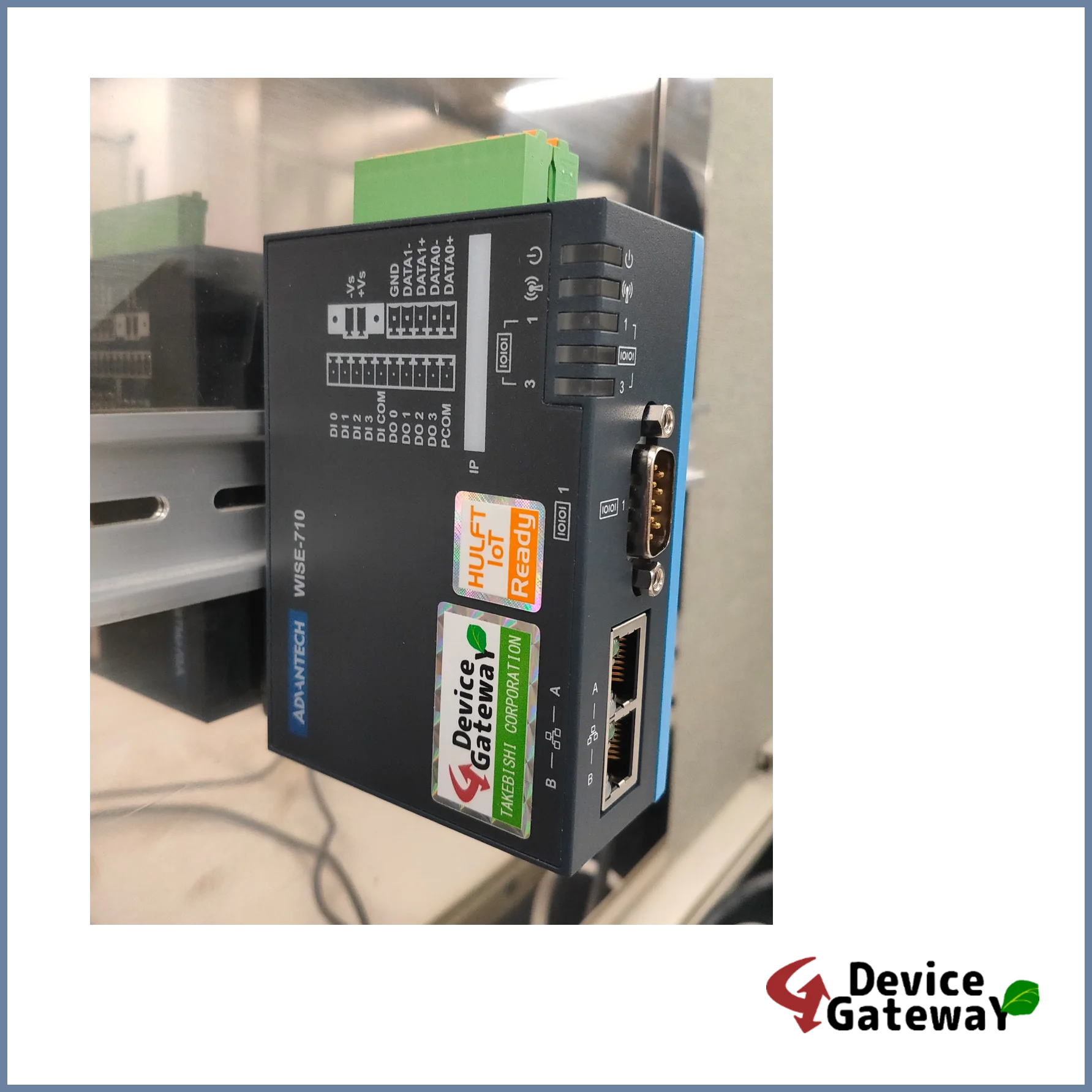

DGW-W710
- CCC exemption application completed
-Safety standards (CE / FCC / UL)
-Equipped with DIO terminal (Input 4ch/Output 4ch)
-Wide temperature tolerance (-20 to 55 ℃)

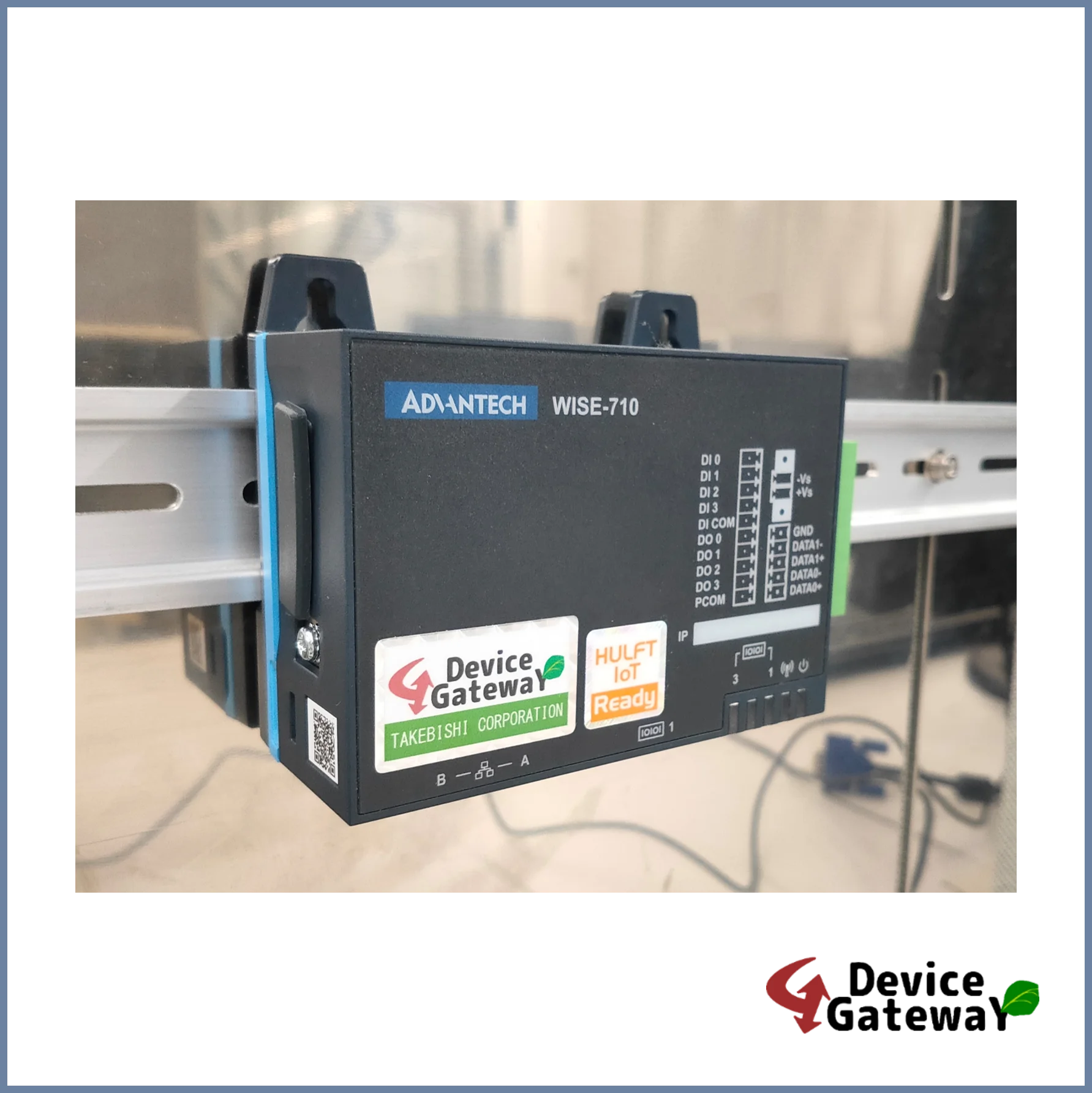

-DIN rail attachable
-3 serial ports (RS232C x 1, RS485 x 2)
- Max 8 devices connection
- Max 8,192 tags
DeviceGateway is a unit which can gather production information and bridge to IoT services.
It enables to build an IoT system in a short time.
●PC less
Ideal for embedded applications with its small casing. Also suitable for replacing from Windows PC.
●IoT communication
Implemented servers of OPC UA, FTP, and SNMP Agent,
and clients of MQTT, HTTP(S), SQL, FTP and AWS Kinesis, HULFT IoT agent, MotionBoard and MindSphere.
●Supported cloud system
Amazon Web Services, Microsoft Azure, Google Cloud Platform, Alibaba Cloud, SIEMENS MindSphere, WingArc1st MotionBoard Cloud
and FUJITSU COLMINA etc. We have already tested with many cloud services.
●Event function
You can configure event settings that actions are executed when trigger is satisfied.
- Trigger :Cycle, Time, Changing value, Received MQTT, Tag Alarm Change, Beacon detection etc.
- Action :Loop, Jump, Compare, Edit Text, Calculate, Get CSV Element, Get Json Elements, Write Value,
Send MQTT, Send HTTP, Send SQL, FTP Upload, Send Kinesis, Write File e.g.
●User Interface
You can configure all setting on web browser.
DGW-W710
- CCC exemption application completed
-Safety standards (CE / FCC / UL)
-Equipped with DIO terminal (Input 4ch/Output 4ch)
-Wide temperature tolerance (-20 to 55 ℃)
-DIN rail attachable
-3 serial ports (RS232C x 1, RS485 x 2)
- Max 8 devices connection
- Max 8,192 tags
Connectivity List
PLC | Network | Machine tools |
For MITSUBISHI MELSEC | For AnyWire | For MITSUBISHI EDM |
For JTEKT TOYOPUC | For HIOKI | For FUNUC CNC |
For OMRON SYSMAC | For MSYSTEM | For Yamazaki Mazak INTEGREX |
For YOKOGAWA FA-M3 | For Hakko electric | For MITSUBISHI CNC |
For HITACHI EH/H | For IDEC | ROBOT |
For SHARP Satellite | For KOYO | For MITSUBISHI |
For FUJI Electric MICREX | For DELTA | For KAWASAKI |
For KEYENCE KV | For MOXA | For YASKAWA |
For YASUKAWA MP | For Azbil | For FANUC |
For PANASONIC FP | For RKC | Others |
For ROCKWELL AllenBradley | For CHINO | For DIO／AI |
For SEAMENS SIMATIC | For Eurotherm | For Serial communication |
For TOSHIBA V/nv | For Panasonic | For position measurement device(Beacon) etc... |
For MITSUBISHI | ||
For YOKOGAWA | Please ask us for further connectivity! | |
For COMTROL | ||
For PHOENIX CONTACT | ||
For EtherNet/IP | ||
For Modbus | ||
For SLMP | ||
For MTConnect | ||
For BACnet/IP |
For futher details, please contact us.
Also even if you cannot find your required vender or protocol in above list, please feel free to ask us for connectivity.
Also even if you cannot find your required vender or protocol in above list, please feel free to ask us for connectivity.

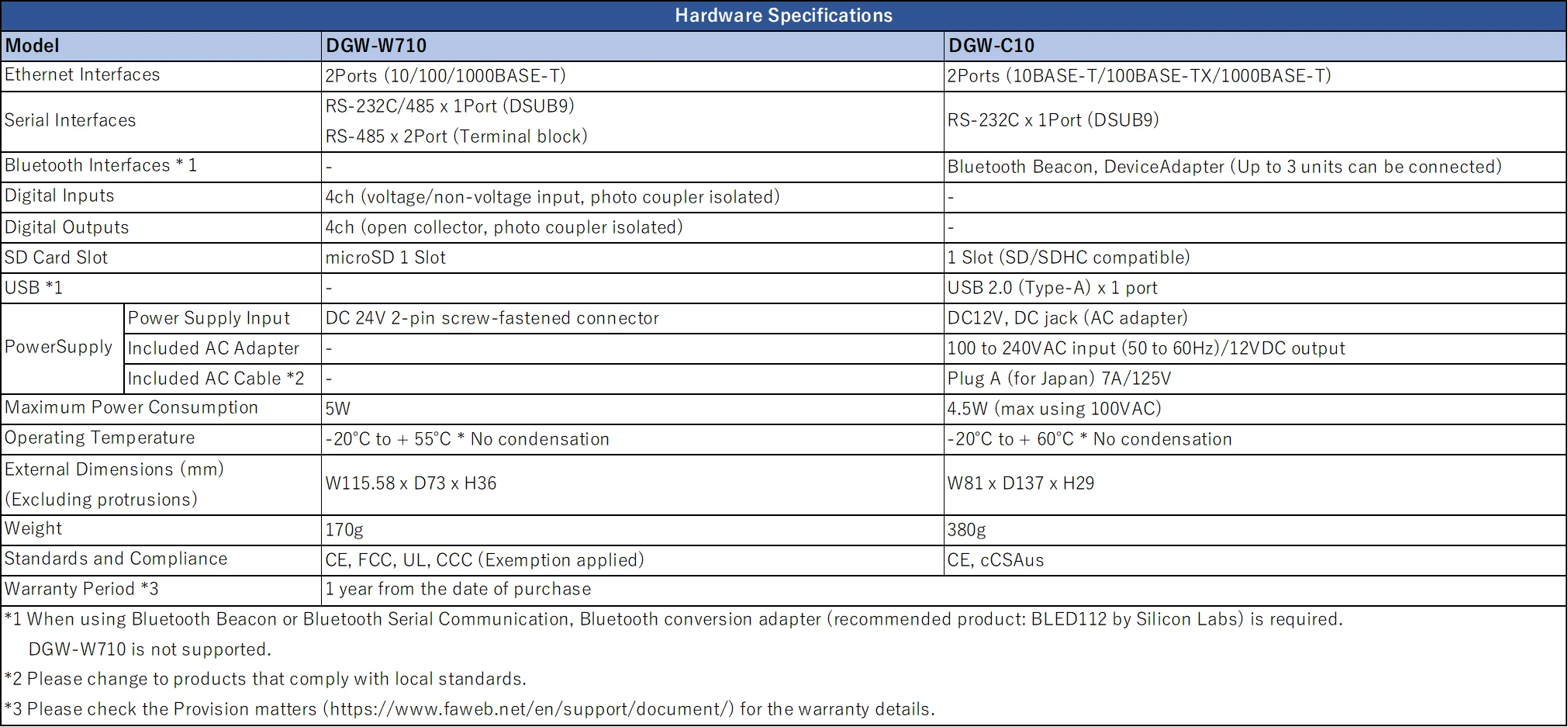

Specification
