Optical Pon Power Meter Fiber Test Tools OPM
- Category: >>>
- Supplier: SHENZHEN WOLCK NETWORK PRODUCT CO. LIMITED
Share on (10000005788712):
Product Overview
Description
Product Description
Optical Pon Power Meter Fiber Test Tools OPM
* Themeter test threshold can be set through the management software
* Automaticshutdown (can be cancelled)
* Userscan test 1490 in the PON network at the same time nm, 1550nm, 1310nm three wavelengths
* Simultaneouslymeasure and display different PON architectures, data and video signals
* Theinstrument provides five sets of thresholds to choose from, with pass, warning, and fail modes
* Manualcalibration
* Automaticshutdown (can be cancelled)
* Userscan test 1490 in the PON network at the same time nm, 1550nm, 1310nm three wavelengths
* Simultaneouslymeasure and display different PON architectures, data and video signals
* Theinstrument provides five sets of thresholds to choose from, with pass, warning, and fail modes
* Manualcalibration
Features:
Anti-fall

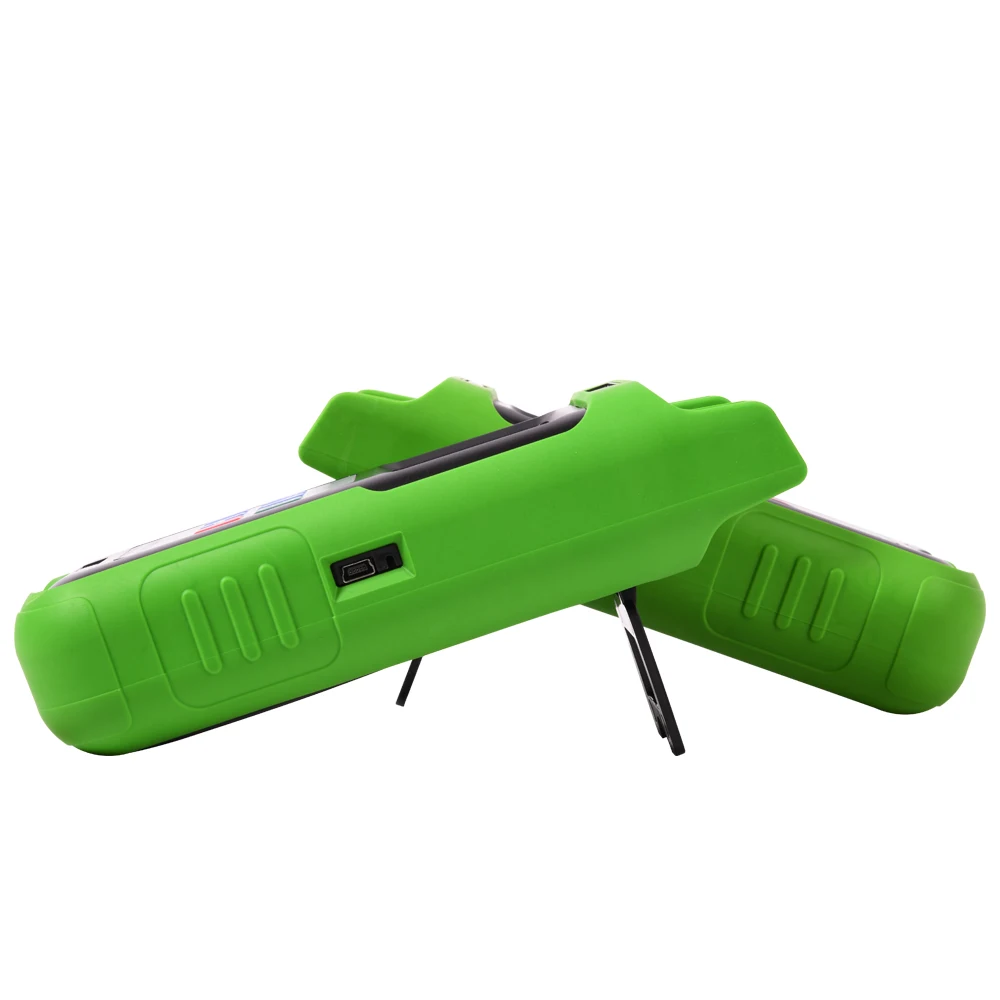

Bracket design

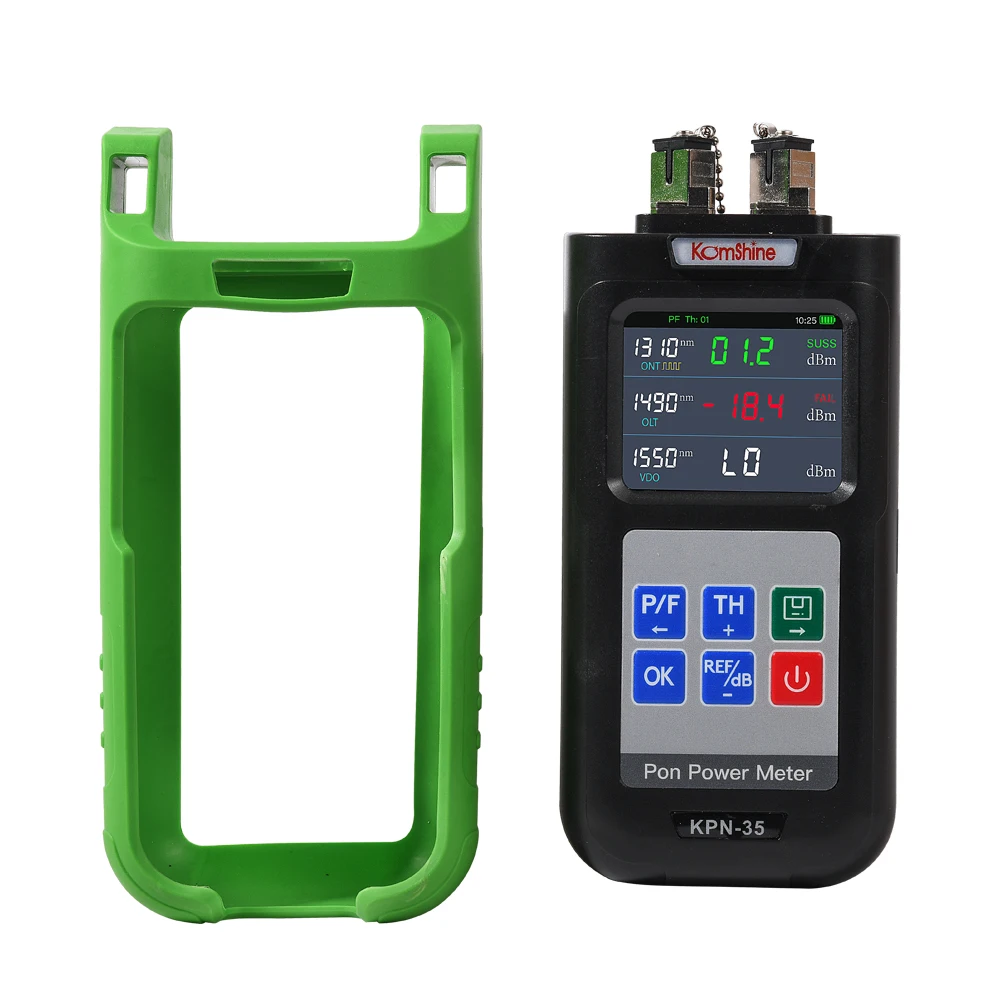

split protective sleeve
Specification
Model | PON | ||||
Measuring wavelength | 1310nm | 1490nm | 1550nm | ||
Sensor Type | InGaAS | ||||
Linearity | ±0.2dB@1550nm≥-40dBm | ||||
Isolation With filtering function | 1490nm Wavelength＞40dB | 1310nm Wavelength＞40dB | 1310nm Wavelength＞40dB | ||
1550nm Wavelength＞40dB | 1550nm Wavelength＞30dB | 1490nm Wavelength＞30dB | |||
Testing range | -40dBm～+16dBm | -50dBm～+16dBm | -50dBm～+23dBm | ||
Insertion loss in penetration mode (dB) | Less than 1.5dB | ||||
Measurable optical frequency broadband | 1260～1360 | 1480～1500 | 1539～1565 | ||
Inherent uncertainty | 0.5dB±1nW@1550nm | ||||
Display resolution | 0.01dB | ||||
Threshold setting | 5 groups are set by the host computer | ||||
Calibration wavelength | 1310nm/1490nm/1550nm | ||||
Data storage | 900 groups | ||||
Operating temperature | -10℃～+50℃ | ||||
Relative humidity | 0%～95%RH | ||||
Interface type | SC/UPC(Other types can be customized） | ||||
Power supply | 3 AA batteries | ||||
Standard packaging | Description | ||||

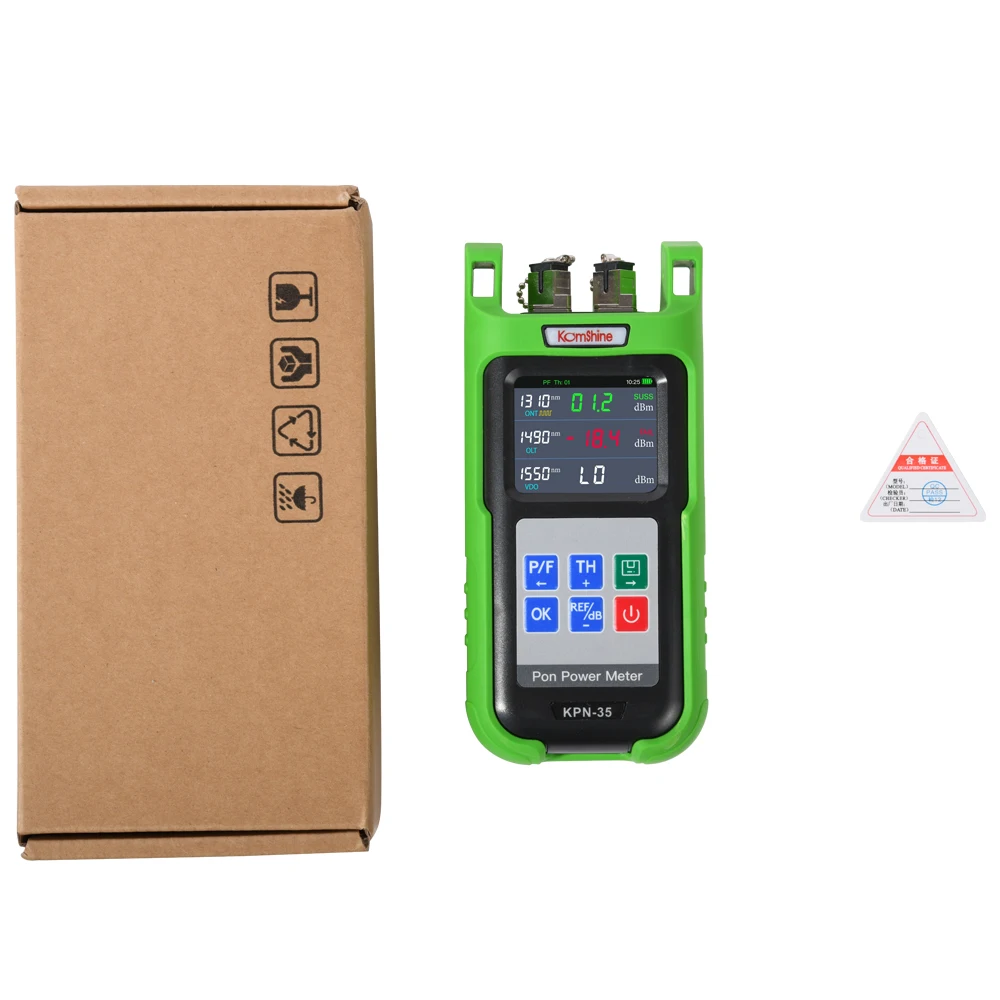

KPN-35 | KPN-35 main machine, USB line, warranty card, user guide, package | ||||
Packing & Delivery
In small carton
