150 Вт наружный светодиодный драйвер высокого качества IP67 программируемый драйвер питания с постоянным и напряжением без мерцания (OPU141P901S1A)
- Category: Lighting Transformers >>>
- Supplier: Knowware,Co.Ltd
Share on:
Product Overview
Description
Products Description
IP67, C-Unified Dim for SMART Control, Flickerless
* CCCV (Constant Current & Constant Voltage)
* Flickerless : FI ≪0.01 ,%F ≪ 5% (@<800Hz)
Built-in active PFC
Low Output Current Ripple : 5%↓
* High Density Power
C3-2_Dimension 1 : 180(L) * 68.0(W) * 31.4(H)
C4-1_Dimension 2 : 191(L) * 68.0(W) * 31.4(H)
* Programmable UI
AOC_Adjustable Of Current
* C-Unified Dim for SMART Control
UART_On/Off, Dim
Status Monitoring
* Low Stand by Power Dissipation : 0.5W↓
Applied Eco Design & Energy star : 0.5W↓
* Aux Power : 12Vdc 250mA PK
* High Performance
High Efficiency : Up to 88~94%
High PF (90%↑), Low THD (20%↓)
Wide Vin : 108 ~ 305VAC
Wide Vout : ± 30% LED Load
Protection : OLP, SCP, OVP, OCP, OTP _Autorecovery
Temperature tc : 85℃
* High Surge Immunity
L-L 6KV↑, L-FG 8KV↑
* Classification : Class Ⅱ
* IP67, Independant type
* Flickerless : FI ≪0.01 ,%F ≪ 5% (@<800Hz)
Built-in active PFC
Low Output Current Ripple : 5%↓
* High Density Power
C3-2_Dimension 1 : 180(L) * 68.0(W) * 31.4(H)
C4-1_Dimension 2 : 191(L) * 68.0(W) * 31.4(H)
* Programmable UI
AOC_Adjustable Of Current
* C-Unified Dim for SMART Control
UART_On/Off, Dim
Status Monitoring
* Low Stand by Power Dissipation : 0.5W↓
Applied Eco Design & Energy star : 0.5W↓
* Aux Power : 12Vdc 250mA PK
* High Performance
High Efficiency : Up to 88~94%
High PF (90%↑), Low THD (20%↓)
Wide Vin : 108 ~ 305VAC
Wide Vout : ± 30% LED Load
Protection : OLP, SCP, OVP, OCP, OTP _Autorecovery
Temperature tc : 85℃
* High Surge Immunity
L-L 6KV↑, L-FG 8KV↑
* Classification : Class Ⅱ
* IP67, Independant type
MODEL NAME | MODEL CODE |
OPU141P901S1U | LP141S901U/WGN |
Features:
ㅡ Flickerless, Constant Current & Voltage
ㅡ Programmable Set

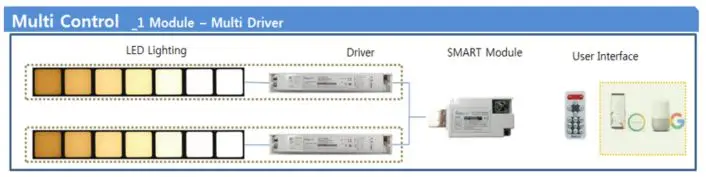

ㅡ SMART Lighting Control by SLM_Smart Lighting Module
ㅡ Full-protection provided: OCP/OVP/OTP/SCP/OLP
ㅡ Wide Vout: 24 to 45 Vdc
ㅡ Compliant with CB, CE, KC, KS, UL safety requirements for LED lighting
ㅡ Factory Wiring
Title goes here.
BLE 4.1 Wireless SMart Light Control interface module
Title goes here.
DALI BEMS Cpmpliance Wire Networking Interface
Title goes here.
UART Wire DIMMING Control Interface
Product Paramenters
Electrical Specification
No | Item | Min | Typ | Max | Unit | Remark |
1 | Nominal input Voltage | 120 | 277 | Vac | ||
2 | Variable Input Voltage | 108 | 300 | Vac | ||
3 | Maximum Input Current | 1.4 | Arms | |||
4 | Maximum Input Power | 140 | W | |||
5 | Nominal input Frequency | 47 | 50/60 | 63 | Hz | |
6 | Power Factor | 90 | % | |||
7 | Total Harmonic Distortion(THD) | 20 | % | |||
8 | Inrush Current | A | Meets NEMA 410 | |||
9 | Electical Efficiency | 88 | 94 | % | ||
10 | Turn-On Delay | 0.5 | S | |||
11 | LED Output Voltage | 90 | 139 | 170 | Vdc | |
12 | LED Output Current | 45 | 700 | 900 | mA | |
13 | LED Output Power_Max | 125 | W | |||
14 | LED output Current Ripple | 90 | mA | |||
15 | Operating Temperature | -40 | 25 | 50 | 'C | |
16 | Case Temperature (Tc) | 50 | 85 | 'C | ||
17 | Humidity | 20 | 85 | % | ||
18 | Insulation Resistance | 10 | Mohm | |||
19 | Surge | 6 | Kv | Line to Ground, IEC 610000-4-5 | ||
20 | ESD | 8 | Kv | Air Discharge IEC 610000-4-5 |

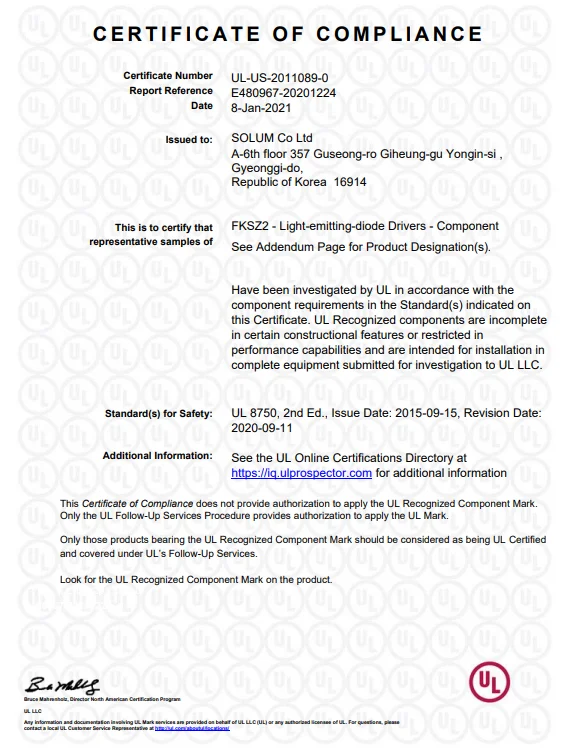

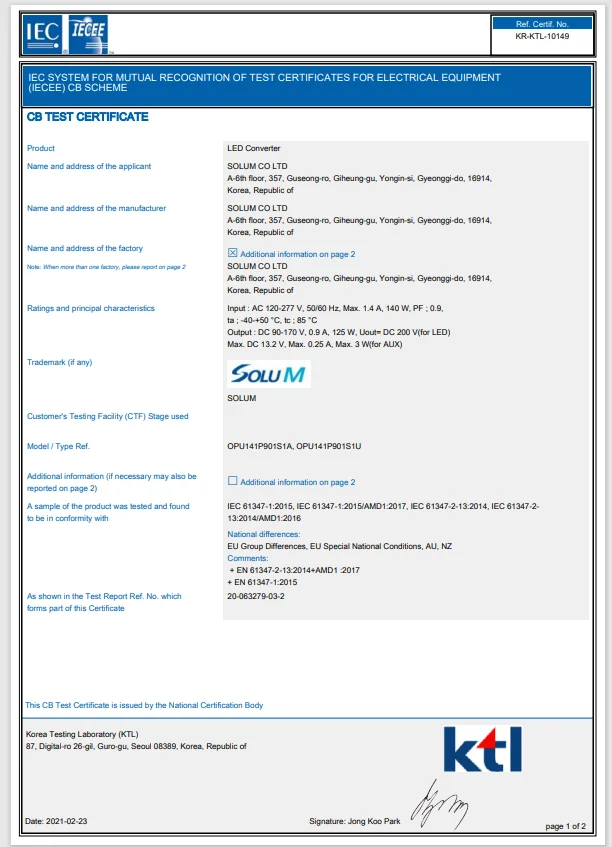

Certifications
