433Mhz ASK Super Heterodyne Hybrid RF Receiver Module
- Category: >>>
- Supplier: DIGIMORE ELECTRONICS CO. LTD.
Share on (10000005960194):
Product Overview
Description
Product Description

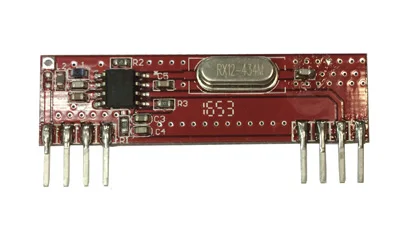

433Mhz ASK Super Heterodyne Hybrid Receiver

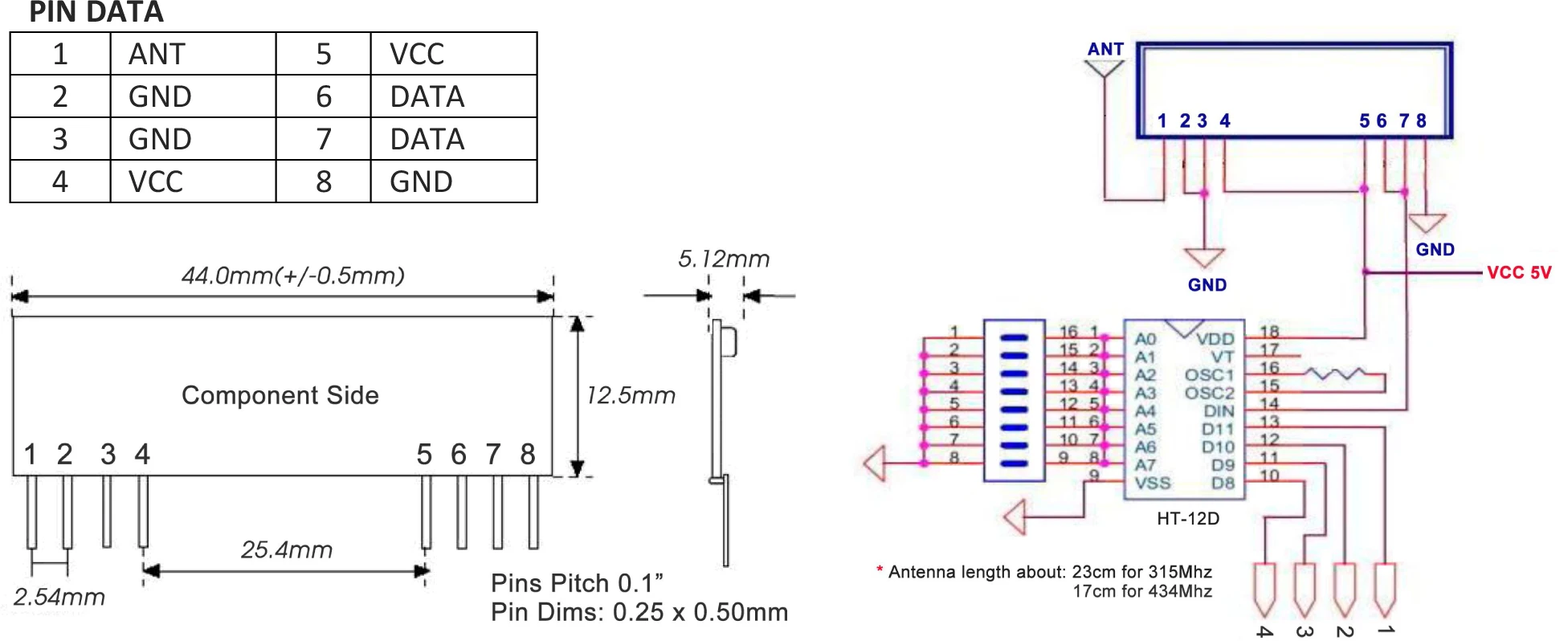

RX12S-ASK is an ASK Super Heterodyne hybrid receiver module, which can be used to receive un-decoded / decoded data from the range of DIGIMORE ASK transmitter modules. The module is very simple to operate and offers a very low current consumption. Data can be received directly from a Microprocessor or decoding device. All receivers are compatible, producing CMOS/TTL Output, and only require connections to Power & Antenna.
FEATURES
- ASK Demodulation
- Frequency available for 315/390/433.92Mhz
- Stable Operating Frequency
- Low Current Consumption
- Wide Operating Voltage 3 ~ 5.5VDC
- High Sensitivity: -110dBm
- Frequency available for 315/390/433.92Mhz
- Stable Operating Frequency
- Low Current Consumption
- Wide Operating Voltage 3 ~ 5.5VDC
- High Sensitivity: -110dBm
APPLICATION
- Wireless Security Systems
- Garage Door Controller
- Remote Gate Controls
- Data Communications
- Sensor Reporting
- Garage Door Controller
- Remote Gate Controls
- Data Communications
- Sensor Reporting

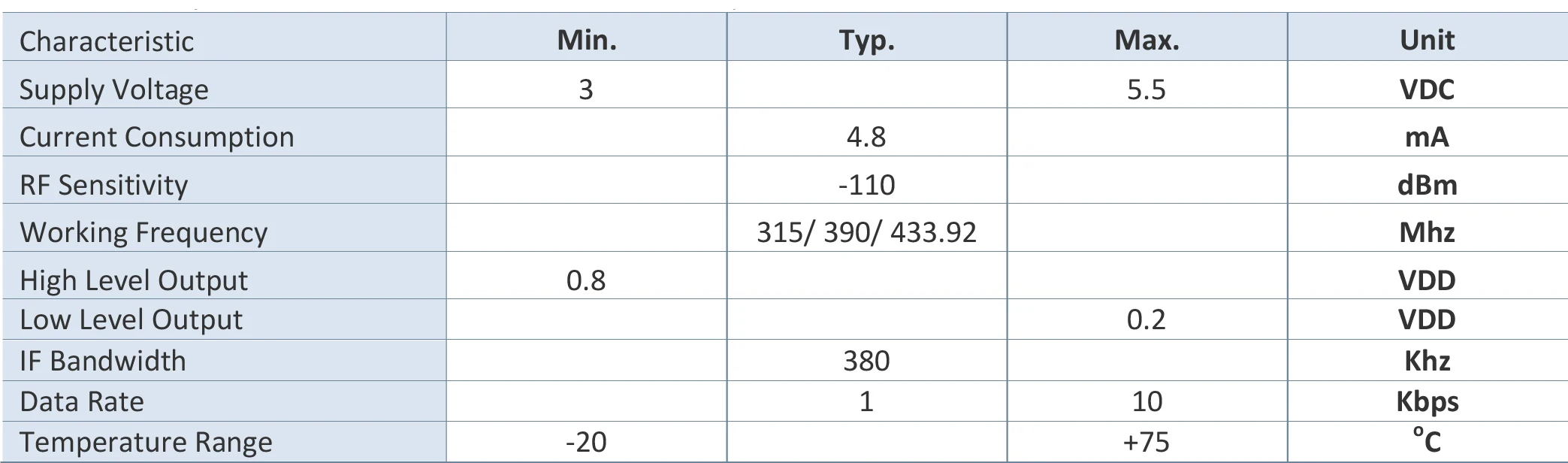

Specification
Item | Value |
Model Number | RX12X-ASK |
Type | RF Module |
Place of Origin | Taiwan, China |
Brand Name | Digimore |
Chipset | RX12-434M |
Supplier Type | OEM/ ODM |
Application | Iot, remote control |
Demodulation | ASK |
Frequency range | 315/390/433.92Mhz |
Operating Voltage | 3 ~ 5.5VDC |
High Sensitivity | -110dBm |
Current Consumption | 4.8mA |
High Level Output | 0.8 VDD |
Low Level Output | 0.2 VDD |
IF Bandwidth | 380 Khz |
Data Rate | 1Kbps |
Temperature Range | -20 ~ +75 degree C |
Size | 44.0 x 12.5 x 5.12mm |
Compatibility | Fully compatible with Digimore ASK transmitter modules |
