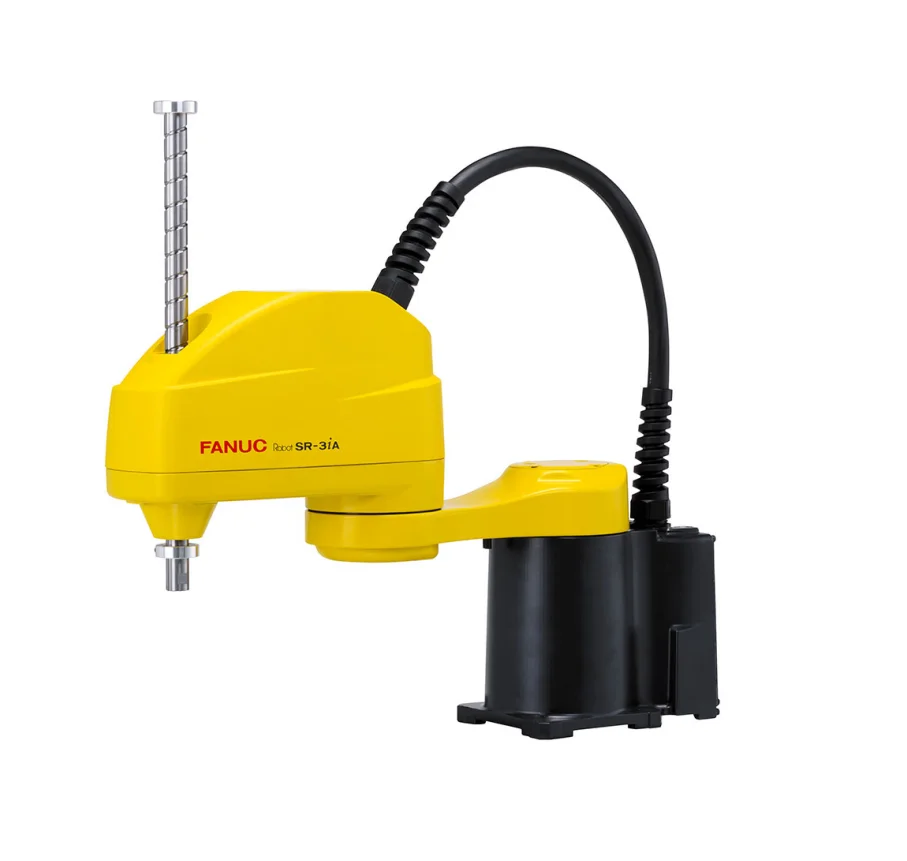

Fanuc SR-20iA 20kg 4 axis industrial robot
FEATURES
FANUC Robot SR-3iA, 6iA, 12iA is SCARA robot whose payload is 3 to 20kg.
1. Three models are available to meet a variety of payload and motion area.
1.1 SP-3iA Payload : 3kg Reach : 400mm
1.2 SP-6iA Payload : 6kg Reach : 650mm
1.3 SP-12iA Payload : 12kg Reach : 900mm
1.4 SP-20iA Payload : 20kg Reach : 1100mm
2. The lightweight arm and the most advanced servo technology enable high accuracy duty performance, which improves the priductivity.
3. Environmental options, such as white paint, bellows cover, and water proof (IP65) are available for SP-12iA, 20iA.
3. Solenoid valve, air tube and I/O cable for the device control are integrated in the J2 arm. The hollow arm on the J4 rotation axis realizes easy wiring for a gripper.
4. The R-30iB Compact Plus controller is greatly reduced in size while it keeps the same function as the previous controllwe.
5. Simple teaching can be conducted on the PC or Tablet PC by newly developed teaching interface, which improves ease of use.
6. Latest inteilligent functions are available, such as iRVision (integrated vision) and iRPickTool.
7. The high reliability is realized based on the longtime accumulated reliability design technologies.
FANUC Robot SR-3iA, 6iA, 12iA is SCARA robot whose payload is 3 to 20kg.
1. Three models are available to meet a variety of payload and motion area.
1.1 SP-3iA Payload : 3kg Reach : 400mm
1.2 SP-6iA Payload : 6kg Reach : 650mm
1.3 SP-12iA Payload : 12kg Reach : 900mm
1.4 SP-20iA Payload : 20kg Reach : 1100mm
2. The lightweight arm and the most advanced servo technology enable high accuracy duty performance, which improves the priductivity.
3. Environmental options, such as white paint, bellows cover, and water proof (IP65) are available for SP-12iA, 20iA.
3. Solenoid valve, air tube and I/O cable for the device control are integrated in the J2 arm. The hollow arm on the J4 rotation axis realizes easy wiring for a gripper.
4. The R-30iB Compact Plus controller is greatly reduced in size while it keeps the same function as the previous controllwe.
5. Simple teaching can be conducted on the PC or Tablet PC by newly developed teaching interface, which improves ease of use.
6. Latest inteilligent functions are available, such as iRVision (integrated vision) and iRPickTool.
7. The high reliability is realized based on the longtime accumulated reliability design technologies.
FEATURES AT A GLANCE
INDUSTRIAL FEATURE
SMALL PARTS BIN PICKING
CASE PARTS POLISHING
CASE PARTS POLISHING
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Type | Fanuc SR-20iA |
2 | Payload | 20 kg |
3 | Max. arm reach | 1100 mm |
4 | Reapetibility | +/- 0.01 mm |
5 | Weight | 64kg |
6 | Capacity | 2 KVA |
7 | Enviroment | 0-45℃ |
8 | Installation | Floor, Wall |
9 | Program Lauguage | English |
10 | IP Level | IP54/IP 65(Wrist) |
