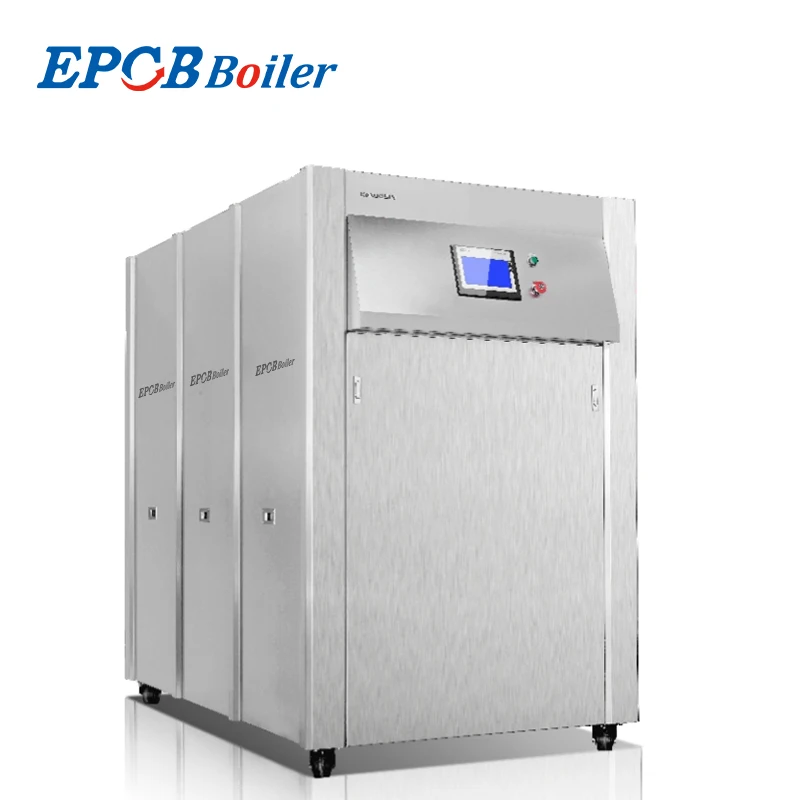

New style steam boiler natural gas steam generator for food industry
- Category: >>>
- Supplier: Qingdao,East,Power,Industry,Equipment,Co.,Ltd
Share on:
Product Overview
Description
New style steam boiler natural gas steam generator for food industry
Product Description
EPCB new steam generator helps you save production costs in many ways:
1. Save equipment cost;
Integrated design saves burner and many auxiliary machines
2. Save in transportation cost;
3.Save installation cost;
4.Save operating costs;
① High thermal efficiency and fuel saving;
② Simple operation and labor saving;
③Low failure rate and maintenance saving
5.Environmental cost savings.
Item | Unit | 10 modules | ||||||
Commercial Edition | Industrial Edition | |||||||
Regular series | Low nitrogen series | Regular series | Low nitrogen series | |||||
Machine appearance | mm | 1778*1240*1940 | ||||||
Machine gross weight | Kg | 820 | ||||||
Machine power consumption | Kw/h | 3.00 | 2.15 | 4.00 | 3.15 | |||
Evaporation | Kg/h | 1080(MAX) | ||||||
Gas pressure | Pa | Dynamic:2000-6000(natural gas) Static: ≤7000(natural gas) | Dynamic:2400-6000(natural gas) Static: ≤7000(natural gas) | Dynamic:2000-6000(natural gas) Static: ≤7000(natural gas) | Dynamic:2400-6000(natural gas) Static: ≤7000(natural gas) | |||
Dynamic:4000-6000(LPG) Static: ≤7000(LPG) | Dynamic:4000-6000(LPG) Static: ≤7000(LPG) | |||||||
Natural gas consumption | m³/h | 77(MAX) | ||||||
LPG consumption | Kg/h | 60(MAX) | 60(MAX) | |||||
Smoke outlet | mm | 1198*222 | ||||||
Steam outlet | DN | 40(flange) | ||||||
Gas inlet | DN | 50(flange) | ||||||
Pure water inlet | DN | 20(flange) | ||||||
Blowdown outlet | DN | 25(flange) | ||||||
Fire row cooling water inlet | DN | 25(flange) | 25(flange) | |||||
Fire row cooling water outlet | DN | 25(flange) | 25(flange) | |||||
Condensate outlet | DN | 20(outer screw) | ||||||
Rated Steam pressure | Mpa | 0.8(MAX) | 1.2(MAX) | |||||
Rated Steam temperature | °C | 175(MAX) | 192(MAX) | |||||
The steam source equipment system consists of circulating pump, upper heat exchanger, lower heat exchanger, combustion chamber, steam water separator, control system, measurement feedback equipment, pipeline and other accessories.
Small size, ordinary containers can hold 5 one ton boilers
There are few auxiliary machines, only water treatment and chimney are required.
There are few auxiliary machines, only water treatment and chimney are required.
With integrated design and soft connection, it is easy to install to the user's site.
EPCB can provide you with the most suitable products and continuous high-quality steam on the premise of ensuring safety
We can make three guarantees:
1.Ensure safety
Six fold safety protection: water cut-off (low water pressure) protection, fan abnormal protection, accidental flameout protection, overtemperature protection, overvoltage protection, power failure protection, high reliability and safety, and there will never be explosion risk.
2.Ensure working well
1. Cross flow steam generation technology
2. Continuous steam transmission technology
3. Low steam consumption transmission technology
4. Intelligent frequency conversion technology
5.Modular management technology
We can make three guarantees:
1.Ensure safety
Six fold safety protection: water cut-off (low water pressure) protection, fan abnormal protection, accidental flameout protection, overtemperature protection, overvoltage protection, power failure protection, high reliability and safety, and there will never be explosion risk.
2.Ensure working well
1. Cross flow steam generation technology
2. Continuous steam transmission technology
3. Low steam consumption transmission technology
4. Intelligent frequency conversion technology
5.Modular management technology
Company Introduction
EPCB Boiler is famous and professional boiler in china. We offers many kind of boilers, steam generators, such as steam boiler, hot water boiler, thermal oil boiler, oil gas steam generator, electric steam generator.
Which have 100% quality assurance. Our boilers and steam generator haven been exported more than 100 countries. Our high quality products and perfect after-sales service are well reviced by users.
Which have 100% quality assurance. Our boilers and steam generator haven been exported more than 100 countries. Our high quality products and perfect after-sales service are well reviced by users.
Packing&Shipping
We choose the best way to pack and load our boilers. All parts will be complete and work well. Professional factory offers
professional and safe service.
professional and safe service.
FAQ
Q: Are you manufacturer?
A: Yes, we are the largest steam generator manufacturer in China. We have our own factory with 120,000m2 area.
Q: How can I get the best price quickly?
A: Please tell us your name, email address and company name, and then we will send you price list immediately. And if you use Whatsapp, Skype or Wechat, you can provide us your ID, it will be more convenient for our communication.
Q: What about the delivery time?
A: Usually the delivery time is about 30 days, if you need steam generator urgently, we can discuss about it again and reduce the production time to help you get steam generator earlier.
Q: How can you convince me of your steam generator quality?
A: Yes, we are the largest steam generator manufacturer in China. We have our own factory with 120,000m2 area.
Q: How can I get the best price quickly?
A: Please tell us your name, email address and company name, and then we will send you price list immediately. And if you use Whatsapp, Skype or Wechat, you can provide us your ID, it will be more convenient for our communication.
Q: What about the delivery time?
A: Usually the delivery time is about 30 days, if you need steam generator urgently, we can discuss about it again and reduce the production time to help you get steam generator earlier.
Q: How can you convince me of your steam generator quality?
A: Our factory has more than 35 years experience in industrial steam generator production, and we have exported to more than 60 countries; and our product has passed Chinese-government Standard, ASME standard, CE standard and get ISO9001, EAC, SGS Inspection Certificates.
Q: What about the installation?
A: After you receive the product, we will guide you to make some preparation for installation. If necessary, we can send engineers to your local to guide the installation.
Q: What about the installation?
A: After you receive the product, we will guide you to make some preparation for installation. If necessary, we can send engineers to your local to guide the installation.
