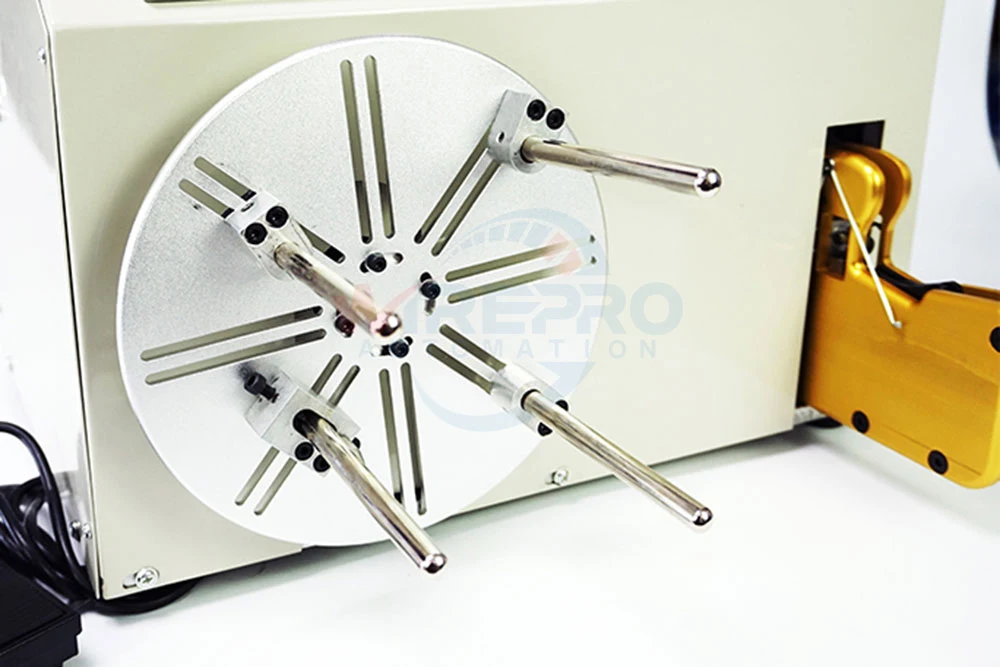

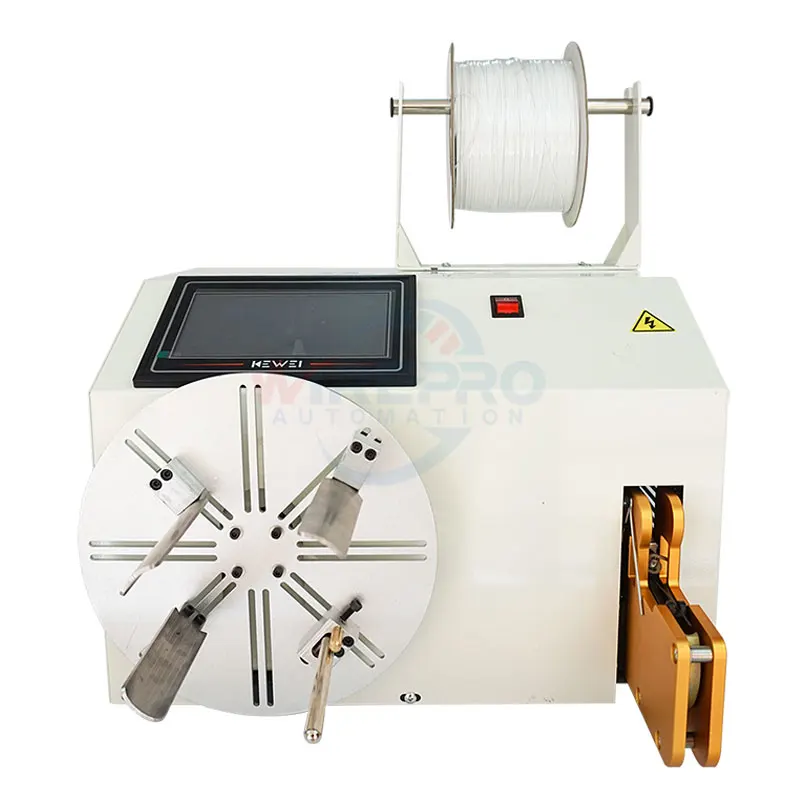

HB D40 Semi Automatic cable wire cube winding twisting and tying machine
- Category: >>>
- Supplier: Wirepro Automation Technology Co. Ltd.
Share on (10000005965565):
Product Overview
Description
WIREPRO Automation Focus on Machines & Solutions for Wire Processing & Harness Assembly, welcome you to check more equipment on our website. If you need any support, welcome contact us anytime ^_^ |
Product Description
| Model | HB-D40 | HB-D45 | HB-D65 |
| Length of 8 Shape | 50-200mm(can be adjusted, can be customized) | ||
| Dia of Round Shape | Φ50-200mm(can be adjusted, can be customized) | ||
| Winding Speed | Can be set, 30 speed options | ||
| Number of Windings | Can be set, 1-999 cycles | ||
| Bundling Diameter | Φ5-40mm | Φ20-45mm | Φ25-65mm |
| Cable Tie Length | 60-140mm | 110-200mm | 130-260mm |
| Number of Bindings | Can be set, 2-6 cycles is good | ||
| Cable Tie | Plastic or rubber coated iron core wire | ||
| Power Supply | 110/220VAC,50/60Hz | ||
| Power | 80W | ||
| Dimensions | 32*45*50cm | ||
| Weight | 30kg | 38kg | 38kg |

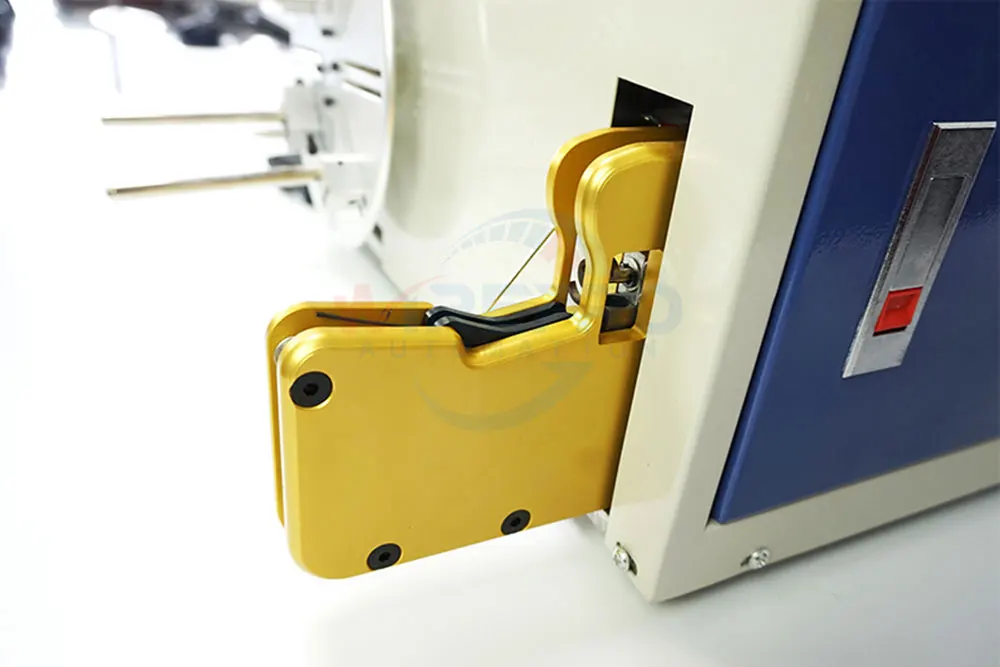

This machine can wind wire to round shape & 8 shape and automatic cut the cable tie & twist
it. It is widely used to bundle AC/DC power cord, USB data cable, video cable, HDMI
cable, and other types of transmission wires.
Feature:
1. It is equipped with step motors, adopted PLC touch screen to control cable tie length
2. The winding speed and winding cycle are both adjustable
3. Improve the working efficiency compared with the manual operation
4. Reasonable price and good quality, easy to operate

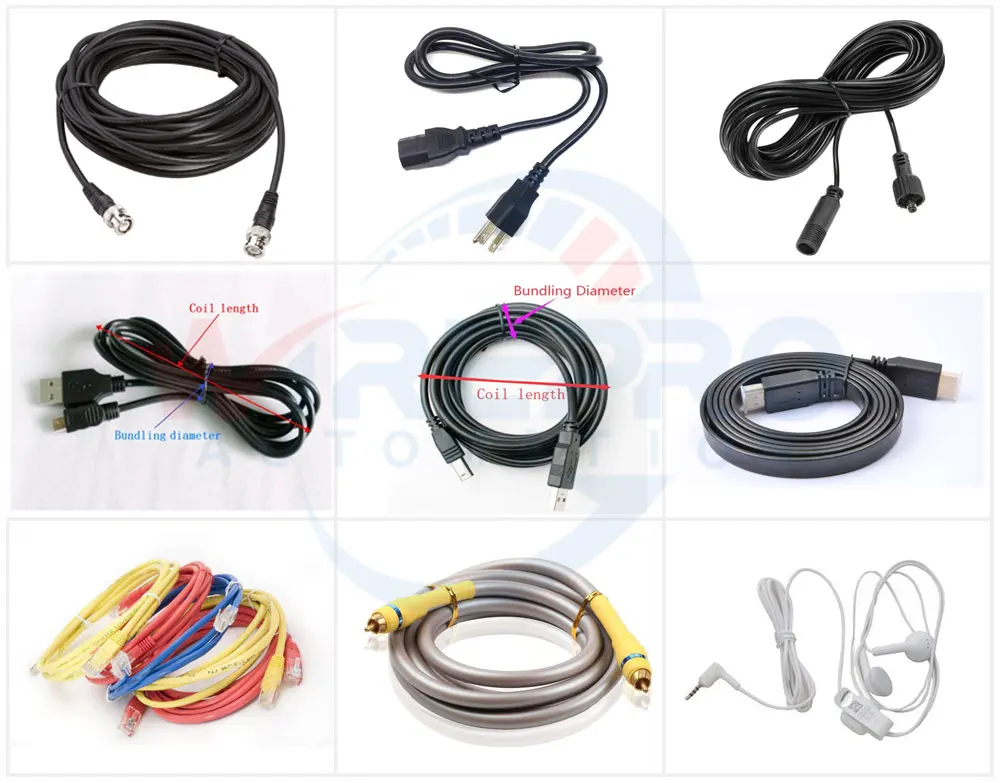

Application
More machine pictures
Related Products

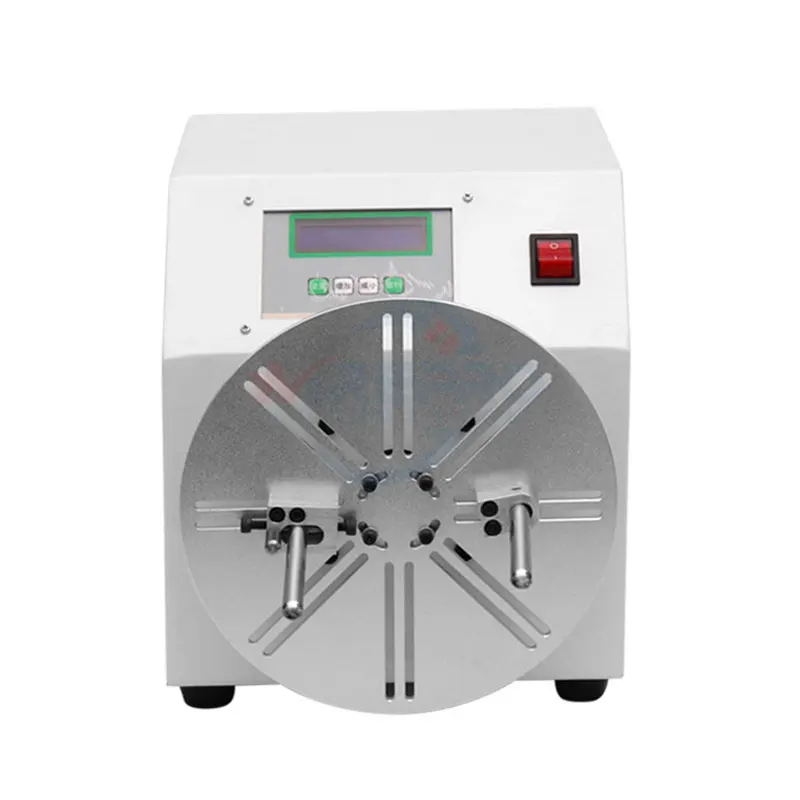

Wire winding machine HB-W25
|

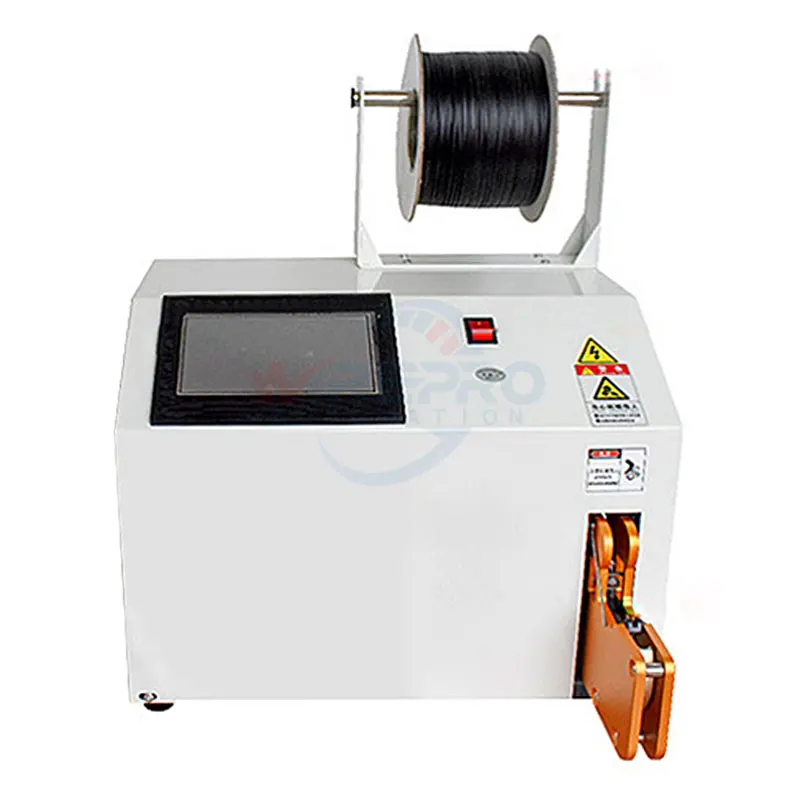

Wire tying machine HB-T40
|
wire winding and bundling machine HB-D40
|

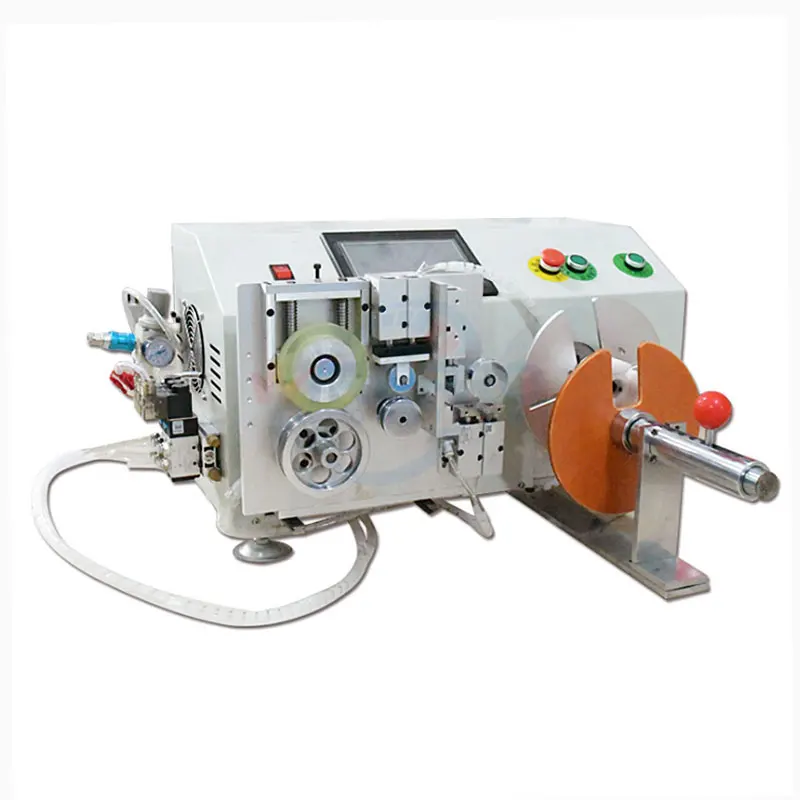

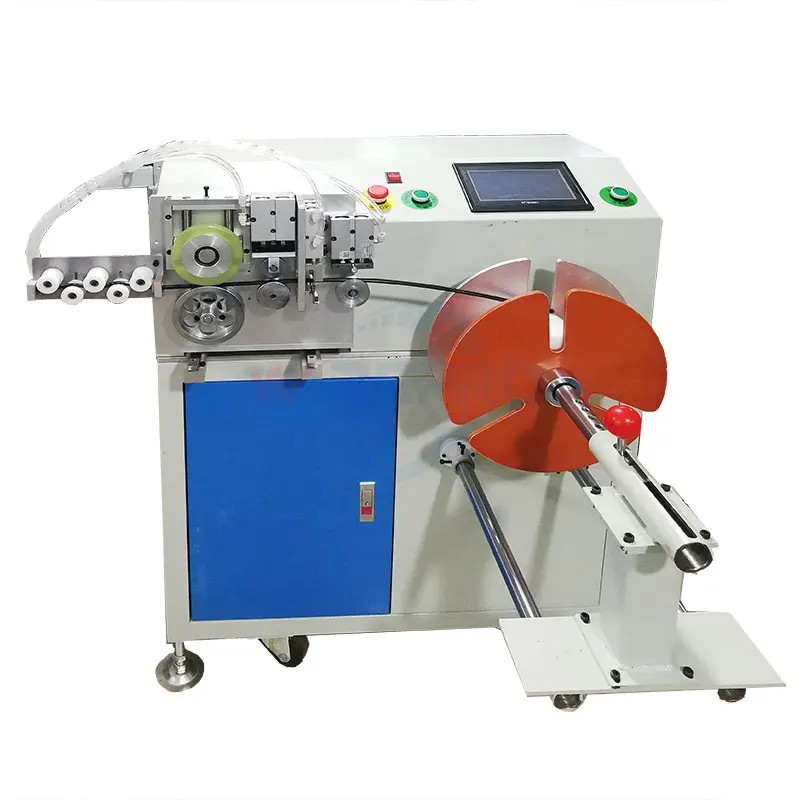

Desktype wire metering cutting winding bundling machine HB-M01 |  Desktype wire metering cutting winding machine HB-M02
|

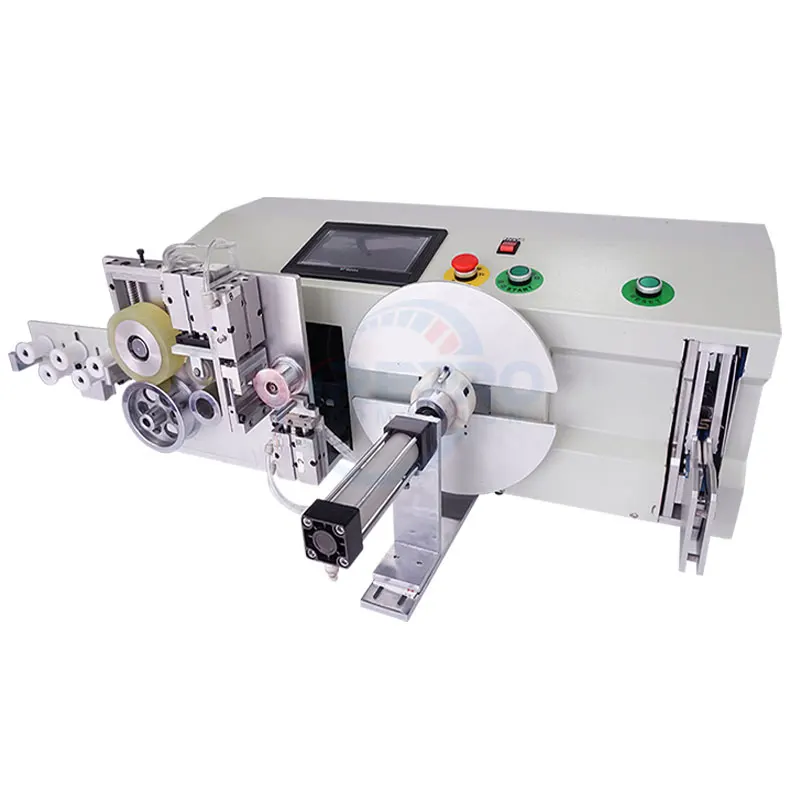

Floor standing wire metering cutting winding machine HB-M01 |

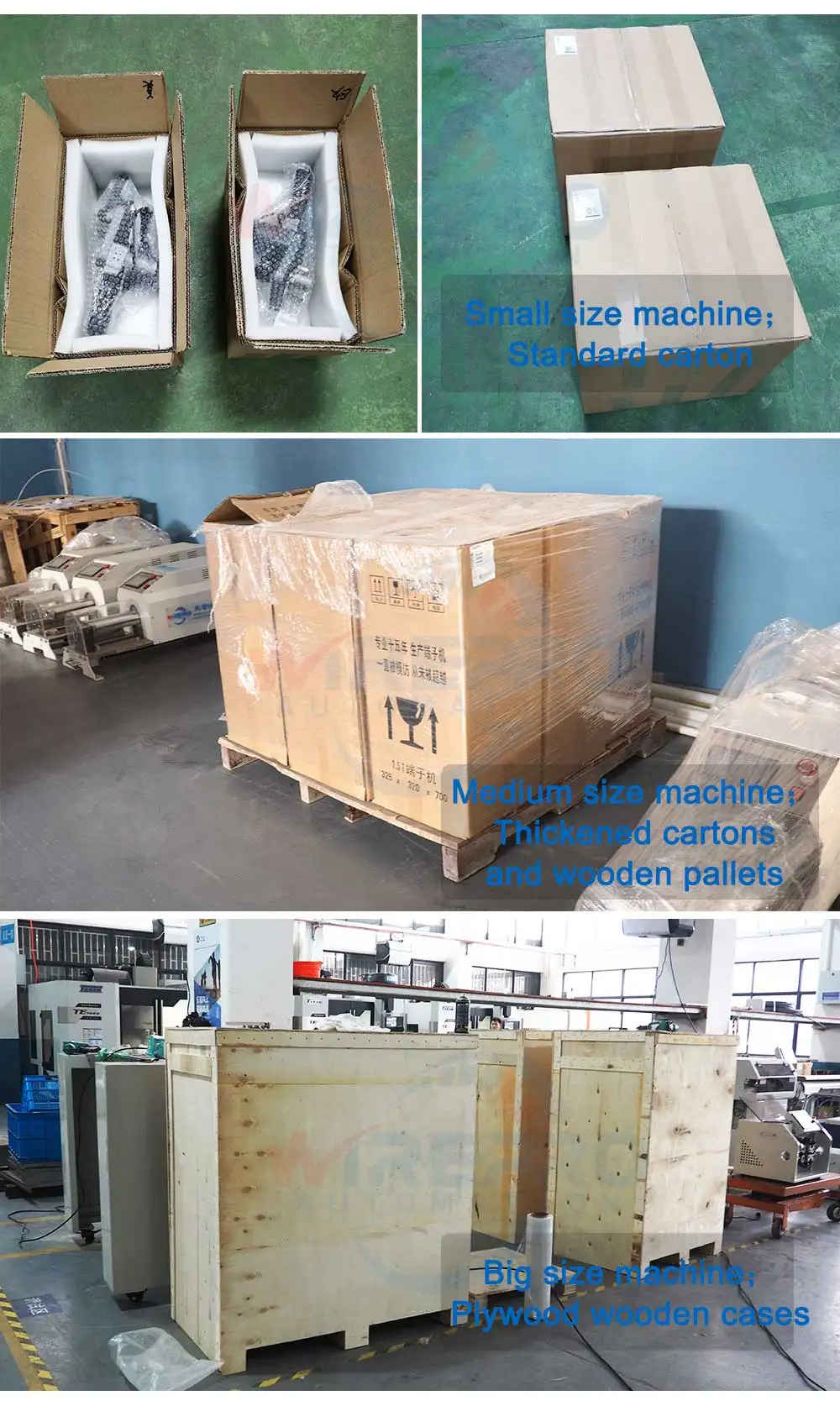

Packaging & Shipping
Samll size machines: Standard carton
Medium size machines: Thickened cartons and wooden pallets
Big size machine: Plywood wooden cases

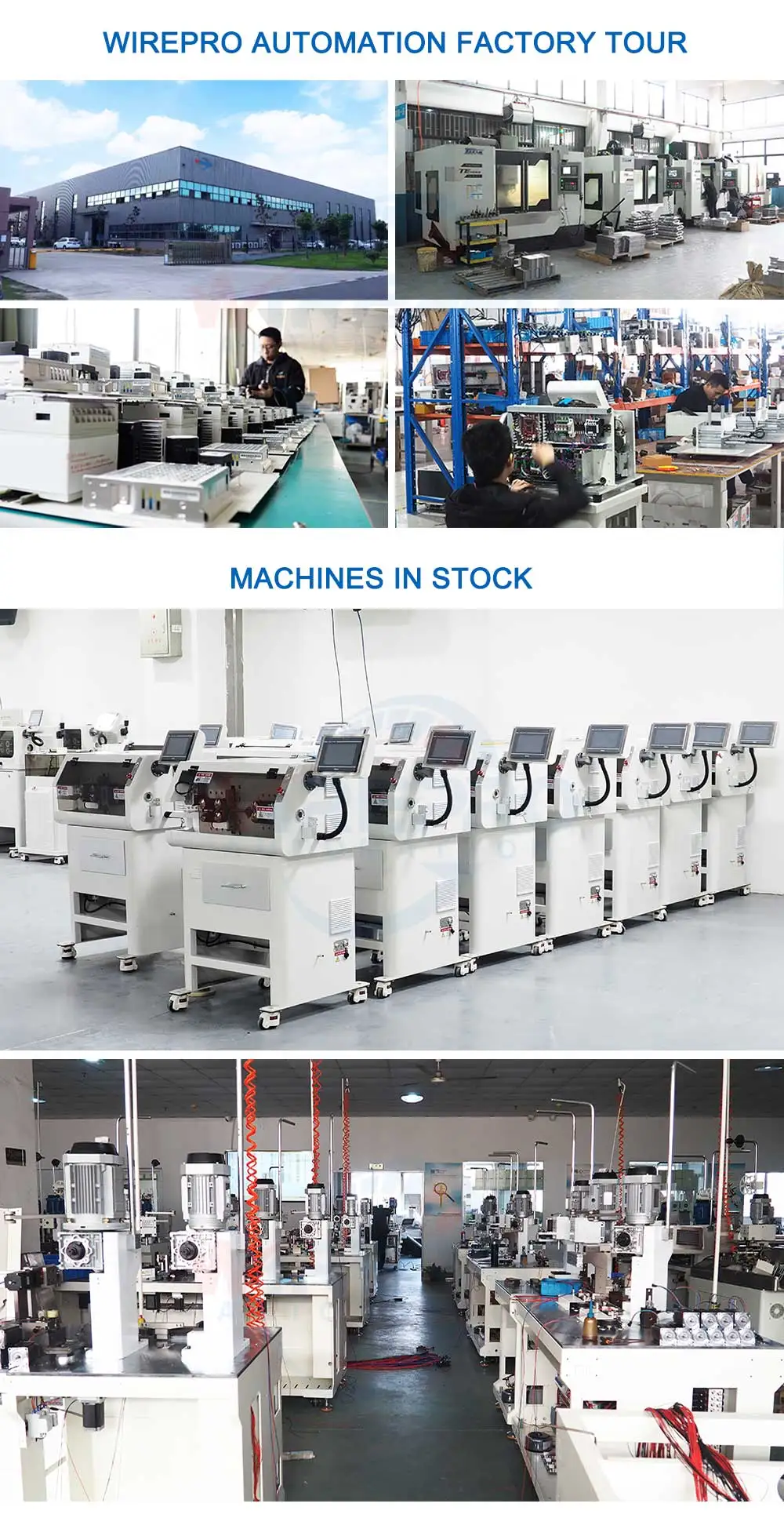

Company Information
FAQ
| 1. What are the optional accessories and wearing parts? Optional accessories: Wire spool pre feeder, Wire collector, wire coiler or wire stacker. Wearing parts: Generally blade and belt. For More info, please contact WIREPRO. |
| 2. Operation panel and user manual language? English and Chinese are optional. |
3. How long is the lead time? Ready time: Generally the standard machine will be ready in 2-3 workdays, the customized machine please check with us again when placing an order.
Packaging: The machine is packed in a carton or wooden box according to the size. Sufficient cushioning material will protect the machine intact during long-distance transportation.
Transportation: Support shipping via air, sea, and railway many transportation modes. |
4. How do we install and operate the machine?
Small Machine: The user can install and adjust the machine according to the Manual and video of how to install and set the machine. If you have any questions, please contact our technical support (Email: support at wireproauto.com) to provide online, video, and other support. If customers really need we can make exceptions on-site service (expense will be borne by customers).
Large full automatic machine: We will arrange engineers on-site installation, testing, and adjustment of equipment. Please check with us about the details.
We also welcome you to come to our factory for more training. |
| 5. What after-sales service is provided? WIREPRO has an experienced technical support team to be responsible for troubleshooting for customers via phone calls, emails, videos, etc. If you need spare parts, DHL generally could deliver them in about 3-5 days. |
