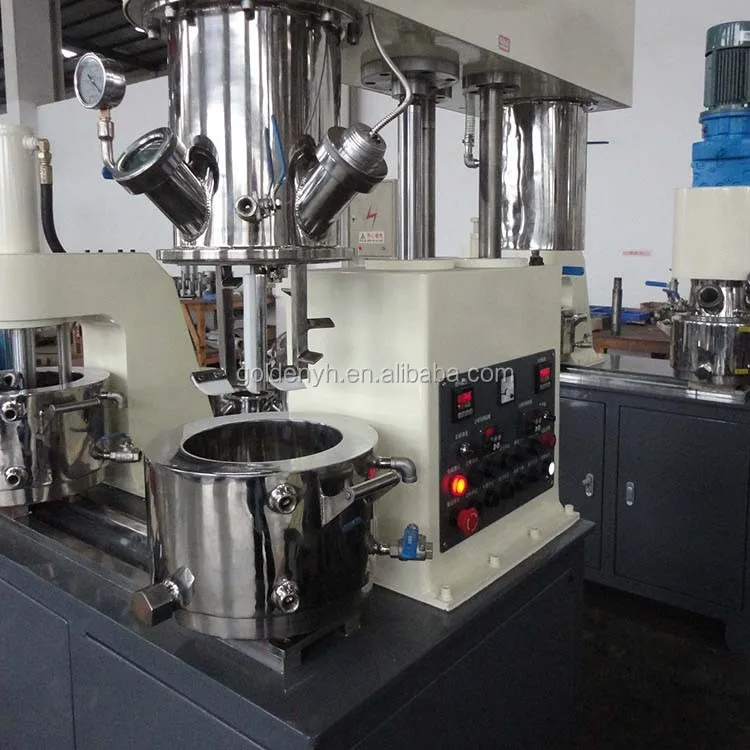

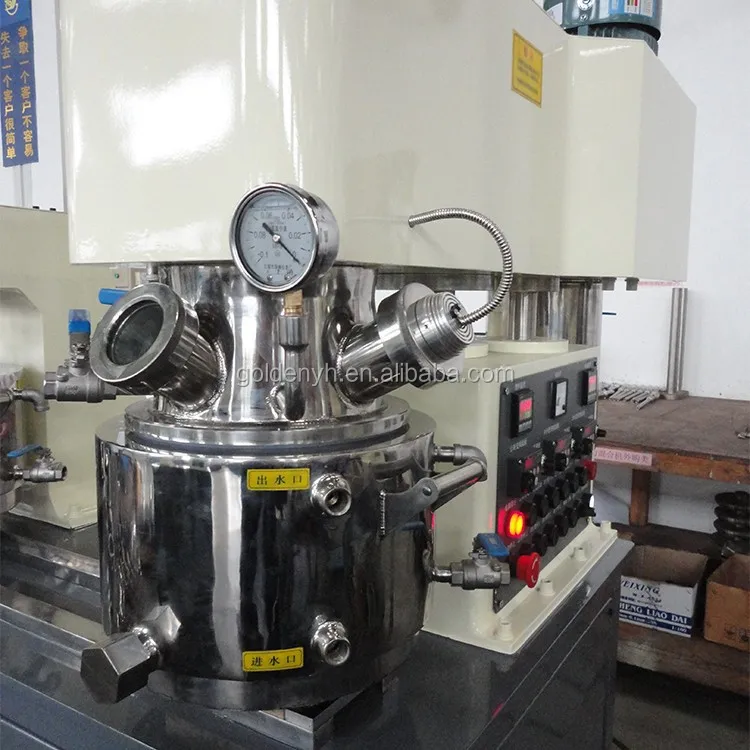

GMK sealant mixer silicone high temperature glue dispersing lab machine
DLH series planetary dispersing power mixer is a kind of no-dead-spot power mixing and dispersion equipment. It adopts unique stirring mechanism, with bottom vessel fixed and unmoved, with dispersion discs and stirrers making planetary movement of revolution and rotation, with speed adjustment by frequency inverter. It makes the materials to move complicatedly, with strong shearing and kneading, for full dispersion and mixing of materials without mixing dead spot. An automatic wall scraper mechanism is designed in the vessel, which continuously scrapes the materials adhering to the wall. The equipment is uniquely sealed, can be pressurized or vacuumized. It is widely used in solid-solid, solid-fluid and fluid-fluid mixing, reaction, dispersion, grinding, dissolving, homogenizing and emulsification, etc., in chemical, light industry, pharmacy, foodstuff, building materials, farm chemical industries, etc. It is an ideal equipment for production of ink, pigment, adhesive, sealant, paste, paste-type material, lubricant, paint, paste cosmetics, emulsion, cream food and additive, etc.
Specifications
1 | Vacuum Degree | -0.098MPa |
2 | Structure | Planetary power mixer and discharge extruder are installed on the same work table. |
3 | Rotation Speed r/min | Revolution:0~60r/min,Rotation:0~170r/min ( Frequency-converting); High speed:0~1210r/min ( Frequency-converting) |
4 | Slow Shaft | 2 shafts with hinge stirrers, with bottom scraper and wall scraper. |
5 | Fast shaft | Single fast shaft, one Φ56 dispersion disk structure |
6 | Lifting mode of vessel cover | Hydraulic |
7 | Lifting height of vessel cover | 250mm |
8 | Mode of Temperature Measurement | Temperature detector fixed on scraper, rotation electric conduction device inside, temperature detector contacting material, it is exact for measurement, the patent no. of this device is Z200520112283.5. |
9 | Location of vessel | Adopt guiding device for pushing and location way of V shape |
10 | Total Power(KW) | 3.25kw |
11 | Power Supply | AC,3 phase, 5wire, 380v/50Hz |
12 | Dimension | L1060 W1020 H2330(mm) |
13 | Weight(kg) | Abt 750kgs |
Details
Material Extruder

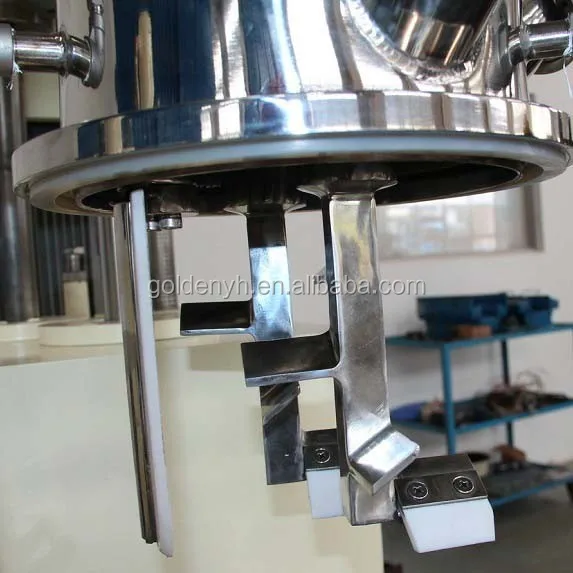

Hinge Stirrer
Flexible Scraper
