Product Overview
Description
Product Description

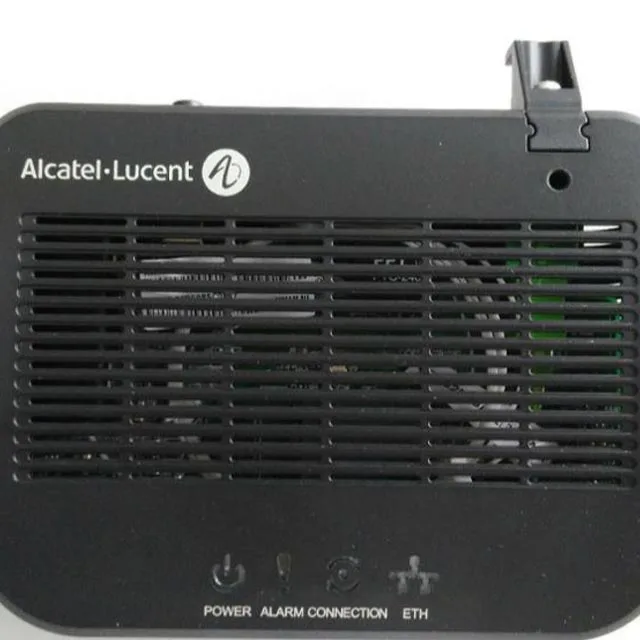

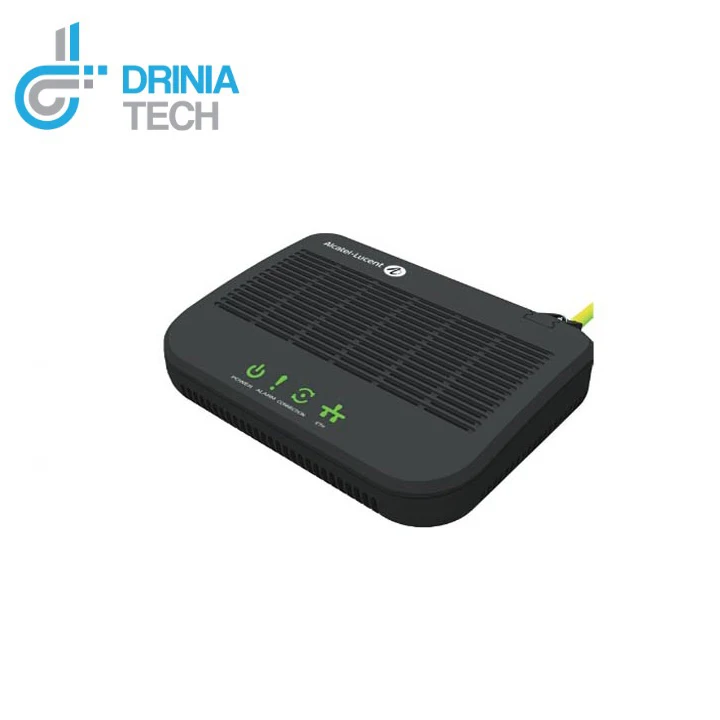

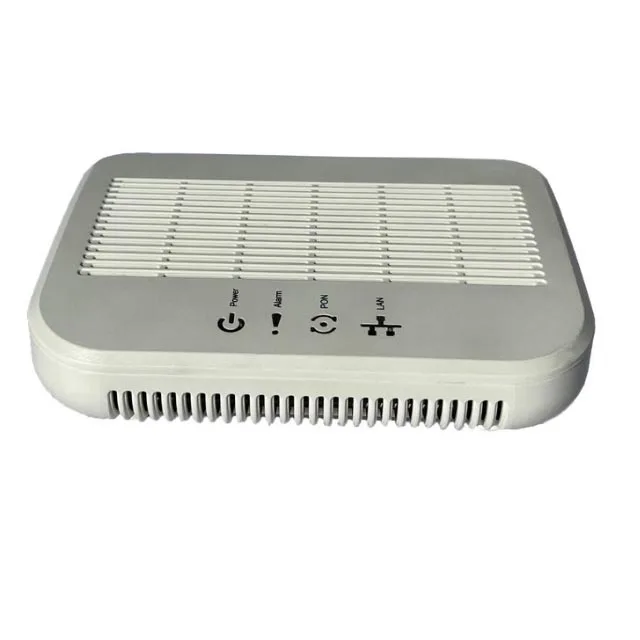

NOKIA G-010G-P GPON ONT
G-010G-P indoor ONT provides a subscriber interface for the 7360 ISAM FX and 7302 ISAM. The ONT terminates the PON interface and converts it to a user interface that directly connects to subscriber devices.
Features
• Fully G.984 series GPON standard compliant.
• Advanced data features such as VLAN tag manipulation, classification, and filtering.
• IGMP v2/3 snooping
• Support for multicast GEM port
• G984.4 standard-compliant ONT Management Control Interface (OMCI) for ONT management and provisioning.
• Auto-negotiation and MDI/MDIX auto-sensing.
• AES decryption with key generation and switching.
•Optics that support received signal strength indication (RSSI).
• FEC in both directions • Performance monitoring and alarms.
Specification
OPTICAL PARAMETERS
Upstream wavelength operation - Minimum: 1290 nm
Typical: 1310 nm
Maximum: 1330 nm
INTERFACES
Upstream wavelength operation - Minimum: 1290 nm
Typical: 1310 nm
Maximum: 1330 nm
INTERFACES
10/100/1000BASE-T - 1
GPON SC/APC - 1
GPON SC/APC - 1
CONNECTION DESCRIPTION
Fiber optic port - The SC/APC connection is provided through a fiber optic cable.
Ethernet port - This connection is provided through an Ethernet RJ-45 cable. One Ethernet connection is supported. The Ethernet port supports both data and in-band video services.
Fiber optic port - The SC/APC connection is provided through a fiber optic cable.
Ethernet port - This connection is provided through an Ethernet RJ-45 cable. One Ethernet connection is supported. The Ethernet port supports both data and in-band video services.
BUTTONS
Reset button - Pressing the Reset button for less than 10 seconds reboots the ONT, keeping the key parameter values and the LOID/SLID. Pressing the Reset button for 10 seconds resets the ONT to its factory defaults, except for the LOID/SLID. Pressing the Reset button for any length of time will cause all LEDs to blink.
ON/OFF button - This button turns the ONT on or off.
ON/OFF button - This button turns the ONT on or off.
Packing & Delivery
Packing
It can be packed in ways according to customer needs:
Bulk: with or without accessories is wrapped in plastic bag, and put in bulk boxes or palletized for economical transport.
Individually boxed: Each one is wrapped in plastic bag, and packaged individually in a new blank paper box along with accessories.
Bulk: with or without accessories is wrapped in plastic bag, and put in bulk boxes or palletized for economical transport.
Individually boxed: Each one is wrapped in plastic bag, and packaged individually in a new blank paper box along with accessories.
Delivery
Shipping way:
-By air;
-By sea;
-Or express (UPS, DHL, Fedex...)
-By air;
-By sea;
-Or express (UPS, DHL, Fedex...)
