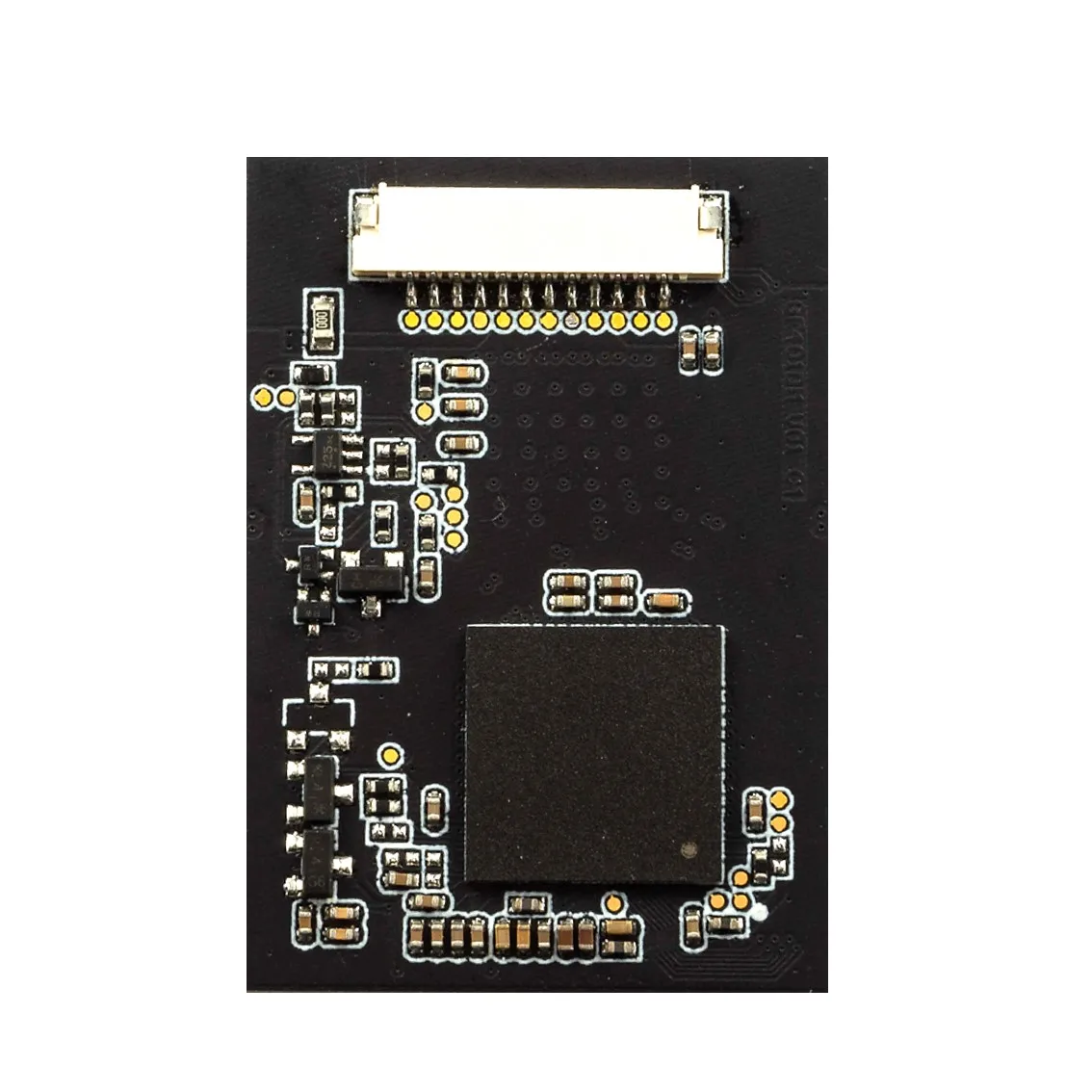

FAP20 FBI 300 x 400 Pixel Fingerprint Scanner Sensor Module
- Category: >>>
- Supplier: MIDAS TOUCH SOLUTIONS INC.
Share on (10000006082830):
Product Overview
Description
Features
Complete Fingerprint Sensor Module: | FAP30 Sensor: |
FAP30 Sensor | Pixel: 400 x 500 |
iG101 Sensor Controller | Pixel Size: 50.8μm x 50.8μm |
Module Size: 42mm x 32 x 4.25 | Spatial Resolution: 500dpi |
Connect Used: 832JDXXPTX-42 (10pin/pitch 1.0mm) | Sensing Area: 20.32mm x 25.4mm |
Housing Material: Steel | Sensor Pad Size: 0.8 x 0.8mm |
ESD Tolerance: +/-15KV | Sensor Package Size: 42mm x 32mm x 4.25mm |
iG101 Controller | Power Consumption: |
SPI Clock: 8MHz | Total Supply Current: 15mA |
Package: QFN88 | Standby Current: 0.7mA |
Package Size: 10mm x 10mm x 0.85mm | Sleep Current: 65uA |
Note: All specifications are subject to change without furthur notice.
