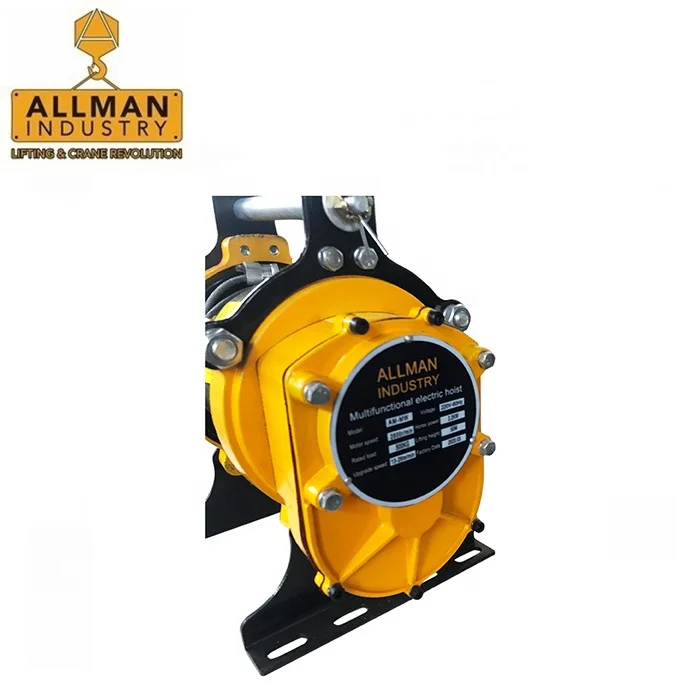

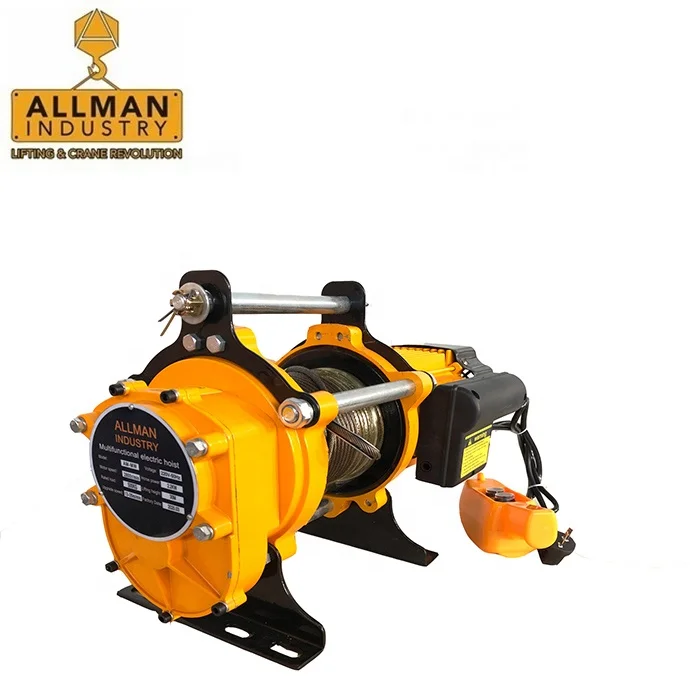

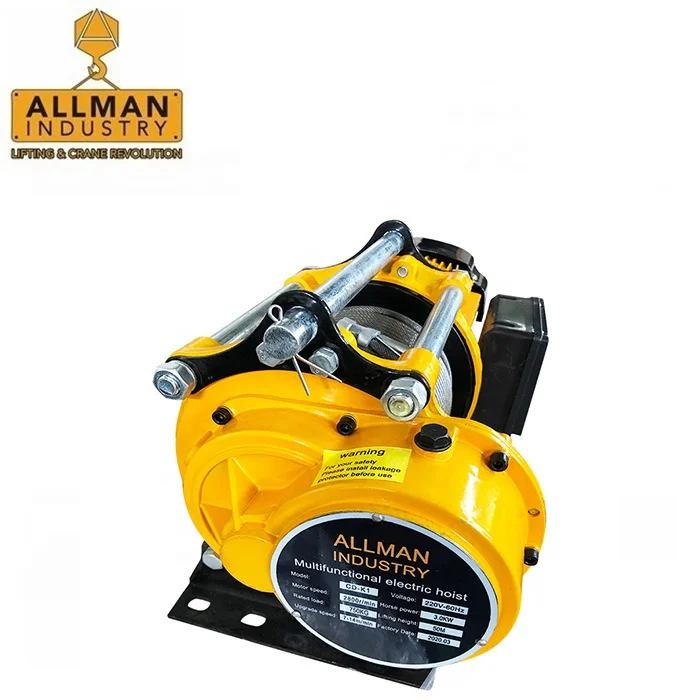

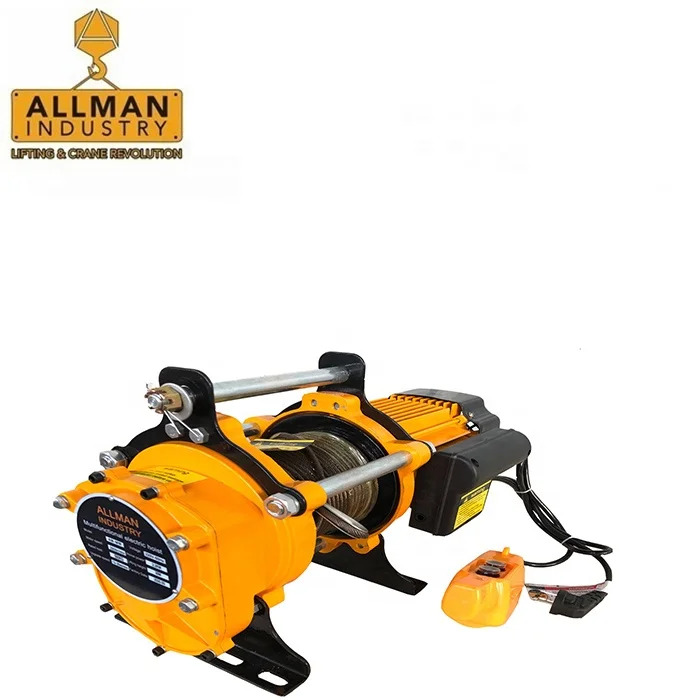

1000kg High Speed Portable 220V Electric Winch
- Category: >>>
- Supplier: Nantong Allman Industry Co. Ltd.
Share on (10000006111967):
Product Overview
Description
Products Description
* Mini size and aluminum shell of light weight
* 1 Phase or 3 Phase can be adjusted.
2.Great Working Performance
* Aluminum material brings good heating dissipation performance.
* Lifting and pulling function are both available.
3.Large Capacity and Wide Application
* High speed winch can be easily changed the rope reeving, so the load capacity could be doubled.
4.Easy Mounting
* The holes on the foot mounting could be fixed on the ground or other equipment.
* 1 Phase or 3 Phase can be adjusted.
2.Great Working Performance
* Aluminum material brings good heating dissipation performance.
* Lifting and pulling function are both available.
3.Large Capacity and Wide Application
* High speed winch can be easily changed the rope reeving, so the load capacity could be doubled.
4.Easy Mounting
* The holes on the foot mounting could be fixed on the ground or other equipment.
Details

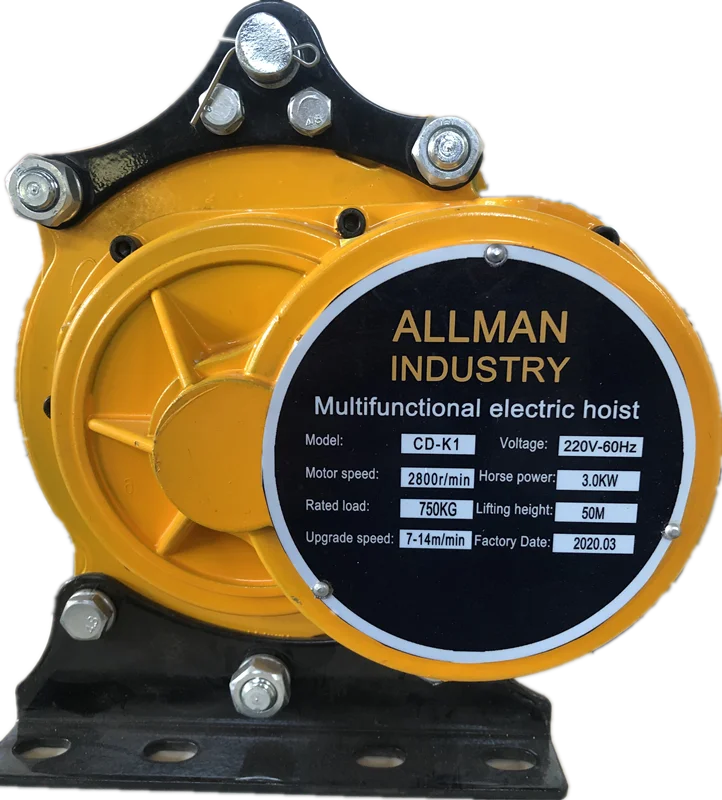

Aluminum Shell
The whole body of Allman Electric Winch adopts aluminum material, light and strong, durable and beautiful.

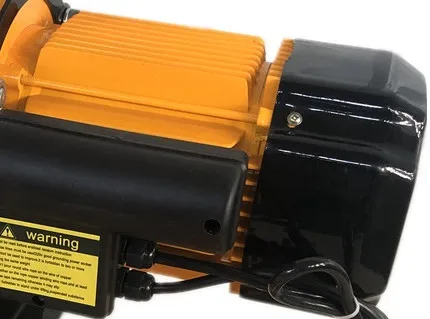

Pure Copper Motor
The pure copper motor has strong power and long service life. It could work for a long time.
The cool fan on the side brings great heat dissipation.
Anti-Rotation Wire Rope
Strong steel wire rope is consist of multi-strand winding solid wire rope. It has strong tenacity and wearable.

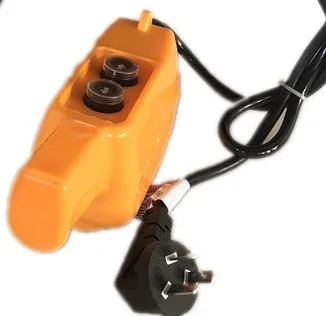

Pendant Control
This 1000kg portable electric winch is easy to operate and equipped with safety control voltage.

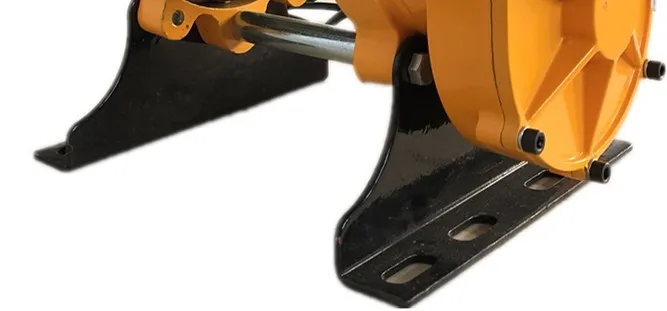

Thickened Base
The base could be fixed on the ground and other strong brackets. This 220V electric winch is stable and has high safety.
Testing Video of Electric Winch 220V
Product Paramenters
Model | AMG 300/600 | AMG 400/800 | AMG 500/1000 | AMG 750/1500 | |||||||||||
Rope Reeving | Single | Double | Single | Double | Single | Double | Single | Double | |||||||
Rated Capacity | 300kg | 600kg | 400kg | 800kg | 500kg | 1000kg | 750kg | 1500kg | |||||||
Working Speed | 13-22m/min | 9-17m/min | 15-26m/min | 7-14m/min | |||||||||||
Wire Rope Length | 30~50m | 30~100m | 30~100m | 30~100m | |||||||||||
Wire Rope Dia. | 4mm | 5mm | 6mm | 7mm | |||||||||||
Motor Power | 1.3kW | 1.4kW | 2.2kW | 3.0kW | |||||||||||
Rotation Speed | 2800r/min | ||||||||||||||
Voltage | AC 220V, 1Phase AC 220V/380V/440V, 3Phase | ||||||||||||||

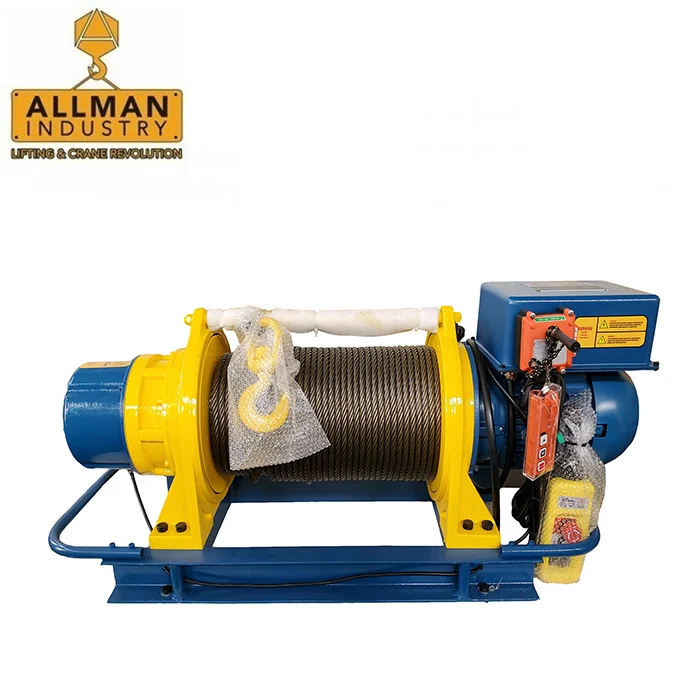

More Product
Company Profile
Exhibition
Professional Service Team
Certifications
Workshop

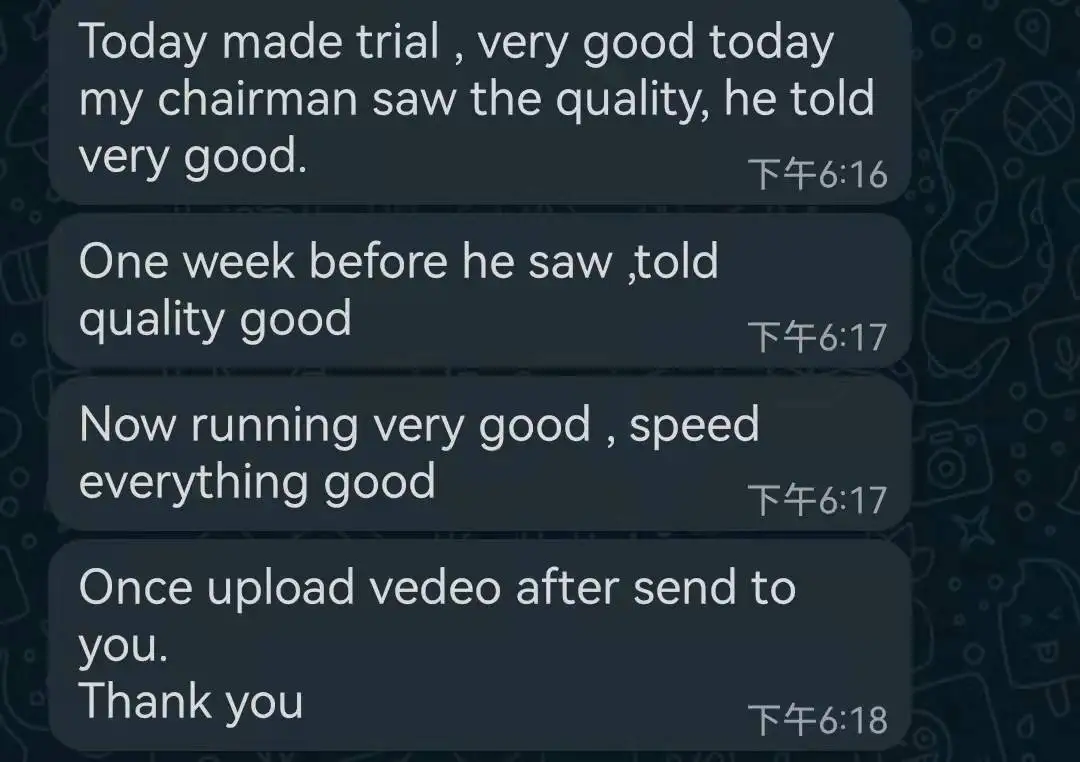

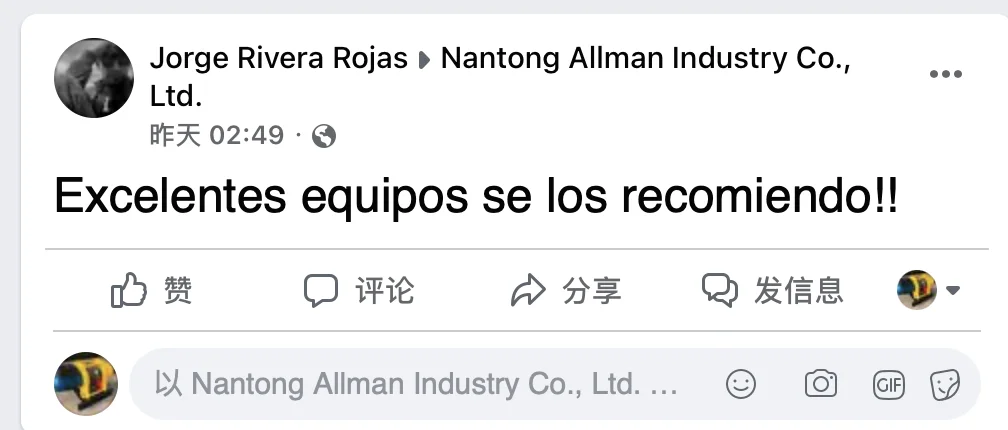

Customers Feedback
FAQ
Q1: Are you a factory or a trading company?
A1:We are a combination of both, we focused on manufacturing material handling product such as lift tables, manual & electricpallet trucks and lifting platforms over 20 years, we also exporting manual & electric chain hoist, lever hoisting, lifting clamp and steel jack. We are your ideal choice for one stop purchase with our compete line of industrial lifting/moving equipment.
Q2: Can you provide customized products? OEM products or ODM products?
A2: Yes, we can provide customized products according to your requirement. Both OEM and ODM are acceptable.
Q3: Can we print the LOGO on products?
A3: Yes, the OEM is available with the permission of our customers.
Q4: How do you control your quality?
A4: 1. We only select high-quality steel material from famous steel group
2. Standardized production process with traceable ID Card, every part can be tracked.
3. 100% finished product testing before shipping.
4. We accept third party product inspections.
5. ISO9001 Quality management system certificated factory
6. Supervised container loading process, ensures the last step security
Q5: How long is the warranty on your products?
A5: We provide 12 months warranty for all of our product, excluding wear parts such as wheels, tire or hydraulic oil.
Q6: What's the lead time for production?
A6: Usually around 10-15 days after payment received, around 30 days during new year's or national holidays.
Q7: What Payment terms do you accept?
A7: T/T or L/C, if you want any other method please contact sales
Q8: What are your advantages compared to the others?
A8:Unique products, with customized service.
Timely production and delivery.
Market protection service, long term business strategy.
A1:We are a combination of both, we focused on manufacturing material handling product such as lift tables, manual & electricpallet trucks and lifting platforms over 20 years, we also exporting manual & electric chain hoist, lever hoisting, lifting clamp and steel jack. We are your ideal choice for one stop purchase with our compete line of industrial lifting/moving equipment.
Q2: Can you provide customized products? OEM products or ODM products?
A2: Yes, we can provide customized products according to your requirement. Both OEM and ODM are acceptable.
Q3: Can we print the LOGO on products?
A3: Yes, the OEM is available with the permission of our customers.
Q4: How do you control your quality?
A4: 1. We only select high-quality steel material from famous steel group
2. Standardized production process with traceable ID Card, every part can be tracked.
3. 100% finished product testing before shipping.
4. We accept third party product inspections.
5. ISO9001 Quality management system certificated factory
6. Supervised container loading process, ensures the last step security
Q5: How long is the warranty on your products?
A5: We provide 12 months warranty for all of our product, excluding wear parts such as wheels, tire or hydraulic oil.
Q6: What's the lead time for production?
A6: Usually around 10-15 days after payment received, around 30 days during new year's or national holidays.
Q7: What Payment terms do you accept?
A7: T/T or L/C, if you want any other method please contact sales
Q8: What are your advantages compared to the others?
A8:Unique products, with customized service.
Timely production and delivery.
Market protection service, long term business strategy.
