Roller glass coating machine
US $10000-$13000
2.5m air blade type horizontal glass washing and drying machine
- Category: Glass Processing Machinery >>>
- Supplier: Liaoda (LAD) Glass Machinery Co. Ltd.
Share on (10000006208165):
Product Overview
Description

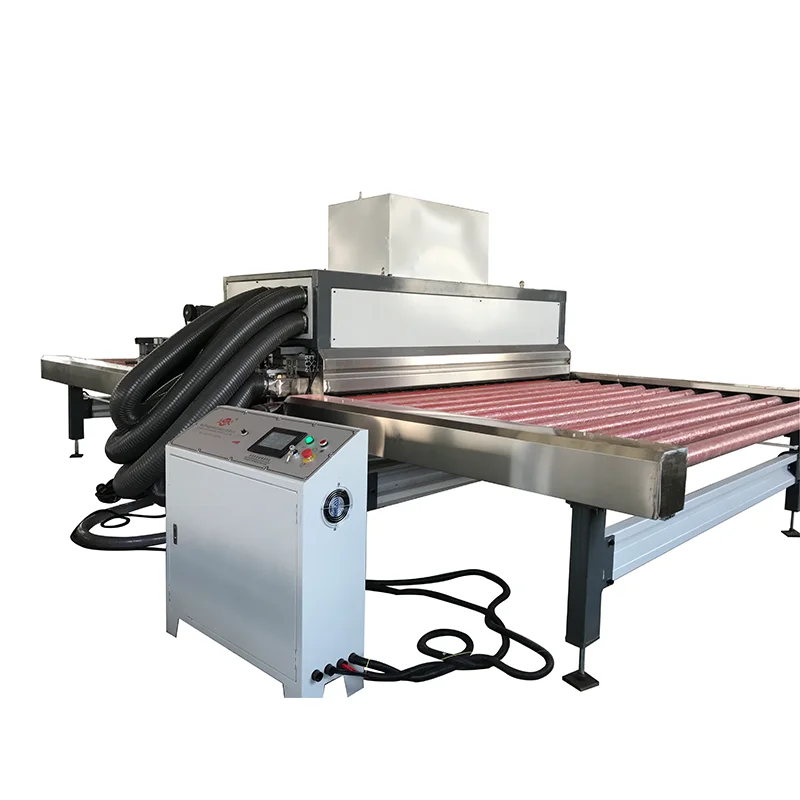

2.5m air blade type glass washing and drying machine
Model Number | YD-HWB-2500 |
Max.glass width(mm) | 2500 |
Min.glass (mm) | 300×400 |
Glass thickness(mm) | 3~25 |
Glass speed(m/min) | 0.8~17 |
Compressed air Consumption (lt/min) | <0.5 |
Pressure(kg/cm2) | 8 |
Power(kw) | 30 |
Outer dimension(m) | 7×3.0×2.4 |
Weight(kg) | 4000 |
* Max glass size 2500mm, min glass size: 300x400mm, thickness 3-25mm
* Transport speed: 0.8-17m/min (adjustable)
* Flat glass and Low-e glass

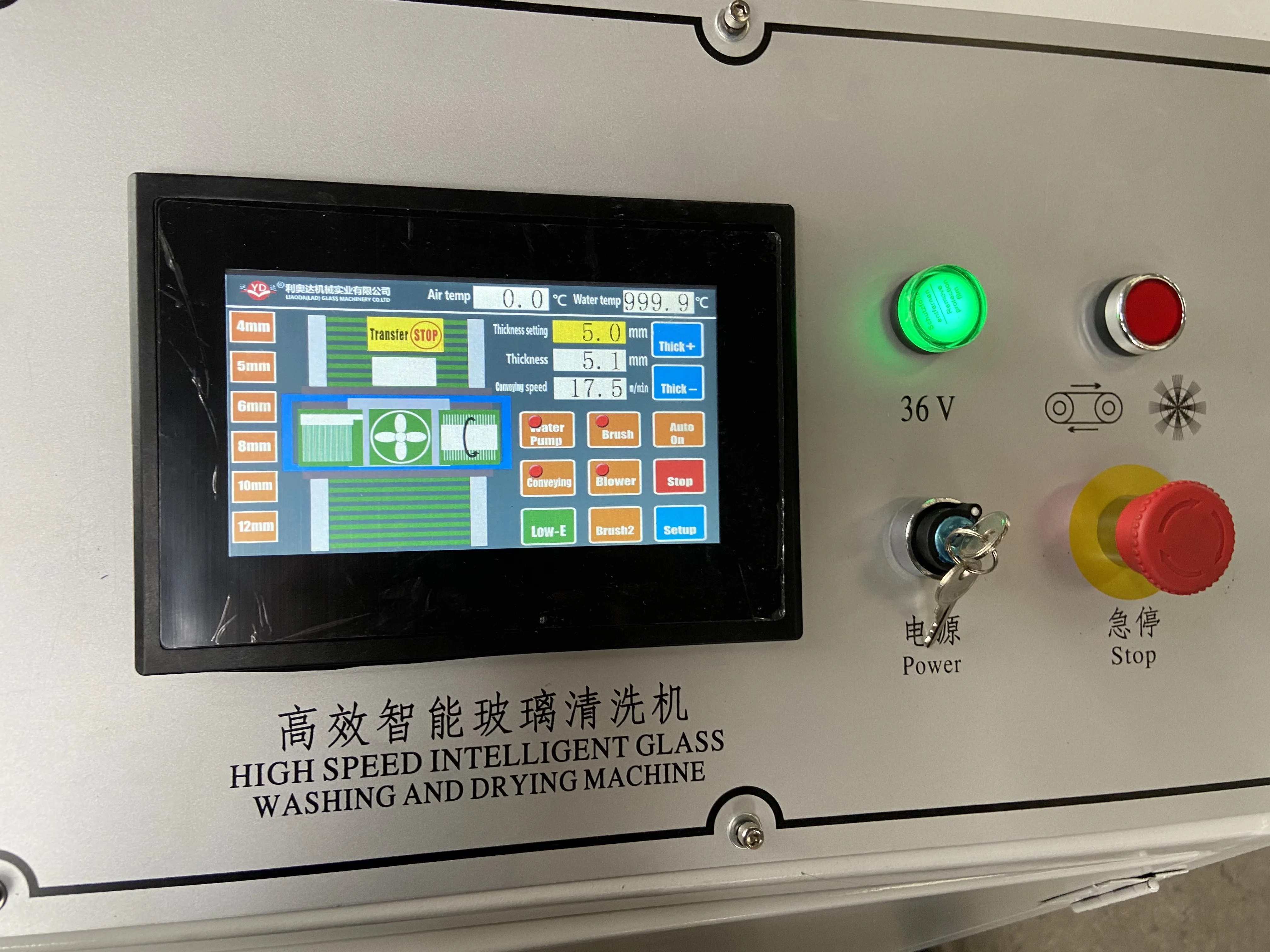

* PLC, touch screen control

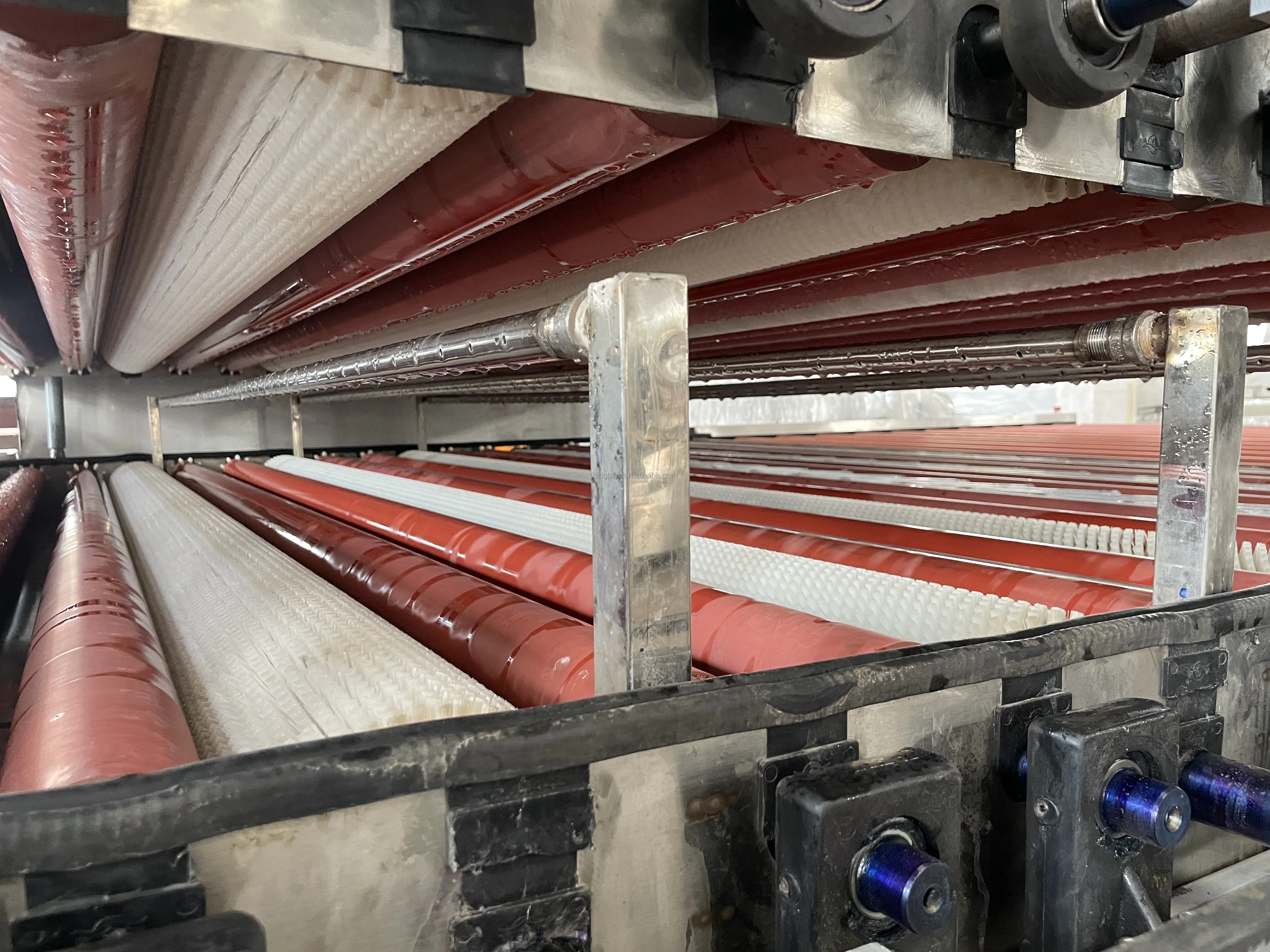

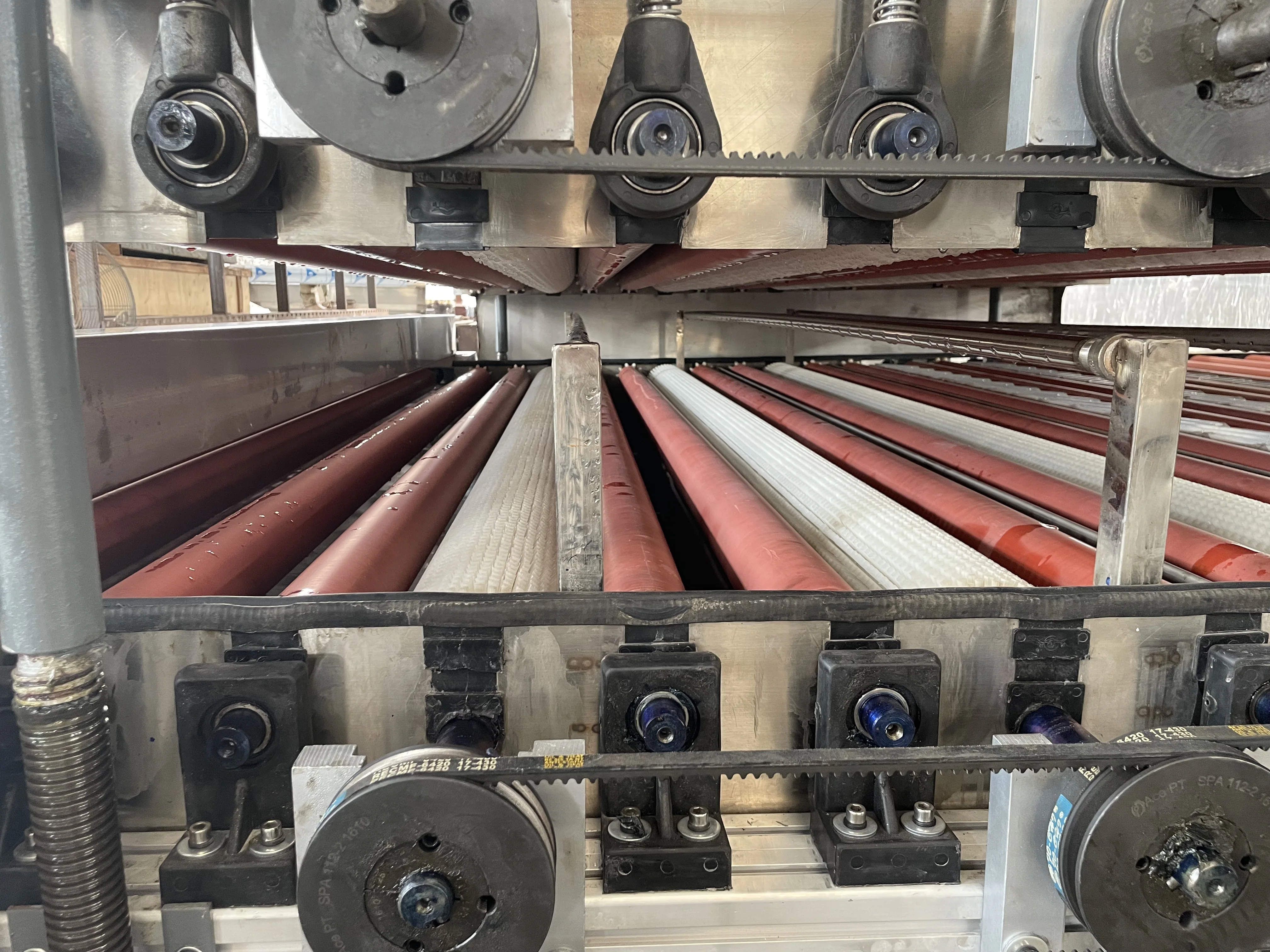

* 3 pairs (6pcs) of rotary brushes (up and down)
* 3 sets of high-pressure air blades
* Washing section height adjustable (0-350mm)
* 3 water tanks, 3 water pumps
* Can install water heater
* Inner circuit air system, no need air heater.
* CE Certificate

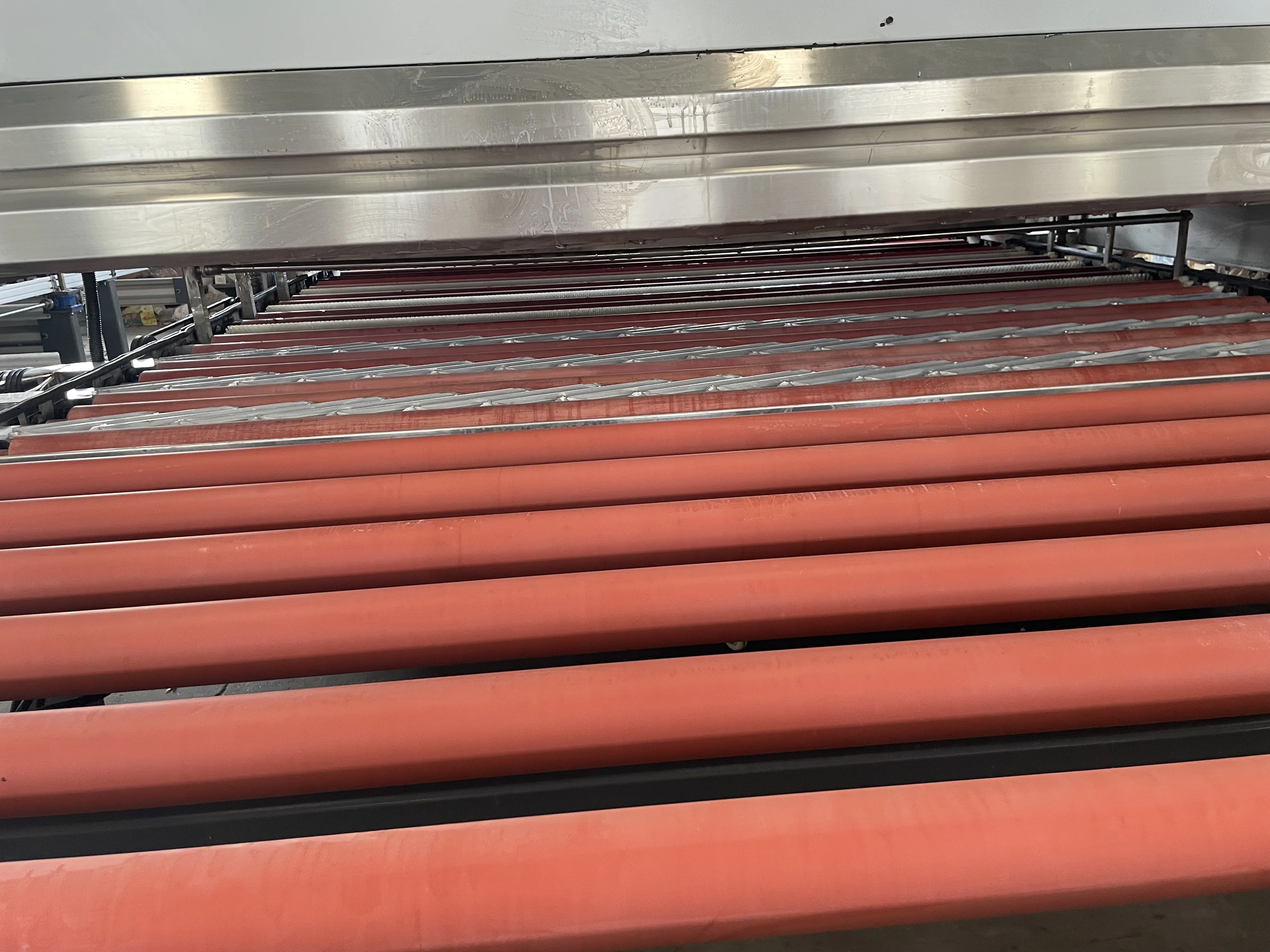

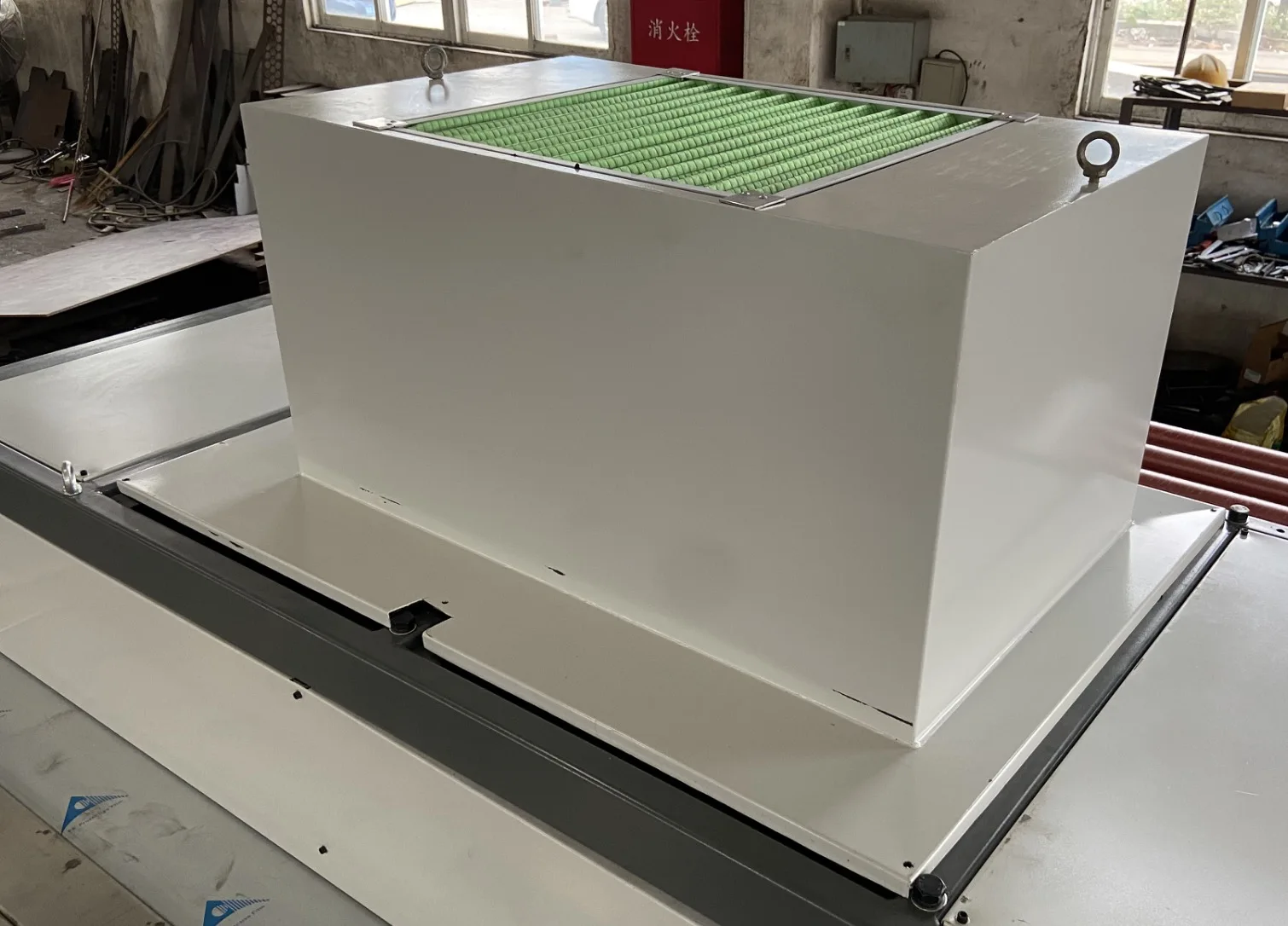

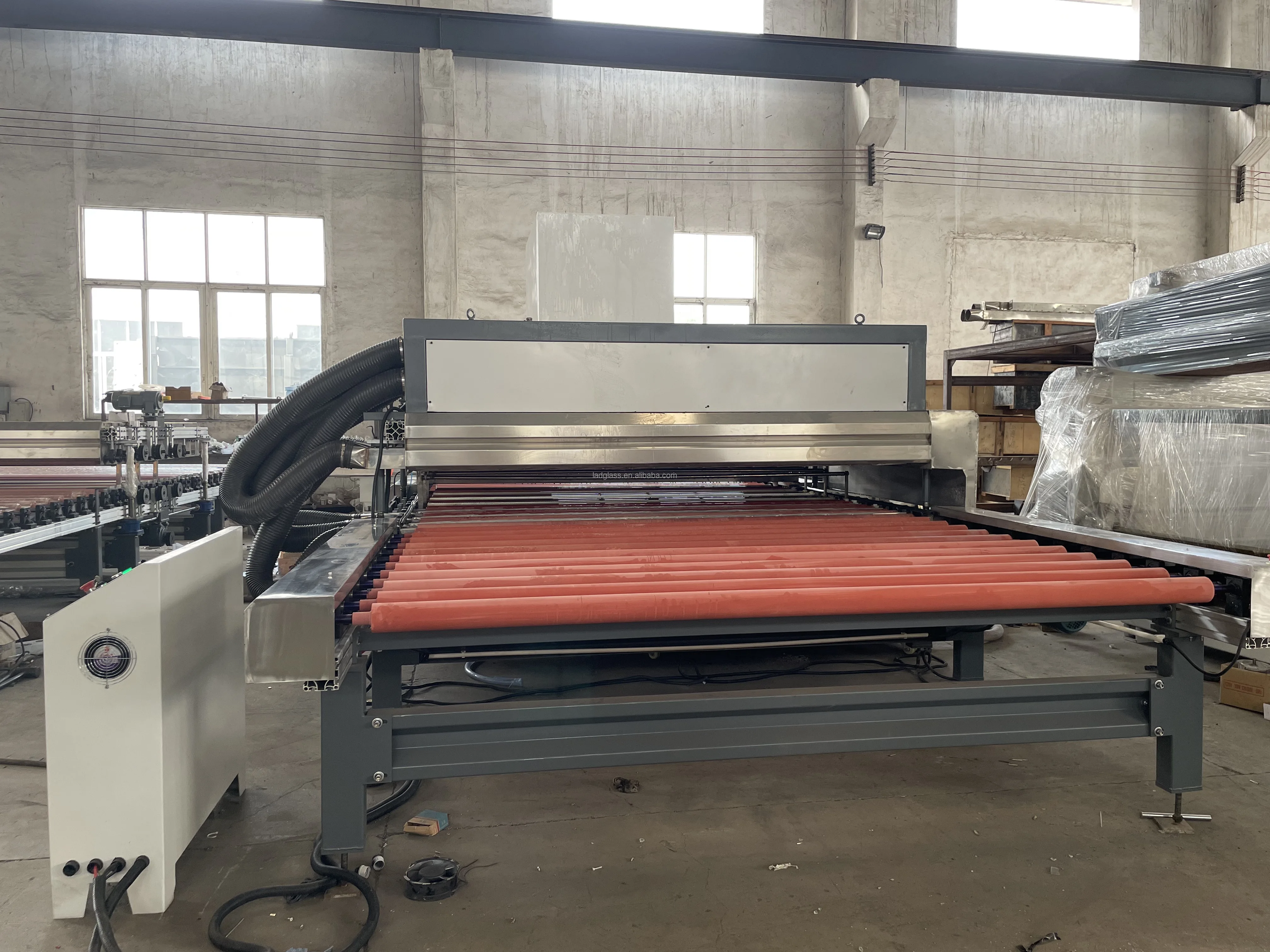

Machine in workshop :

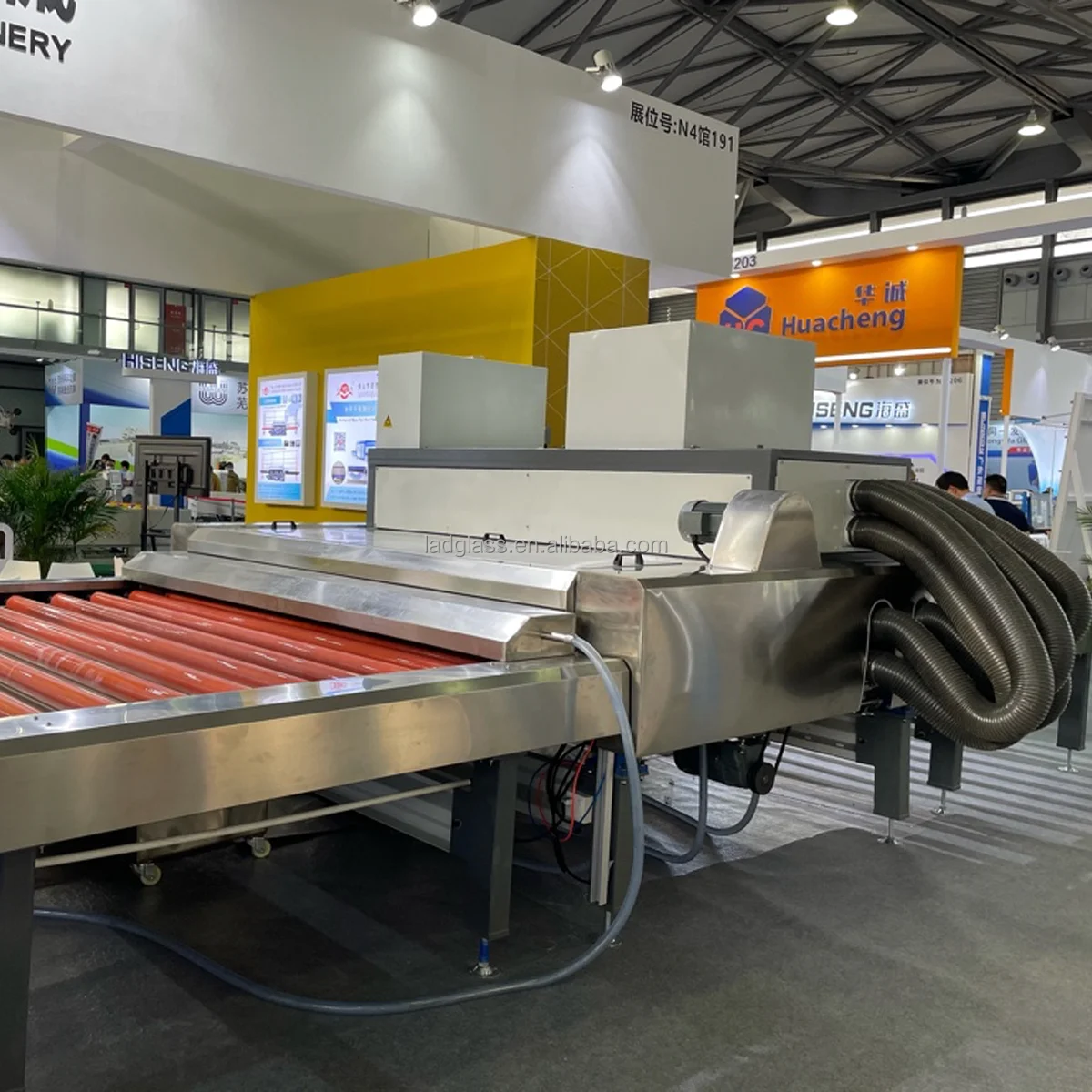

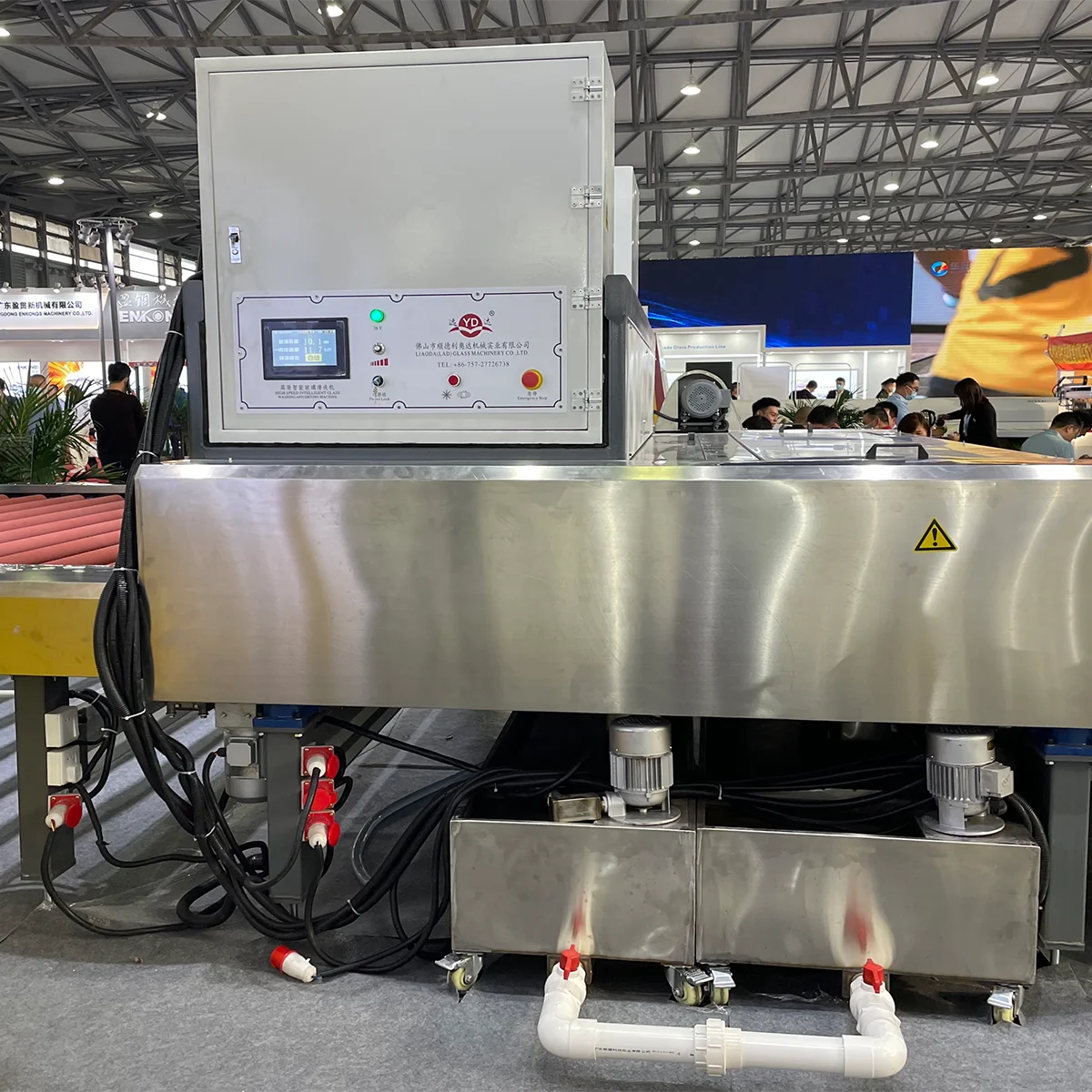

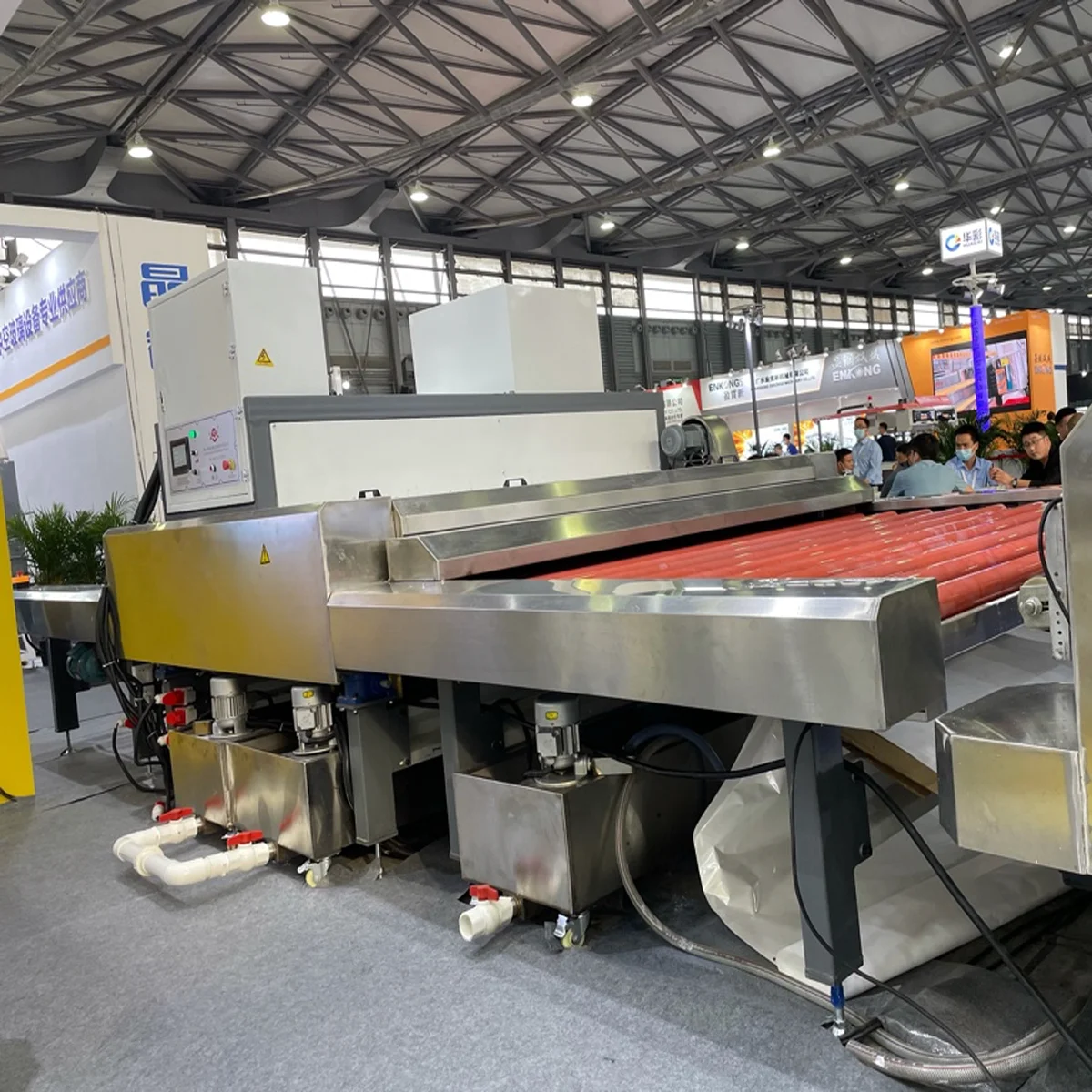

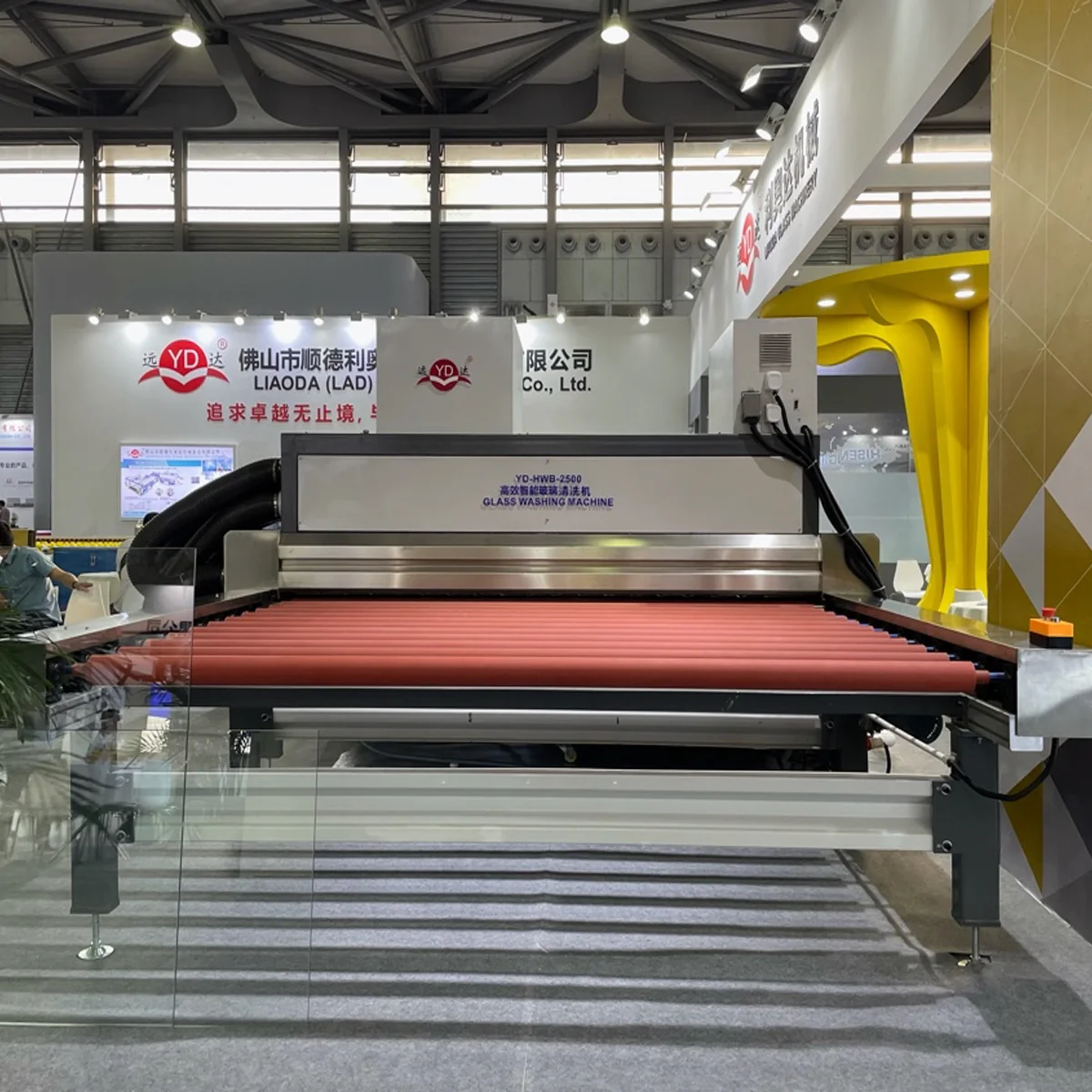

Machine in Chinaglass 2021
Warranty and service:
- 1 year warranty for the machine
- Life time service available for parts and malfunctions
- 24 hour on line service
- Working video and installation video avaible
- Provide English operation manual
Payment term and shipping:
- By T/T, 30% deposit, balance paid before delivery
- Machine delivery after 30 days production.
- Machine loading in container or sending by LCL cargo is permit
- Shipping agent will be offer if you required
